Model # IR212 Official Ingersoll Rand impact wrench

Here are the diagrams and repair parts for Official Ingersoll Rand IR212 impact wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |

Q-c Chuck 502-A925-7
#84A

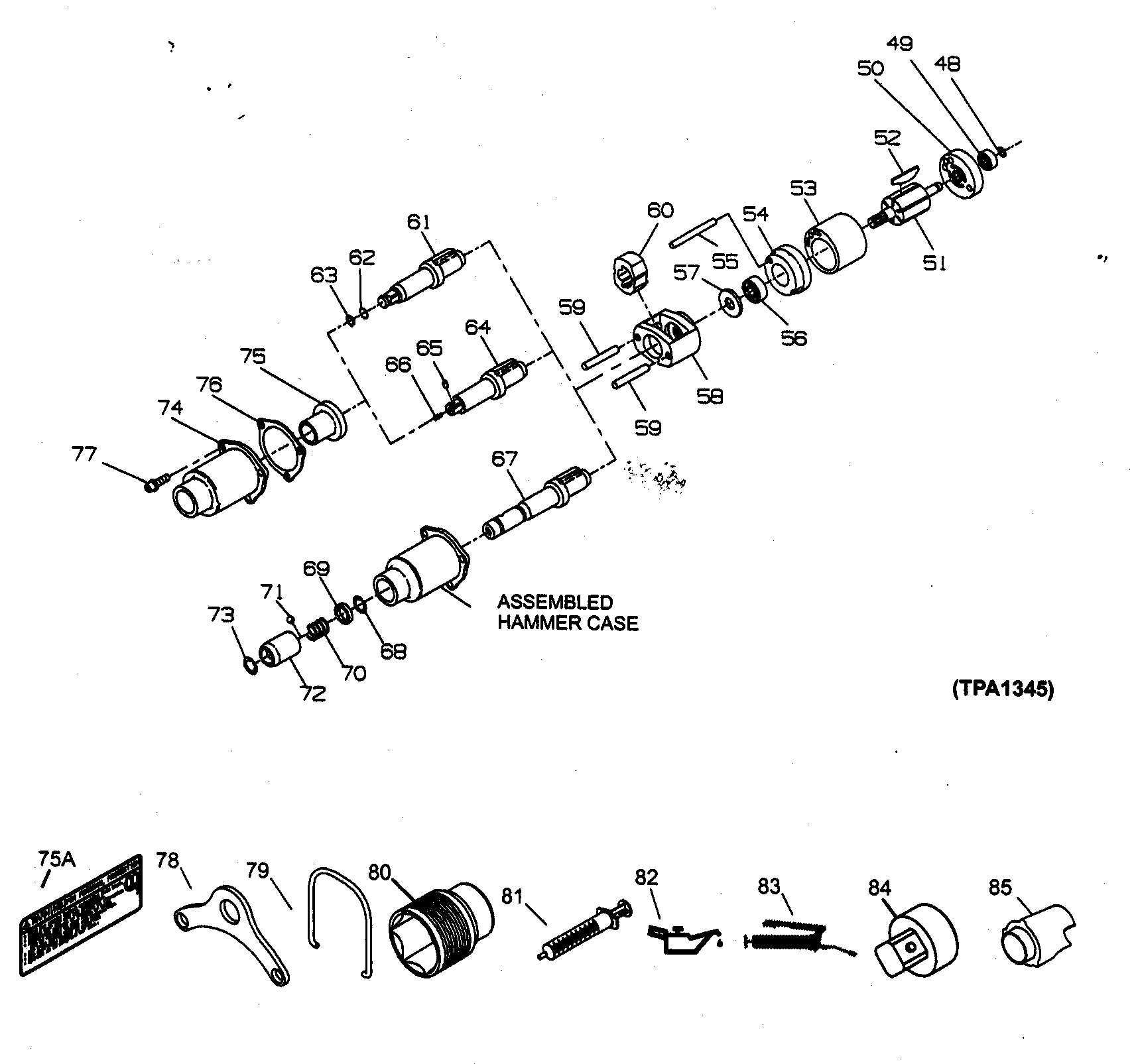

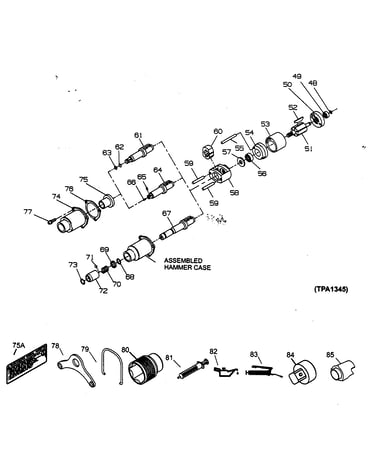

Wrench assy 2 diagram

Q-c chuck

Part #502-A925-7

The manufacturer no longer makes this part, and there's no substitute part

Rotor 401-53
#51

Wrench assy 2 diagram

Rotor

Part #401-53

The manufacturer no longer makes this part, and there's no substitute part

Ret Pin R100B-120
#39

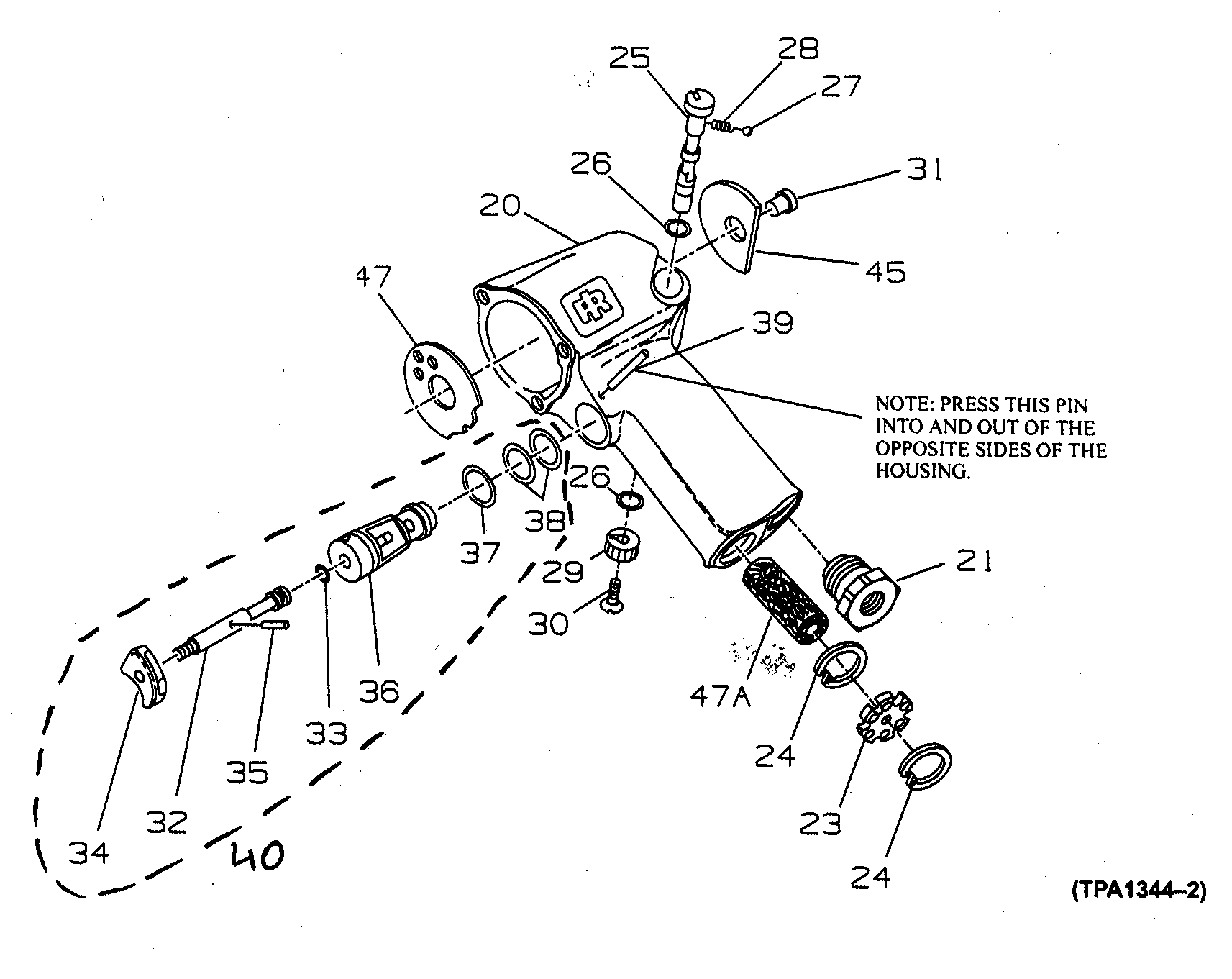

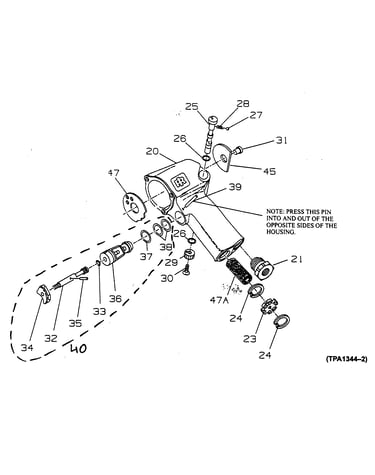

Wrench assy 1 diagram

Ret pin

Part #R100B-120

The manufacturer no longer makes this part, and there's no substitute part

Seal 410-283
#37

Wrench assy 1 diagram

Seal

Part #410-283

The manufacturer no longer makes this part, and there's no substitute part

Injector 230-228
#81

Wrench assy 2 diagram

Injector

Part #230-228

The manufacturer no longer makes this part, and there's no substitute part

Bearing R00H-97
#56

Wrench assy 2 diagram

Bearing

Part #R00H-97

The manufacturer no longer makes this part, and there's no substitute part

Anvil 1702-P726
#64

Wrench assy 2 diagram

Anvil

Part #1702-P726

The manufacturer no longer makes this part, and there's no substitute part

Hor Hanger 1901-366
#78

Wrench assy 2 diagram

Hor hanger

Part #1901-366

The manufacturer no longer makes this part, and there's no substitute part

Valve 1702P-329
#25

Wrench assy 1 diagram

Valve

Part #1702P-329

The manufacturer no longer makes this part, and there's no substitute part

O-ring R000BRIC-283
#33

Wrench assy 1 diagram

O-ring

Part #R000BRIC-283

The manufacturer no longer makes this part, and there's no substitute part
