Tappan V21A upright freezer - lx30889030

Tappan V21A upright freezer - lx30889030 Parts

Here are the diagrams and repair parts for Tappan V21A upright freezer - lx30889030, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for V21A Freestanding Freezers

  • Screw for Tappan V21A - Part 154518001

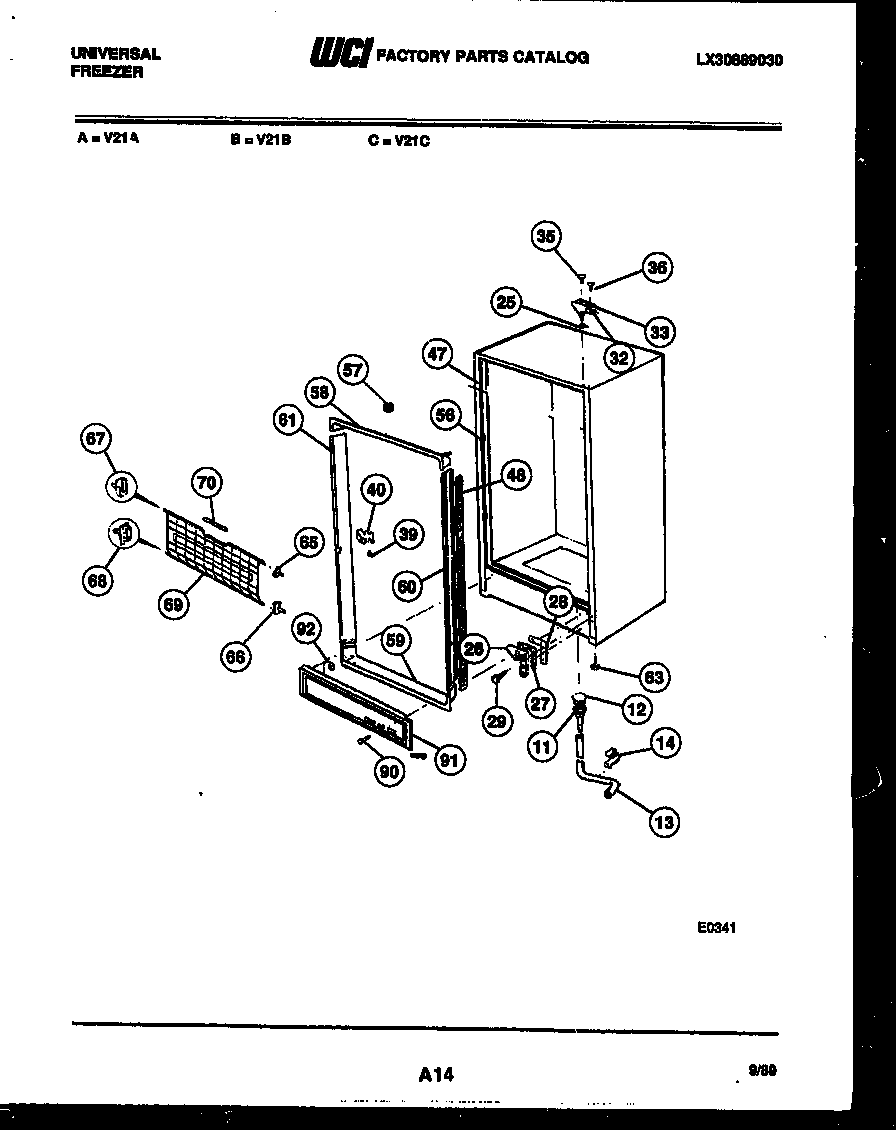

    Cabinet parts diagram

    Hinge Screw

    Part #F85863

    Replaced by #154518001

    Info Icon
    Manufacturer substitution
    This part replaces F85863. Substitute parts can look different from the original.
    In Stock
    $34.03
    Minus Item
    Qty
    Plus Item
  • Spacer for Tappan V21A - Part 08037937

    Cabinet parts diagram

    Spacer

    Part #F86536

    Replaced by #08037937

    Info Icon
    Manufacturer substitution
    This part replaces F86536. Substitute parts can look different from the original.
    In Stock
    $25.17
    Minus Item
    Qty
    Plus Item
  • Spacer for Tappan V21A - Part 5300081445

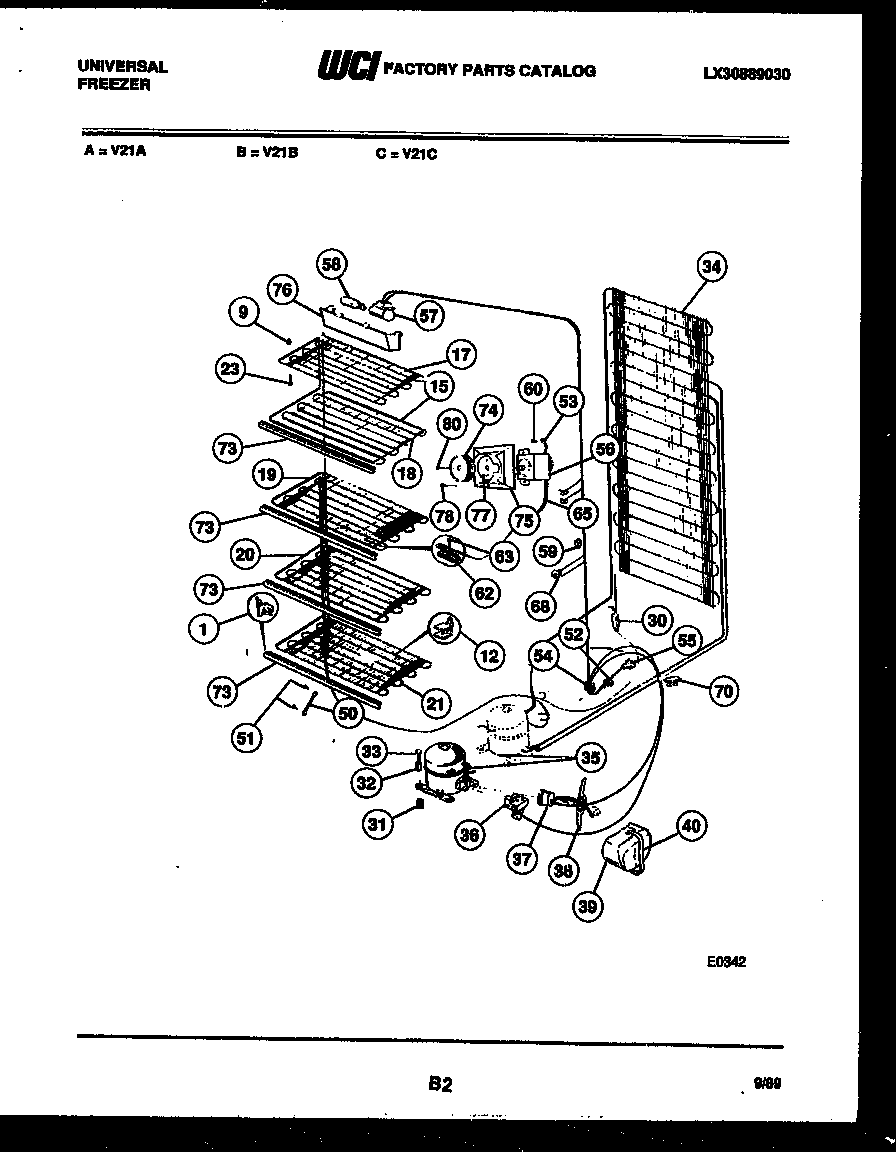

    System and electrical parts diagram

    Spacer

    Part #F81445

    Replaced by #5300081445

    Info Icon
    Manufacturer substitution
    This part replaces F81445. Substitute parts can look different from the original.
    In Stock
    $27.73
    Minus Item
    Qty
    Plus Item
  • Panel for Tappan V21A - Part 216011602

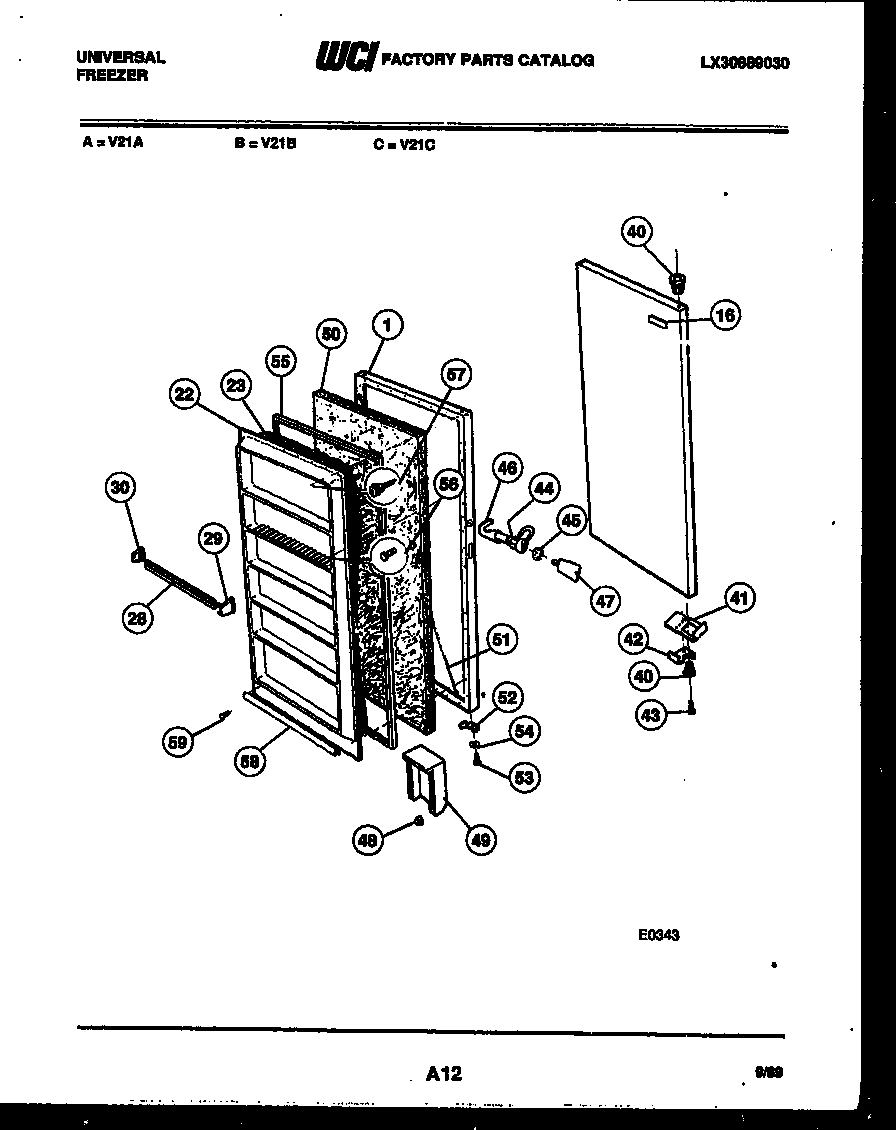

    Door parts diagram

    Outer Panel

    Part #F126594-S

    Replaced by #216011602

    Info Icon
    Manufacturer substitution
    This part replaces F126594-S. Substitute parts can look different from the original.
    In Stock
    $194.82
    Minus Item
    Qty
    Plus Item
  • Screw for Tappan V21A - Part 5300052943

    System and electrical parts diagram

    Clamp Screw

    Part #F52943

    Replaced by #5300052943

    Info Icon
    Manufacturer substitution
    This part replaces F52943. Substitute parts can look different from the original.
    In Stock
    $29.37
    Minus Item
    Qty
    Plus Item
  • Refrigeration Appliance Screw, #8-32 X 1/2-in for Tappan V21A - Part 216036601

    System and electrical parts diagram

    Screw

    Part #F99483

    Replaced by #216036601

    Info Icon
    Manufacturer substitution
    This part replaces F99483. Substitute parts can look different from the original.
    In Stock
    $36.03
    Minus Item
    Qty
    Plus Item
  • Refrigerator Heat Exchanger for Tappan V21A - Part 216385500

    System and electrical parts diagram

    Heat Exchange

    Part #F125197

    Replaced by #216385500

    Info Icon
    Manufacturer substitution
    This part replaces F125197. Substitute parts can look different from the original.
    In Stock
    $207.66
    Minus Item
    Qty
    Plus Item
  • Bumper for Tappan V21A - Part 5300118003

    Cabinet parts diagram

    Bumper

    Part #F118003

    Replaced by #5300118003

    Info Icon
    Manufacturer substitution
    This part replaces F118003. Substitute parts can look different from the original.
    In Stock
    $25.82
    Minus Item
    Qty
    Plus Item
  • Freezer Door Stop for Tappan V21A - Part 8016354

    Door parts diagram

    Door Stop

    Part #F124623

    Replaced by #8016354

    Info Icon
    Manufacturer substitution
    This part replaces F124623. Substitute parts can look different from the original.
    In Stock
    $45.67
    Minus Item
    Qty
    Plus Item
  • Duct for Tappan V21A - Part 5303212700

    Door parts diagram

    Air Duct

    Part #F128421

    Replaced by #5303212700

    Info Icon
    Manufacturer substitution
    This part replaces F128421. Substitute parts can look different from the original.
    In Stock
    $40.38
    Minus Item
    Qty
    Plus Item
