ICP NUL5075BFA1 gas fan assisted furnace Parts

Here are the diagrams and repair parts for ICP NUL5075BFA1 gas fan assisted furnace, as well as links to manuals and error code tables, if available.

ICP NUL5075BFA1 gas fan assisted furnace
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for NUL5075BFA1 Gas Fan Assisted Furnace

  • Furnace Air Pressure Switch for ICP NUL5075BFA1 - Part 1174276

    Functional diagram

    Control Pres

    Part #1093433

    Replaced by #1174276

    Info Icon
    Manufacturer substitution
    This part replaces 1093433. Substitute parts can look different from the original.
    In Stock
    $70.87
    8% OFF Phone Price : $76.87Info Icon
    Minus Item
    Qty
    Plus Item
  • Furnace Combustion Blower Gasket, 10-pack for ICP NUL5075BFA1 - Part 1162354

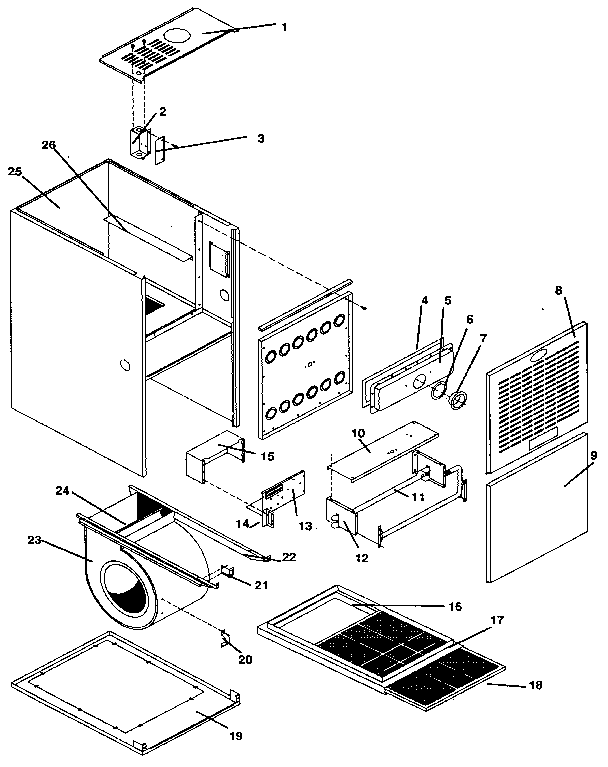

    Non-functional diagram

    Gasket Blo .

    Part #2480903

    Replaced by #1162354

    Info Icon
    Manufacturer substitution
    This part replaces 2480903. Substitute parts can look different from the original.
    In Stock
    $95.19
    Minus Item
    Qty
    Plus Item
  • Housing for ICP NUL5075BFA1 - Part 1013131

    Non-functional diagram

    Housing Blr

    Part #1007787

    Replaced by #1013131

    Info Icon
    Manufacturer substitution
    This part replaces 1007787. Substitute parts can look different from the original.
    In Stock
    $26.31
    Minus Item
    Qty
    Plus Item
  • Top for ICP NUL5075BFA1 - Part 1011534

    Non-functional diagram

    Top Frnt Gry

    Part #1007624

    Replaced by #1011534

    Info Icon
    Manufacturer substitution
    This part replaces 1007624. Substitute parts can look different from the original.
    In Stock
    $26.77
    Minus Item
    Qty
    Plus Item
  • Tubing for ICP NUL5075BFA1 - Part 64930

    #NI

    All parts diagram

    Pilot Tube

    Part #1008043

    Replaced by #64930

    Info Icon
    Manufacturer substitution
    This part replaces 1008043. Substitute parts can look different from the original.
    In Stock
    $193.08
    Minus Item
    Qty
    Plus Item
  • Switch Doo for ICP NUL5075BFA1 - Part 1010712

    Functional diagram

    Door Switch

    Part #1445594

    Replaced by #1010712

    Info Icon
    Manufacturer substitution
    This part replaces 1445594. Substitute parts can look different from the original.
    In Stock
    $556.56
    Minus Item
    Qty
    Plus Item
  • Switch Doo for ICP NUL5075BFA1 - Part 1010712

    Non-functional diagram

    Door Bracket

    Part #750010010

    Replaced by #1010712

    Info Icon
    Manufacturer substitution
    This part replaces 750010010. Substitute parts can look different from the original.
    In Stock
    $556.56
    Minus Item
    Qty
    Plus Item
  • Block for ICP NUL5075BFA1 - Part 96471

    Functional diagram

    Terminal Blo

    Part #1820104

    Replaced by #96471

    Info Icon
    Manufacturer substitution
    This part replaces 1820104. Substitute parts can look different from the original.
    In Stock
    $40.16
    Minus Item
    Qty
    Plus Item
  • Filter Cover for ICP NUL5075BFA1 - Part 2791044

    #NI

    All parts diagram

    Filter Cover

    Part #2791042

    Replaced by #2791044

    Info Icon
    Manufacturer substitution
    This part replaces 2791042. Substitute parts can look different from the original.
    In Stock
    $49.99
    Minus Item
    Qty
    Plus Item
  • Cover Field for ICP NUL5075BFA1 - Part 710020004

    Non-functional diagram

    Cover Field

    Part #710020004

    The manufacturer no longer makes this part, and there's no substitute part
