Electric Line Trimmer

Model # 24085610 Official Craftsman cordless electric hedge trimmer

Here are the diagrams and repair parts for Official Craftsman 24085610 cordless electric hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Handle Loop 4077
#8

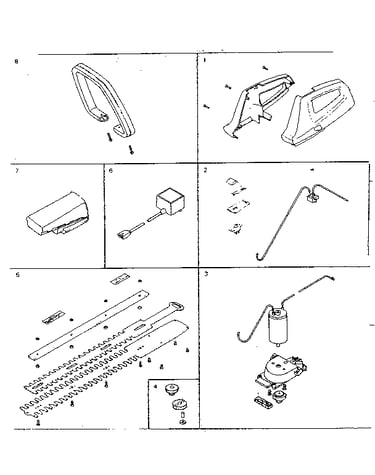

Unit parts diagram

Handle loop

Part #4077

The manufacturer no longer makes this part, and there's no substitute part

Screw 4819

#NI

All parts diagram

Screw

Part #4819

The manufacturer no longer makes this part, and there's no substitute part

Blade Bolt 2051

#NI

All parts diagram

Blade bolt

Part #2051

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 4040
#7

Unit parts diagram

Battery pack

Part #4040

The manufacturer no longer makes this part, and there's no substitute part

Charger 4014
#6

Unit parts diagram

Charger

Part #4014

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 4080
#1

Unit parts diagram

Housing assembly

Part #4080

The manufacturer no longer makes this part, and there's no substitute part

Gear Train 4081
#4

Unit parts diagram

Gear train

Part #4081

The manufacturer no longer makes this part, and there's no substitute part

Screw 3610

#NI

All parts diagram

Screw

Part #3610

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 4083
#2

Unit parts diagram

Switch assembly

Part #4083

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 4082
#3

Unit parts diagram

Motor assembly

Part #4082

The manufacturer no longer makes this part, and there's no substitute part
