Model # 536376610 Official Craftsman 18" hand reel lawn mower

Here are the diagrams and repair parts for Official Craftsman 536376610 18" hand reel lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |

Lock Nut 9424215
#6

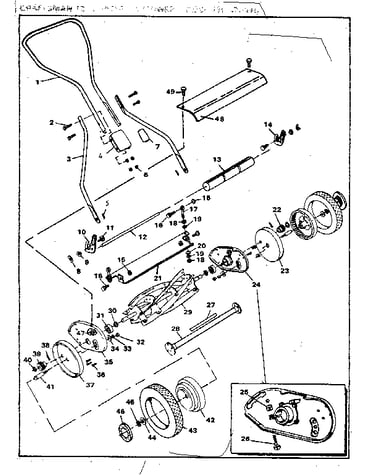

Replacement parts diagram

Lock nut

Part #9424215

Replaced by #703251

?
Manufacturer substitution
This part replaces 9424215. Substitute parts can look different from the original.
$8.07
11% OFF Phone Price : $9.07
In Stock
Washer 120386
#19

Replacement parts diagram

Washer

Part #120386

The manufacturer no longer makes this part, and there's no substitute part

Washer 274517
#34

Replacement parts diagram

Washer

Part #274517

The manufacturer no longer makes this part, and there's no substitute part

Screw 274707
#49

Replacement parts diagram

Screw

Part #274707

Replaced by #12342MA

?
Manufacturer substitution
This part replaces 274707. Substitute parts can look different from the original.
This item is not returnable
$6.89
13% OFF Phone Price : $7.89
In Stock
Carriage Bolt 998010
#11

Replacement parts diagram

Carriage bolt

Part #998010

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 997316
#47

Replacement parts diagram

Lock nut

Part #997316

Replaced by #997316MA

?
Manufacturer substitution
This part replaces 997316. Substitute parts can look different from the original.
This item is not returnable
In Stock
Axle Washer 642
#44

Replacement parts diagram

Axle washer

Part #642

Replaced by #17X192MA

?
Manufacturer substitution
This part replaces 642. Substitute parts can look different from the original.
$8.49
11% OFF Phone Price : $9.49
In Stock
Lock Washer 120382
#33

Replacement parts diagram

Lock washer

Part #120382

The manufacturer no longer makes this part, and there's no substitute part

Roller 53319
#13

Replacement parts diagram

Roller

Part #53319

The manufacturer no longer makes this part, and there's no substitute part

Tire 53555
#43

Replacement parts diagram

Tire

Part #53555

The manufacturer no longer makes this part, and there's no substitute part
