Countertop Microwave

Model # 7218783580 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218783580 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

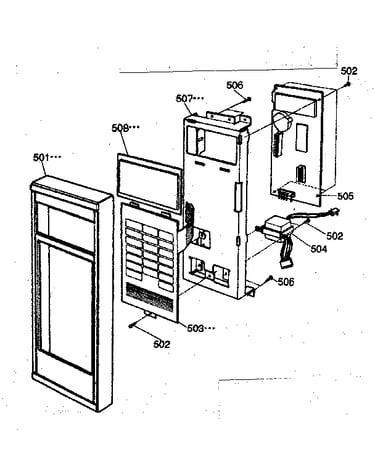

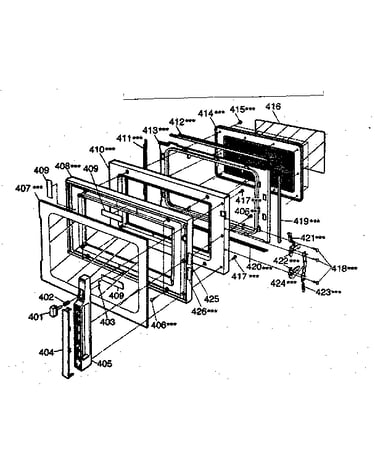

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
High-voltage Diode 500163
#318

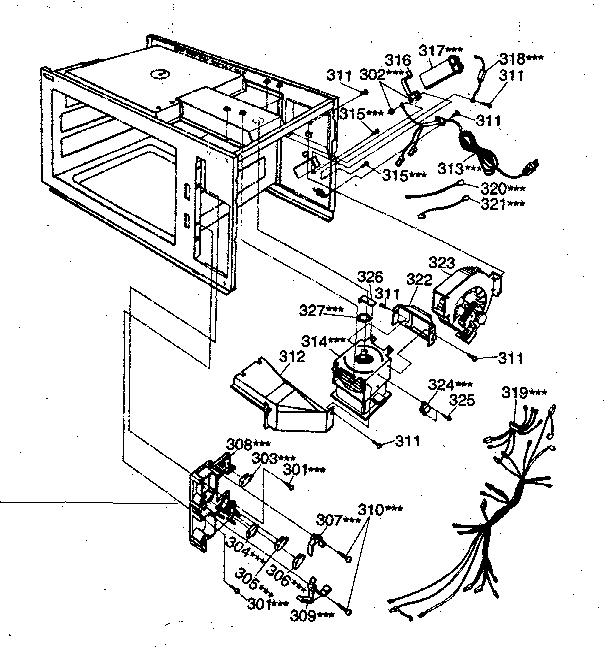

Switches and microwave parts diagram

High-voltage diode

Part #500163

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 500098
#314

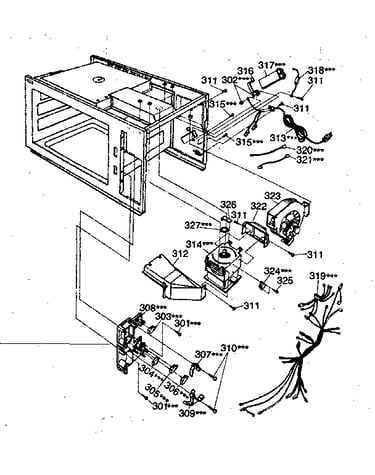

Switches and microwave parts diagram

Magnetron

Part #500098

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 500088
#303

Switches and microwave parts diagram

Micro-switch

Part #500088

The manufacturer no longer makes this part, and there's no substitute part

Triac 500082
#213

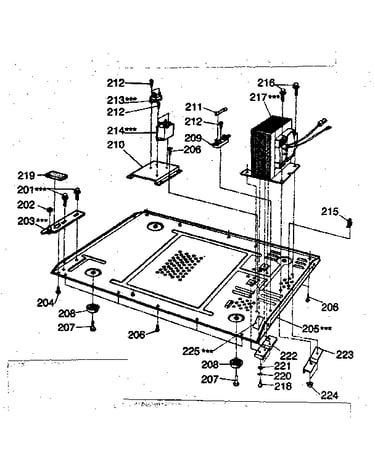

Microwave parts diagram

Triac

Part #500082

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 500080
#209

Microwave parts diagram

Fuse holder

Part #500080

The manufacturer no longer makes this part, and there's no substitute part

Screw 500063
Screw

Part #500063

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 500091
#306

Switches and microwave parts diagram

Micro-switch

Part #500091

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 500060
#115

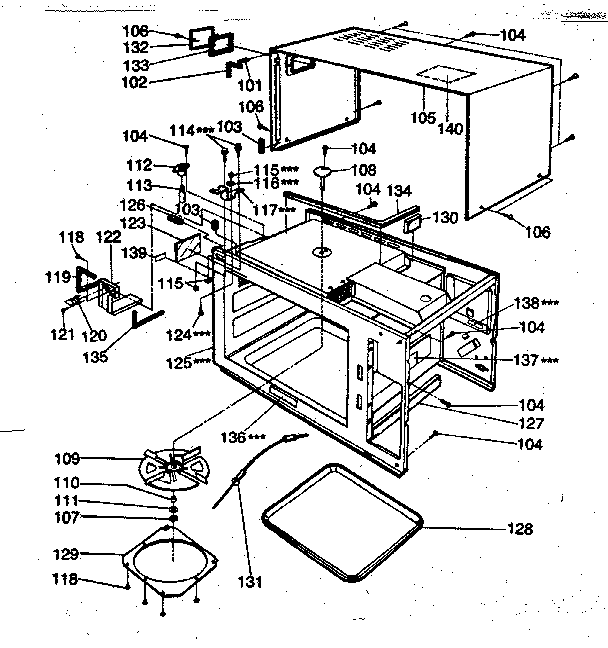

Cabinet parts diagram

Hex nut

Part #500060

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 500100
#317

Switches and microwave parts diagram

Capacitor

Part #500100

The manufacturer no longer makes this part, and there's no substitute part

Hinge Plate 500136
#117

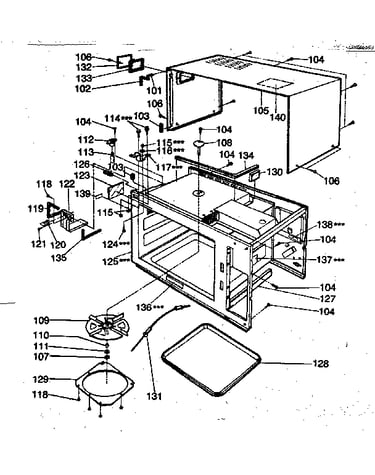

Cabinet parts diagram

Hinge plate

Part #500136

The manufacturer no longer makes this part, and there's no substitute part
