Craftsman
Power Drill

Model # 315269391 Official Craftsman drill

Here are the diagrams and repair parts for Official Craftsman 315269391 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

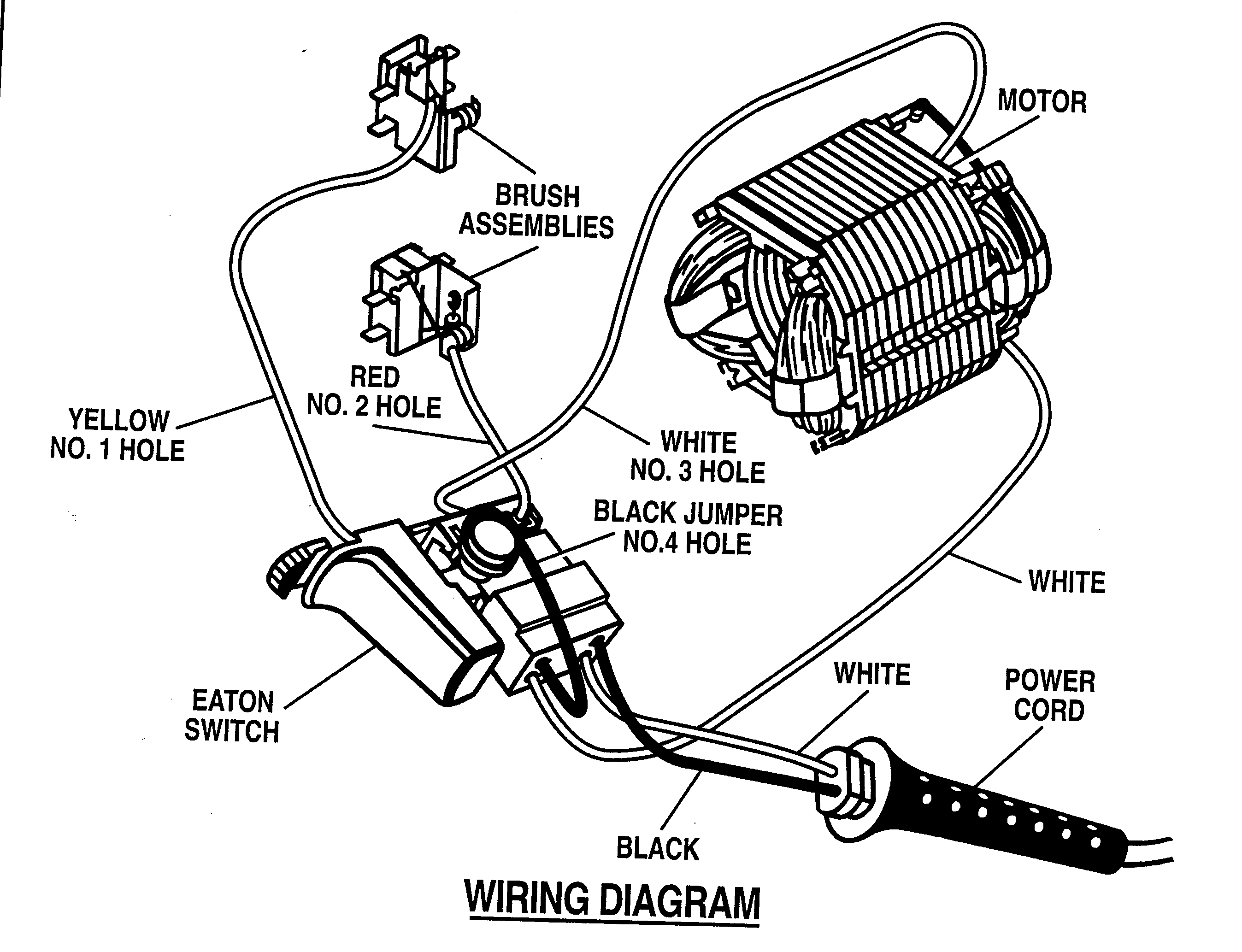

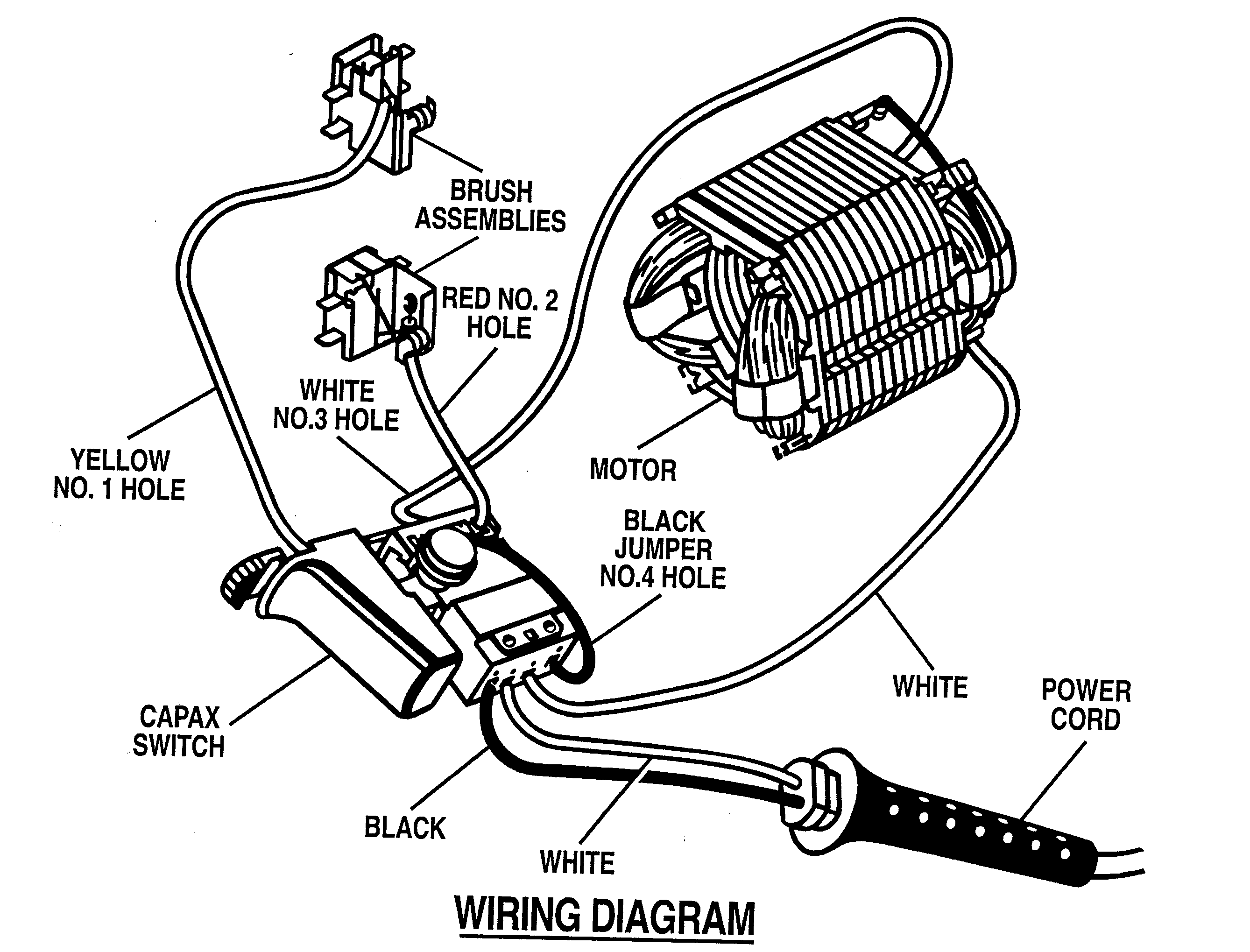

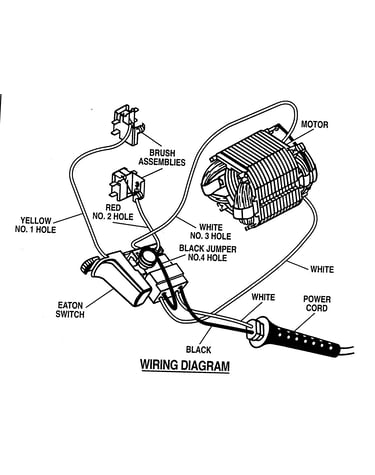

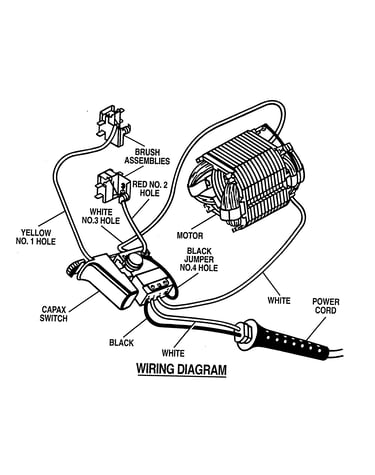

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Brush Assembly 971772-001
#6

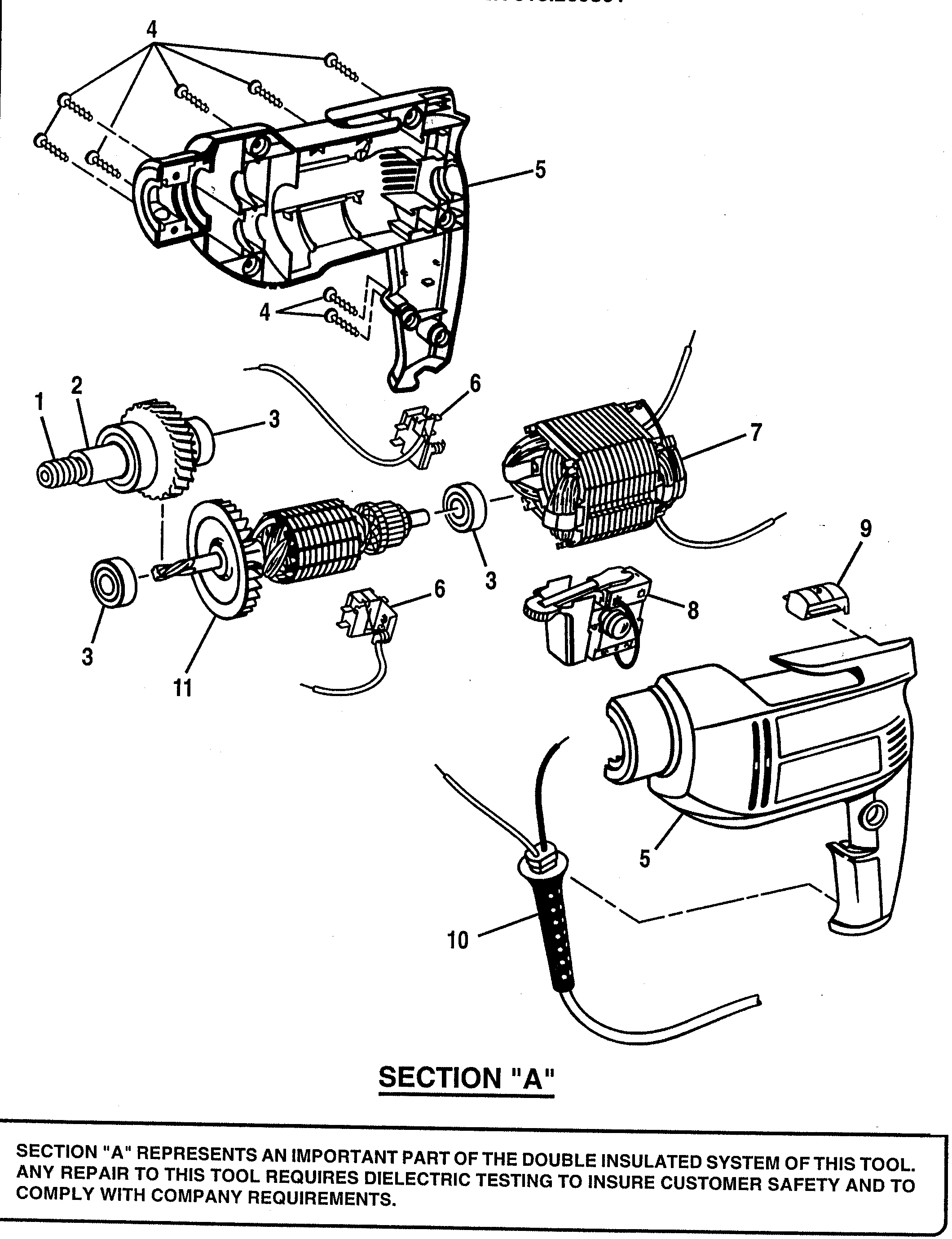

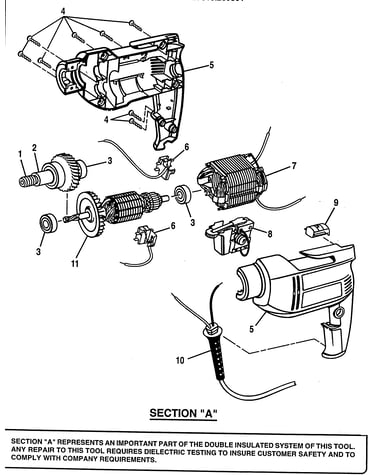

Motor assy diagram

Brush assembly

Part #971772-001

The manufacturer no longer makes this part, and there's no substitute part

Cord 990496-009
#10

Motor assy diagram

Cord

Part #990496-009

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 971770-001
#5

Motor assy diagram

Housing assembly

Part #971770-001

The manufacturer no longer makes this part, and there's no substitute part

Drill Chuck Key 981570-002
#1

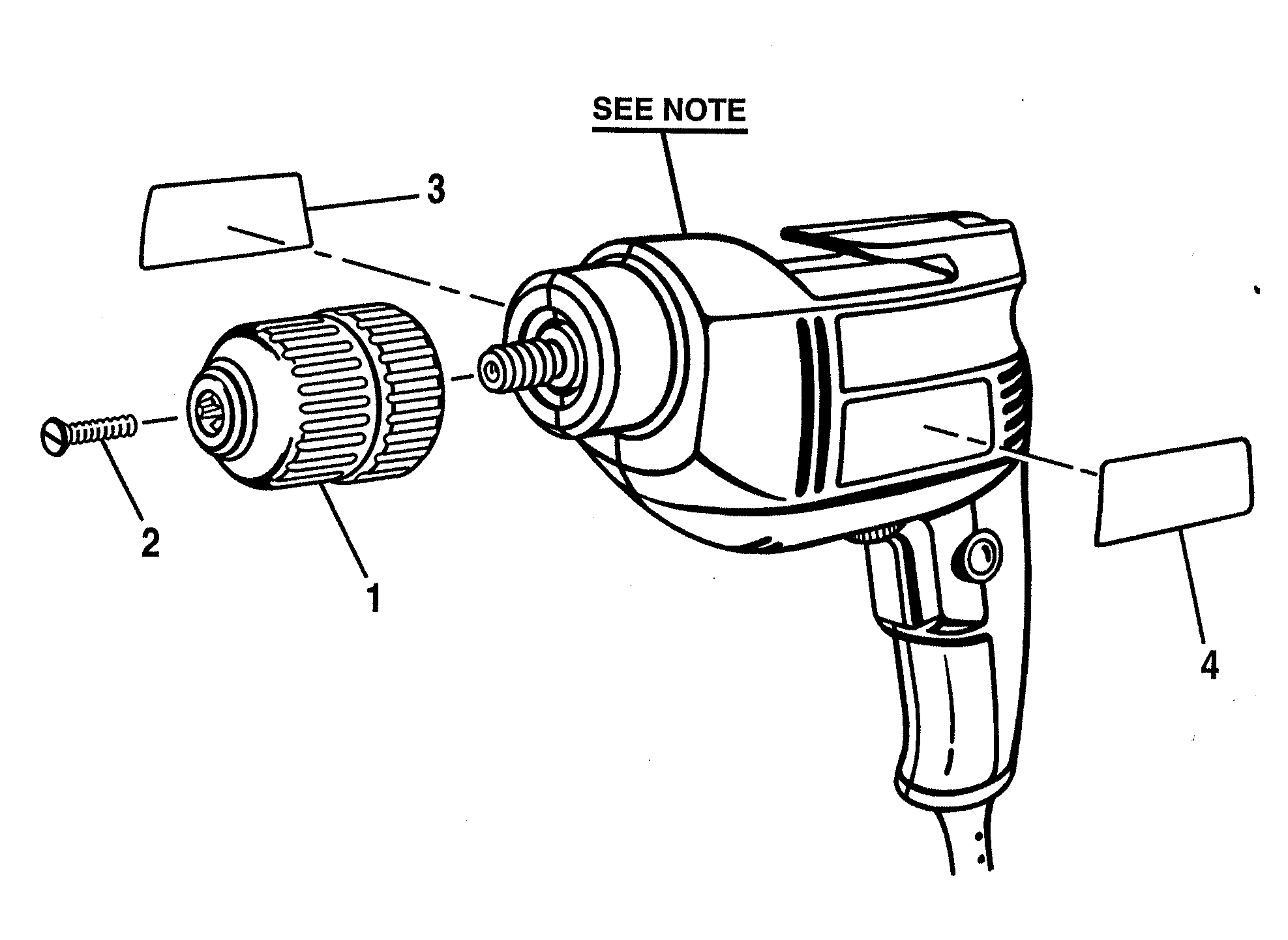

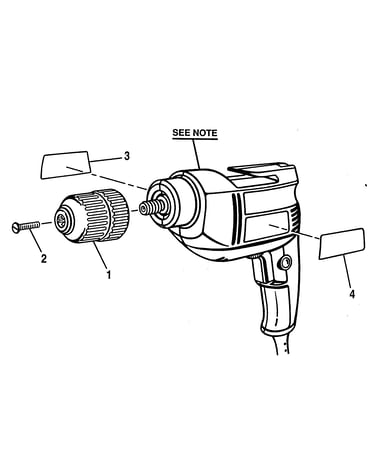

Drill diagram

Drill chuck key

Part #981570-002

The manufacturer no longer makes this part, and there's no substitute part

Ball Brg 971765-001
#2

Motor assy diagram

Ball brg

Part #971765-001

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 983090-001
#4

Drill diagram

Logo plate

Part #983090-001

The manufacturer no longer makes this part, and there's no substitute part

Ball Brg 990924-001
#3

Motor assy diagram

Ball brg

Part #990924-001

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 974717-009
#8

Motor assy diagram

Switch assembly

Part #974717-009

The manufacturer no longer makes this part, and there's no substitute part

Armature 971687-002
#11

Motor assy diagram

Armature

Part #971687-002

The manufacturer no longer makes this part, and there's no substitute part

Drill Chuck Screw 616478-003
#2

Drill diagram

Drill chuck screw

Part #616478-003

The manufacturer no longer makes this part, and there's no substitute part
