Whirlpool MW3500XW0 microwave Parts

Here are the diagrams and repair parts for Whirlpool MW3500XW0 microwave, as well as links to manuals and error code tables, if available.

Whirlpool MW3500XW0 microwave
By Schematic
By Part

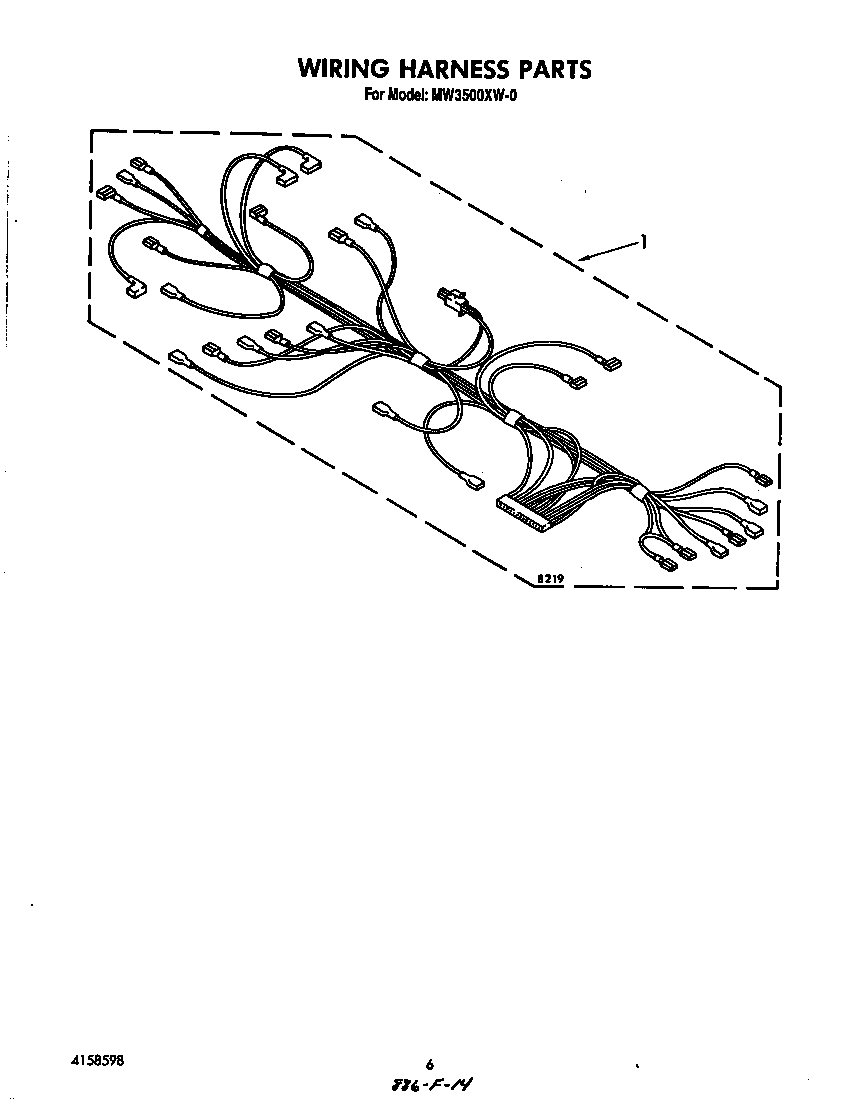

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MW3500XW0 Microwaves

  • Screw for Whirlpool MW3500XW0 - Part 4158074

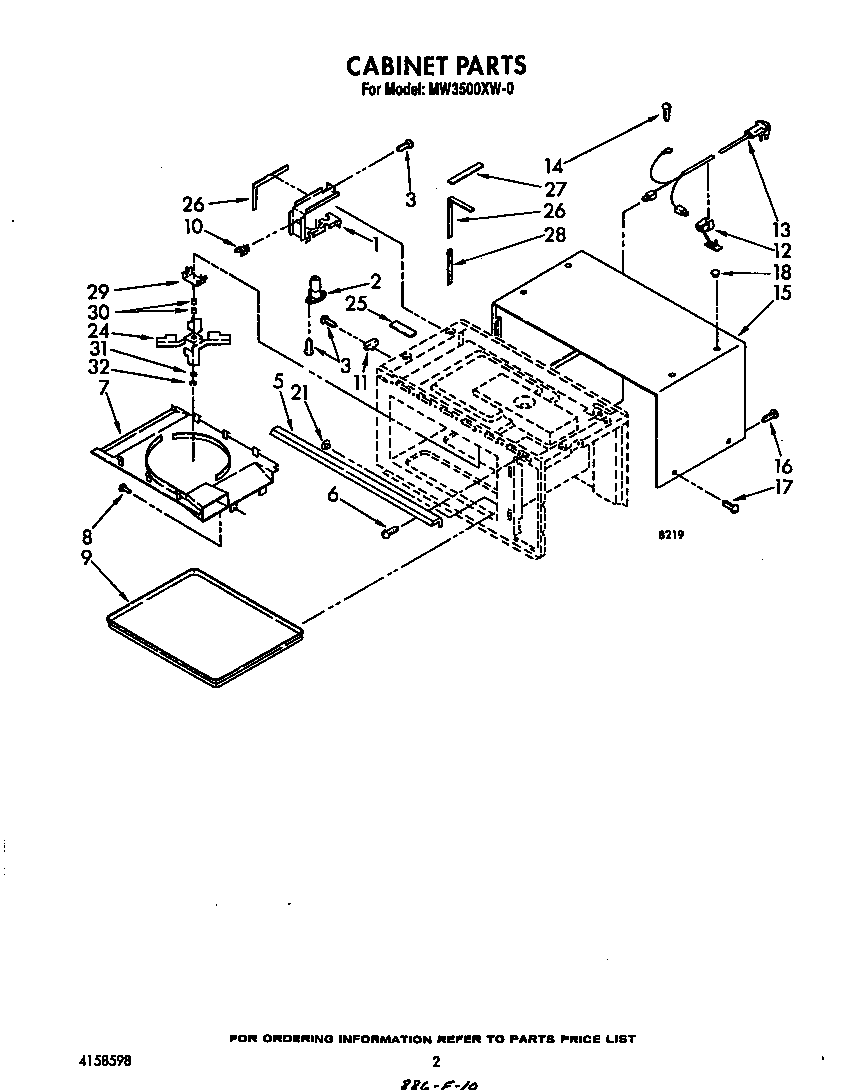

    Cabinet diagram

    Screw

    Part #4158074

    The manufacturer no longer makes this part, and there's no substitute part

  • Mounting Wall for Whirlpool MW3500XW0 - Part 4158015

    #NI

    All parts diagram

    Mounting Wall

    Part #4158015

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Whirlpool MW3500XW0 - Part 4158208

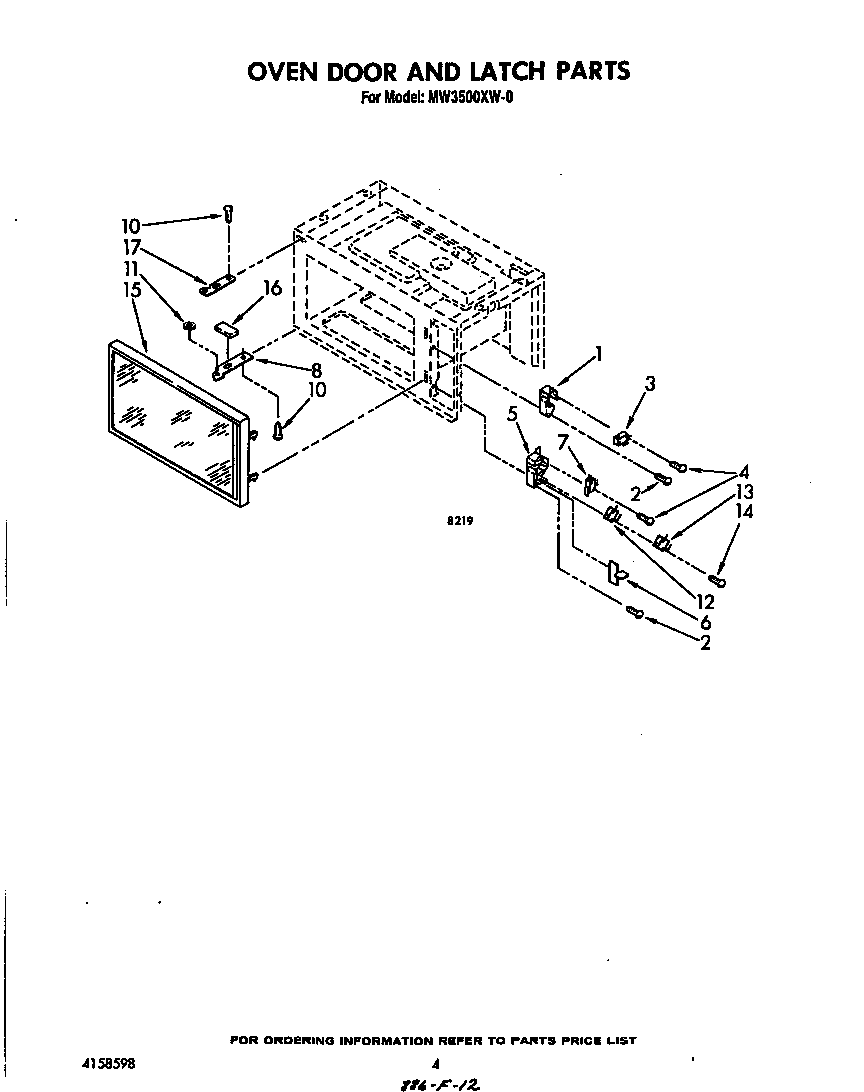

    Oven door and latch diagram

    Screw

    Part #4158208

    The manufacturer no longer makes this part, and there's no substitute part

  • Cushon-agd for Whirlpool MW3500XW0 - Part 4158167

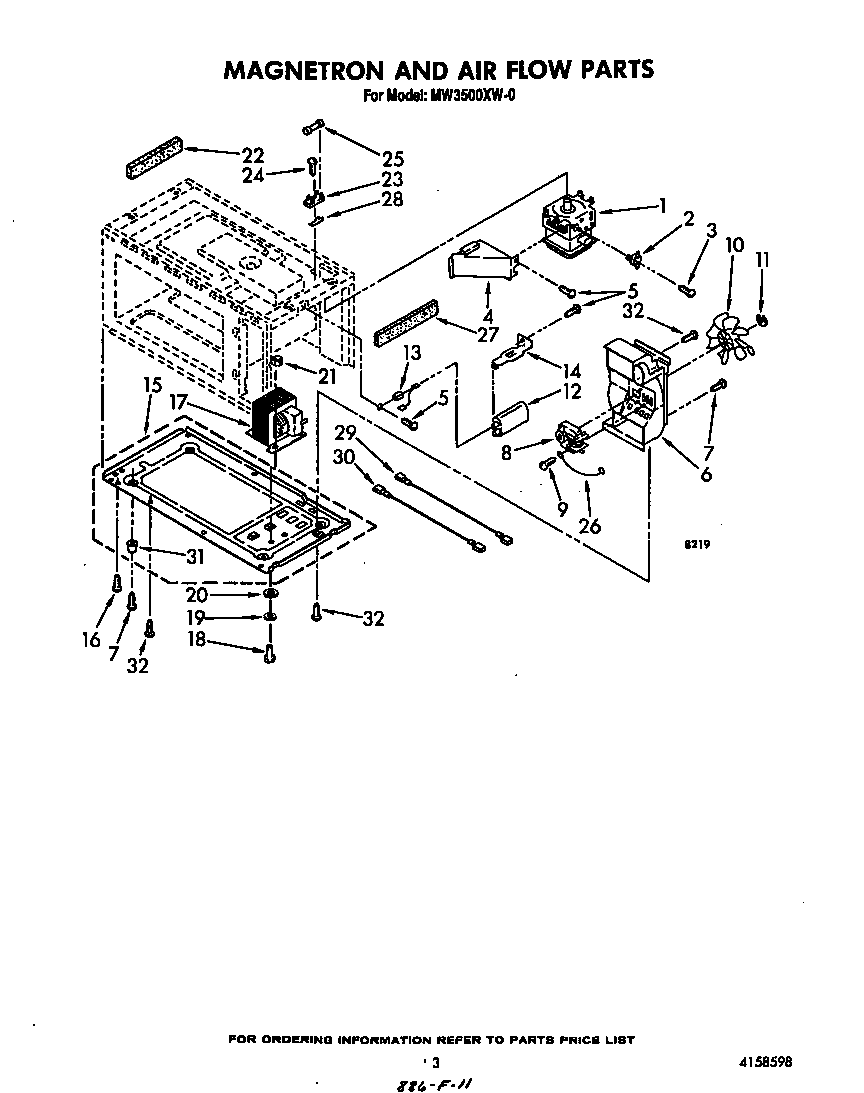

    Magnetron and air flow diagram

    Cushon-agd

    Part #4158167

    The manufacturer no longer makes this part, and there's no substitute part

  • Latch Pin for Whirlpool MW3500XW0 - Part 4158204

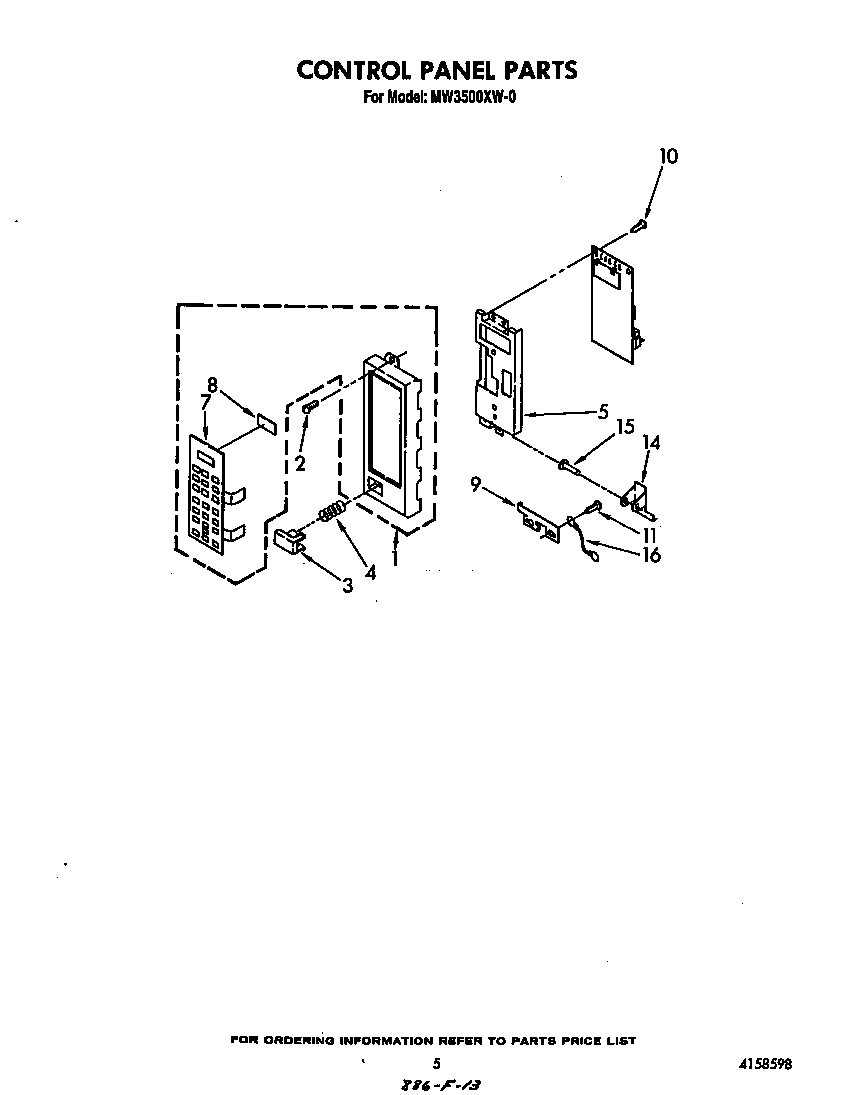

    Control panel diagram

    Latch Pin

    Part #4158204

    The manufacturer no longer makes this part, and there's no substitute part

  • Transformer for Whirlpool MW3500XW0 - Part 4158592

    Magnetron and air flow diagram

    Transformer

    Part #4158592

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Whirlpool MW3500XW0 - Part 4158593

    Magnetron and air flow diagram

    Capacitor

    Part #4158593

    The manufacturer no longer makes this part, and there's no substitute part

  • Rivet (2) for Whirlpool MW3500XW0 - Part 4339374

    Cabinet diagram

    Rivet (2)

    Part #4339374

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Whirlpool MW3500XW0 - Part 4158194

    Magnetron and air flow diagram

    Screw

    Part #4158194

    The manufacturer no longer makes this part, and there's no substitute part

  • Spring for Whirlpool MW3500XW0 - Part 4158178

    Control panel diagram

    Spring

    Part #4158178

    The manufacturer no longer makes this part, and there's no substitute part
