Model # EXH9560NA1 Official ICP evaporator coil

Here are the diagrams and repair parts for Official ICP EXH9560NA1 evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Valve Exp W 1064238
#4

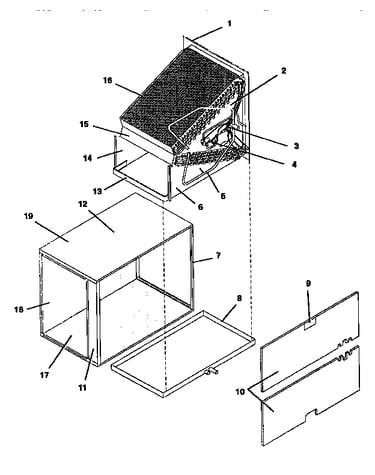

Unit parts diagram

Valve exp w

Part #1064238

Replaced by #1066819

?
Manufacturer substitution
This part replaces 1064238. Substitute parts can look different from the original.
$243.92
In Stock
Plate Rear 1067361
#14

Unit parts diagram

Plate rear

Part #1067361

The manufacturer no longer makes this part, and there's no substitute part

Brace Top 1063091
#11

Unit parts diagram

Brace top

Part #1063091

The manufacturer no longer makes this part, and there's no substitute part

Connecting P 750010039

#NI

All parts diagram

Connecting p

Part #750010039

The manufacturer no longer makes this part, and there's no substitute part

Plate 1067369
#2

Unit parts diagram

Plate

Part #1067369

The manufacturer no longer makes this part, and there's no substitute part

Brace Bottom 1064316
#7

Unit parts diagram

Brace bottom

Part #1064316

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 1067109
#16

Unit parts diagram

Evaporator

Part #1067109

The manufacturer no longer makes this part, and there's no substitute part

Plug 711996

#NI

All parts diagram

Plug

Part #711996

The manufacturer no longer makes this part, and there's no substitute part

Support Plt 1067364
#13

Unit parts diagram

Support plt

Part #1067364

The manufacturer no longer makes this part, and there's no substitute part

Pan Drain P 1063482
#8

Unit parts diagram

Pan drain p

Part #1063482

The manufacturer no longer makes this part, and there's no substitute part
