Whirlpool ACU102PK2 air conditioner Parts
Here are the diagrams and repair parts for Whirlpool ACU102PK2 air conditioner, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
SELECT DIAGRAM
Browse Parts for ACU102PK2 Air Conditioner

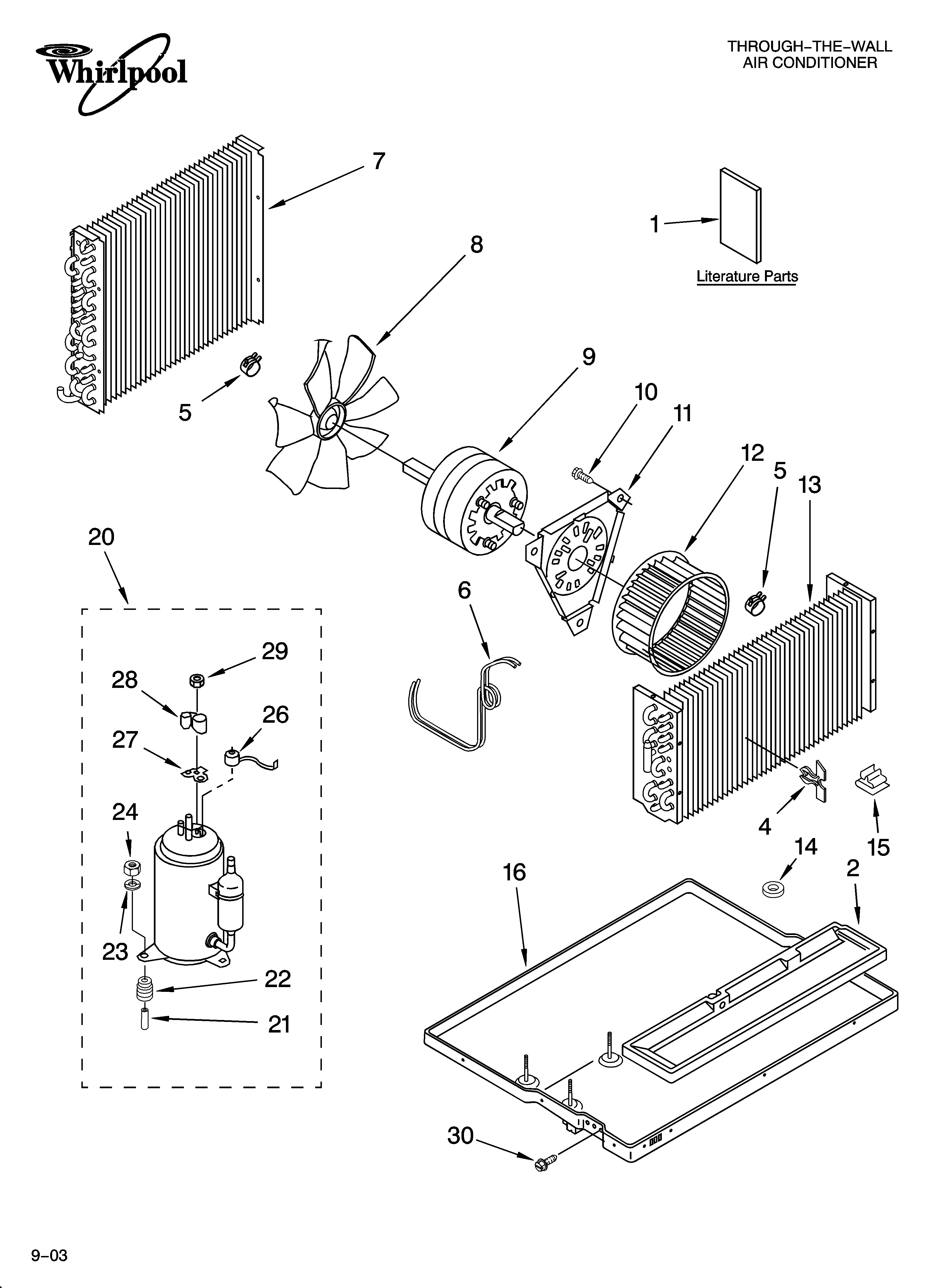

Unit parts diagram
Washer
Part #789761Replaced by #W11236646
Manufacturer substitutionThis part replaces 789761. Substitute parts can look different from the original.This item is not returnableIn Stock$19.299% OFF Phone Price : $21.29
Qty

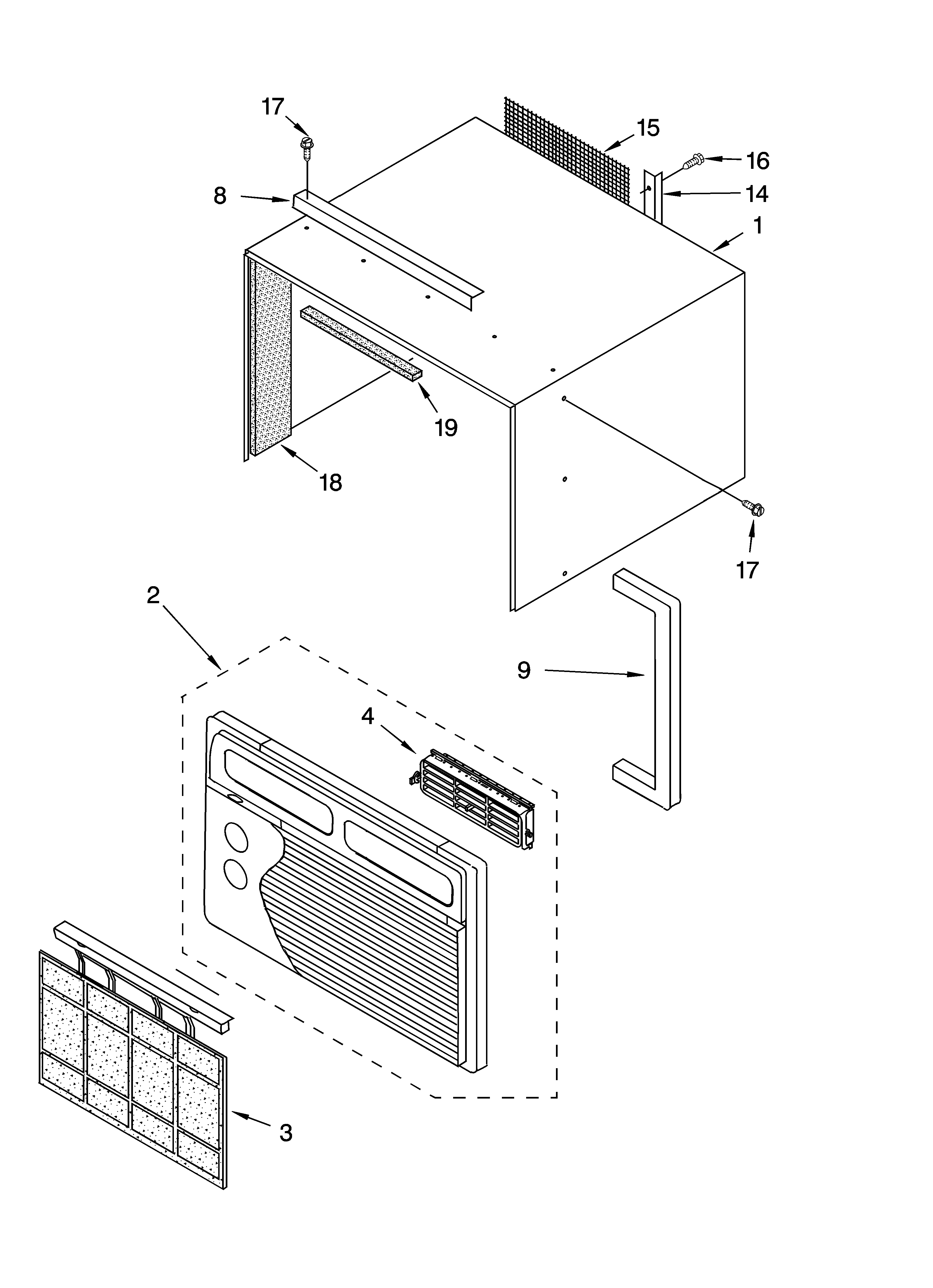

Cabinet parts diagram
Front

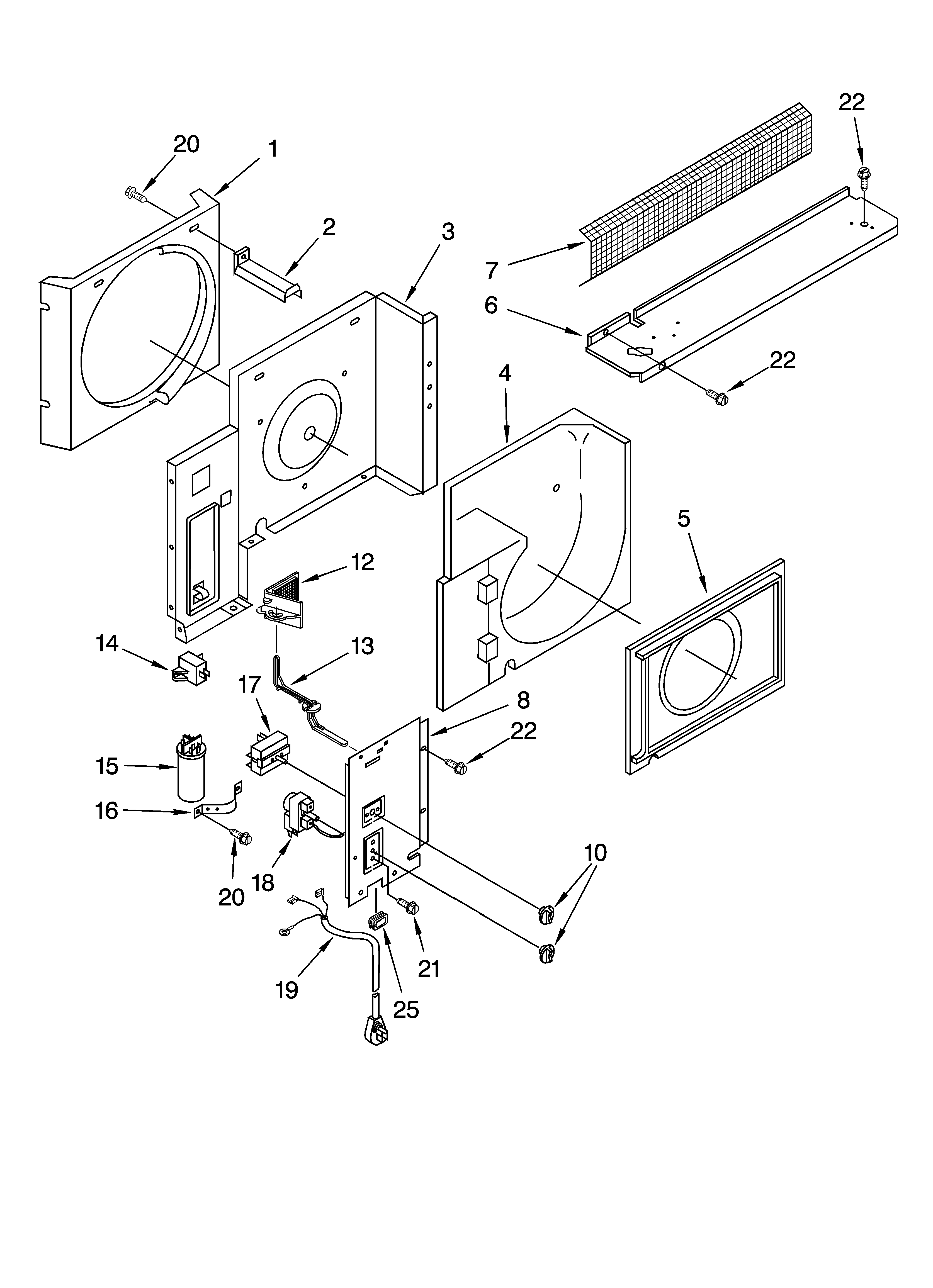

In Stock$405.69QtyAirflow and control parts diagram
Capacitor Bracket
Part #789749
The manufacturer no longer makes this part, and there's no substitute part

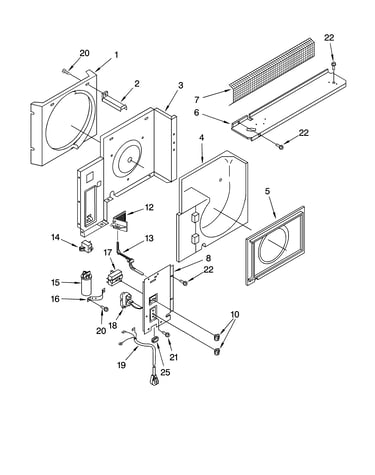

Airflow and control parts diagram
Relief Stirrer
Part #789806
The manufacturer no longer makes this part, and there's no substitute part
Screw #8 X 1/4
Part #3148443
The manufacturer no longer makes this part, and there's no substitute part

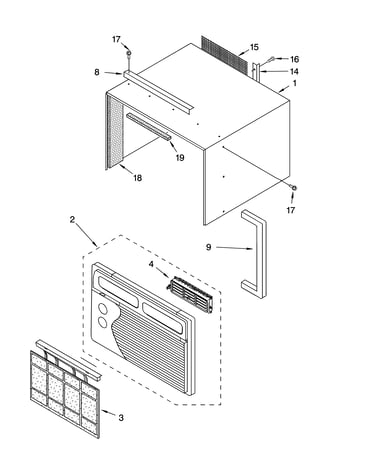

Cabinet parts diagram
Screen
Part #789899
The manufacturer no longer makes this part, and there's no substitute part

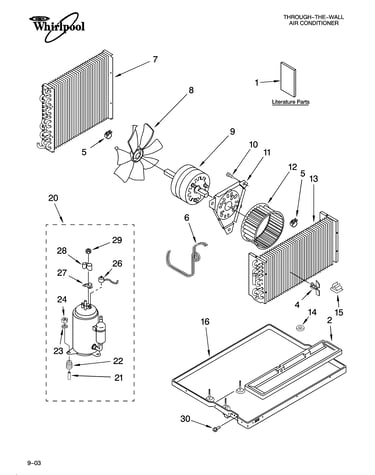

Unit parts diagram
Evaporator
Part #789914
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Frame
Part #789997
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Fan Motor
Part #789892
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Cover Gasket
Part #789882
The manufacturer no longer makes this part, and there's no substitute part
