Model # 706659202 Official Craftsman professional tool chest

Here are the diagrams and repair parts for Official Craftsman 706659202 professional tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Tool Chest Drawer, 4-in A15402A2-EBK
#5

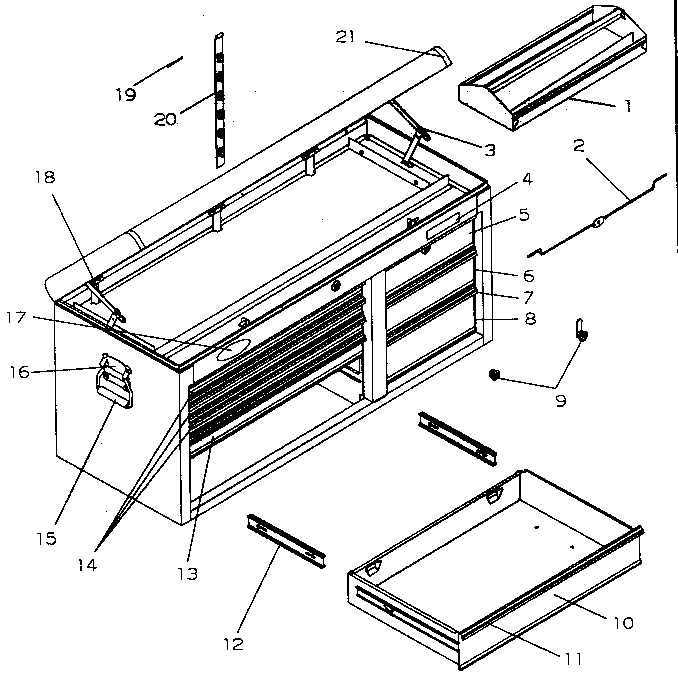

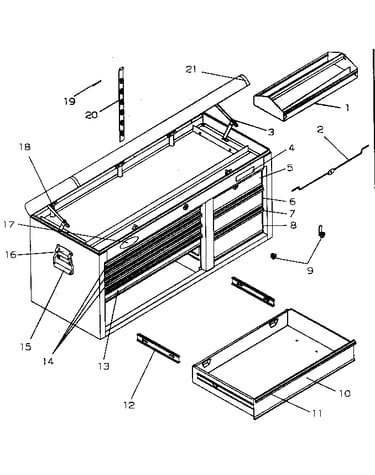

Chest diagram

Tool chest drawer, 4-in

Part #A15402A2-EBK

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Handle Back Plate T26285-PN
#16

Chest diagram

Tool chest handle back plate

Part #T26285-PN

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer, 2-in A25462-EBK
#14

Chest diagram

Tool chest drawer, 2-in

Part #A25462-EBK

The manufacturer no longer makes this part, and there's no substitute part

Cover Stop M13474
#18

Chest diagram

Cover stop

Part #M13474

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lock Set M10030A28
#9

Chest diagram

Tool chest lock set

Part #M10030A28

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer Slide 28000
#12

Chest diagram

Tool chest drawer slide

Part #28000

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Tote Tray A4828-EBK
#1

Chest diagram

Tool chest tote tray

Part #A4828-EBK

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer, 5-in A15402A1-EBK
#8

Chest diagram

Tool chest drawer, 5-in

Part #A15402A1-EBK

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lock A11677
#2

Chest diagram

Tool chest lock

Part #A11677

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lid Stop Arm M13475
#3

Chest diagram

Tool chest lid stop arm

Part #M13475

The manufacturer no longer makes this part, and there's no substitute part
