Model # BDP-S1700ES Official Sony dvd player

Here are the diagrams and repair parts for Official Sony BDP-S1700ES dvd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

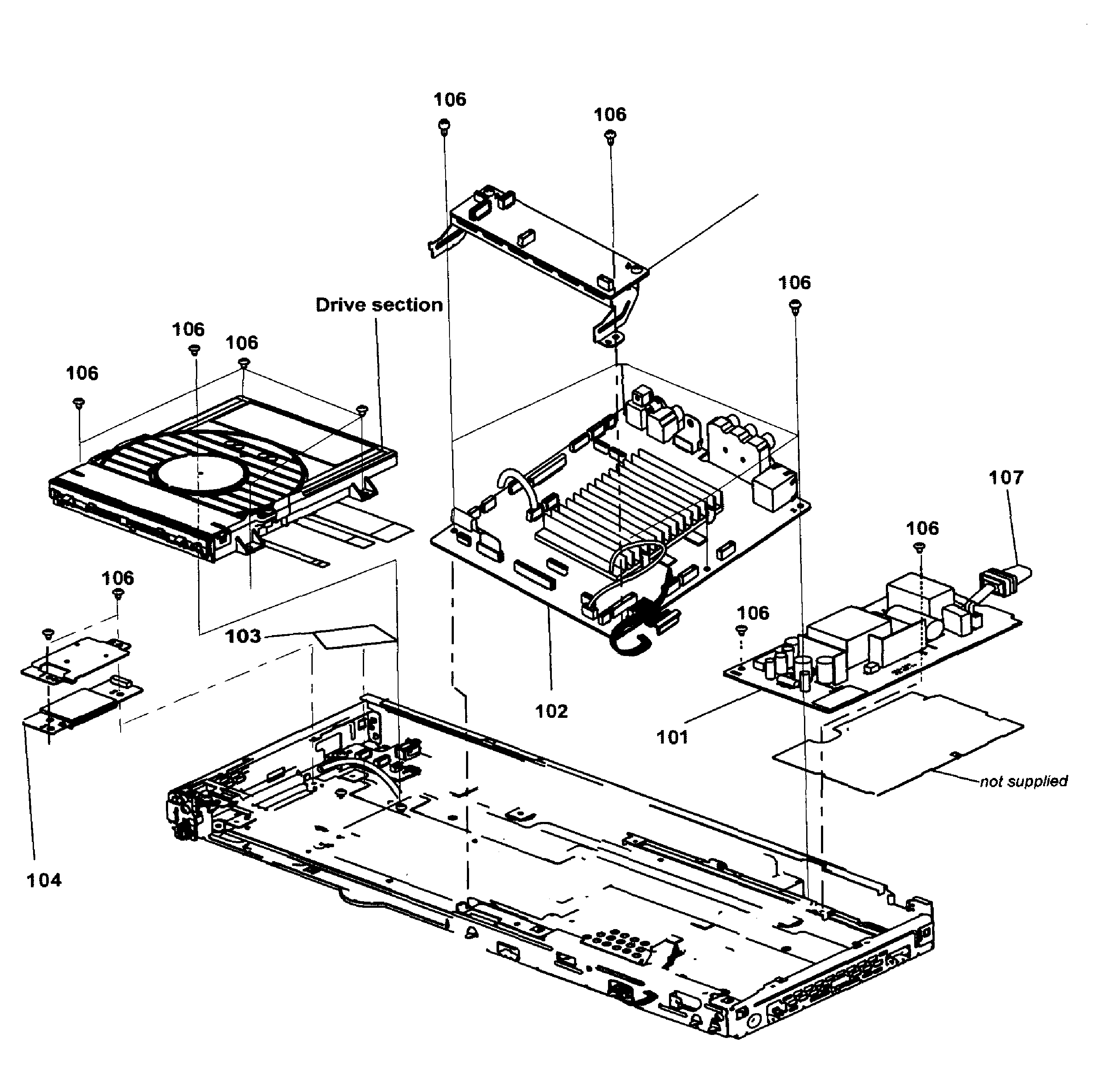

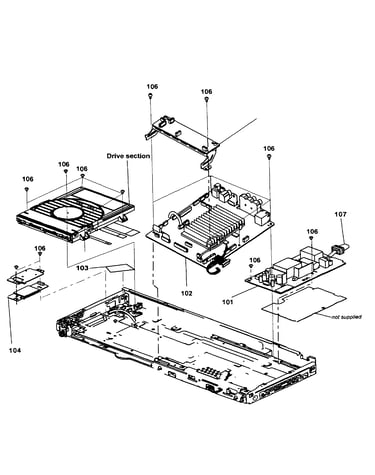

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Tray Cover X25486201
#2

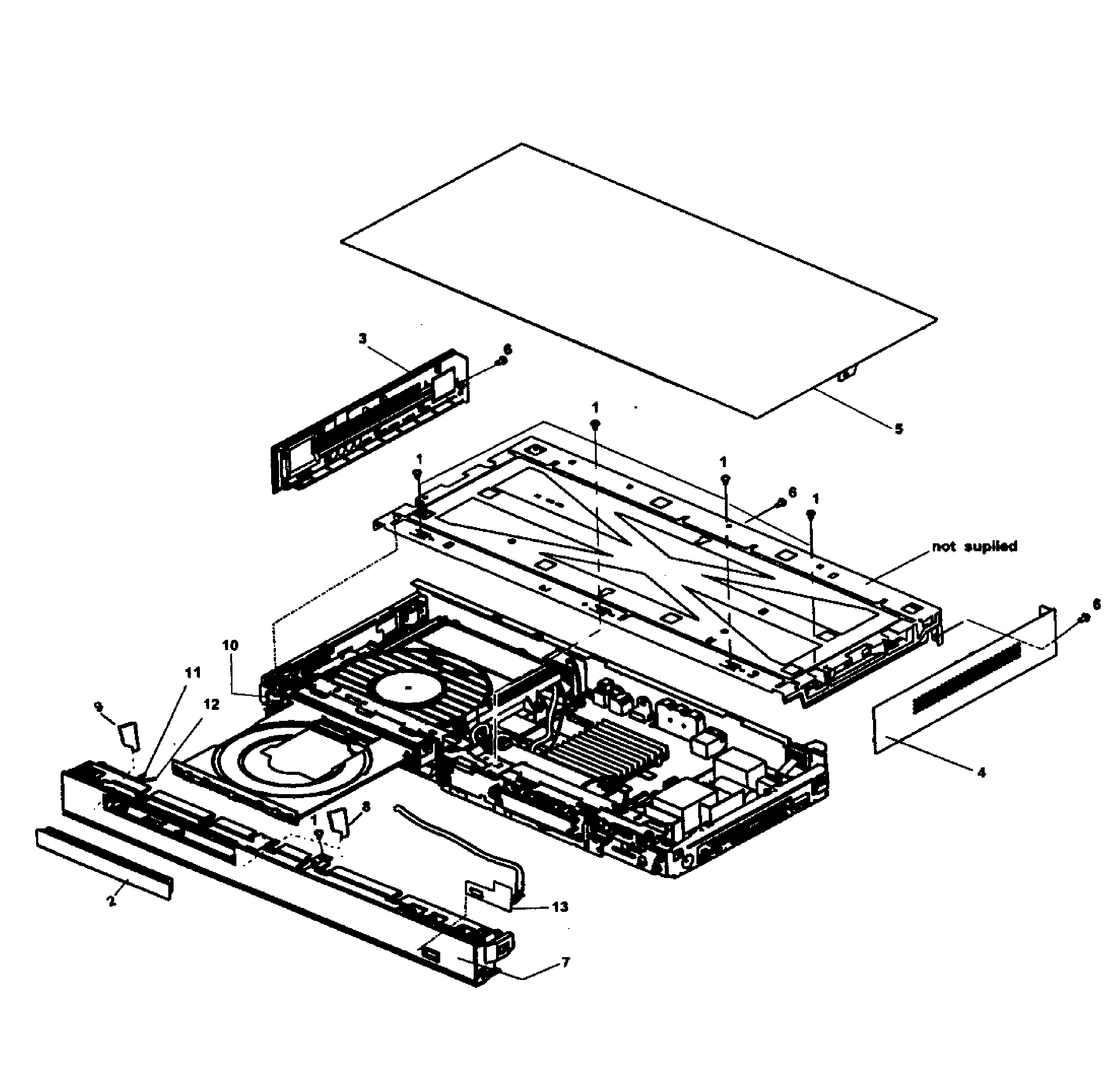

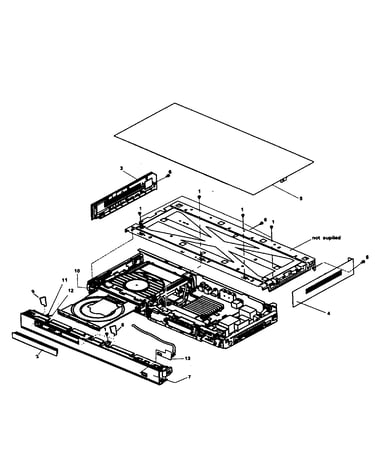

Cabinet parts diagram

Tray cover

Part #X25486201

The manufacturer no longer makes this part, and there's no substitute part

Cable 183749411
#154

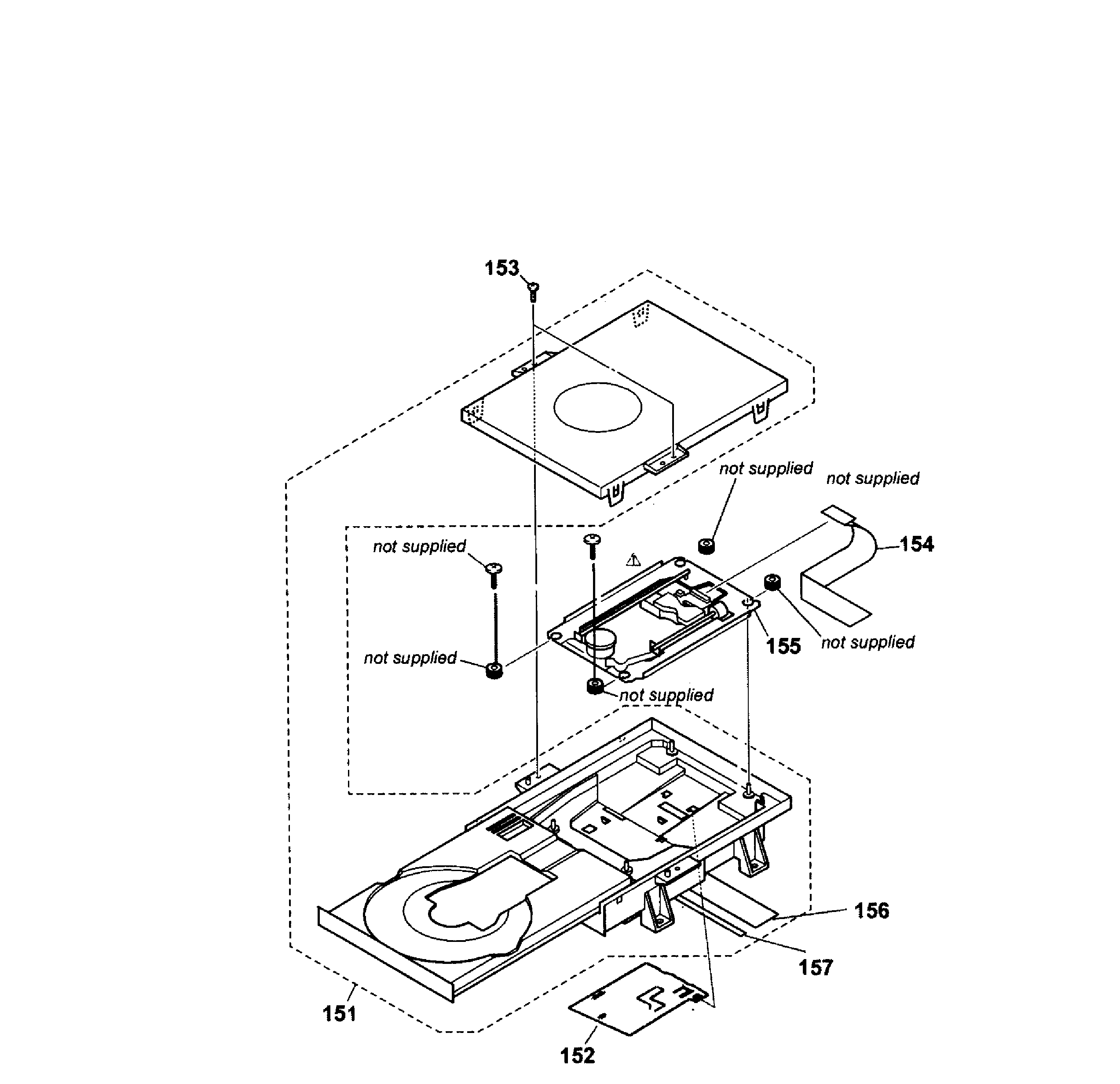

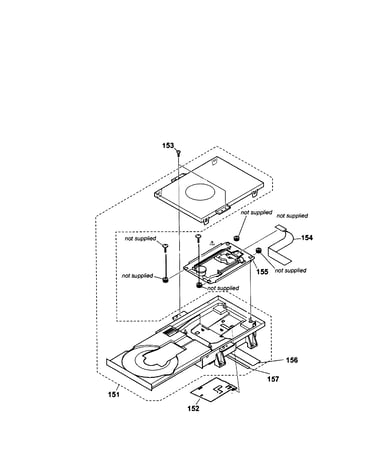

Bd section diagram

Cable

Part #183749411

The manufacturer no longer makes this part, and there's no substitute part

Holder 416732101
#152

Bd section diagram

Holder

Part #416732101

The manufacturer no longer makes this part, and there's no substitute part

Ant-008sm A1759423A
#8

Cabinet parts diagram

Ant-008sm

Part #A1759423A

The manufacturer no longer makes this part, and there's no substitute part

Screw 308705311
#153

Bd section diagram

Screw

Part #308705311

The manufacturer no longer makes this part, and there's no substitute part

Home Electronics Screw 307733121
Home electronics screw

Part #307733121

The manufacturer no longer makes this part, and there's no substitute part

Screw 768564679
Screw

Part #768564679

The manufacturer no longer makes this part, and there's no substitute part

Hu Service A1779307A
#57

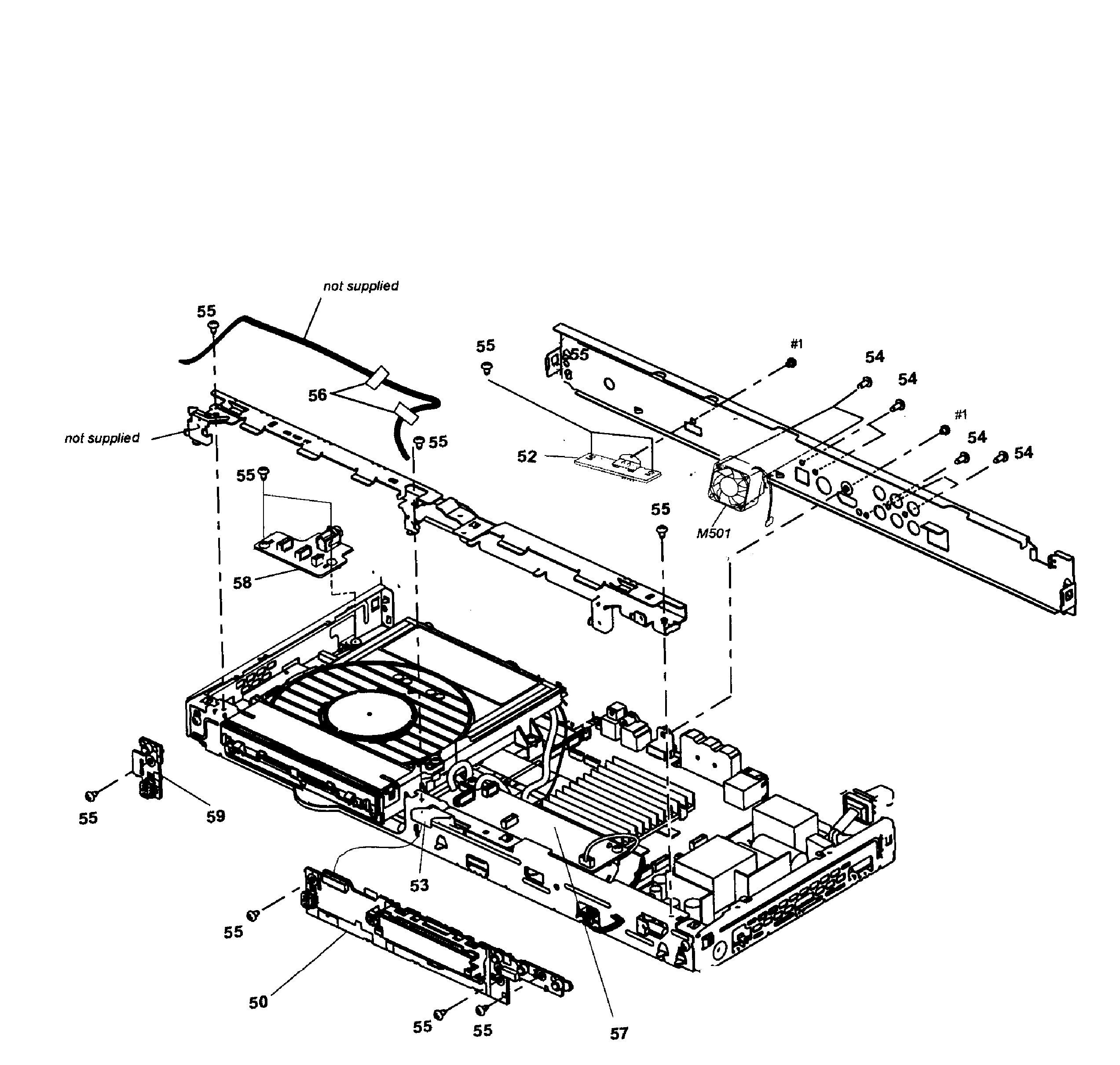

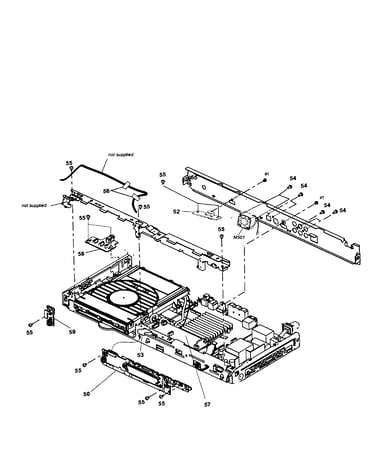

Chassis assy diagram

Hu service

Part #A1779307A

The manufacturer no longer makes this part, and there's no substitute part

Cable Coax 183757811
#11

Cabinet parts diagram

Cable coax

Part #183757811

The manufacturer no longer makes this part, and there's no substitute part

Device,opt 882043002
#155

Bd section diagram

Device,opt

Part #882043002

The manufacturer no longer makes this part, and there's no substitute part
