Model #WLCR90051 Weslo body glide plus

Here are the diagrams and repair parts for Weslo WLCR90051 body glide plus, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 45 parts

|

Exercise Equipment Screw

#14

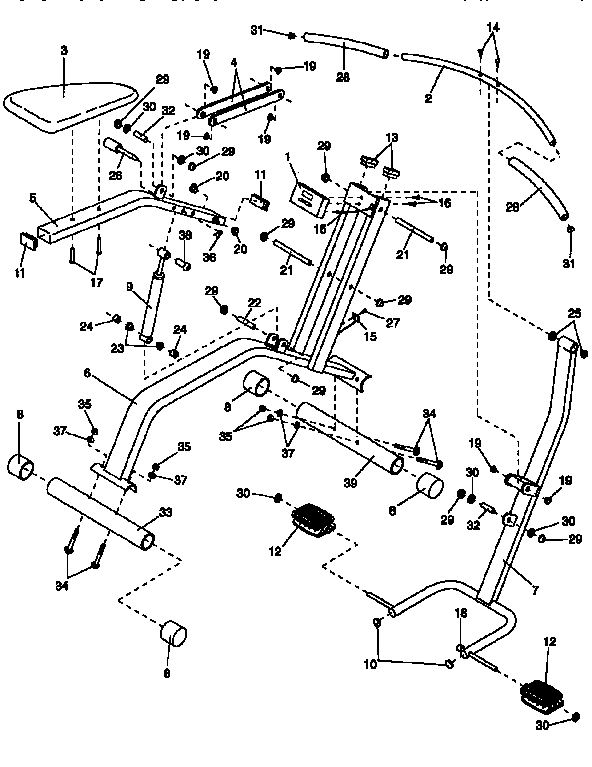

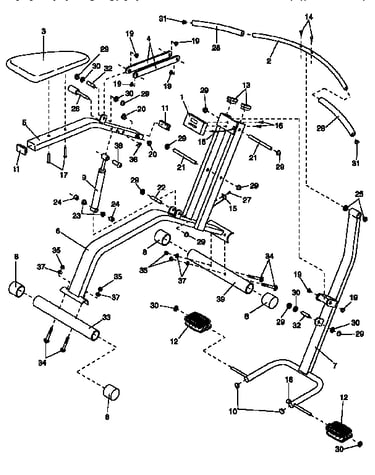

Unit parts Diagram

Exercise equipment screw

Part #013162
This item is not returnable
$1.09

In Stock

Base End Cap, 1.5 x 2-in

#11

Unit parts Diagram

Base end cap, 1.5 x 2-in

Part #117544
This item is not returnable
$2.55

In Stock

Screw, #8 x 3/4-in

#27

Unit parts Diagram

Screw, #8 x 3/4-in

Part #104626
This item is not returnable
$2.16

In Stock

Bolt

#34

Unit parts Diagram

Bolt

Part #126704
This item is not returnable
$2.99

In Stock

Exercise Equipment Nut

#30

Unit parts Diagram

Exercise equipment nut

Part #012155
This item is not returnable
$1.09

In Stock

Elliptical Nut

#35

Unit parts Diagram

Elliptical nut

Part #012042
This item is not returnable
$1.13

In Stock

Exercise Equipment Lubricating Grease

#NI

All parts Diagram

Exercise equipment lubricating grease

Part #104838
This item is not returnable
$7.21

In Stock

Thread-Cutting Screw

#16

Unit parts Diagram

Thread-cutting screw

Part #STD610603
?
Manufacturer substitution
This part replaces 013509. Substitute parts can look different from the original.
This part replaces 013509
This item is not returnable
$3.67

In Stock

Exercise Equipment Reed Switch

#15

Unit parts Diagram

Exercise equipment reed switch

Part #124434
?
Manufacturer substitution
This part replaces 101743. Substitute parts can look different from the original.
This part replaces 101743
$8.99

In Stock

Exercise Equipment Stabilizer External End Cap

#8

Unit parts Diagram

Exercise equipment stabilizer external end cap

Part #130656
?
Manufacturer substitution
This part replaces 109416. Substitute parts can look different from the original.
This part replaces 109416
This item is not returnable
$3.05

Back Order

Showing 10 of 45 parts
