Model # 629776911 Official Sears top-vent gas-fired wall furnace

Here are the diagrams and repair parts for Official Sears 629776911 top-vent gas-fired wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Tubing STD317252

#NI

All parts diagram

Tubing

Part #STD317252

The manufacturer no longer makes this part, and there's no substitute part

Nut Fitting STD317025

#NI

All parts diagram

Nut fitting

Part #STD317025

The manufacturer no longer makes this part, and there's no substitute part

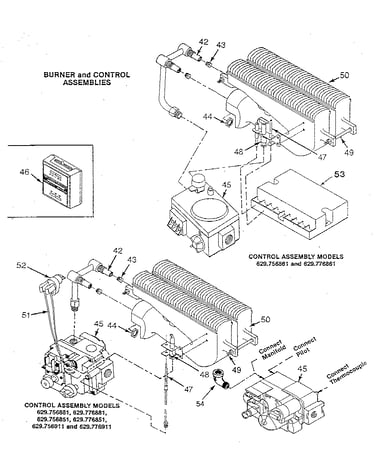

Thermocouple P042100
Thermocouple

Part #P042100

The manufacturer no longer makes this part, and there's no substitute part

Thermostat P106400
Thermostat

Part #P106400

The manufacturer no longer makes this part, and there's no substitute part

Cont Unit P271000
Cont unit

Part #P271000

The manufacturer no longer makes this part, and there's no substitute part

Drft Hd Assy 12B12
#8

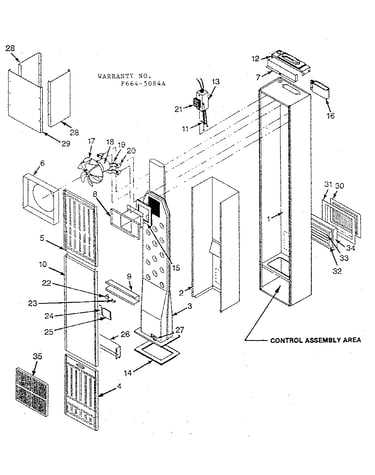

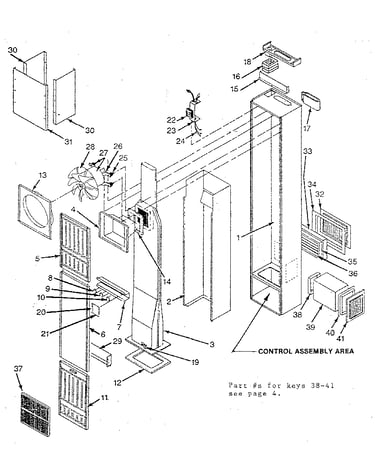

Cabinet and body assembly diagram

Drft hd assy

Part #12B12

The manufacturer no longer makes this part, and there's no substitute part

Center Front Panel 11C59
#6B

Cabinet and body assembly diagram

Center front panel

Part #11C59

The manufacturer no longer makes this part, and there's no substitute part

Liner Assembly 12B15
#2

Cabinet and body assembly diagram

Liner assembly

Part #12B15

The manufacturer no longer makes this part, and there's no substitute part

Header Assy 7B114
#18A

Cabinet and body assembly diagram

Header assy

Part #7B114

The manufacturer no longer makes this part, and there's no substitute part

Furnace Bottom Front Panel 11B103
#11

Cabinet and body assembly diagram

Furnace bottom front panel

Part #11B103

The manufacturer no longer makes this part, and there's no substitute part
