DeWalt
Miter Saw

Model # DCS361B TYPE 1 Official DeWalt miter saw

Here are the diagrams and repair parts for Official DeWalt DCS361B-TYPE-1 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Warning Label N300068
#609

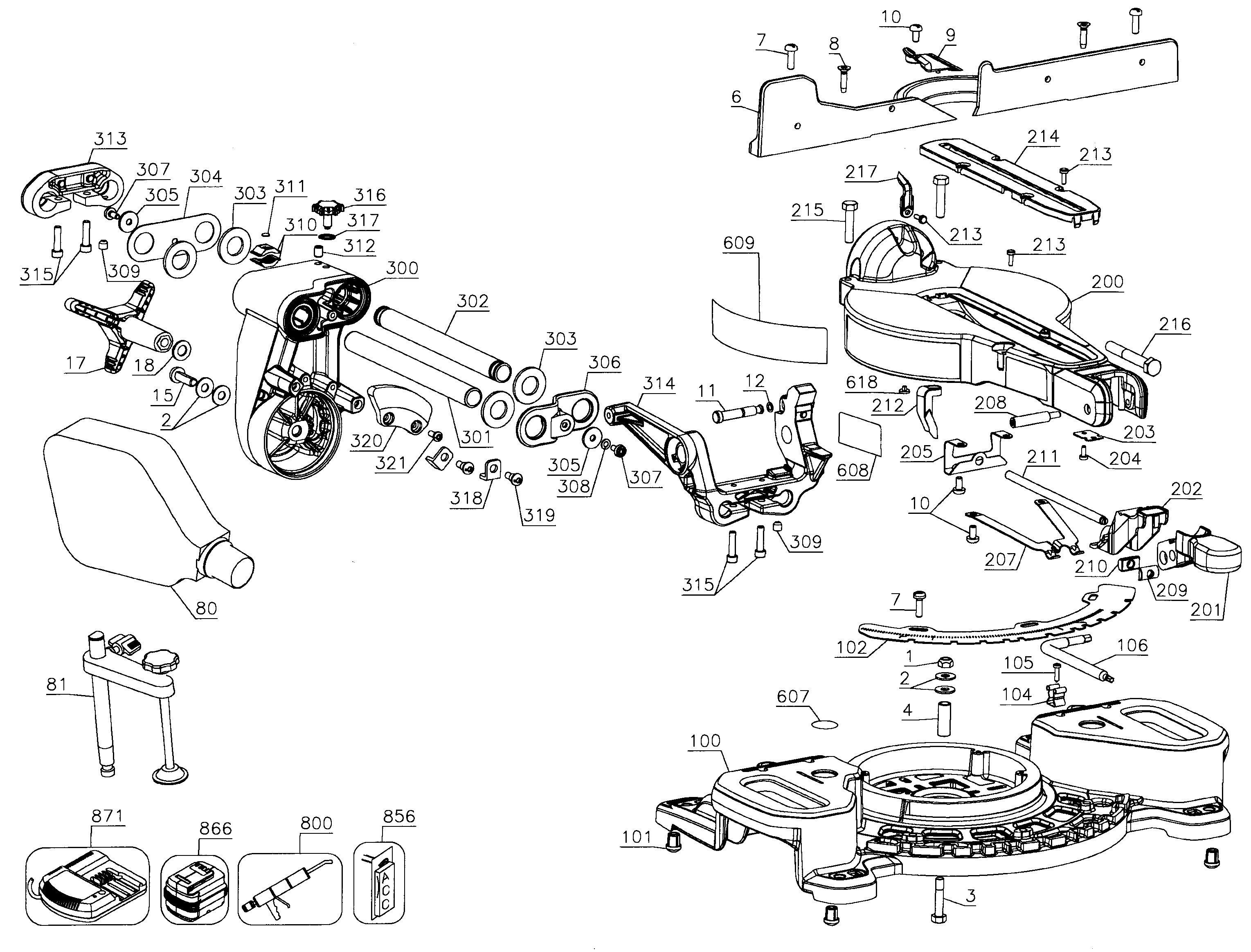

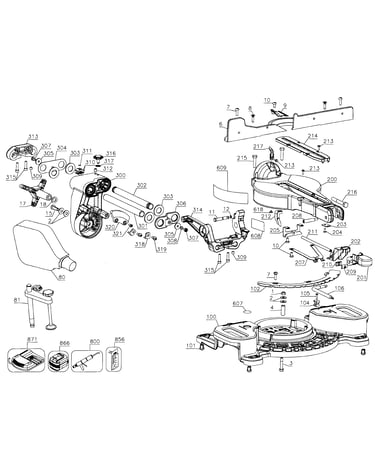

Base diagram

Warning label

Part #N300068

The manufacturer no longer makes this part, and there's no substitute part

Actuator N300115
#202

Base diagram

Actuator

Part #N300115

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Locking Pin 387130-00
#11

Base diagram

Miter saw locking pin

Part #387130-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330019-03
#28

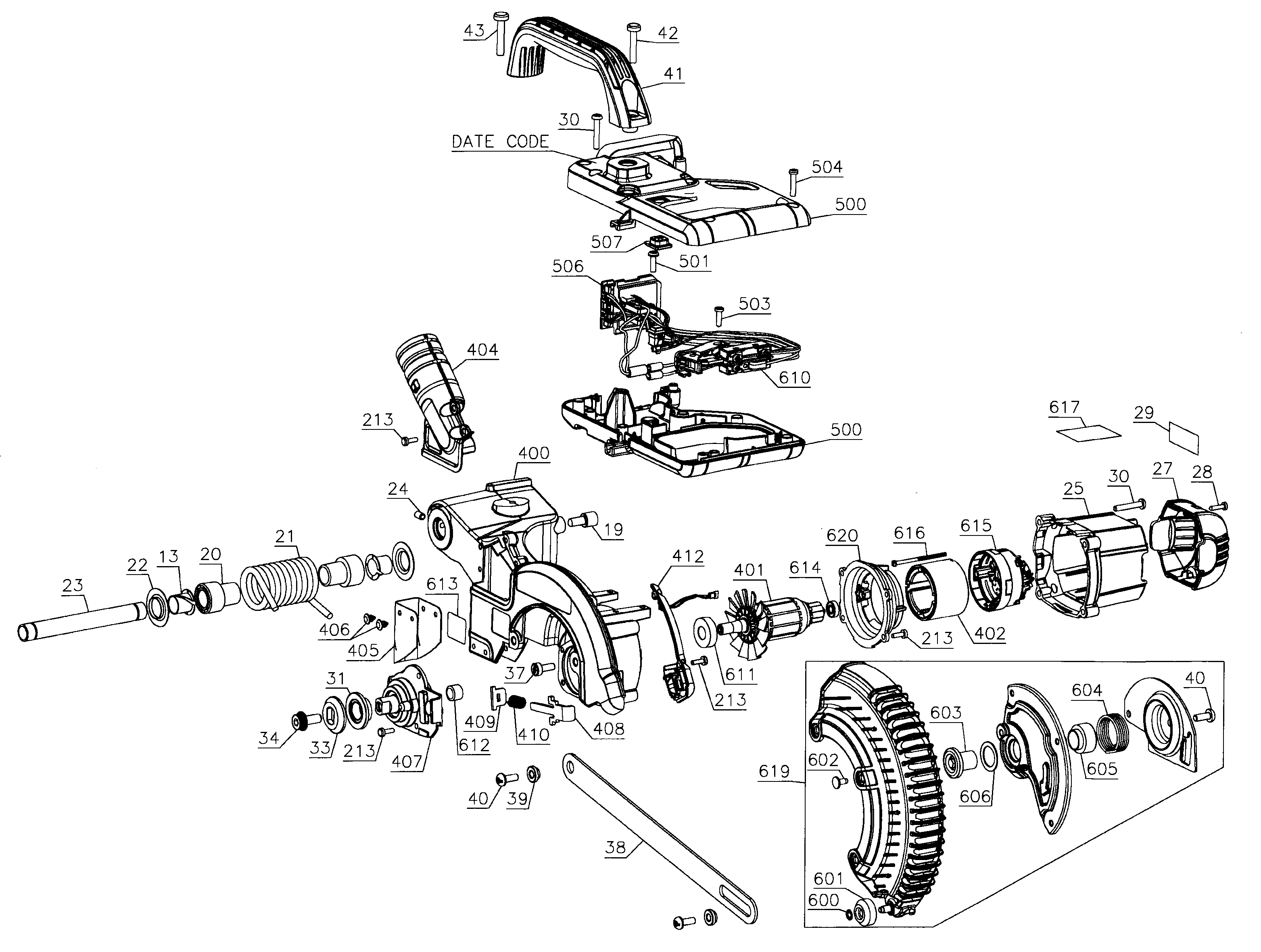

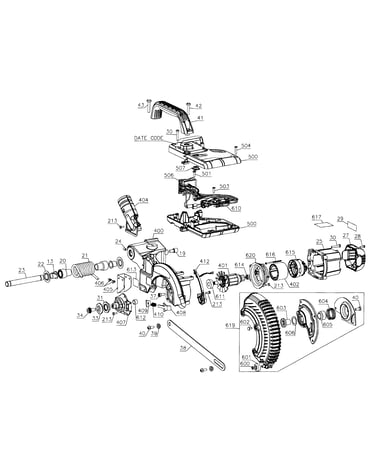

Saw asy diagram

Screw

Part #330019-03

The manufacturer no longer makes this part, and there's no substitute part

Sleeve N299985
#4

Base diagram

Sleeve

Part #N299985

The manufacturer no longer makes this part, and there's no substitute part

Spacer 397129-00
#20

Saw asy diagram

Spacer

Part #397129-00

The manufacturer no longer makes this part, and there's no substitute part

Magnet Ring N234639
#402

Saw asy diagram

Magnet ring

Part #N234639

The manufacturer no longer makes this part, and there's no substitute part

Kerf Plate N300110
#214

Base diagram

Kerf plate

Part #N300110

The manufacturer no longer makes this part, and there's no substitute part

Washer 153792-00
#2

Base diagram

Washer

Part #153792-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330045-05
#204

Base diagram

Screw

Part #330045-05

The manufacturer no longer makes this part, and there's no substitute part
