Amana
Central Air Conditioner

Model # PTC12400ER/P9872229R Official Amana ptc remote control

Here are the diagrams and repair parts for Official Amana PTC12400ER-P9872229R ptc remote control, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

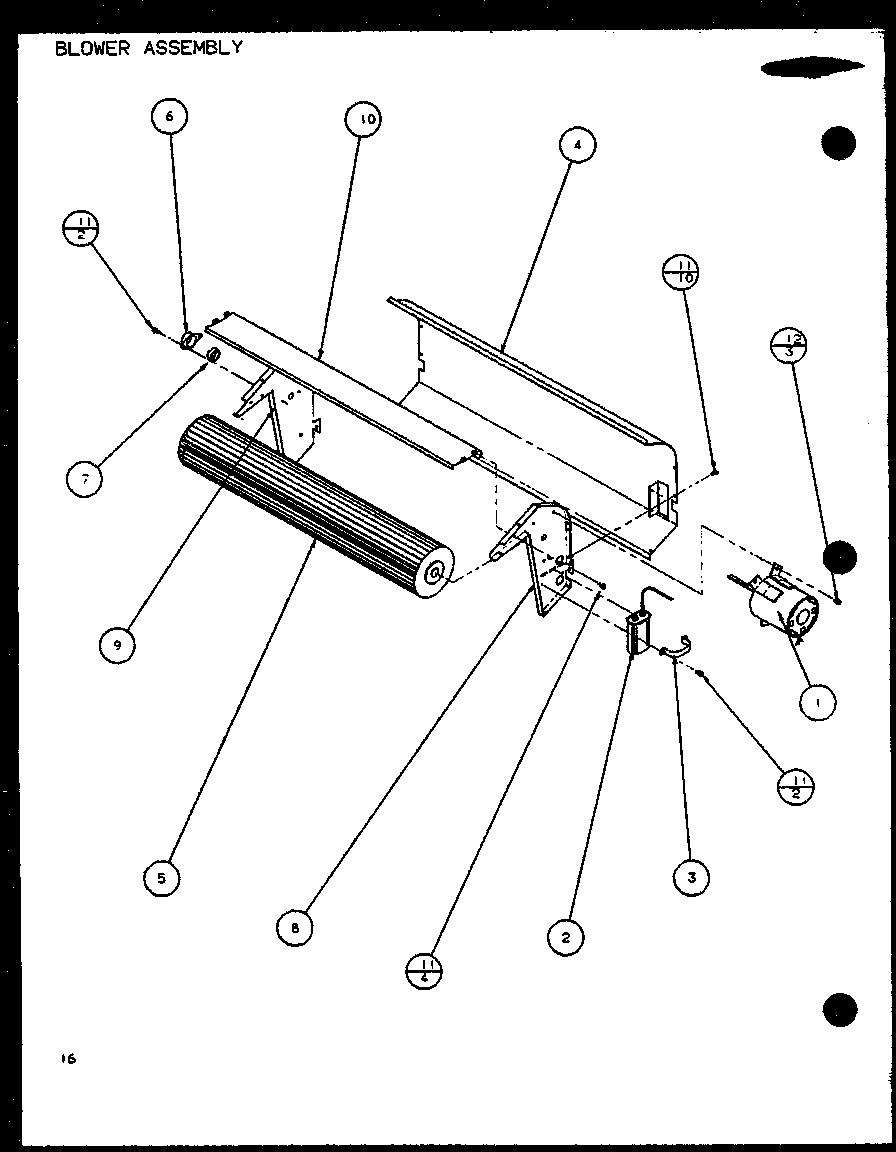

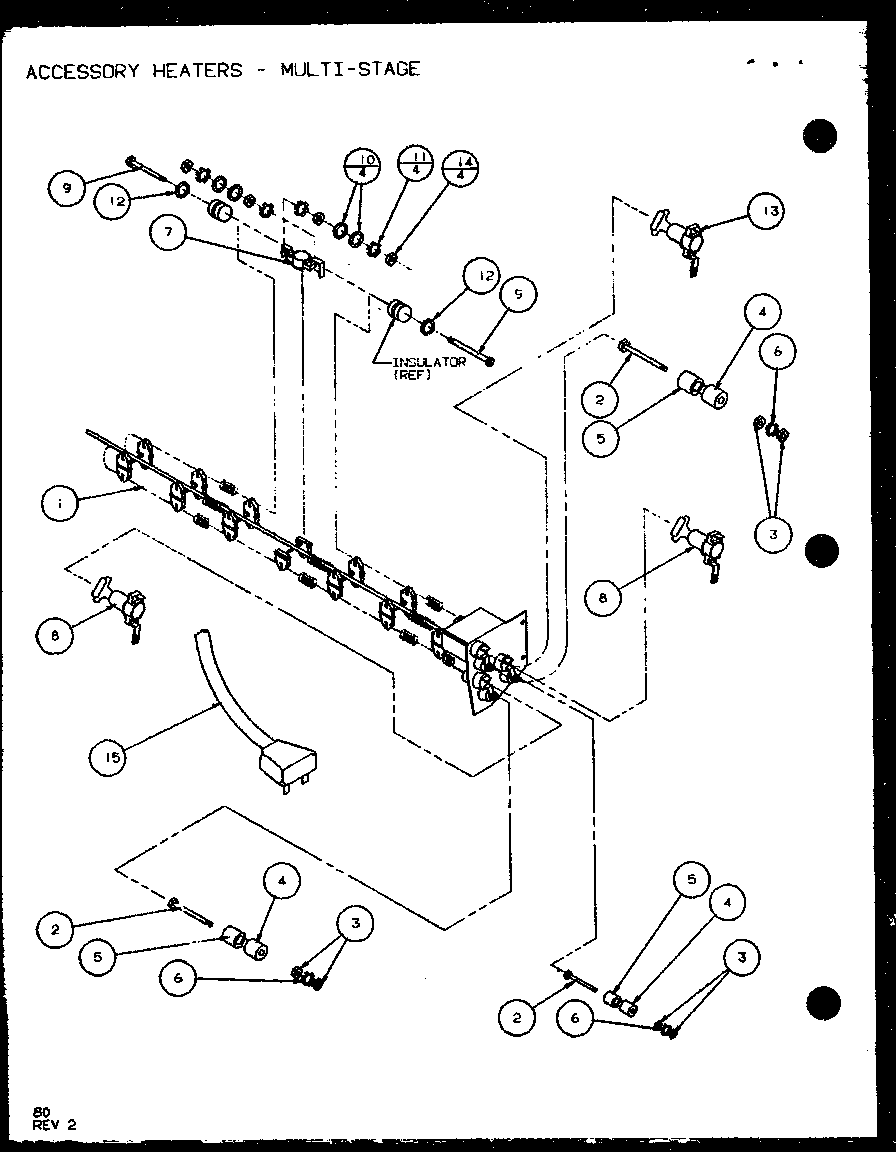

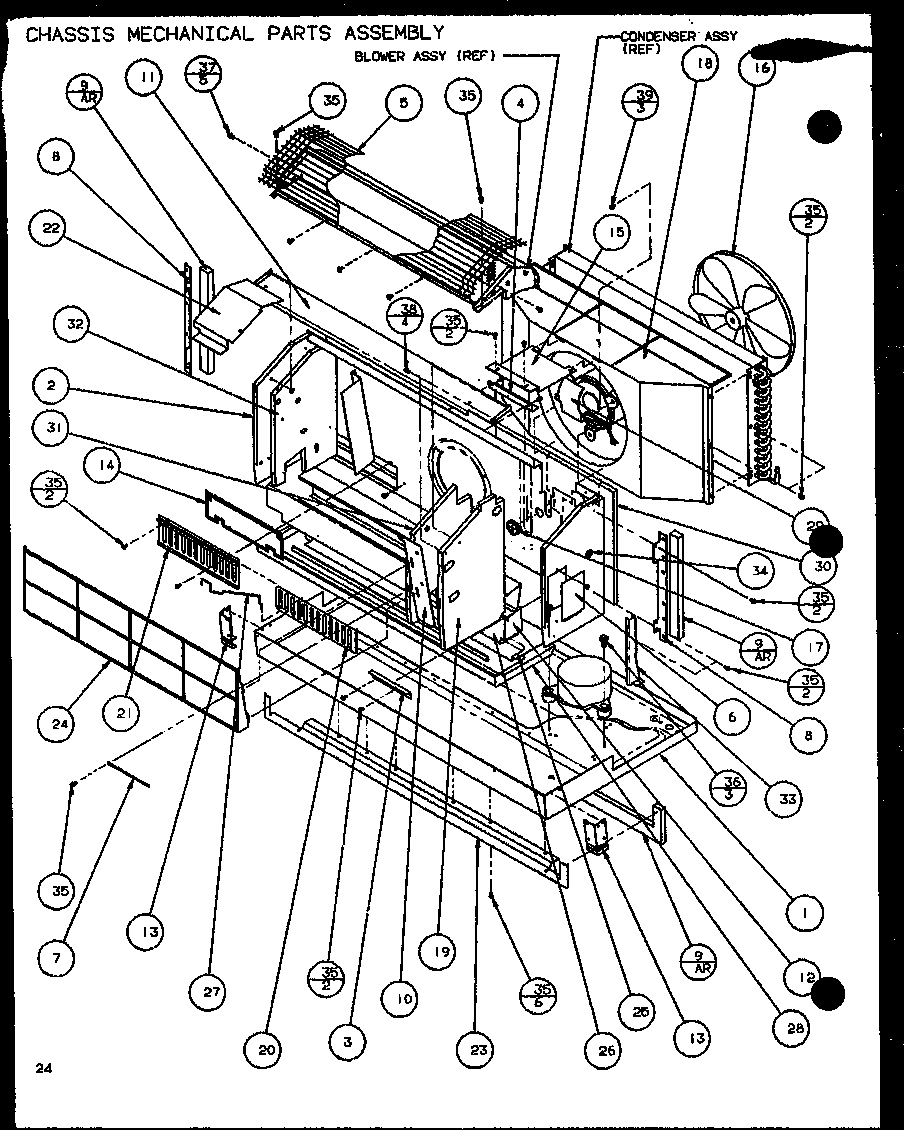

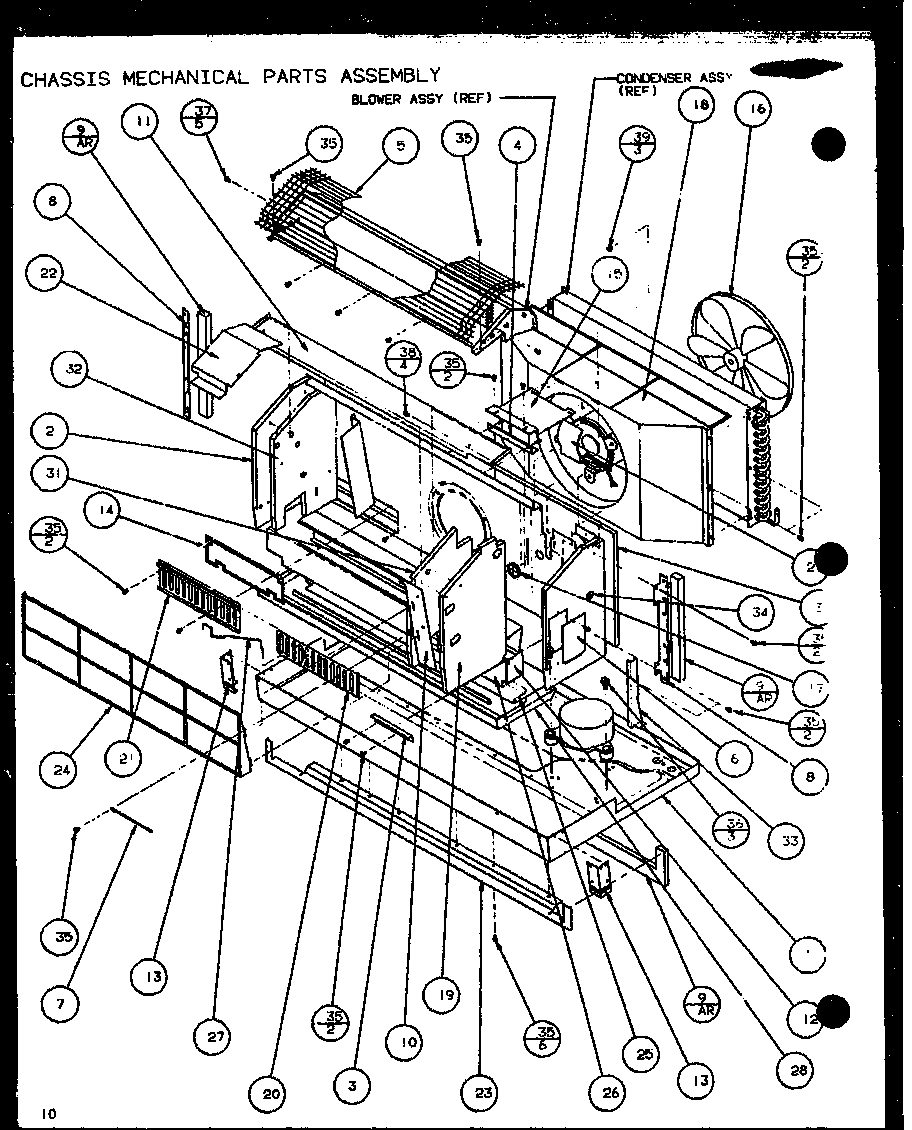

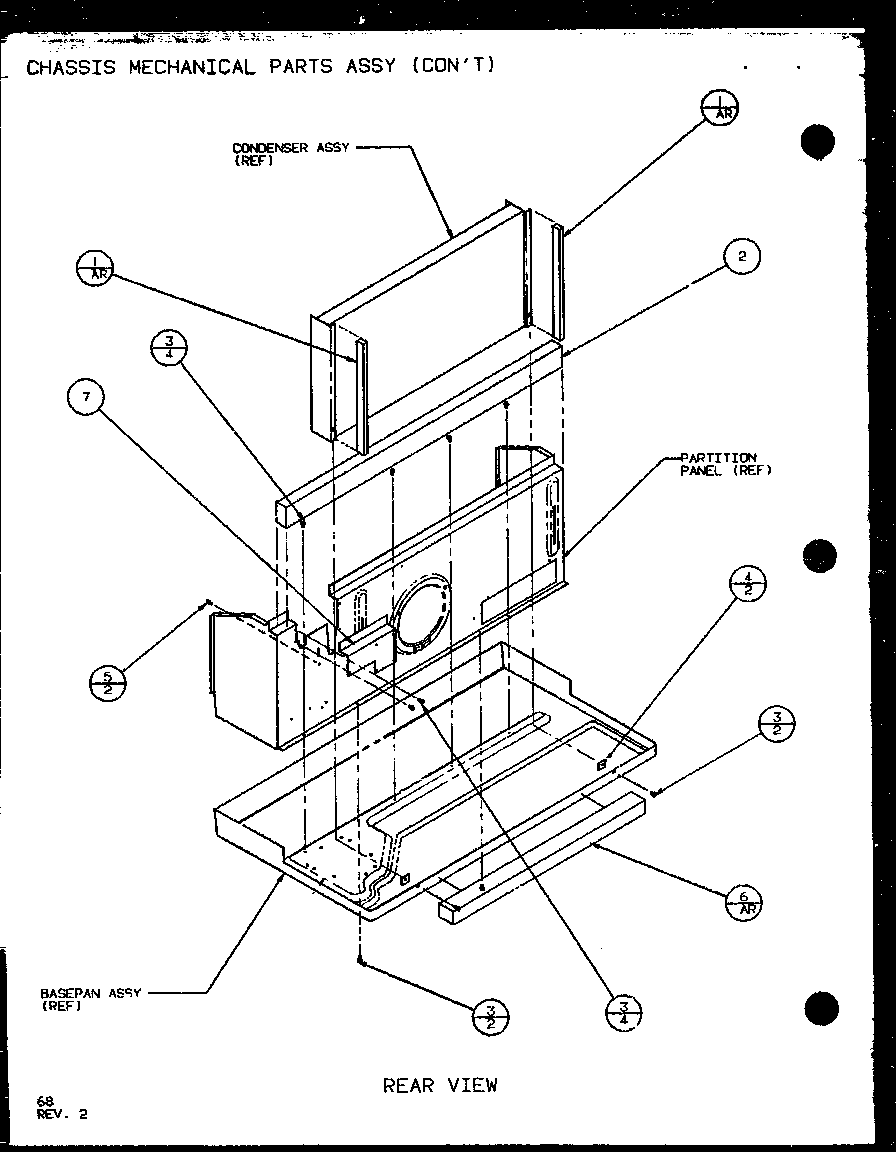

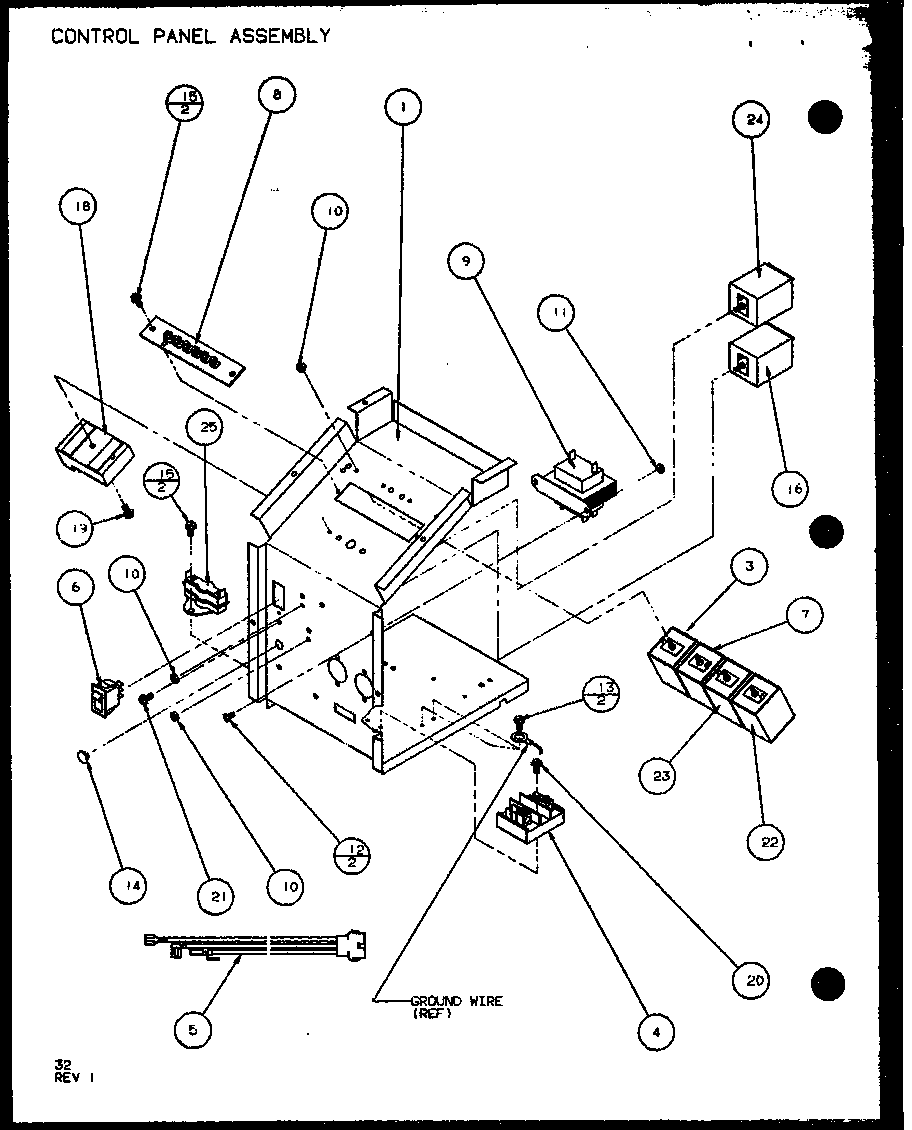

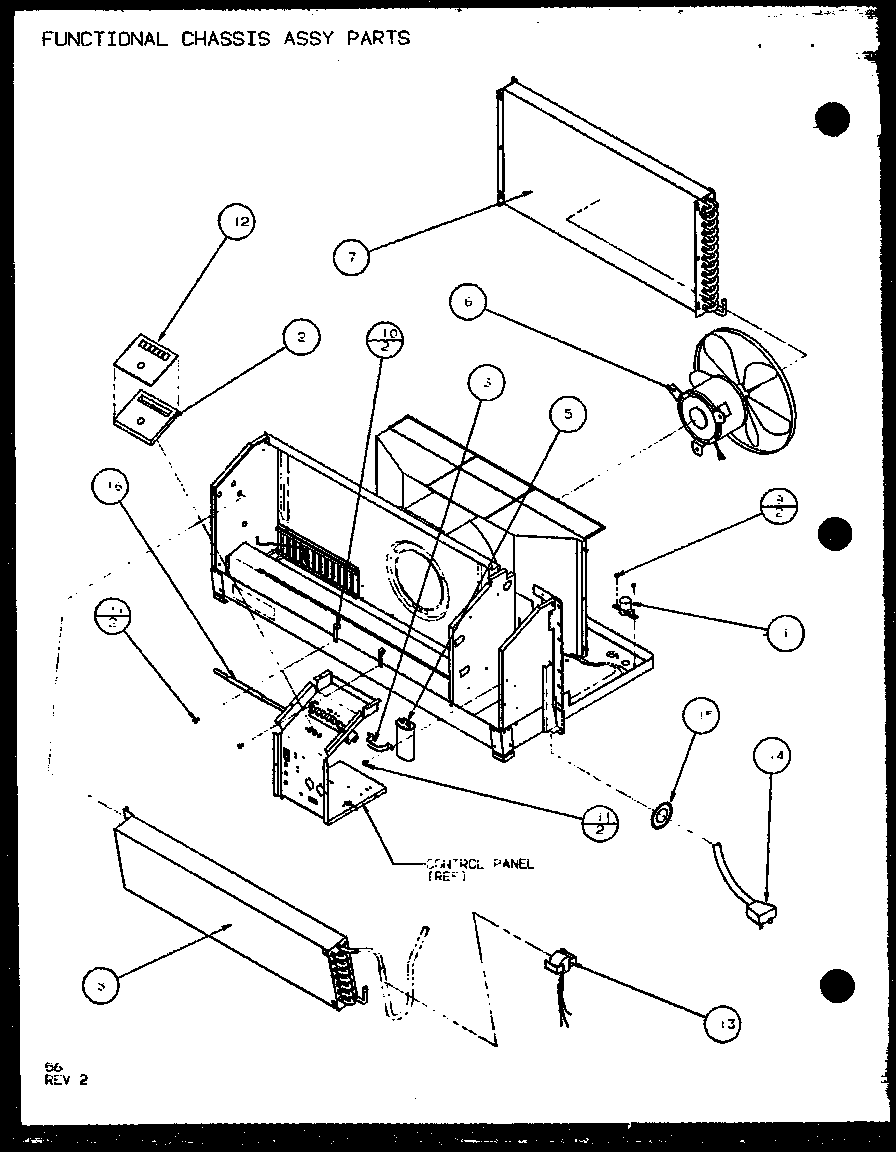

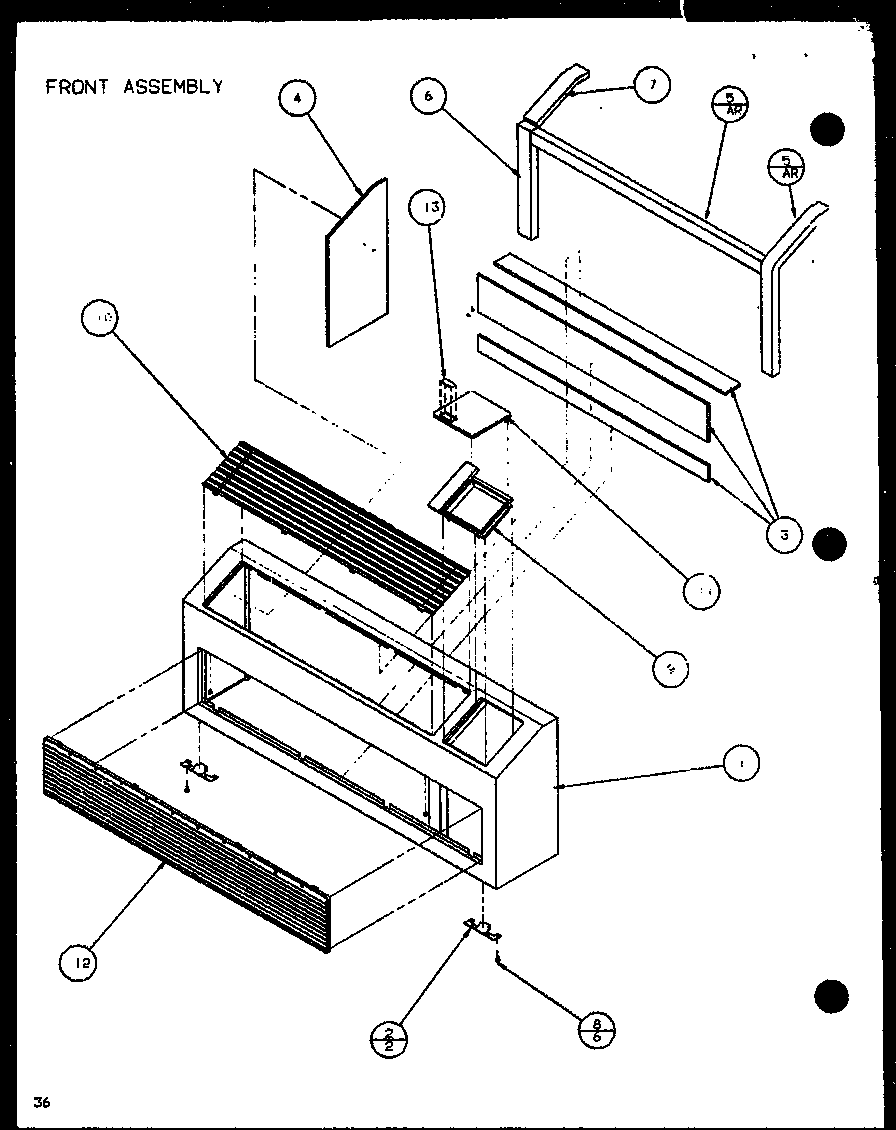

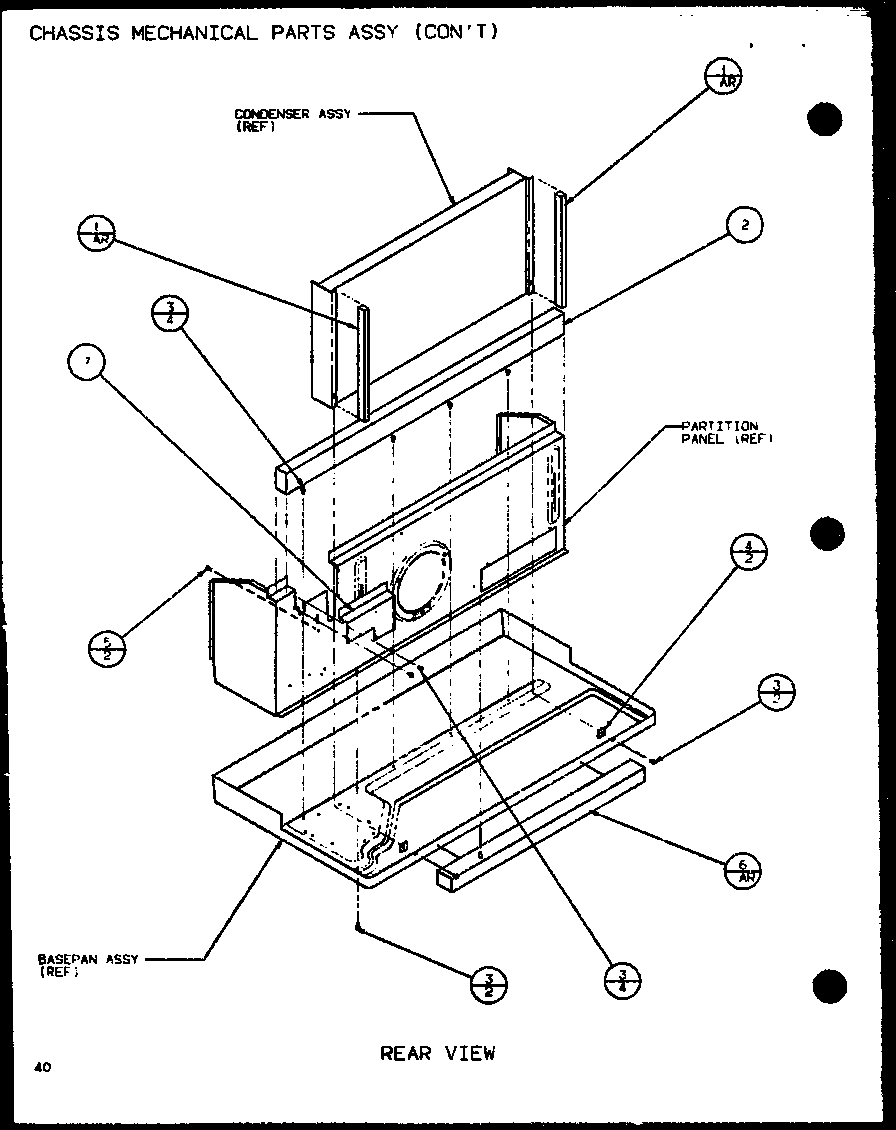

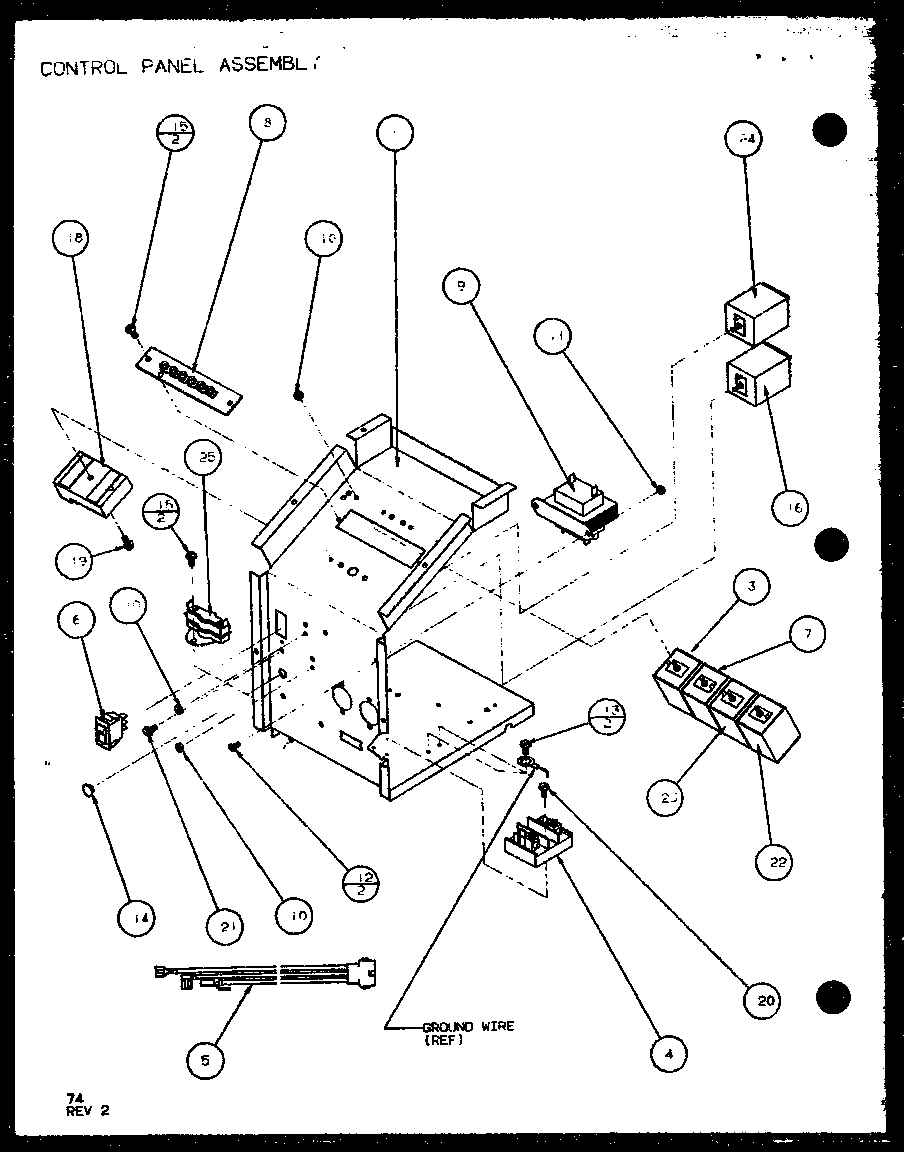

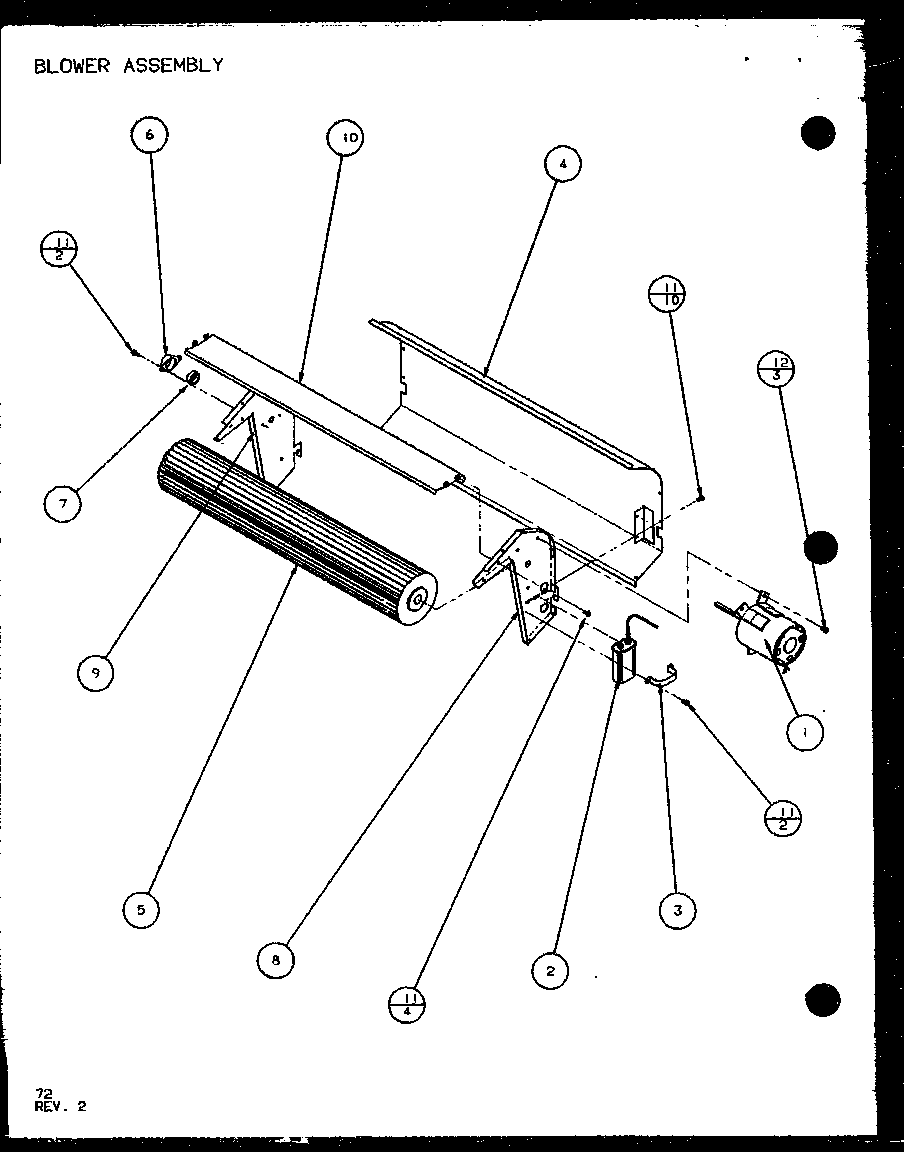

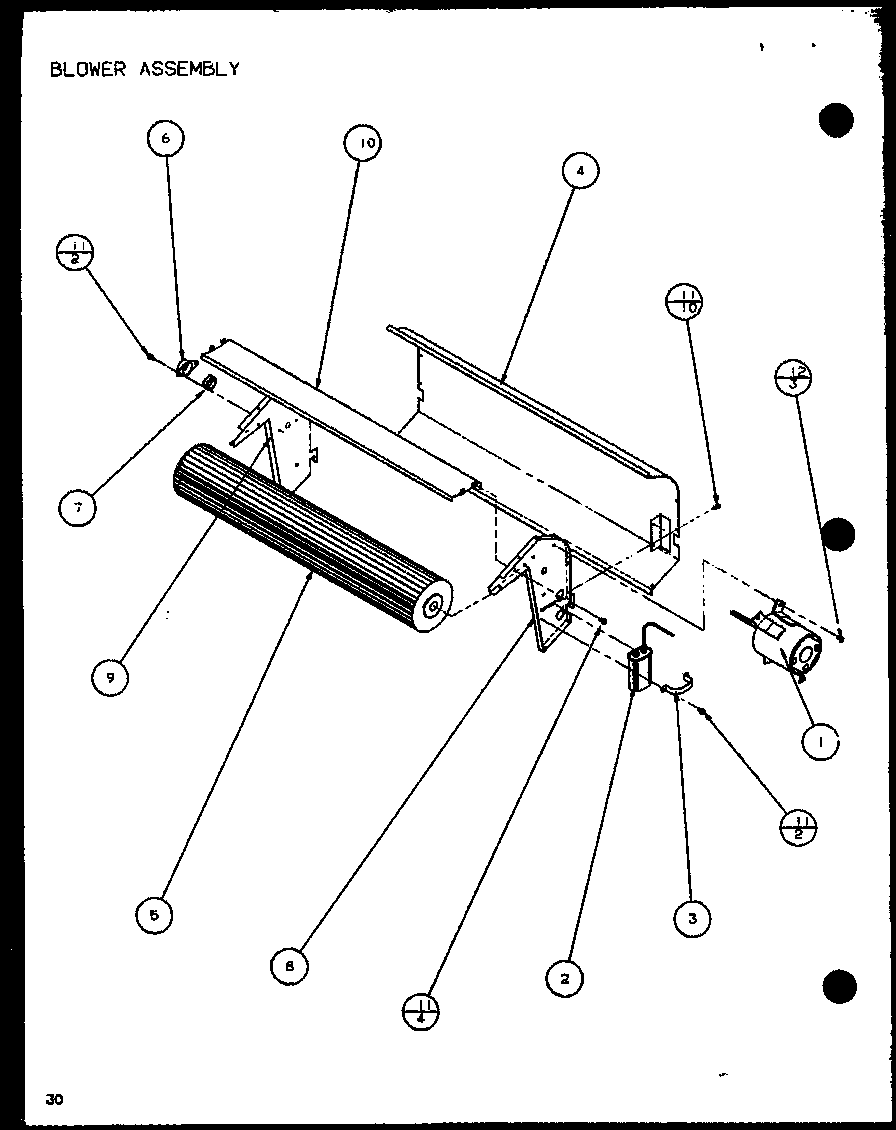

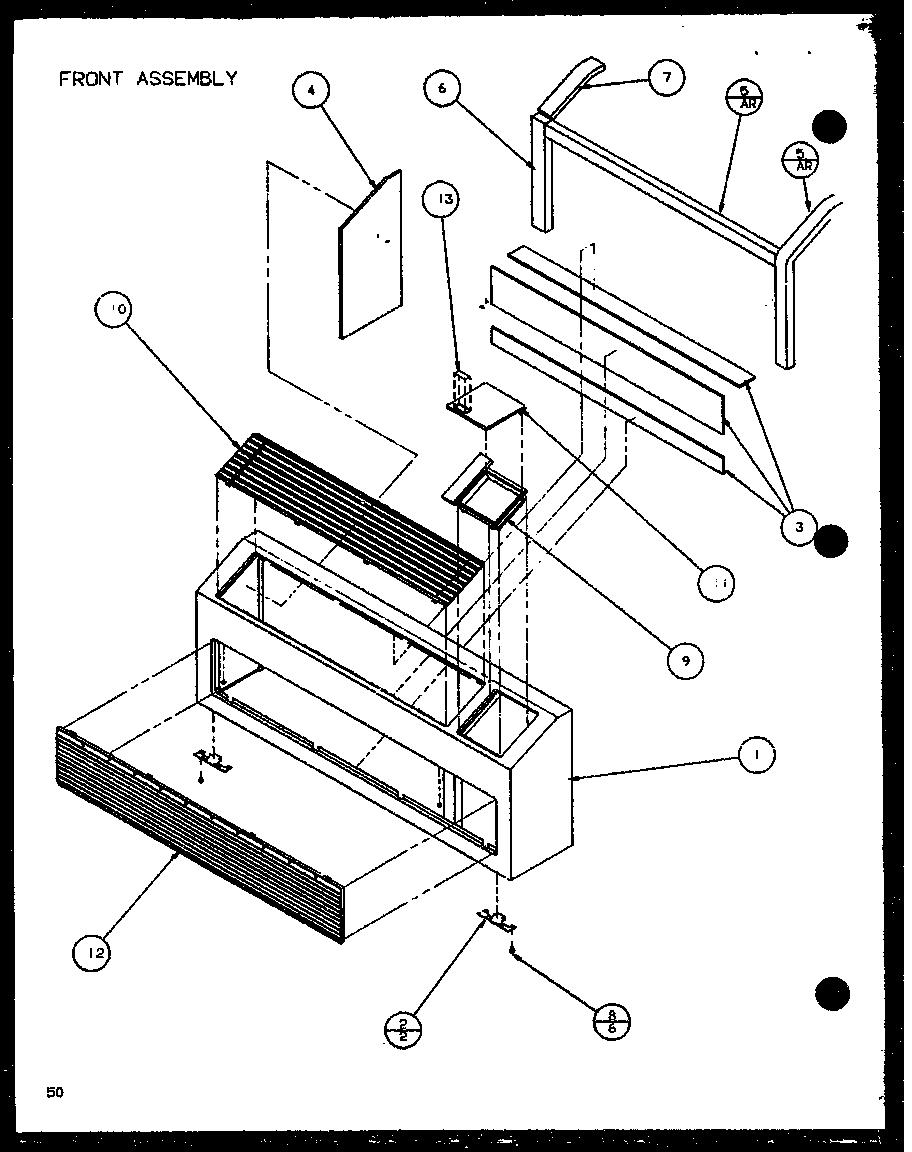

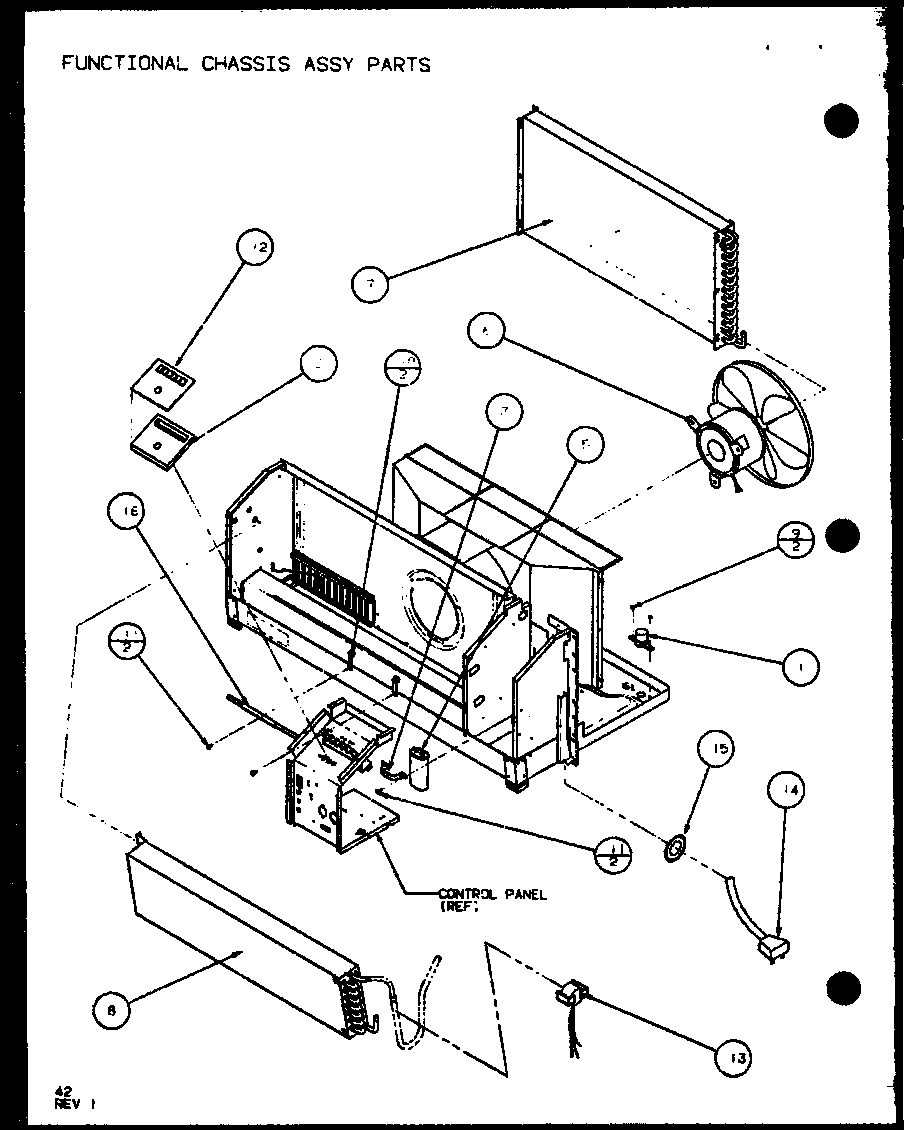

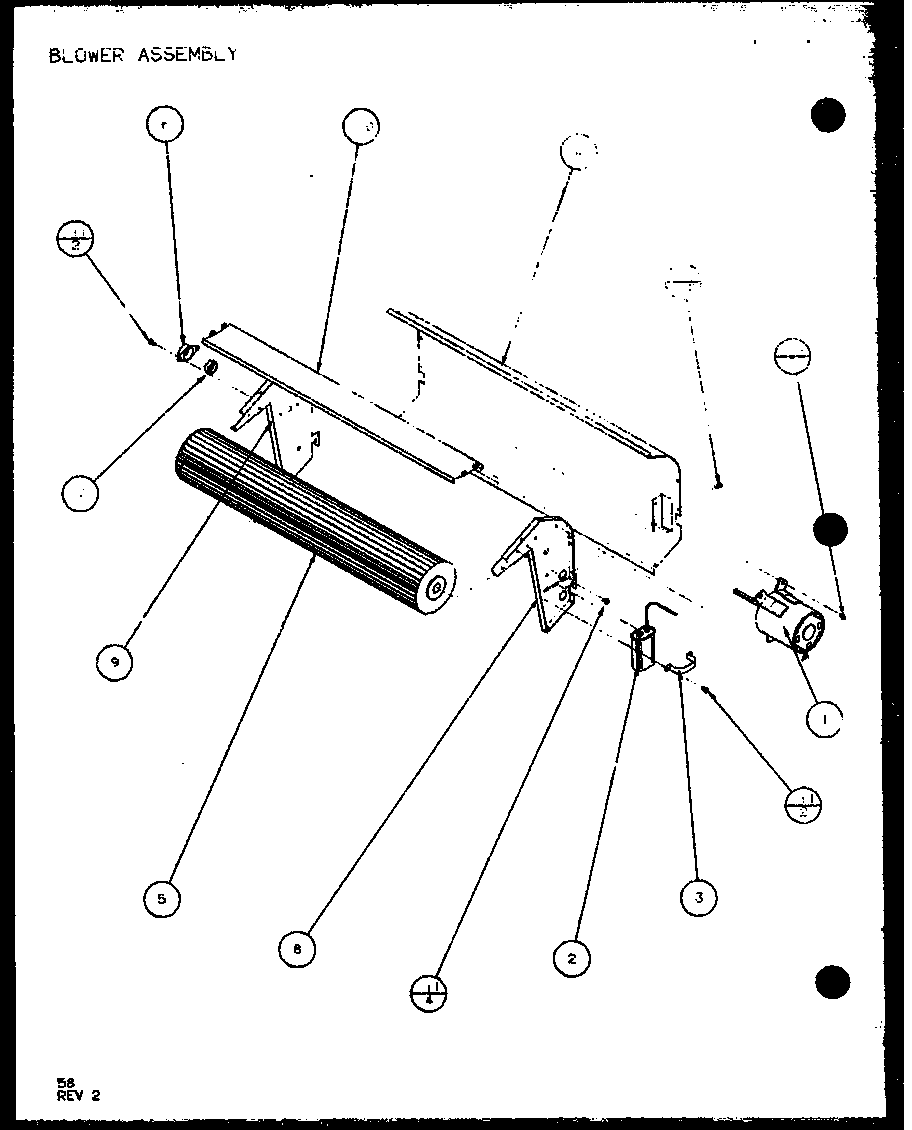

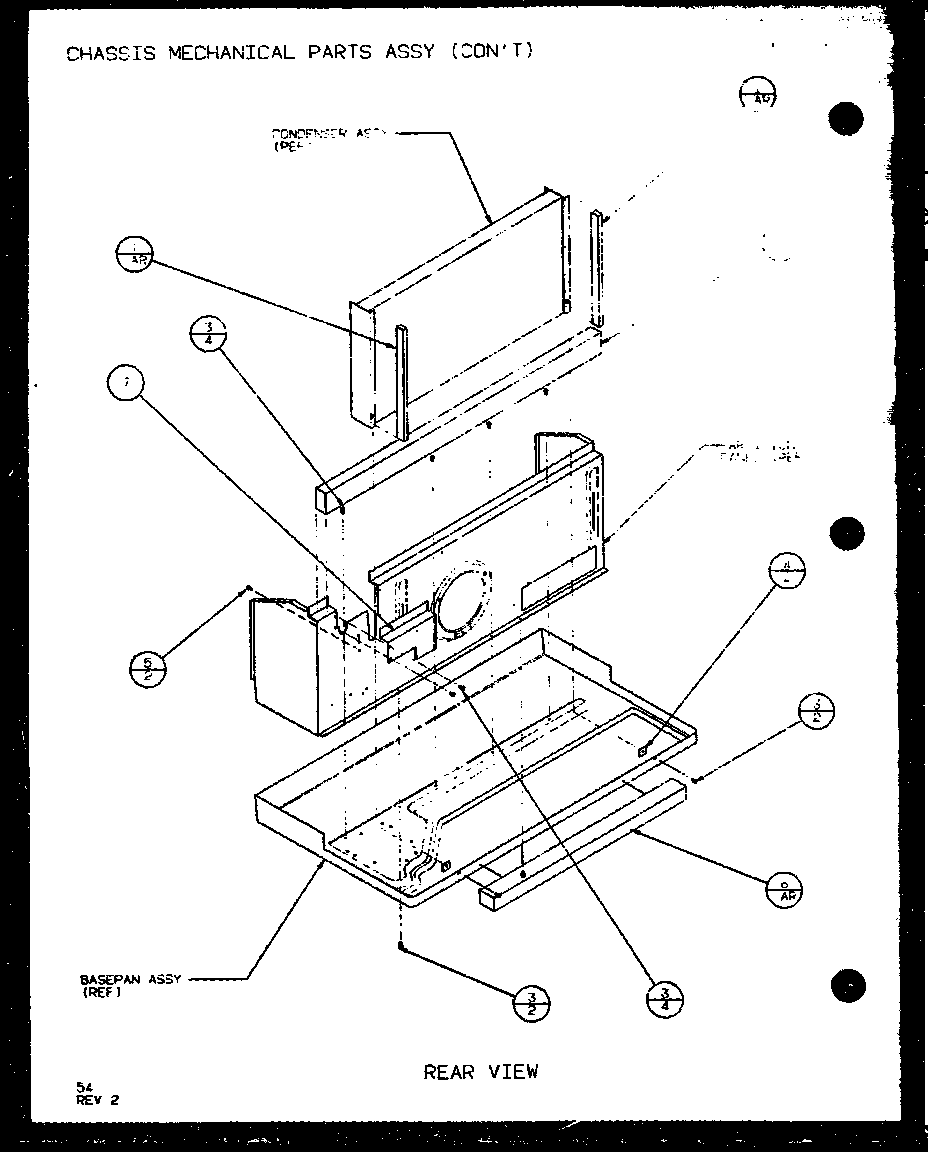

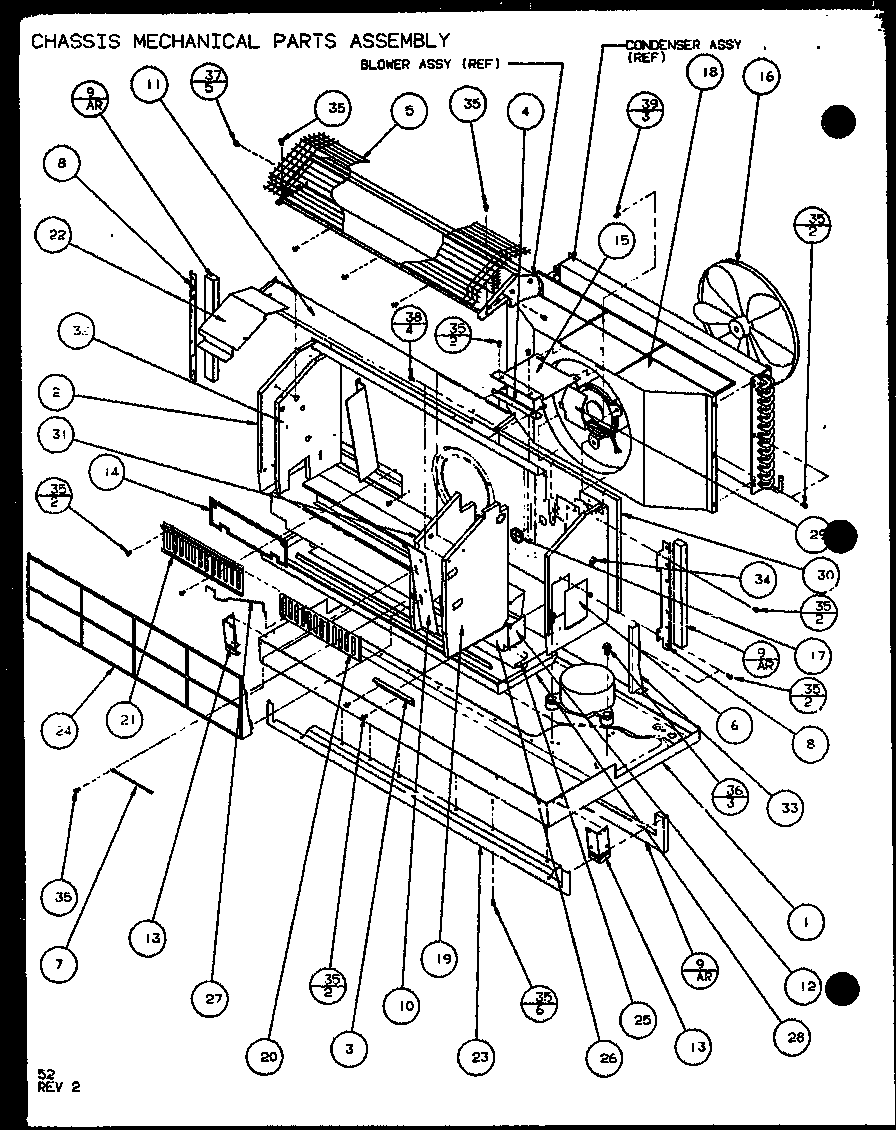

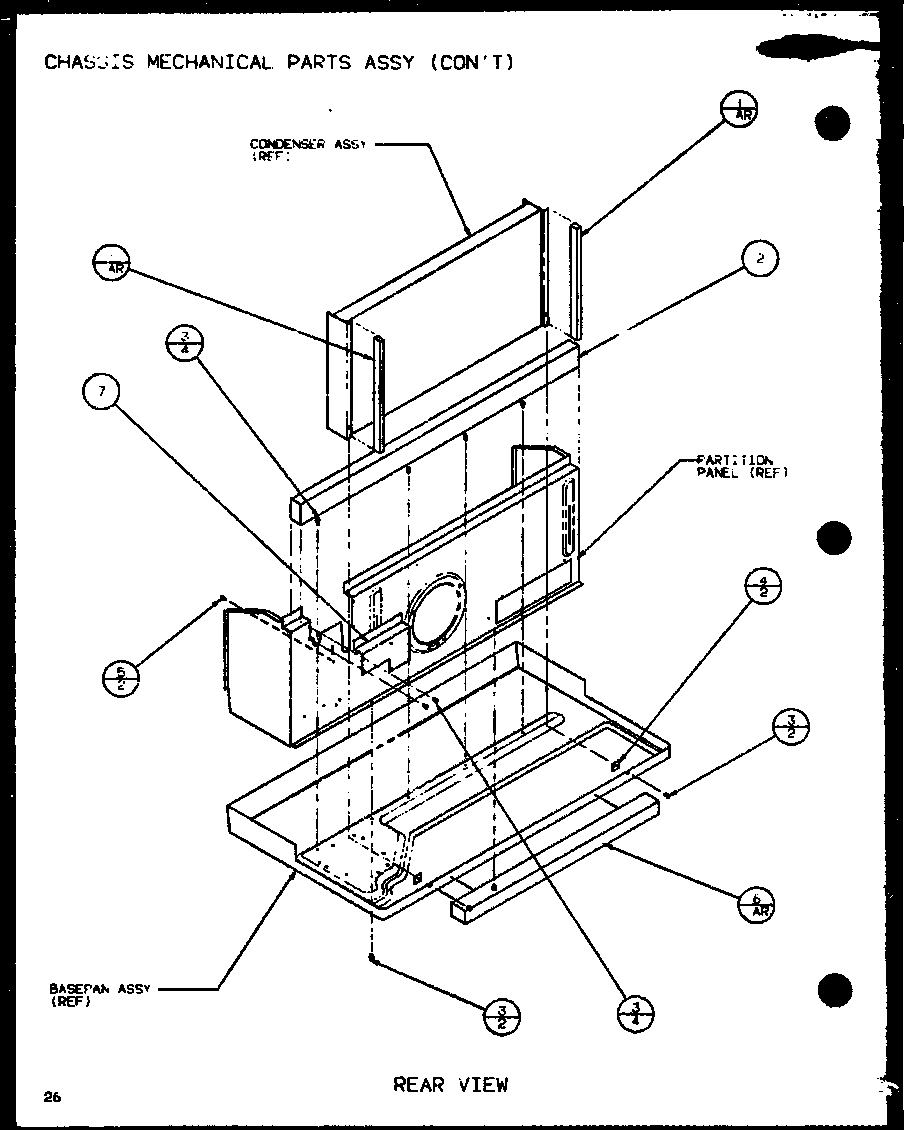

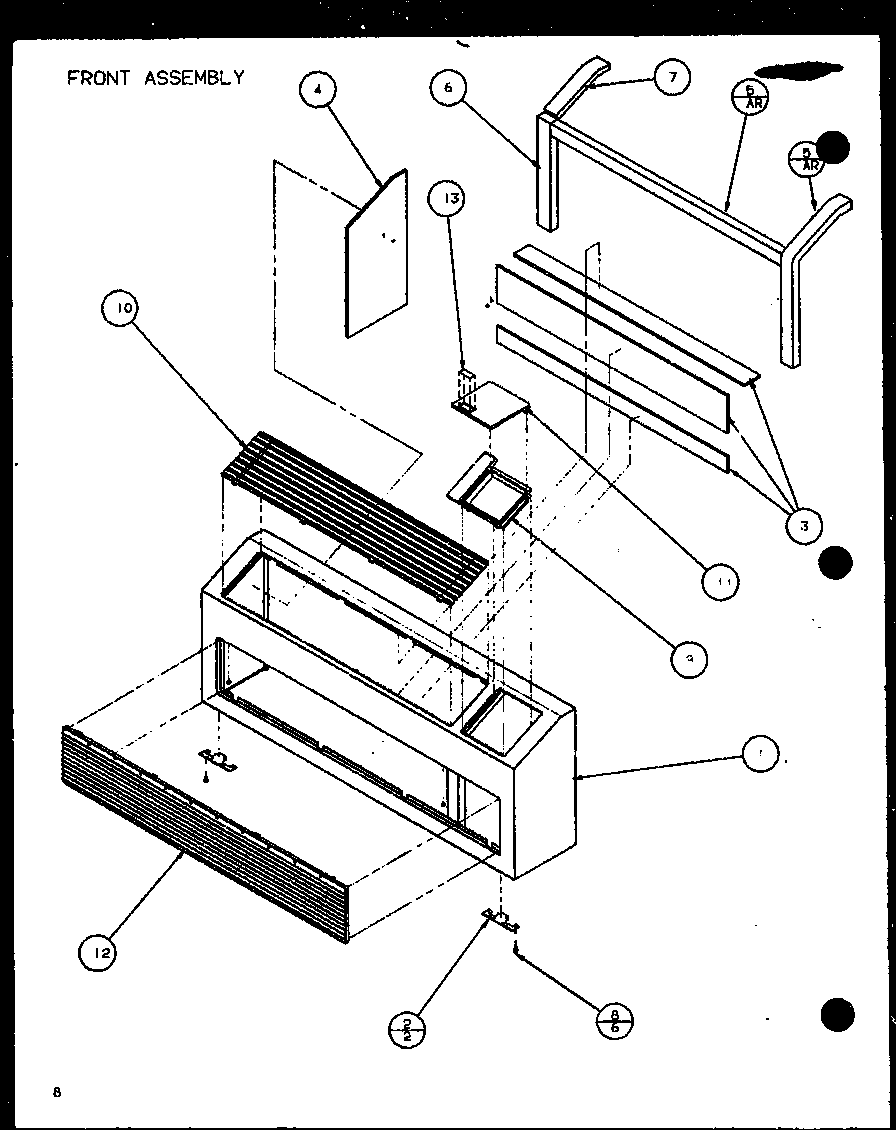

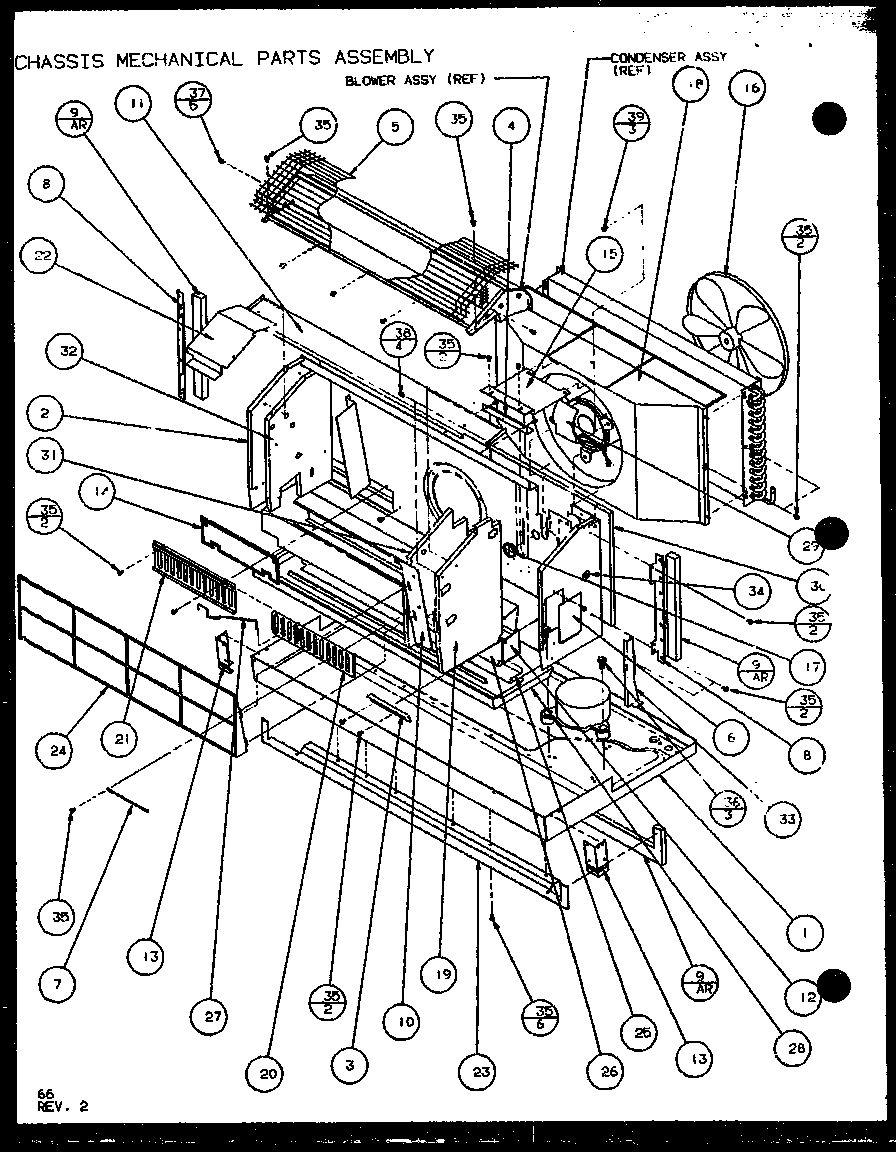

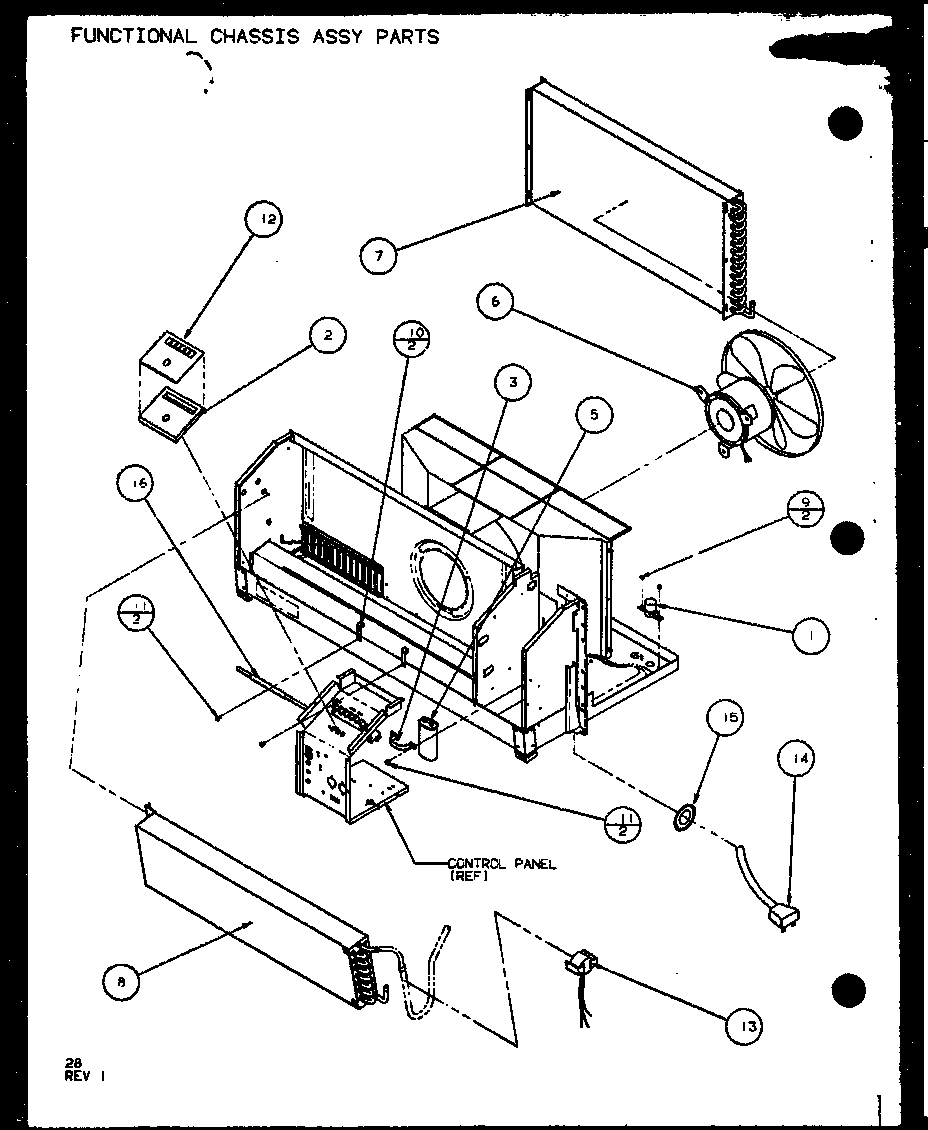

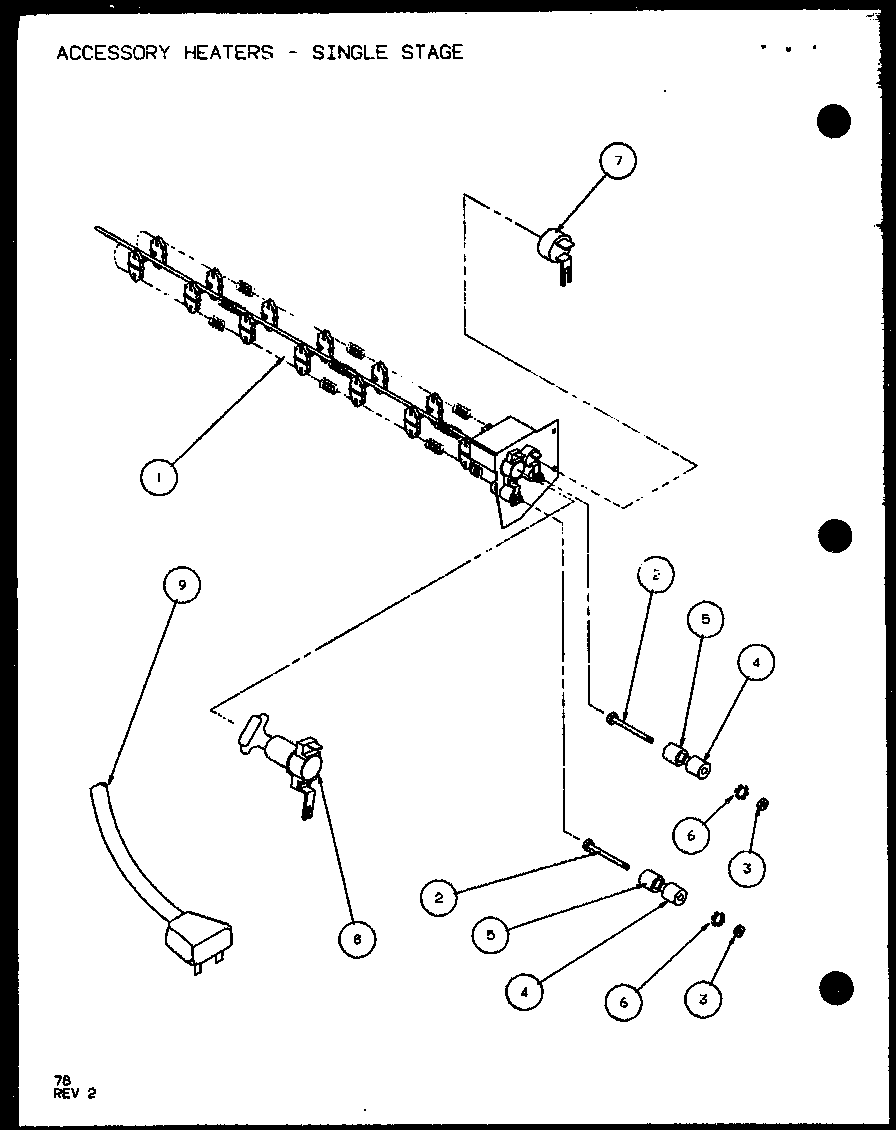

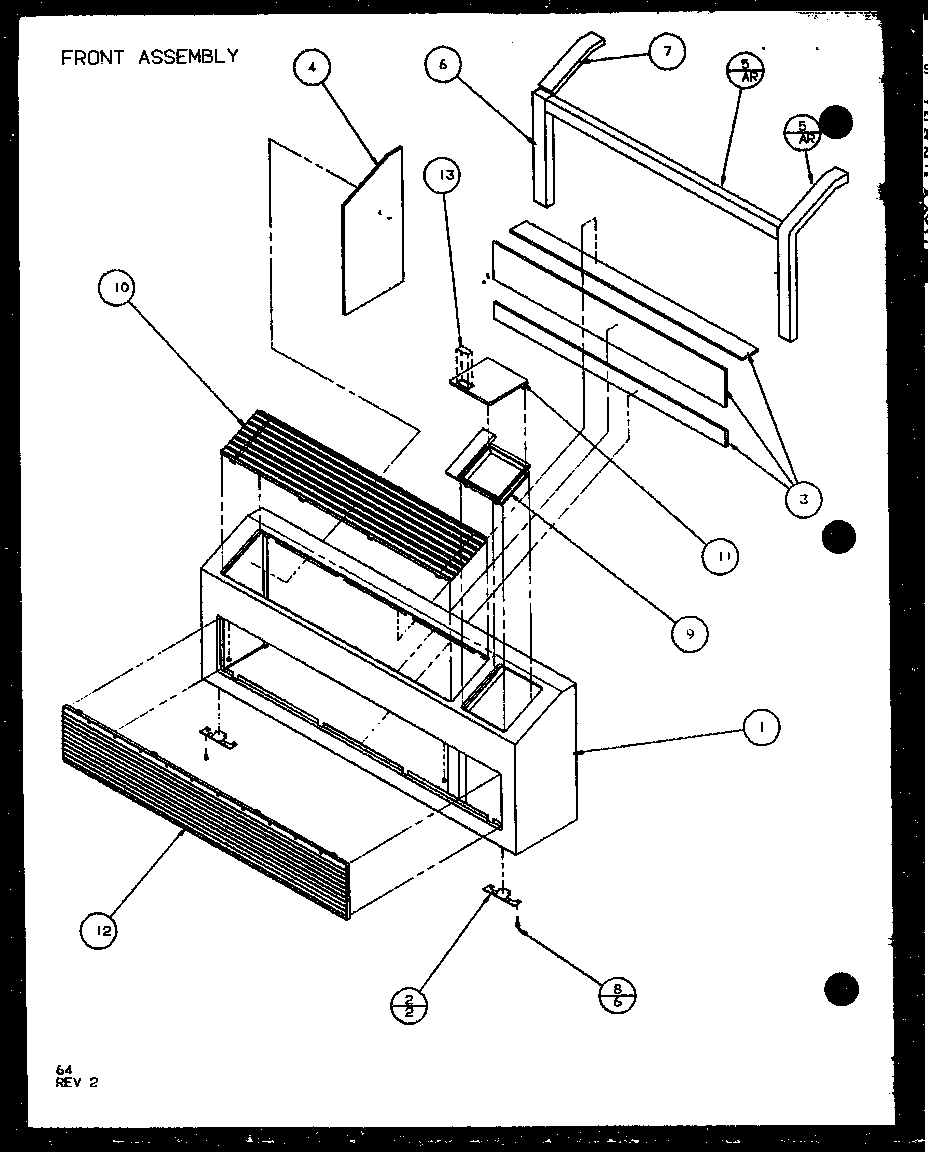

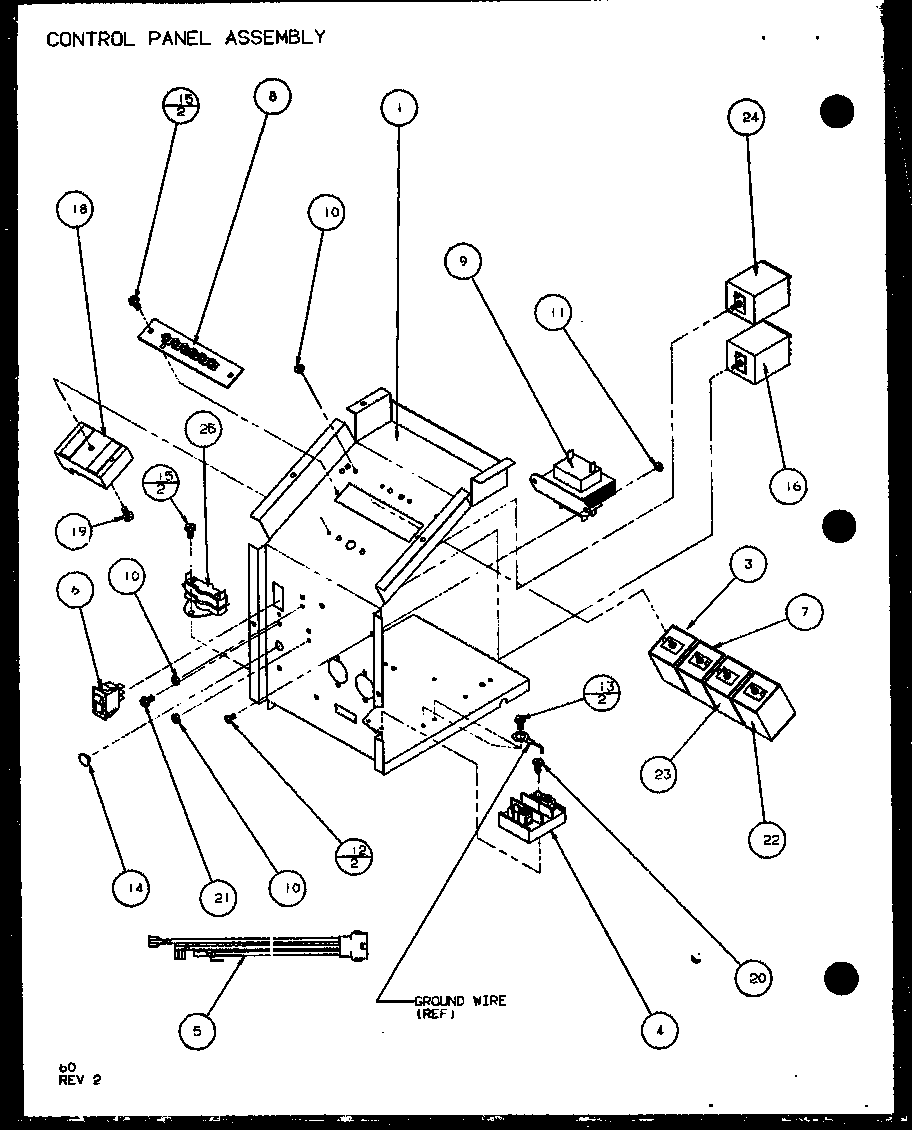

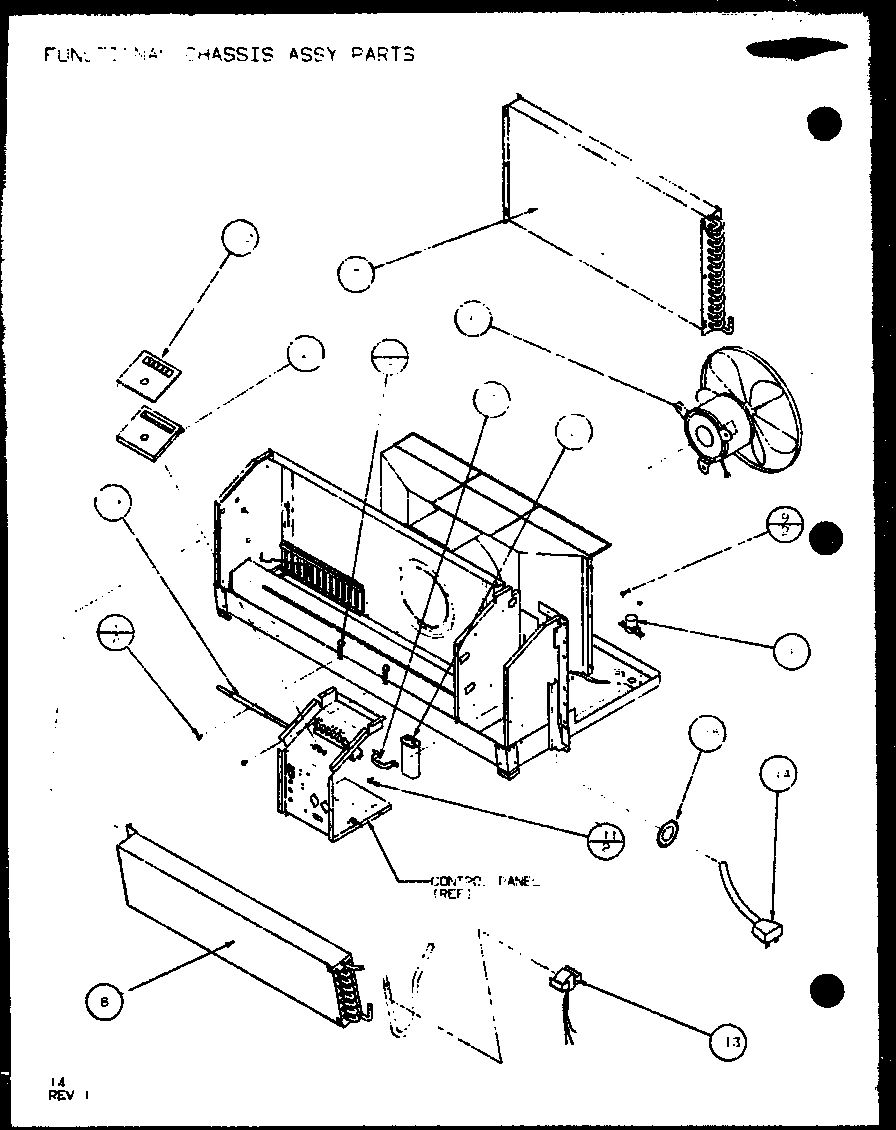

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |

Frame Screw M0241116
Frame screw

Part #M0241116

Replaced by #WP693995

?
Manufacturer substitution
This part replaces M0241116. Substitute parts can look different from the original.
This item is not returnable
$4.37
74% OFF MSRP : $17.00
In Stock
Terminal Nut A3436601
Terminal nut

Part #A3436601

Replaced by #WP776338

?
Manufacturer substitution
This part replaces A3436601. Substitute parts can look different from the original.
In Stock
Cover Part C6494801
Cover part

Part #C6494801

The manufacturer no longer makes this part, and there's no substitute part

Overload D6961624
#8A

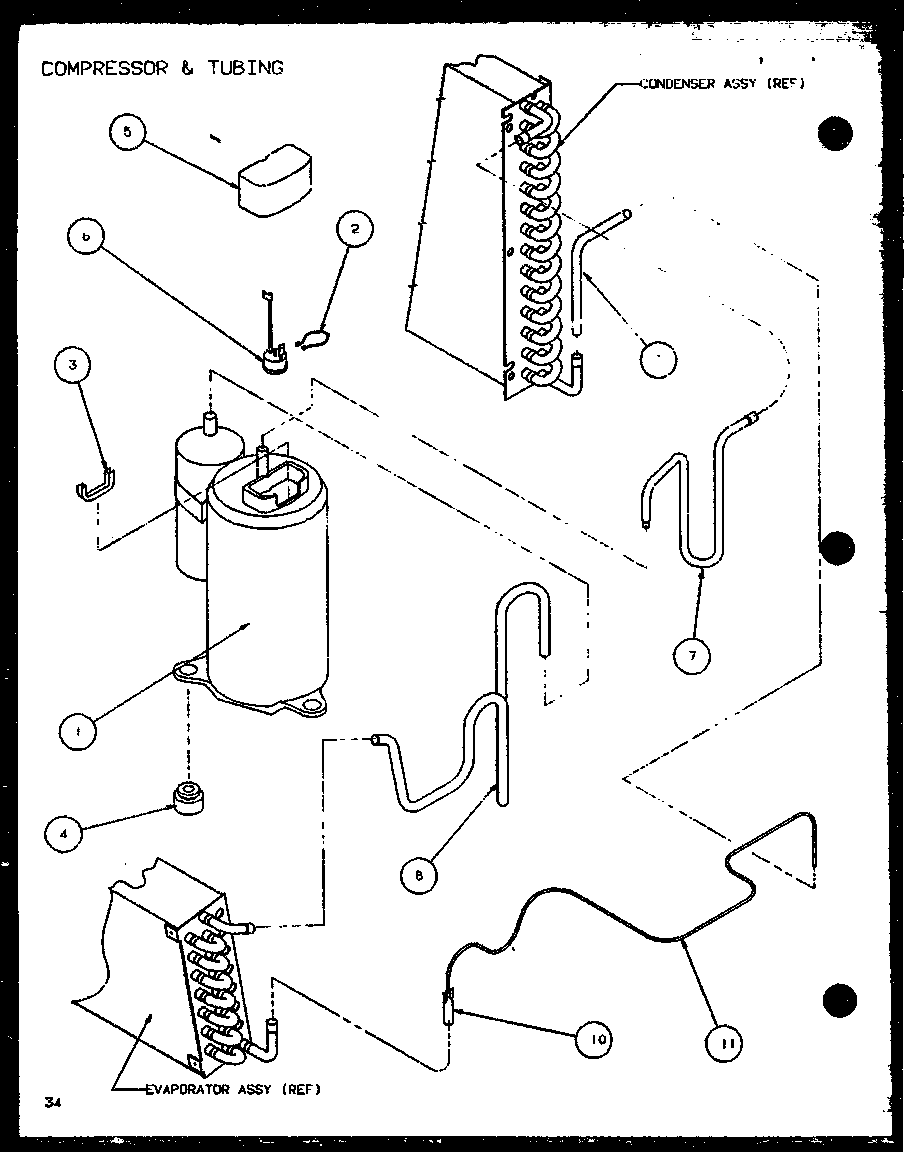

Compressor & tubing (ptc15300er/p9812522r) (ptc15400er/p9872222r) diagram

Overload

Part #D6961624

The manufacturer no longer makes this part, and there's no substitute part

Capacitor St C6300503
Capacitor st

Part #C6300503

The manufacturer no longer makes this part, and there's no substitute part

Pickup Conde D9846001
Pickup conde

Part #D9846001

The manufacturer no longer makes this part, and there's no substitute part

Use 10718901 C6422002
Use 10718901

Part #C6422002

The manufacturer no longer makes this part, and there's no substitute part

Use 10455401 10078701
#9

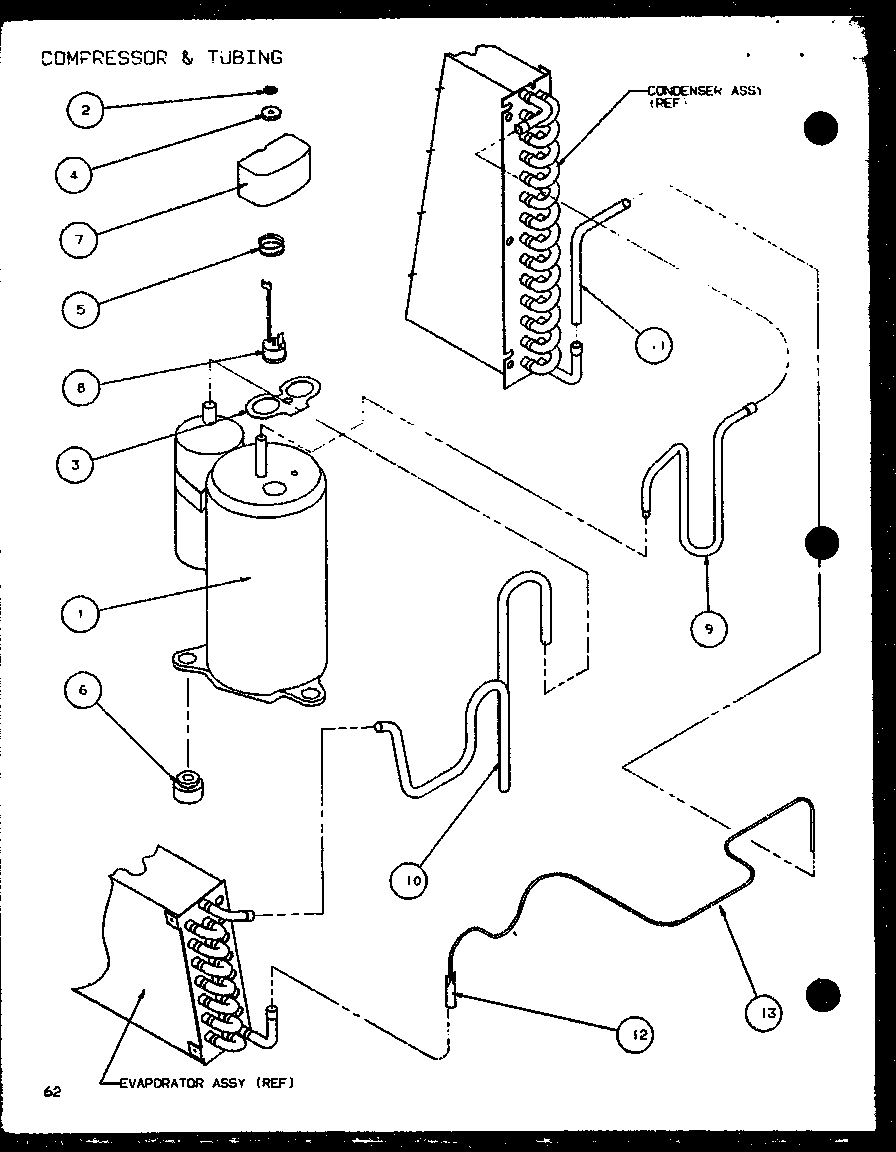

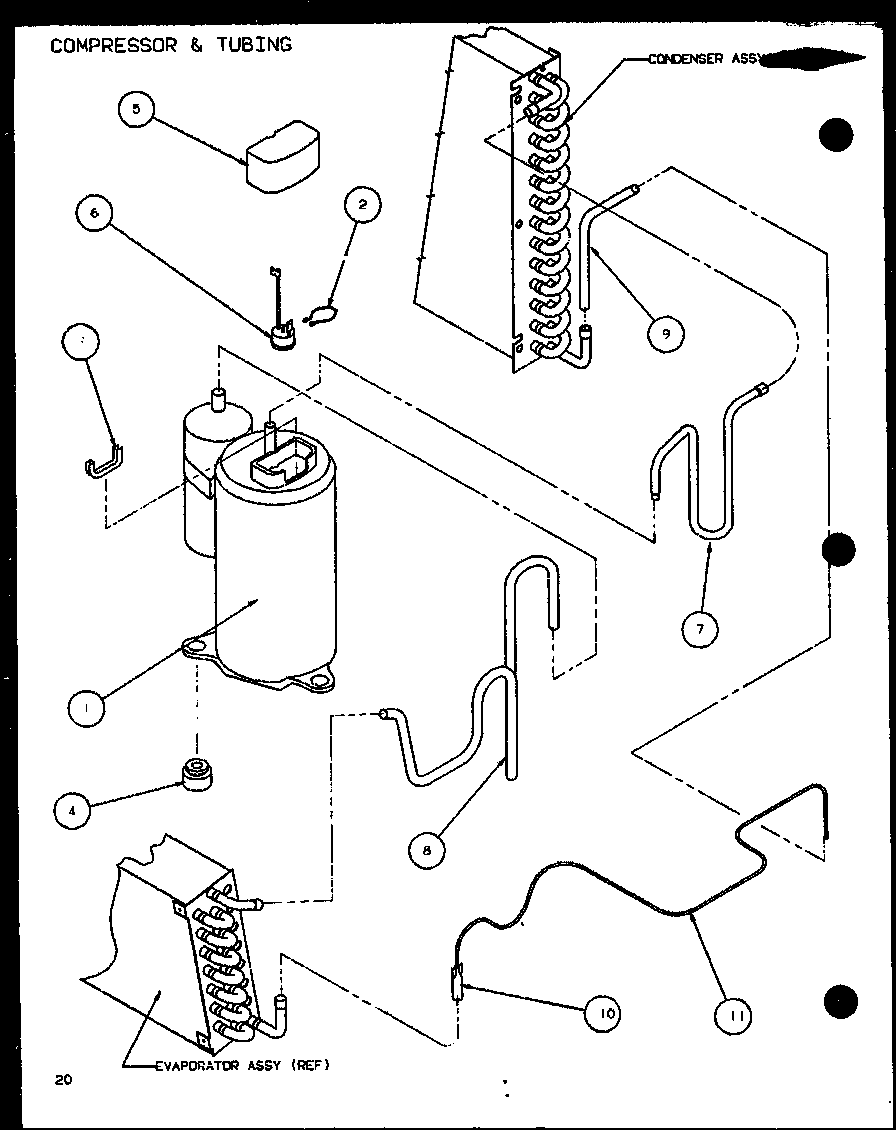

Compressor & tubing (ptc12300er/p9812529r) (ptc12400er/p9872229r) diagram

Use 10455401

Part #10078701

The manufacturer no longer makes this part, and there's no substitute part

Use D6985804 D6985804
Use d6985804

Part #D6985804

The manufacturer no longer makes this part, and there's no substitute part

Pad Escutcheon B1434301
Pad escutcheon

Part #B1434301

The manufacturer no longer makes this part, and there's no substitute part
