Model # 217585750 Official Craftsman 7.5-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 217585750 7.5-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

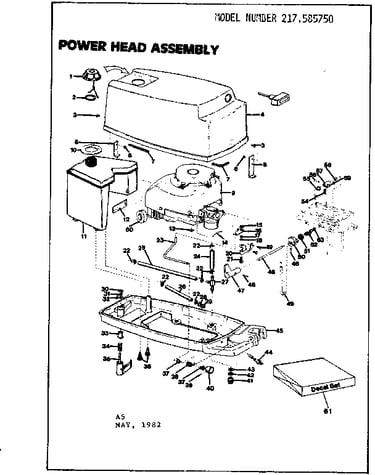

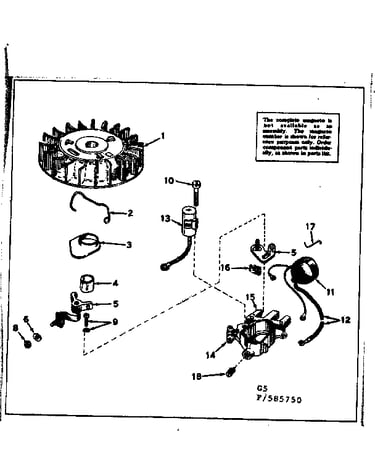

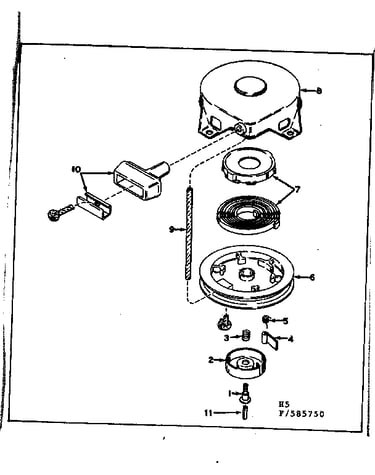

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 300 parts  |
Gasket 631028
#25

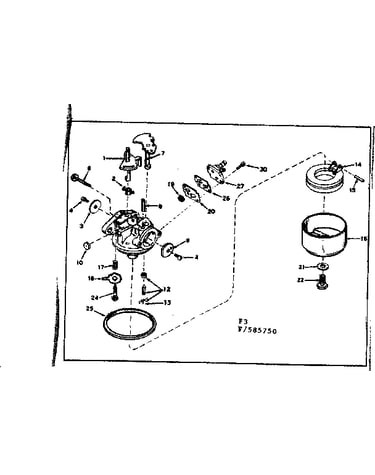

Carburetor assembly diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Spring 630735
#8

Carburetor assembly diagram

Spring

Part #630735

The manufacturer no longer makes this part, and there's no substitute part

Seal 510242
#72

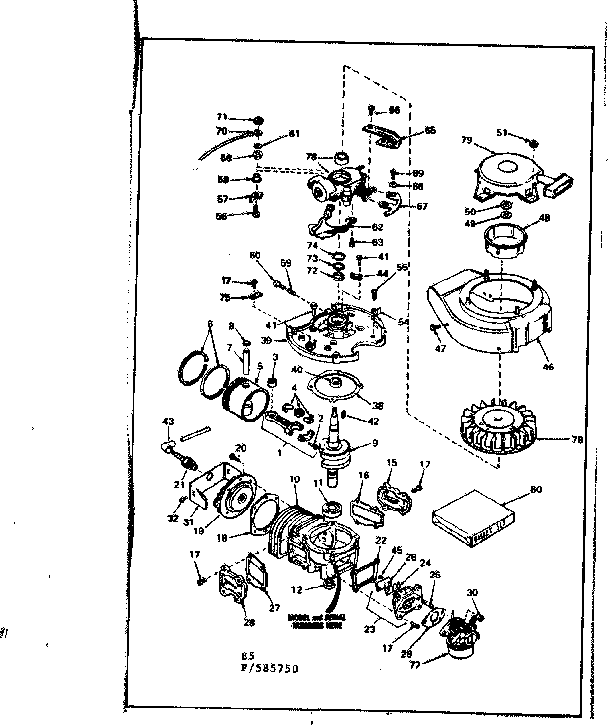

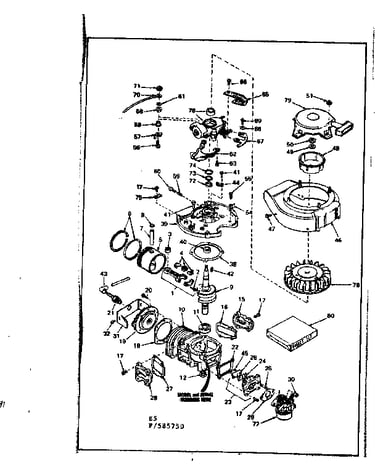

Engine assembly diagram

Seal

Part #510242

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
#13

Carburetor assembly diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Gasket (gray) 26352
#22

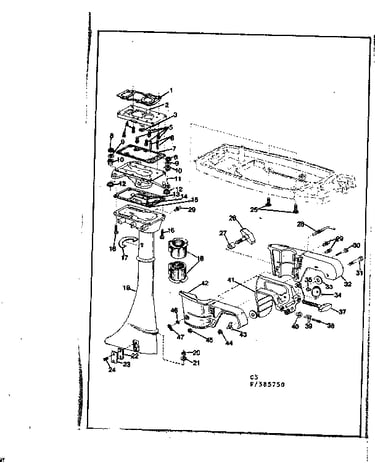

Column assembly diagram

Gasket (gray)

Part #26352

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Impeller Pin 36468
#2

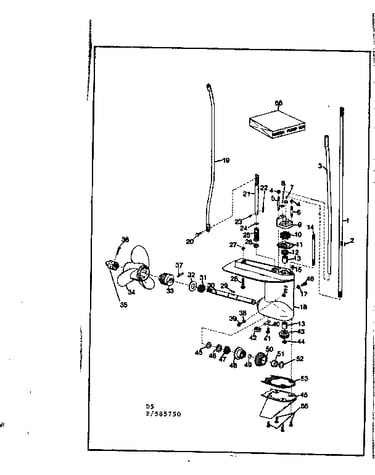

Gear housing assembly diagram

Boat motor impeller pin

Part #36468

The manufacturer no longer makes this part, and there's no substitute part

Cushion Hub 110603
#33

Gear housing assembly diagram

Cushion hub

Part #110603

The manufacturer no longer makes this part, and there's no substitute part

Screw 699
#20

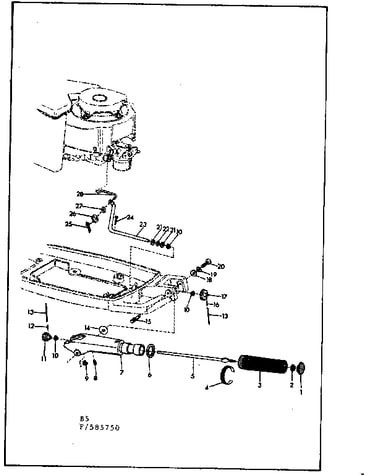

Twist grip assembly diagram

Screw

Part #699

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Washer 5630
#32

Gear housing assembly diagram

Boat motor washer

Part #5630

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal (black) 95717
#31

Gear housing assembly diagram

Oil seal (black)

Part #95717

The manufacturer no longer makes this part, and there's no substitute part
