GE
Wall Oven/Microwave Combo

Model #JTP86BF6BB GE wall oven/microwave combo

Here are the diagrams and repair parts for GE JTP86BF6BB wall oven/microwave combo, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 157 parts

|

Wall Oven Temperature Sensor

#253

Body with microwave support Diagram

$17.55

In Stock

Range Bake Element

#251

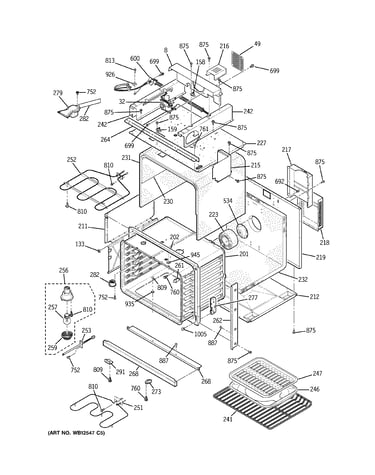

Body with microwave support Diagram

Range bake element

Part #WB44T10018
$83.80

In Stock

Range Oven Control Board

#16

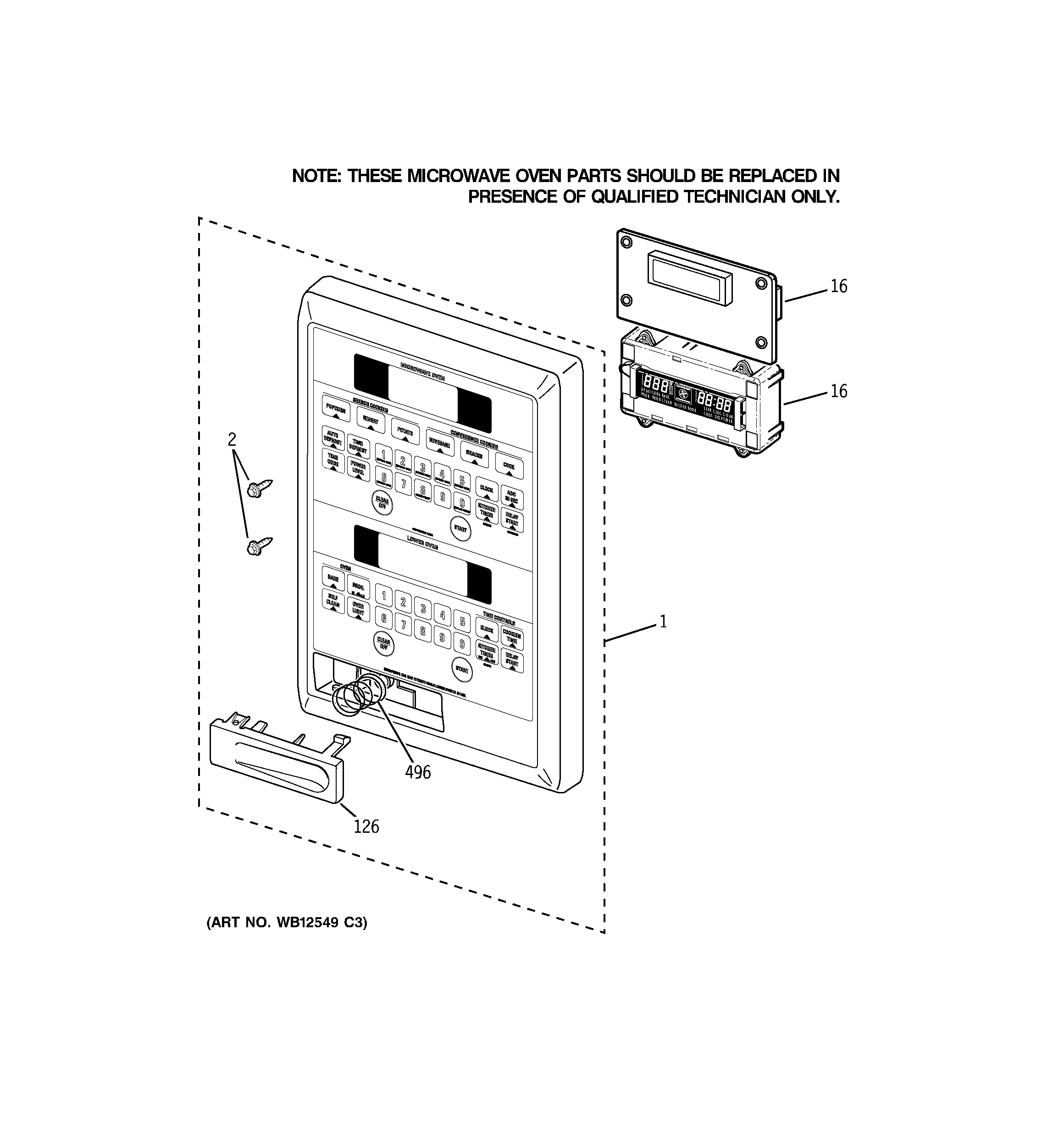

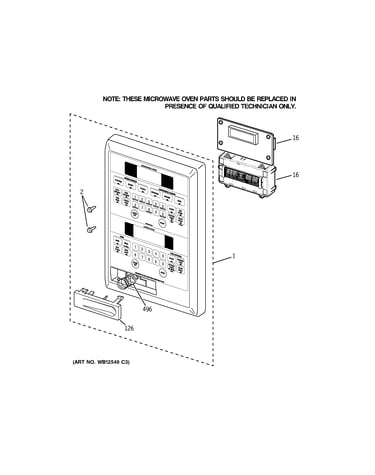

Control panel Diagram

Range oven control board

Part #WB27T10497
$285.50

In Stock

Microwave Control Panel Button

#126

Control panel Diagram

$14.53

In Stock

Range Broil Element

#252

Body with microwave support Diagram

Range broil element

Part #WB44T10043
$51.03

In Stock

Microwave Turntable Tray Support

#18

Microwave enclosure Diagram

$31.56

In Stock

Cooking Appliance Screw, #10-32

#1005

Body with microwave support Diagram

Cooking appliance screw, #10-32

Part #WB01T10008
This item is not returnable
$4.33

In Stock

Microwave Thermal Cut-Off

#463

Microwave body parts Diagram

Microwave thermal cut-off

Part #WB27X10166
$20.75

In Stock

Microwave Cooling Fan Thermostat

#443

Microwave body parts Diagram

$40.42

In Stock

Range Screw

#694

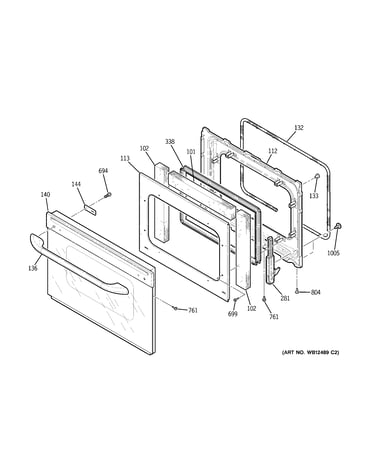

Door Diagram

Range screw

Part #WB01T10066
This item is not returnable
$2.87

In Stock

Showing 10 of 157 parts
