Model # 72165002401 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72165002401 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

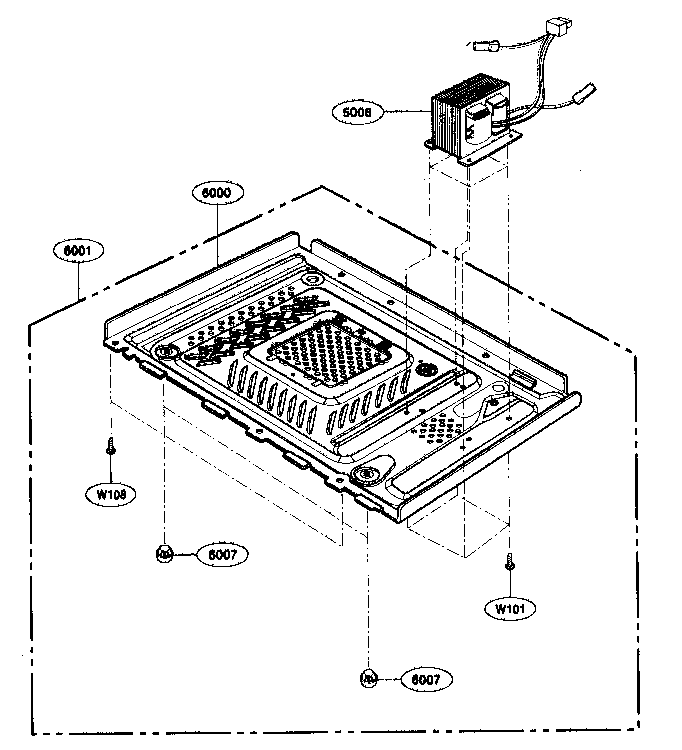

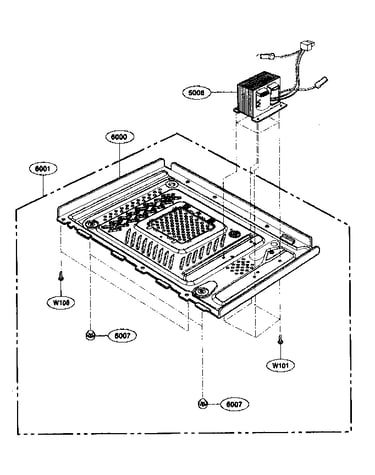

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Cable Assembly 6851W1A002B
#5018

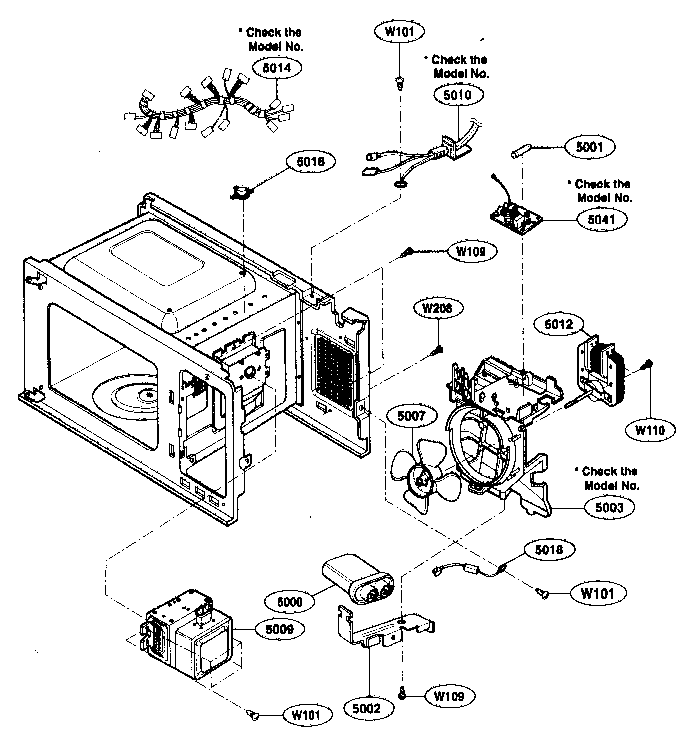

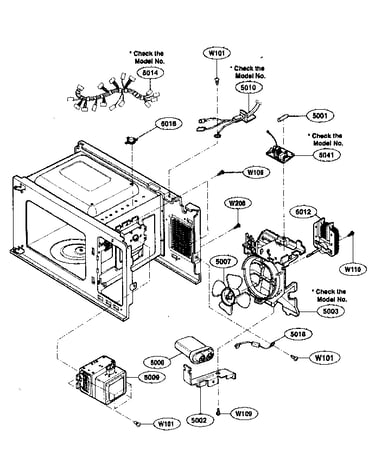

Interior parts 2 diagram

Cable assembly

Part #6851W1A002B

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6851W1A002B. Substitute parts can look different from the original.
BEST SELLER
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Spring 4970WRA001D
#1007

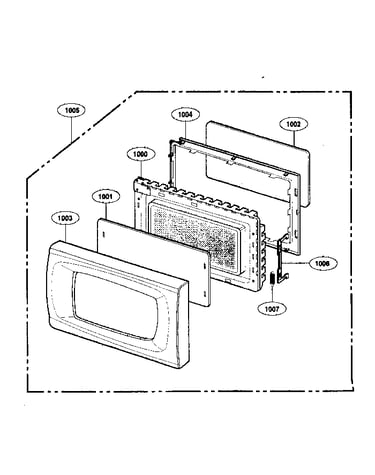

Door parts diagram

Spring

Part #4970WRA001D

Replaced by #4970WRA001G

?
Manufacturer substitution
This part replaces 4970WRA001D. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Motor 6549W1S021B
#3009

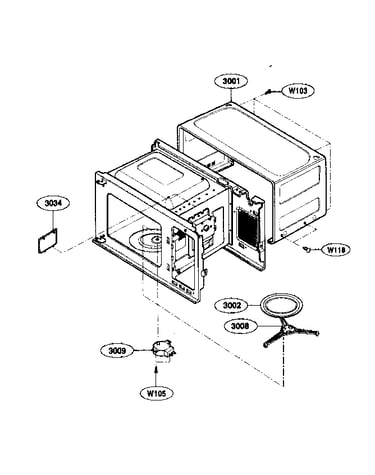

Oven cavity parts diagram

Motor

Part #6549W1S021B

Replaced by #6549W1S011B

?
Manufacturer substitution
This part replaces 6549W1S021B. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$20.53 |
20% OFF Phone Price : $25.53
In Stock
Microwave Turntable Tray Support 5889W1A012A
#3008

Oven cavity parts diagram

Microwave turntable tray support

Part #5889W1A012A

Replaced by #5889W2A009A

?
Manufacturer substitution
This part replaces 5889W1A012A. Substitute parts can look different from the original.
This item is not returnable
$14.97 |
12% OFF Phone Price : $16.97
In Stock
Microwave Door Release Button Spring 4B72023B
#2005

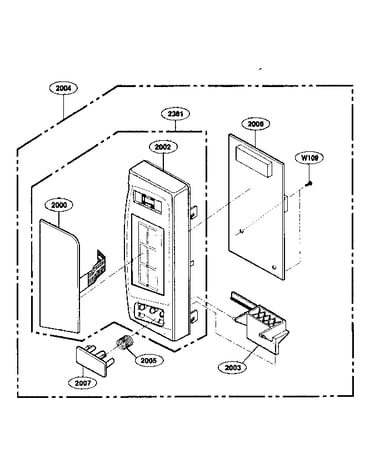

Controller parts diagram

Microwave door release button spring

Part #4B72023B

This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Lever 4510W1A017A
#2003

Controller parts diagram

Lever

Part #4510W1A017A

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Door Panel 3720W0D367A
#1003

Door parts diagram

Door panel

Part #3720W0D367A

$25.02
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#4002

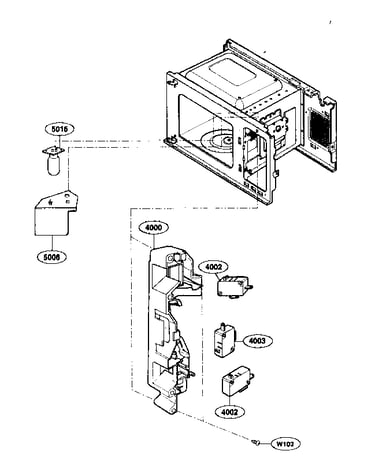

Latch board parts diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

$9.76 |
9% OFF Phone Price : $10.76
In Stock
Duct 5208W1A030A
#5006

Latch board parts diagram

Duct

Part #5208W1A030A

This item is not returnable
$5.56
In Stock
Microwave Light Bulb 6912W3B002K
#5015

Latch board parts diagram

Microwave light bulb

Part #6912W3B002K

This item is not returnable
$10.03 |
17% OFF Phone Price : $12.03
In Stock
