Model # LT-26X576 Official JVC lcd television

Here are the diagrams and repair parts for Official JVC LT-26X576 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Diode D25XB60
#NI

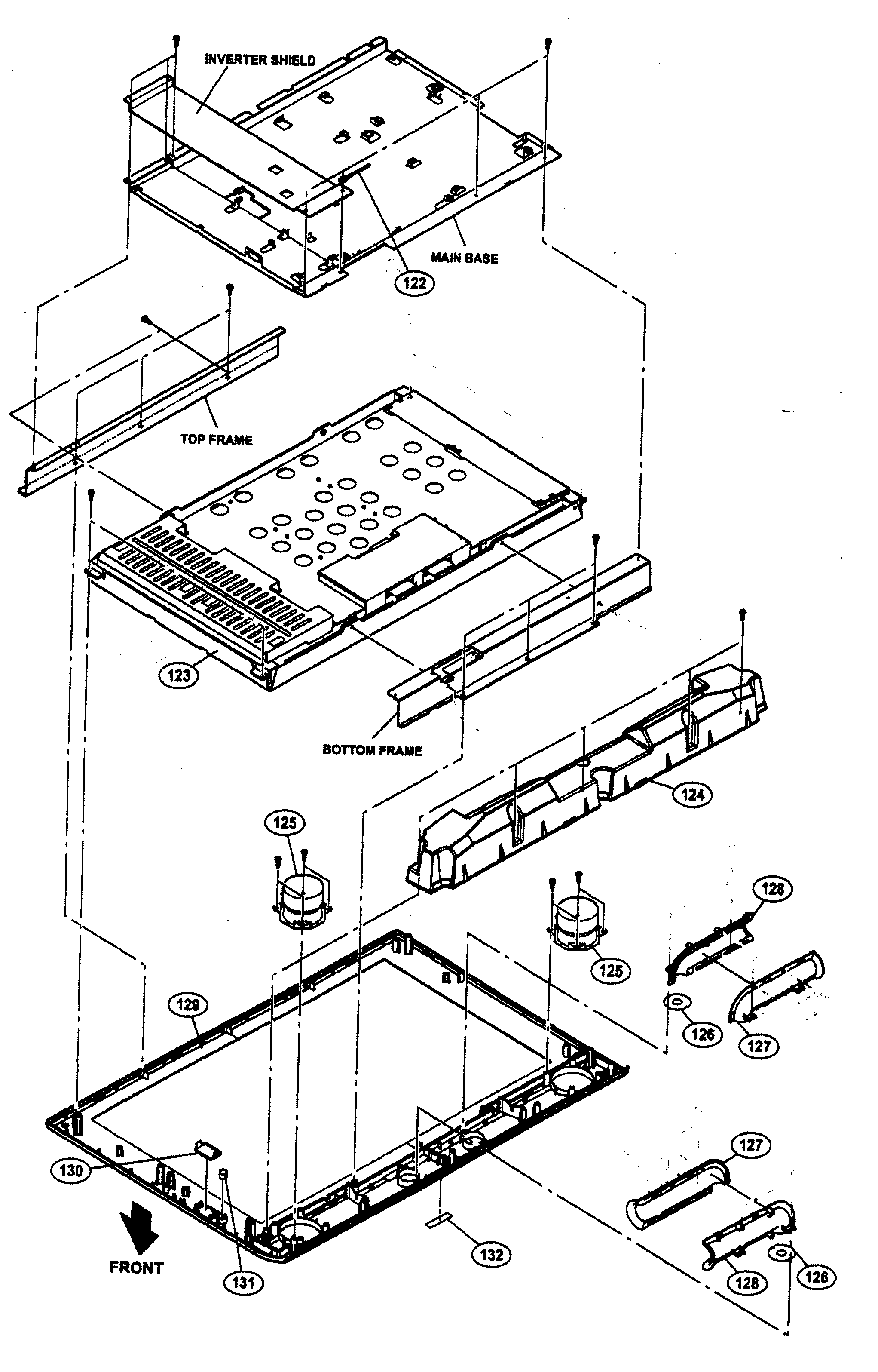

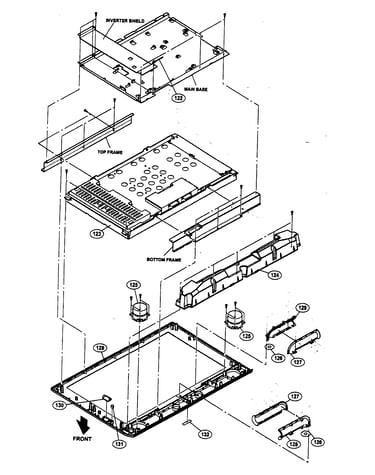

Cabinet parts 1 diagram

Diode

Part #D25XB60

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit GP1UM281QK
#NI

Cabinet parts 1 diagram

Integrated circuit

Part #GP1UM281QK

The manufacturer no longer makes this part, and there's no substitute part

Ffc Wire QUQ105-4006AL
#136

Cabinet parts 1 diagram

Ffc wire

Part #QUQ105-4006AL

The manufacturer no longer makes this part, and there's no substitute part

Ratinglabe LC32830-001A-A
#102

Cabinet parts 1 diagram

Ratinglabe

Part #LC32830-001A-A

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker QAS0142-001
#125

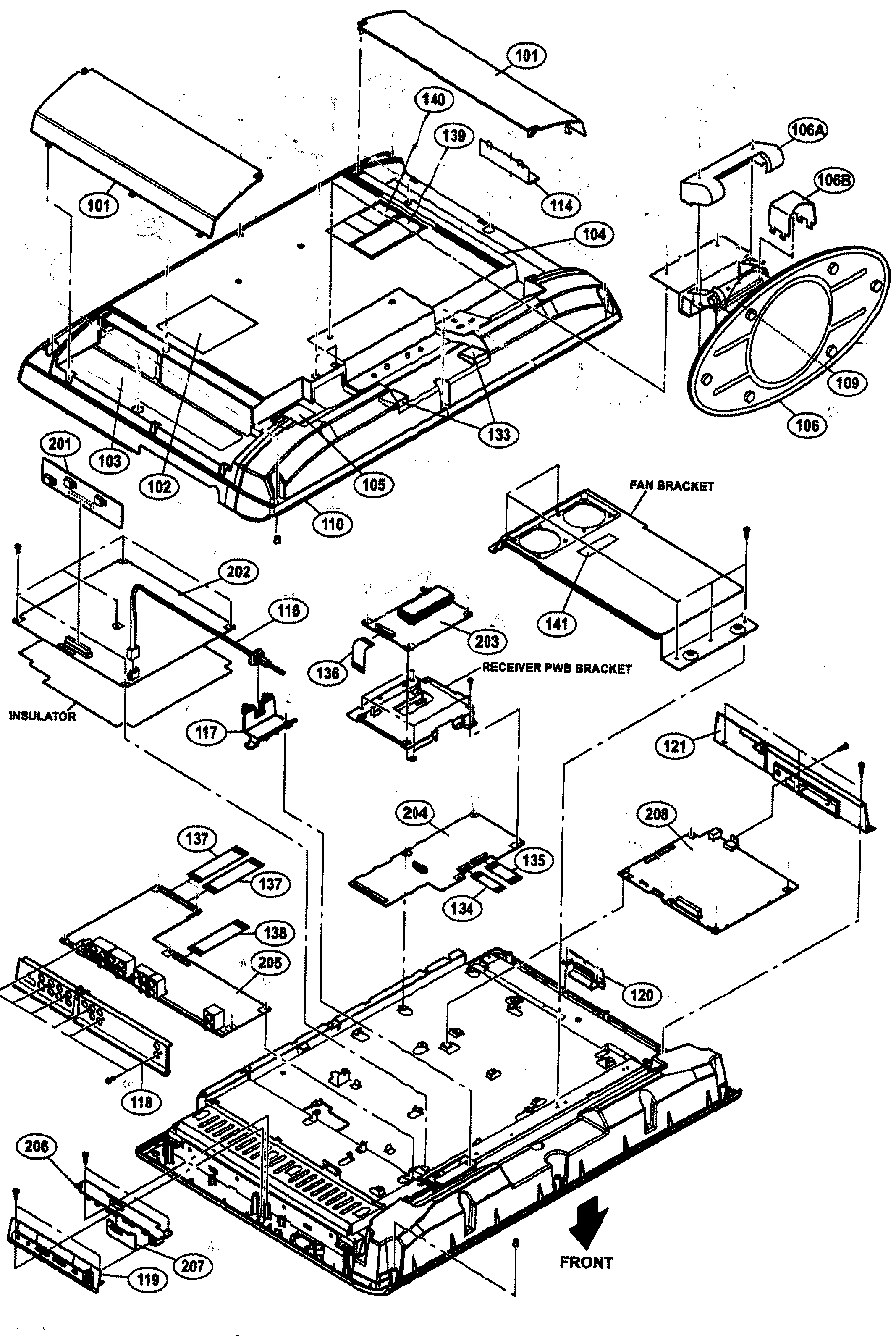

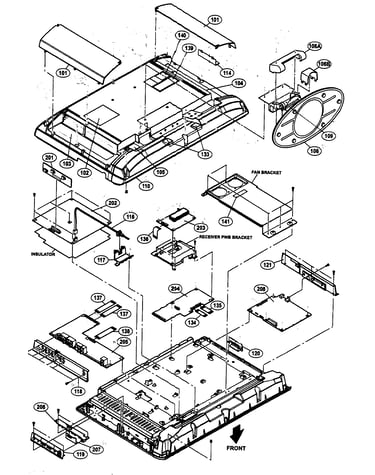

Cabinet parts 2 diagram

Television speaker

Part #QAS0142-001

The manufacturer no longer makes this part, and there's no substitute part

Fuse QMFZ052-2R0-E
#NI

Cabinet parts 1 diagram

Fuse

Part #QMFZ052-2R0-E

The manufacturer no longer makes this part, and there's no substitute part

Label LC40822-002A-A
#141

Cabinet parts 1 diagram

Label

Part #LC40822-002A-A

The manufacturer no longer makes this part, and there's no substitute part

Mark CM48006-010-C
#132

Cabinet parts 2 diagram

Mark

Part #CM48006-010-C

The manufacturer no longer makes this part, and there's no substitute part

Jack Cover LC11981-001B-HK
#101

Cabinet parts 1 diagram

Jack cover

Part #LC11981-001B-HK

The manufacturer no longer makes this part, and there's no substitute part

Resistor QRZ0121-200
#NI

Cabinet parts 1 diagram

Resistor

Part #QRZ0121-200

The manufacturer no longer makes this part, and there's no substitute part
