Model # 1100 Official Thermador garbage disposal

Here are the diagrams and repair parts for Official Thermador 1100 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Stator (these Are Replacement Parts, Finished In White, 111756
#55

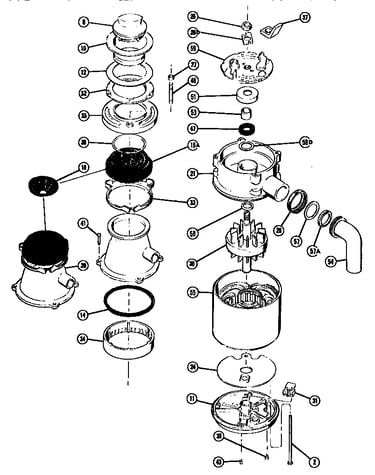

Unit parts diagram

Stator (these are replacement parts, finished in white,

Part #111756

The manufacturer no longer makes this part, and there's no substitute part

Ring Sink Mount 113096
#35

Unit parts diagram

Ring sink mount

Part #113096

The manufacturer no longer makes this part, and there's no substitute part

Gasket Sink Flange 27001
#12

Unit parts diagram

Gasket sink flange

Part #27001

The manufacturer no longer makes this part, and there's no substitute part

Housing Upper Assembly (these Are Replacement Parts, Fin 113050
#20

Unit parts diagram

Housing upper assembly (these are replacement parts, fin

Part #113050

The manufacturer no longer makes this part, and there's no substitute part

Washer Thrust Seal / Spcr 111437
#58DA

Unit parts diagram

Washer thrust seal / spcr

Part #111437

The manufacturer no longer makes this part, and there's no substitute part

Insulation End Frame 110602
#24

Unit parts diagram

Insulation end frame

Part #110602

The manufacturer no longer makes this part, and there's no substitute part

Flange Sink Mount 110423
#10

Unit parts diagram

Flange sink mount

Part #110423

The manufacturer no longer makes this part, and there's no substitute part

Washer Slip Joint Brass 75016
#57

Unit parts diagram

Washer slip joint brass

Part #75016

The manufacturer no longer makes this part, and there's no substitute part

Cord Electric Service 14700

#NI

All parts diagram

Cord electric service

Part #14700

The manufacturer no longer makes this part, and there's no substitute part

Rotor And Shaft Assembly 111431
#38

Unit parts diagram

Rotor and shaft assembly

Part #111431

The manufacturer no longer makes this part, and there's no substitute part
