Electric Leaf Blower

Model # 51547-39015000 & UP Official Toro power blower

Here are the diagrams and repair parts for Official Toro 51547-39015000-UP power blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Screw 32104-121
#7

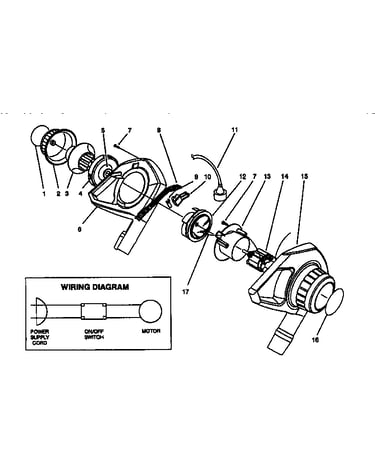

Blower assembly diagram

Screw

Part #32104-121

Replaced by #94-4496

?
Manufacturer substitution
This part replaces 32104-121. Substitute parts can look different from the original.
This item is not returnable
In Stock
Cord 73-3471
#11

Blower assembly diagram

Cord

Part #73-3471

Replaced by #73-3471

?
Manufacturer substitution
This part replaces 73-3471. Substitute parts can look different from the original.
In Stock
Motor 73-4182
#14

Blower assembly diagram

Motor

Part #73-4182

Replaced by #73-4183

?
Manufacturer substitution
This part replaces 73-4182. Substitute parts can look different from the original.
In Stock
Tube 73-1460
#1

Tube assembly diagram

Tube

Part #73-1460

Replaced by #73-1460

?
Manufacturer substitution
This part replaces 73-1460. Substitute parts can look different from the original.
In Stock
Choke Ring 73-4060
#3

Blower assembly diagram

Choke ring

Part #73-4060

Replaced by #73-4060

?
Manufacturer substitution
This part replaces 73-4060. Substitute parts can look different from the original.
In Stock
Choke Cover 73-7070
#2

Blower assembly diagram

Choke cover

Part #73-7070

Replaced by #73-7070

?
Manufacturer substitution
This part replaces 73-7070. Substitute parts can look different from the original.
In Stock
Vacuum Tube 73-1450
#2

Tube assembly diagram

Vacuum tube

Part #73-1450

Replaced by #73-1450

?
Manufacturer substitution
This part replaces 73-1450. Substitute parts can look different from the original.
In Stock
Housing Lh 73-7600
#15

Blower assembly diagram

Housing lh

Part #73-7600

Replaced by #73-7600

?
Manufacturer substitution
This part replaces 73-7600. Substitute parts can look different from the original.
In Stock
Retainer Clip 73-7640
#5

Blower assembly diagram

Retainer clip

Part #73-7640

Replaced by #73-7640

?
Manufacturer substitution
This part replaces 73-7640. Substitute parts can look different from the original.
This item is not returnable
In Stock
Bag 73-1640

#*27840

All parts diagram

Bag

Part #73-1640

Replaced by #73-1640

?
Manufacturer substitution
This part replaces 73-1640. Substitute parts can look different from the original.
In Stock
