Model # KCDI075V1 Official KitchenAid 3/4-hp disposer

Here are the diagrams and repair parts for Official KitchenAid KCDI075V1 3/4-hp disposer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Garbage Disposal Mounting Gasket 4211606
#5

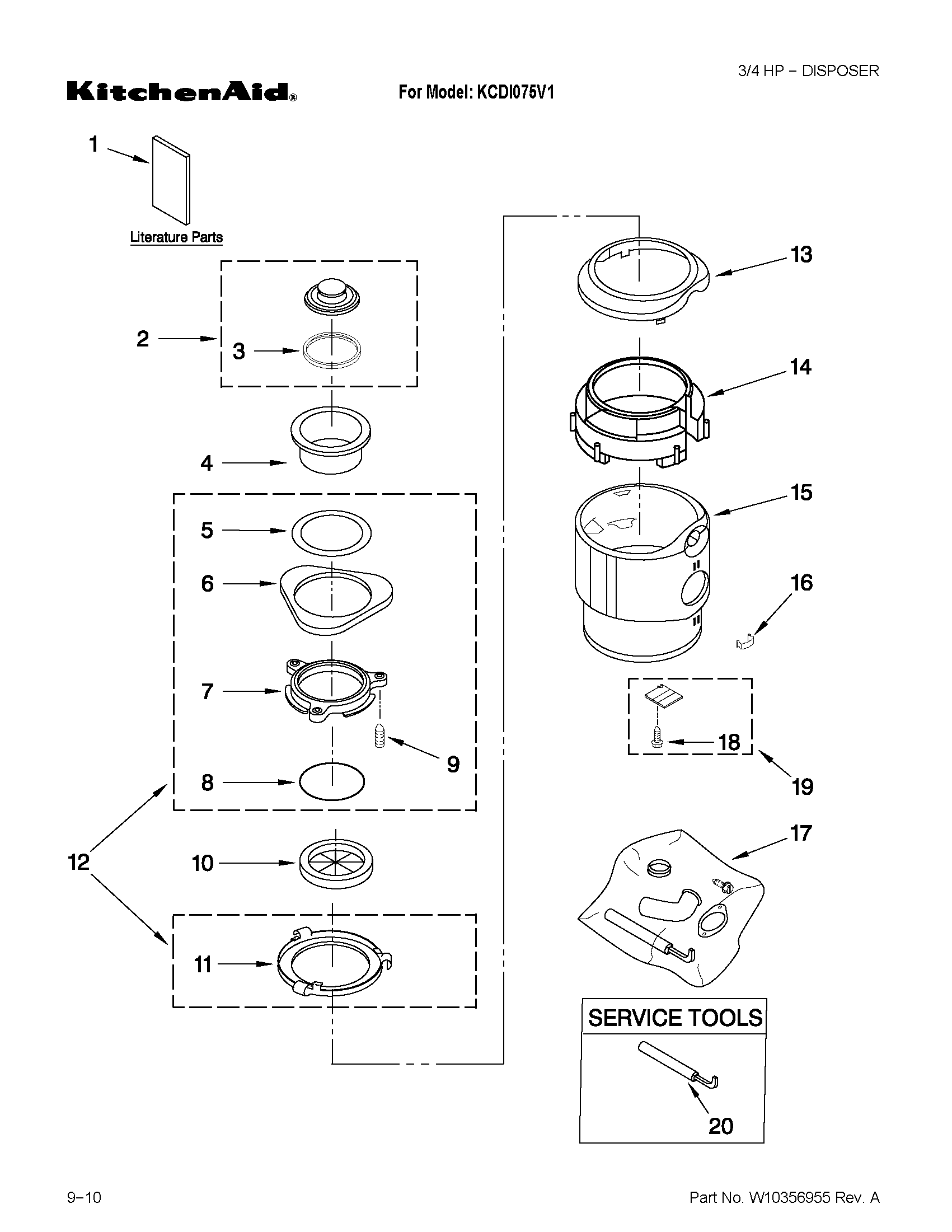

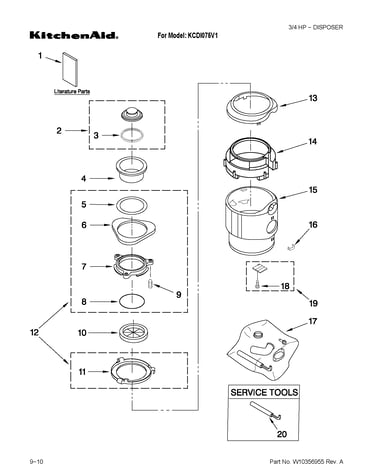

Housing and flange parts diagram

Garbage disposal mounting gasket

Part #4211606

This item is not returnable
$14.00
In Stock
Garbage Disposal Drain Stopper 4211577
#2

Housing and flange parts diagram

Garbage disposal drain stopper

Part #4211577

$25.99 |
16% OFF Phone Price : $30.99
In Stock
Garbage Disposal Mounting Flange 4211304
#7

Housing and flange parts diagram

Garbage disposal mounting flange

Part #4211304

$55.09
In Stock
Trim W10171106
#13

Housing and flange parts diagram

Trim

Part #W10171106

$147.96
In Stock
Clip 8174342
#16

Housing and flange parts diagram

Clip

Part #8174342

$37.29
In Stock
Ring 4211306
#8

Housing and flange parts diagram

Ring

Part #4211306

This item is not returnable
$7.49
In Stock
Garbage Disposal Mounting Gasket 4211334
#10

Housing and flange parts diagram

Garbage disposal mounting gasket

Part #4211334

Replaced by #WP4211334

?
Manufacturer substitution
This part replaces 4211334. Substitute parts can look different from the original.
This item is not returnable
$22.59 |
18% OFF Phone Price : $27.59
In Stock
Flange Kit W10222137
#12

Housing and flange parts diagram

Flange kit

Part #W10222137

Replaced by #WPW10179031A

?
Manufacturer substitution
This part replaces W10222137. Substitute parts can look different from the original.
$53.55
In Stock
Wrench 8174310
#20

Housing and flange parts diagram

Wrench

Part #8174310

Replaced by #WP8174310

?
Manufacturer substitution
This part replaces 8174310. Substitute parts can look different from the original.
This item is not returnable
$17.59 |
10% OFF Phone Price : $19.59
In Stock
Insulation W10222139
#14

Housing and flange parts diagram

Insulation

Part #W10222139

The manufacturer no longer makes this part, and there's no substitute part
