Craftsman
Gas Walk-Behind Mower

Model # 91760651 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 91760651 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Lock Washer 10030500
#41

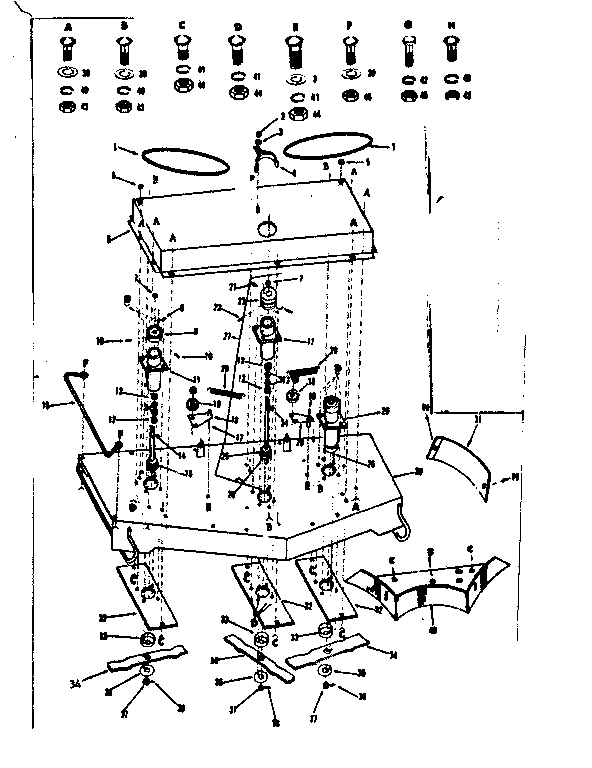

Main frame diagram

Lock washer

Part #10030500

Replaced by #596238801

?
Manufacturer substitution
This part replaces 10030500. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Lawn Tractor Grease Fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, Lp-706) 6855M
#8

Main frame diagram

Lawn tractor grease fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, lp-706)

Part #6855M

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gripco Nut 1685H
#2

Main frame diagram

Gripco nut

Part #1685H

The manufacturer no longer makes this part, and there's no substitute part

Cotter 06010416
#62

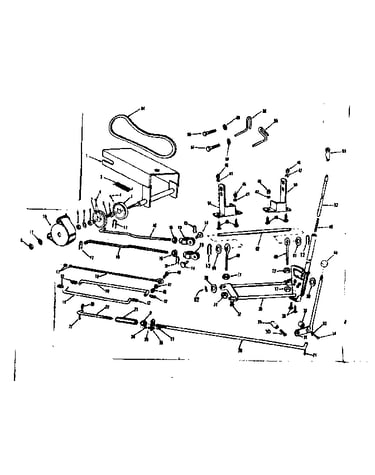

Lift assembly diagram

Cotter

Part #06010416

The manufacturer no longer makes this part, and there's no substitute part

Hitch Pin, 2-pack 4939M
#20

Lift assembly diagram

Hitch pin, 2-pack

Part #4939M

Replaced by #596919601

?
Manufacturer substitution
This part replaces 4939M. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Spring 2876H
#45

Lift assembly diagram

Spring

Part #2876H

Replaced by #532002876

?
Manufacturer substitution
This part replaces 2876H. Substitute parts can look different from the original.
This item is not returnable
$4.20 |
19% OFF Phone Price : $5.20
In Stock
Washer 19141614
Washer

Part #19141614

Replaced by #596433701

?
Manufacturer substitution
This part replaces 19141614. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Washer 19091016
#38

Main frame diagram

Washer

Part #19091016

The manufacturer no longer makes this part, and there's no substitute part

Bolt 02010506
#47C

Main frame diagram

Bolt

Part #02010506

The manufacturer no longer makes this part, and there's no substitute part

Washer 19121610
#58

Lift assembly diagram

Washer

Part #19121610

The manufacturer no longer makes this part, and there's no substitute part
