Whirlpool RM288PXV0 electric built-in oven with microwave

Whirlpool RM288PXV0 electric built-in oven with microwave Parts

Here are the diagrams and repair parts for Whirlpool RM288PXV0 electric built-in oven with microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

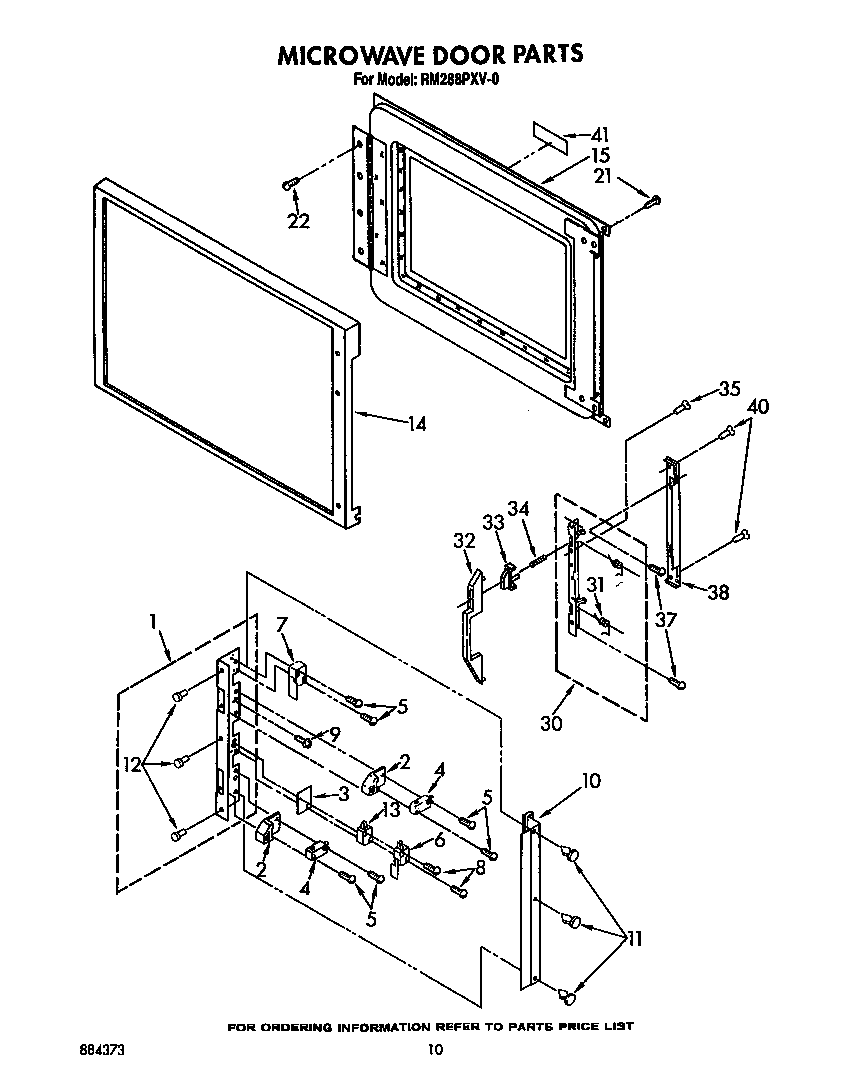

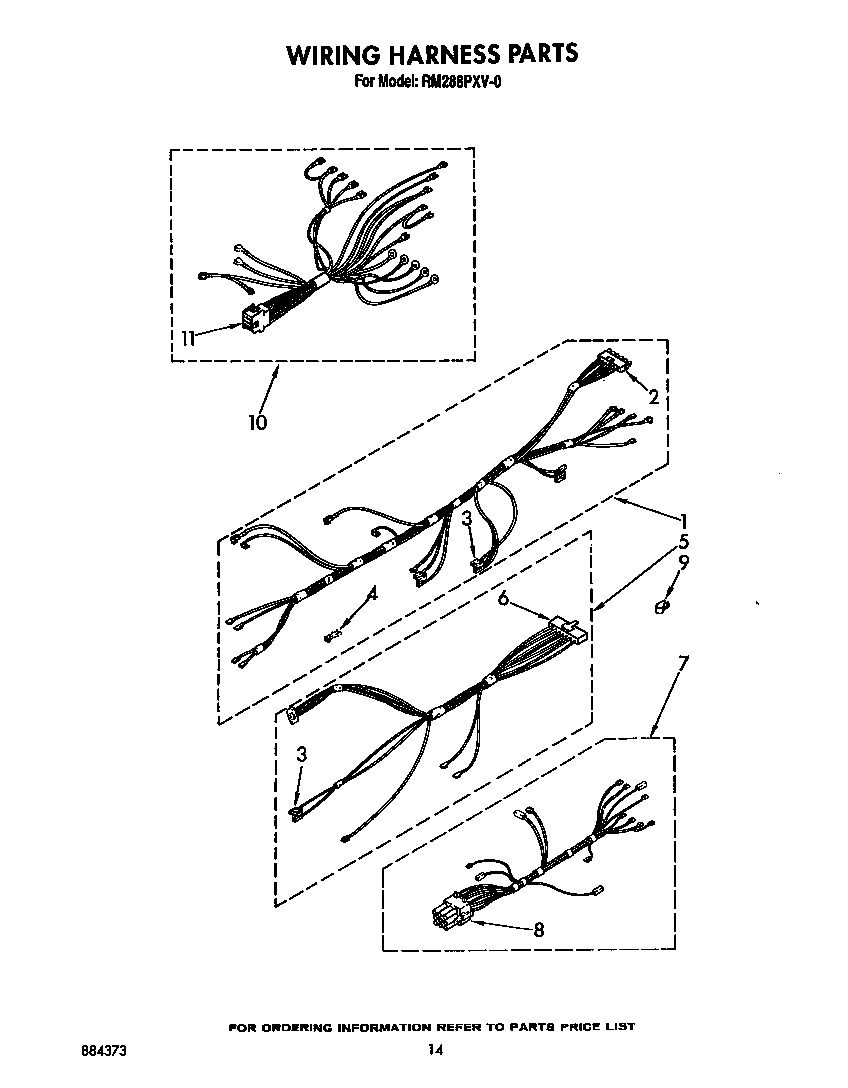

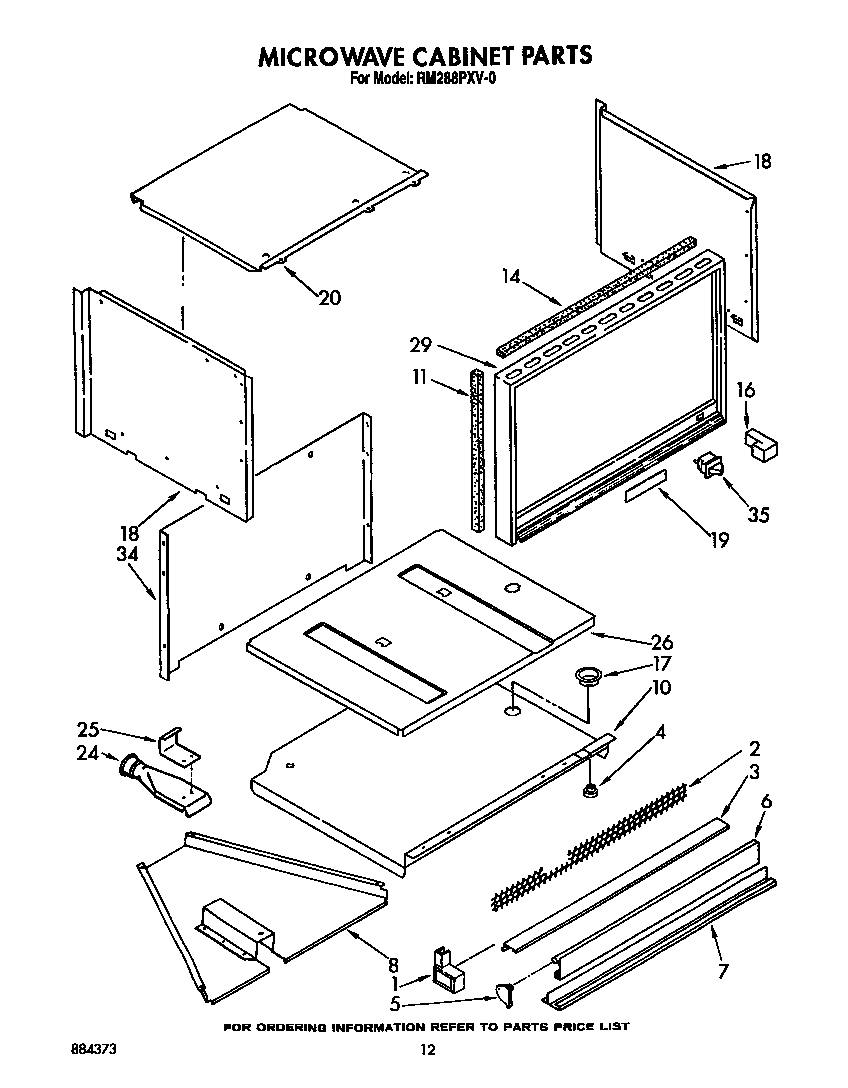

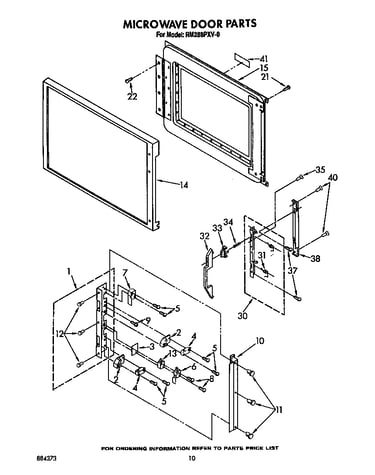

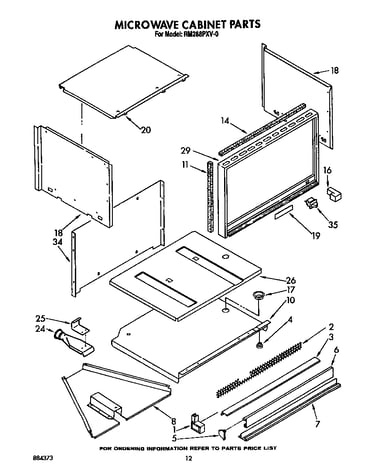

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RM288PXV0 Electric Built-In Oven with Microwave

  • Appliance Spray Paint (white) for Whirlpool RM288PXV0 - Part 350930

    #NI

    All parts diagram

    Spray W

    Part #799343

    Replaced by #350930

    Info Icon
    Manufacturer substitution
    This part replaces 799343. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.00
    19% OFF Phone Price : $32.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Touch-up Paint, 0.6-oz (almond) for Whirlpool RM288PXV0 - Part WP72107

    #NI

    All parts diagram

    Touchup Al

    Part #72107

    Replaced by #WP72107

    Info Icon
    Manufacturer substitution
    This part replaces 72107. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.89
    9% OFF Phone Price : $10.89Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Fuse for Whirlpool RM288PXV0 - Part WPW10017410

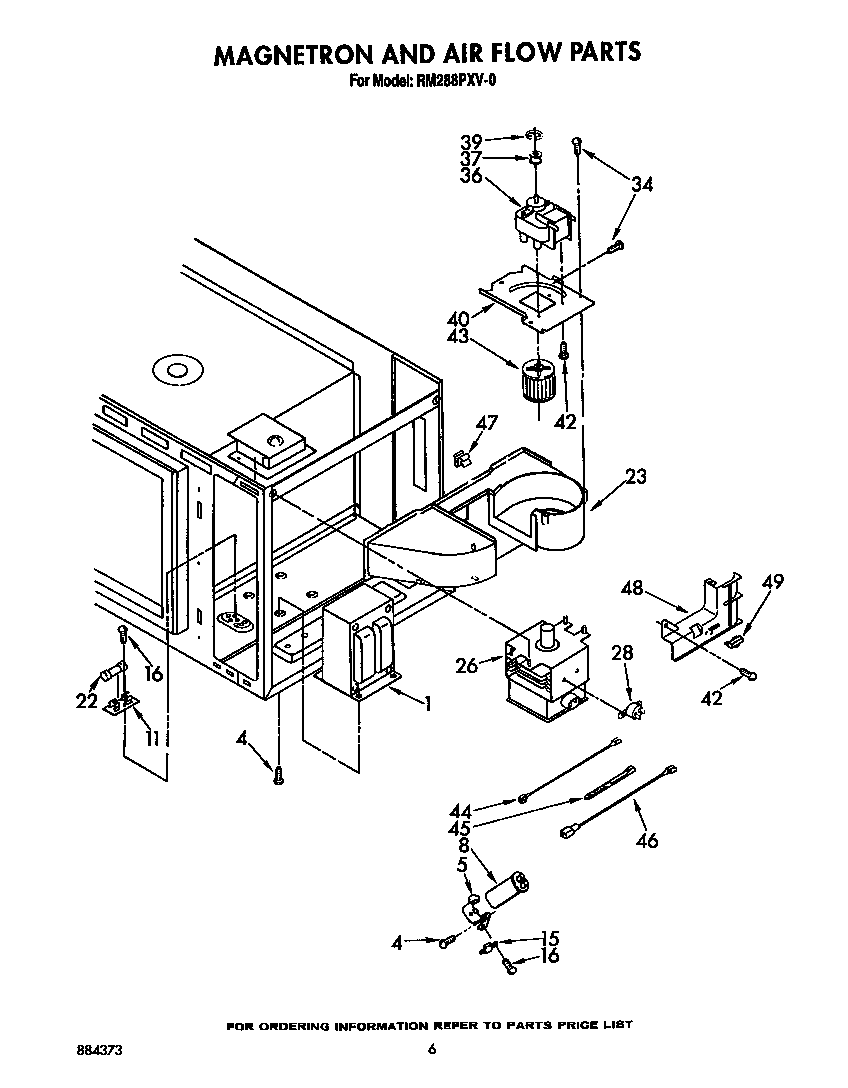

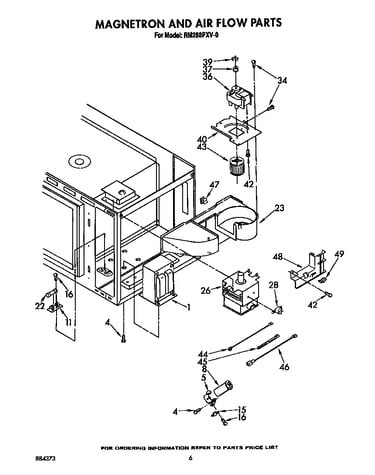

    Magnetron and air flow diagram

    Fuse

    Part #309796

    Replaced by #WPW10017410

    Info Icon
    Manufacturer substitution
    This part replaces 309796. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $13.19
    13% OFF Phone Price : $15.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Touch-up Paint, 0.6-oz (black) for Whirlpool RM288PXV0 - Part 72032

    #NI

    All parts diagram

    Touch-up Paint (black)

    Part #72032

    Replaced by #72032

    Info Icon
    Manufacturer substitution
    This part replaces 72032. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $11.08
    15% OFF Phone Price : $13.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Dryer Drum Light Bulb for Whirlpool RM288PXV0 - Part WP3395618

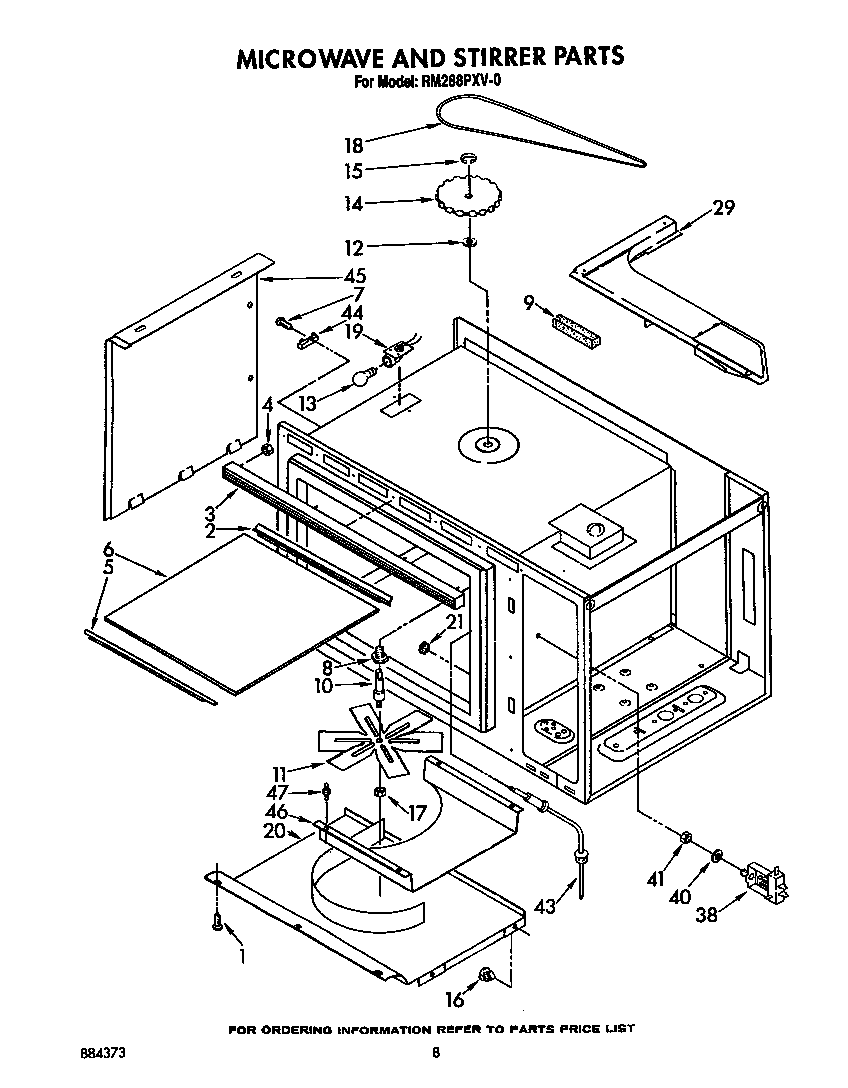

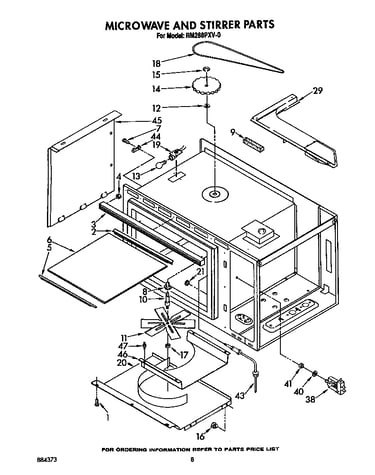

    Microwave and stirrer diagram

    Light Bulb

    Part #313969

    Replaced by #WP3395618

    Info Icon
    Manufacturer substitution
    This part replaces 313969. Substitute parts can look different from the original.
    In Stock
    $24.00
    39% OFF Was : $39.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Inner Glass for Whirlpool RM288PXV0 - Part WP3169203

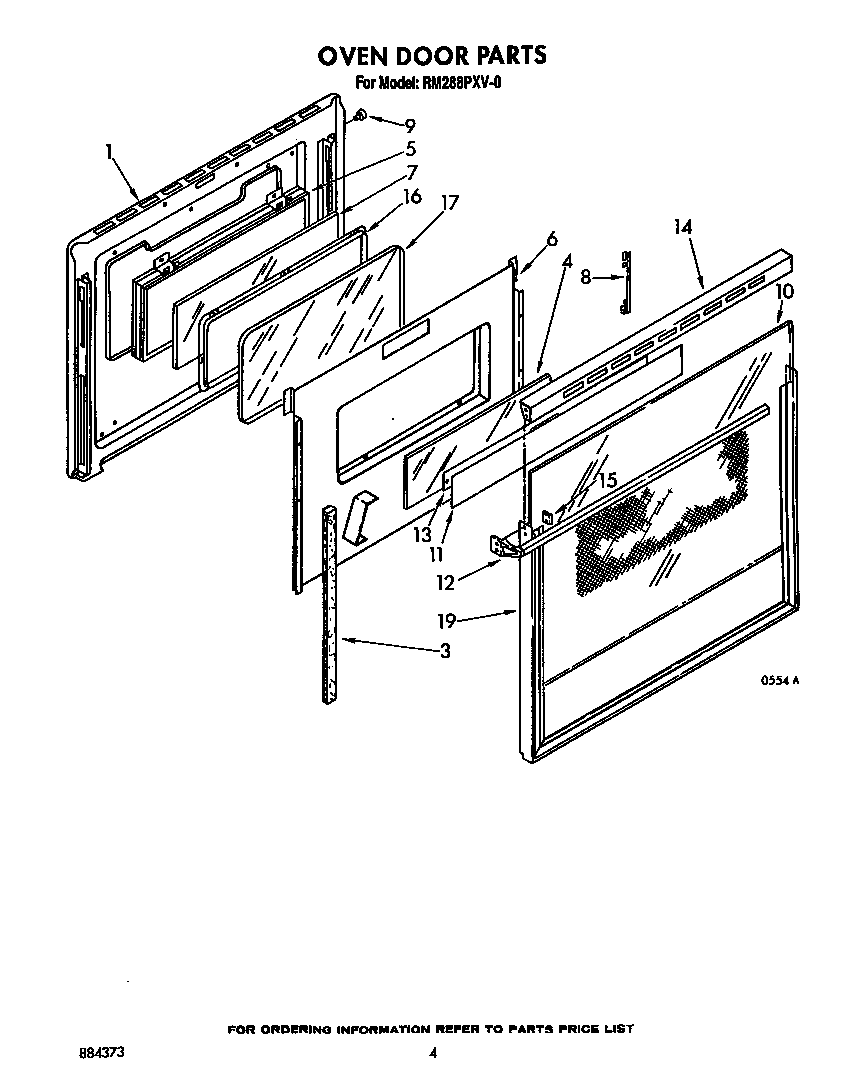

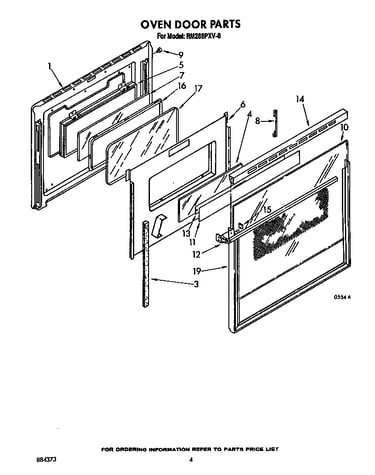

    Oven door diagram

    Door Glass

    Part #313005

    Replaced by #WP3169203

    Info Icon
    Manufacturer substitution
    This part replaces 313005. Substitute parts can look different from the original.
    In Stock
    $80.14
    7% OFF Phone Price : $86.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Inner Glass for Whirlpool RM288PXV0 - Part WP3169203

    Oven door diagram

    Door Glass

    Part #313004

    Replaced by #WP3169203

    Info Icon
    Manufacturer substitution
    This part replaces 313004. Substitute parts can look different from the original.
    In Stock
    $80.14
    7% OFF Phone Price : $86.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Knob for Whirlpool RM288PXV0 - Part WP3150371

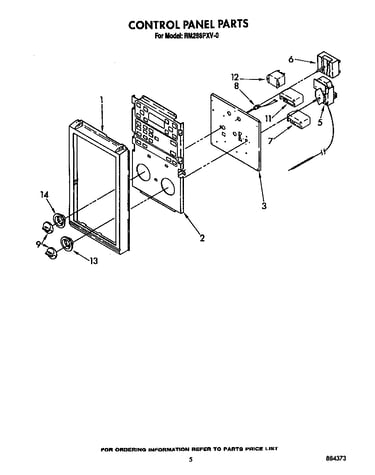

    Control panel diagram

    Control Knob

    Part #310834

    Replaced by #WP3150371

    Info Icon
    Manufacturer substitution
    This part replaces 310834. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $20.11
    23% OFF Phone Price : $26.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Kirkland Appliance Touch-up Paint, 0.6-oz (golden Harvest) for Whirlpool RM288PXV0 - Part 72110

    #NI

    All parts diagram

    Touchup Ng

    Part #72110

    Replaced by #72110

    Info Icon
    Manufacturer substitution
    This part replaces 72110. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $16.24
    11% OFF Phone Price : $18.24Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Terminal Block for Whirlpool RM288PXV0 - Part WP8203546

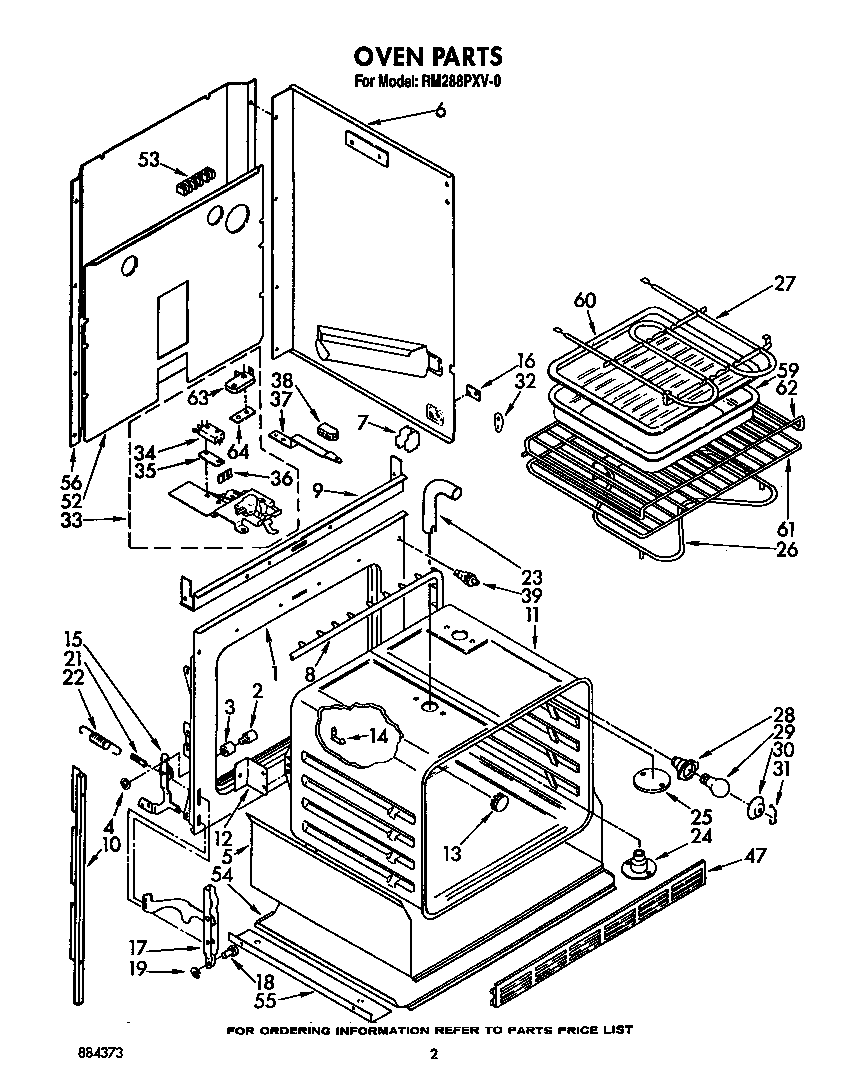

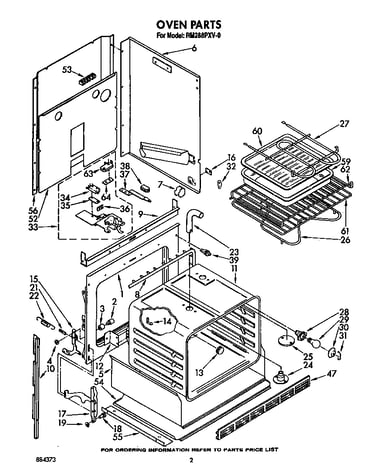

    Oven diagram

    Terminal Block

    Part #258076

    Replaced by #WP8203546

    Info Icon
    Manufacturer substitution
    This part replaces 258076. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $20.93
    22% OFF Phone Price : $26.93Info Icon
    Minus Item
    Qty
    Plus Item
