Whirlpool YMH1170XSS0 microwave/hood combo Parts

Name: Whirlpool YMH1170XSS0 Parts | Diagrams, Manuals | Sears PartsDirect
Brand: Whirlpool
SKU: YMH1170XSS0
Availability: InStock

Here are the diagrams and repair parts for Whirlpool YMH1170XSS0 microwave/hood combo, as well as links to manuals and error code tables, if available.

Owner’s manual

Whirlpool YMH1170XSS0 microwave/hood combo

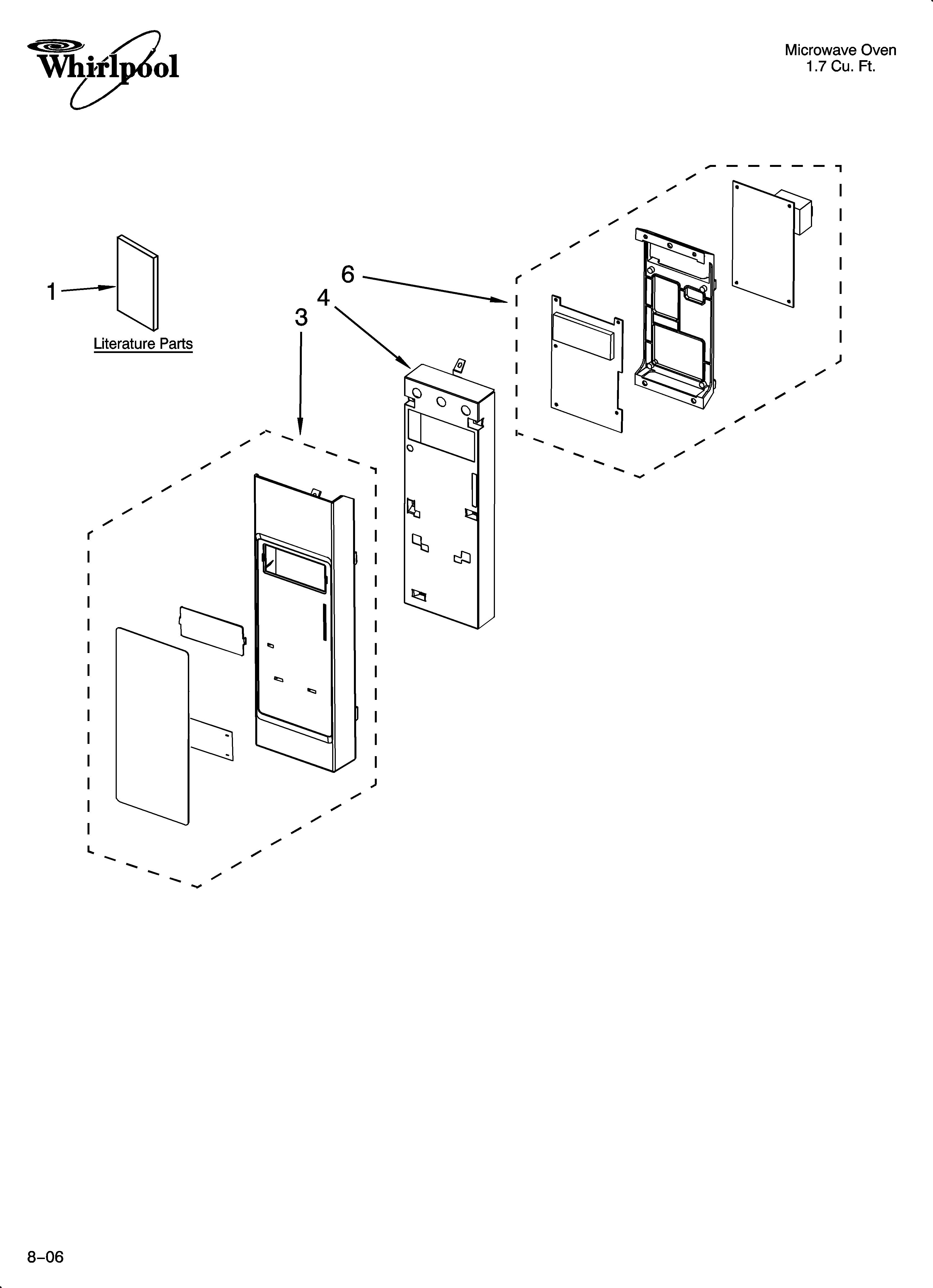

By Schematic

SELECT DIAGRAM

Browse Parts for YMH1170XSS0 Microwave/Hood Combo

Interior and ventilation parts diagram
Thermal Fuse
Part #4393308
Replaced by #W11707984
Manufacturer substitution
This part replaces 4393308. Substitute parts can look different from the original.
In Stock
$73.63
8% OFF Phone Price : $79.63
Qty
Interior and ventilation parts diagram
Microwave/hood Light Bulb
Part #8206232
Replaced by #8206232A
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.73
15% OFF Phone Price : $6.73
Qty

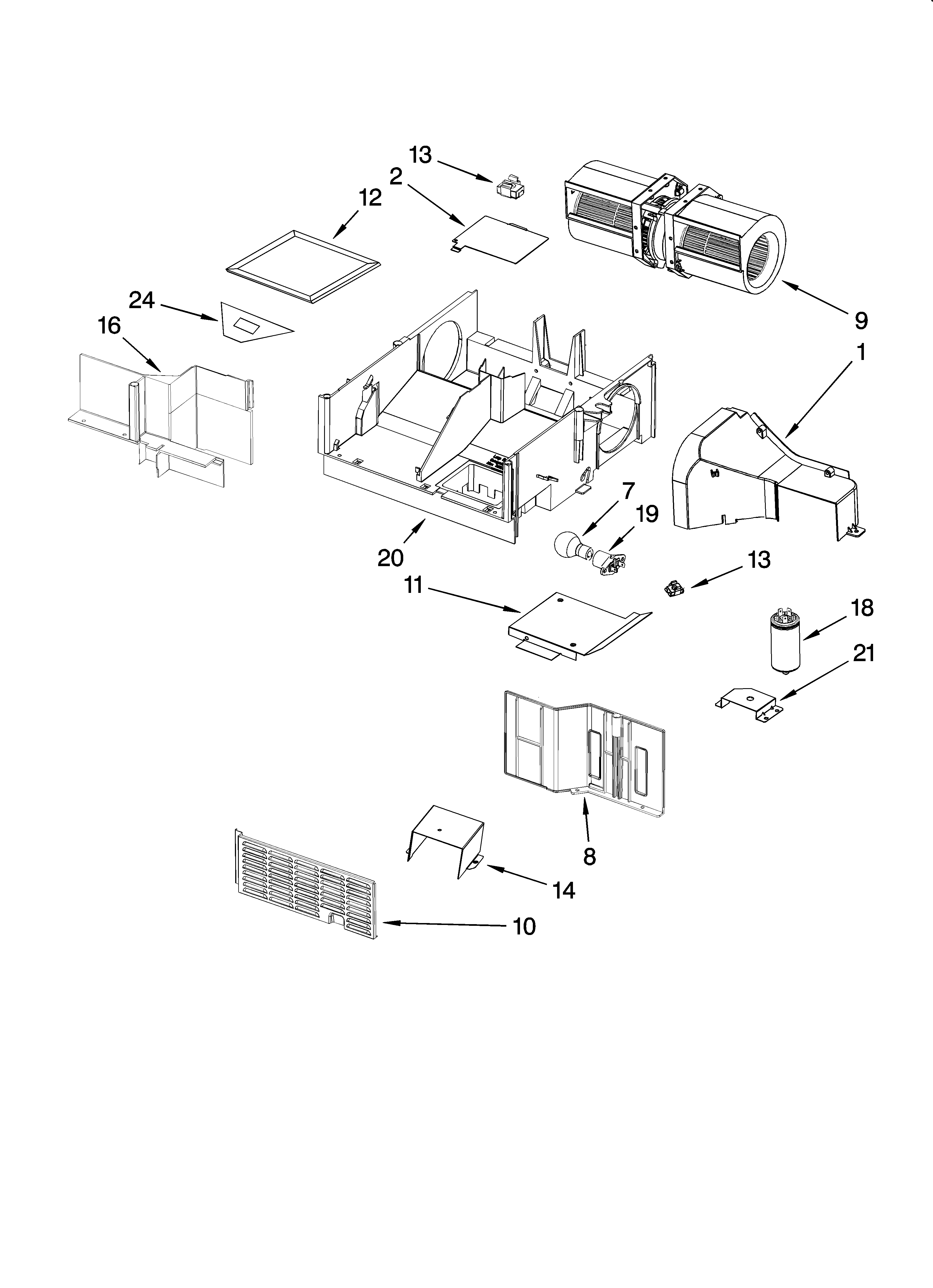

Air flow parts diagram
Lamp Assembly
Part #4393681
Replaced by #8206232A
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.73
15% OFF Phone Price : $6.73
Qty
Interior and ventilation parts diagram
Microwave Door Interlock Support, Upper
Part #8206419
Replaced by #WP8206419
Manufacturer substitution
This part replaces 8206419. Substitute parts can look different from the original.
In Stock
$13.31
13% OFF Phone Price : $15.31
Qty
Interior and ventilation parts diagram
Interlock
Part #8206353
Replaced by #WPW10156813
Manufacturer substitution
This part replaces 8206353. Substitute parts can look different from the original.
In Stock
$8.14
11% OFF Phone Price : $9.14
Qty
Magnetron and turntable parts diagram
Magnetron
Part #8206341
The manufacturer no longer makes this part, and there's no substitute part
Cabinet and installation parts diagram
Vent Grille (black)
Part #8206391
Replaced by #W10259625
Manufacturer substitution
This part replaces 8206391. Substitute parts can look different from the original.
In Stock
$49.75
11% OFF Phone Price : $55.75
Qty
Magnetron and turntable parts diagram
Microwave Turntable Ring
Part #8206227
Replaced by #W11252182
Manufacturer substitution
This part replaces 8206227. Substitute parts can look different from the original.
In Stock
$31.97
16% OFF Phone Price : $37.97
Qty

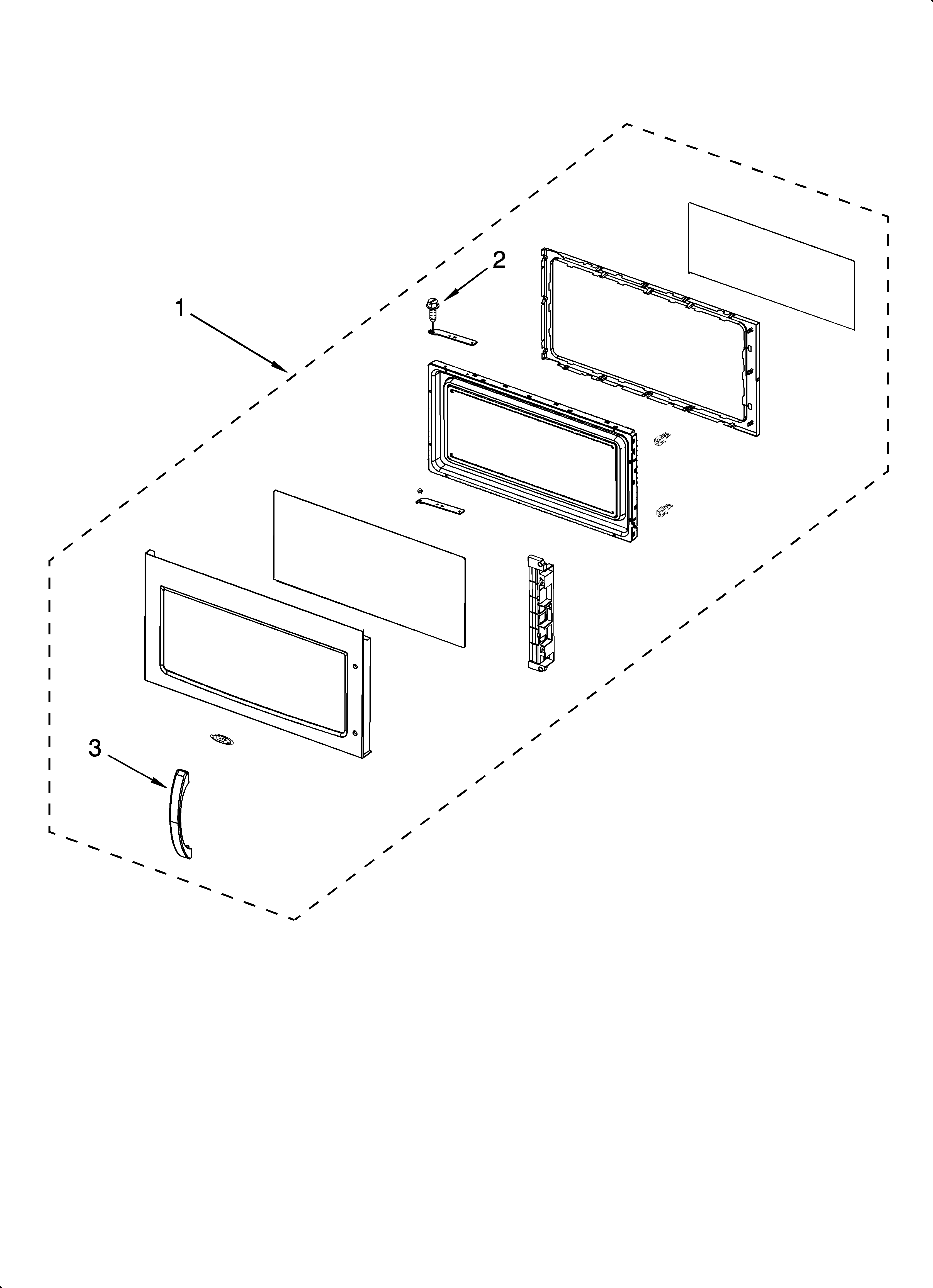

Door parts diagram
Microwave Door Assembly
Part #8206394
In Stock
$283.40
$12.00 OFF Phone Price : $295.40
Qty
Cabinet and installation parts diagram
Microwave Damper Assembly
Part #8206442
Replaced by #W10843943
Manufacturer substitution
This part replaces 8206442. Substitute parts can look different from the original.
In Stock
$64.34
9% OFF Phone Price : $70.34
Qty
