Model # CME900 Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag CME900 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

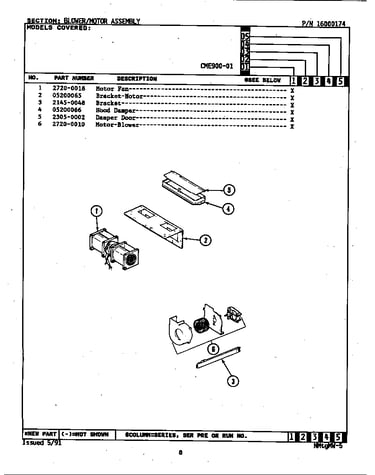

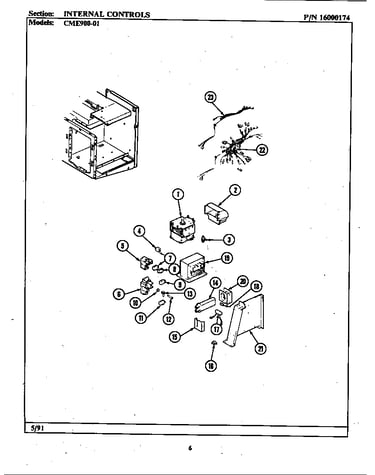

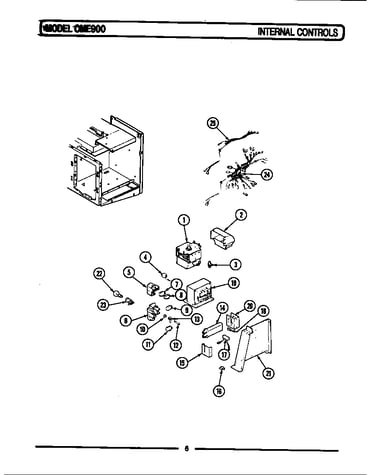

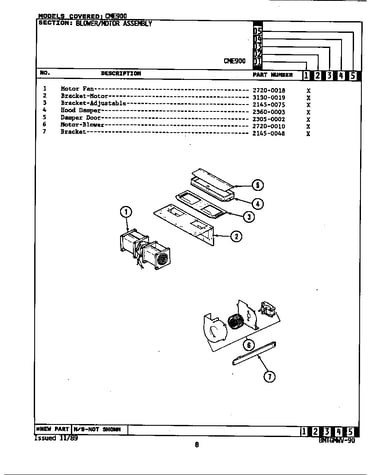

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |
Lamp, Oven 3 2635-0004
#11

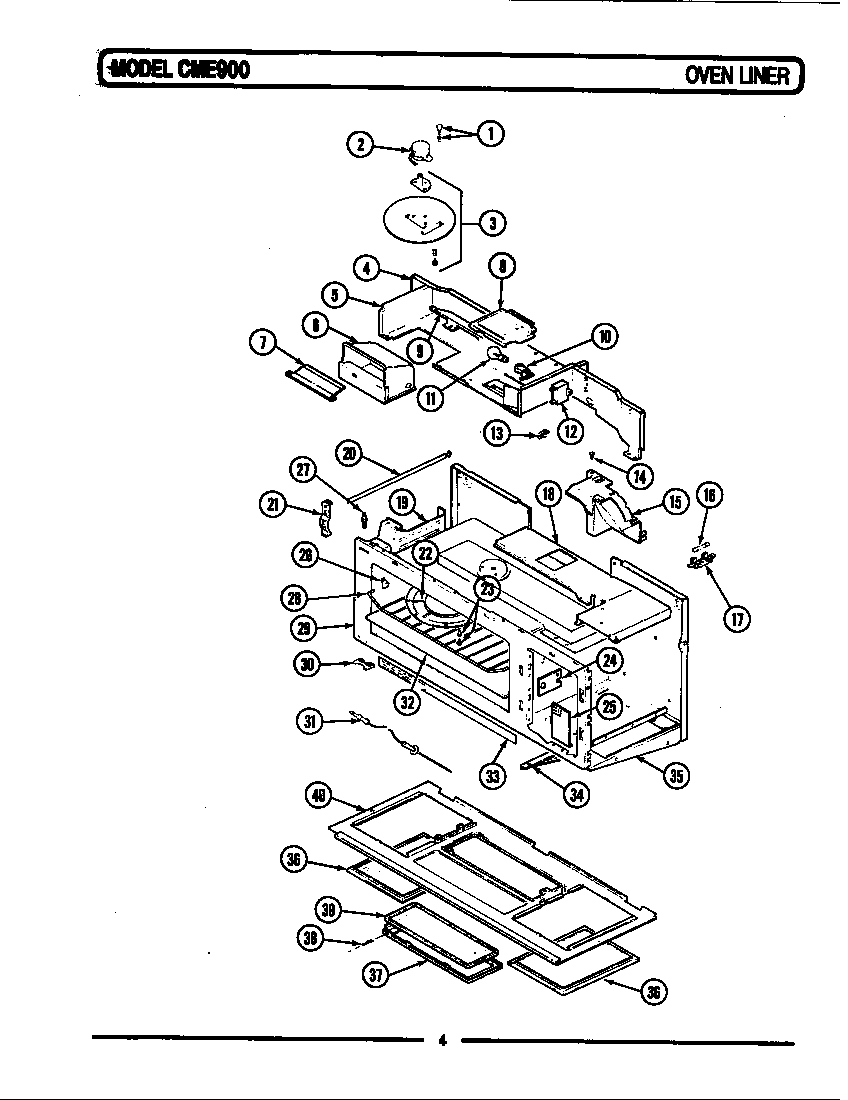

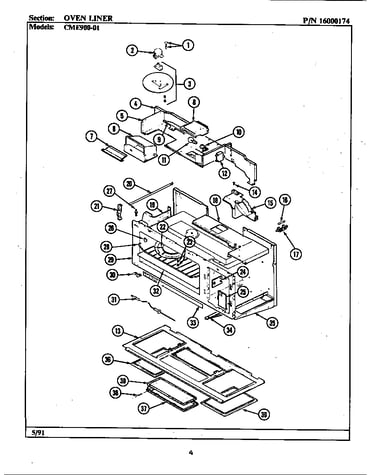

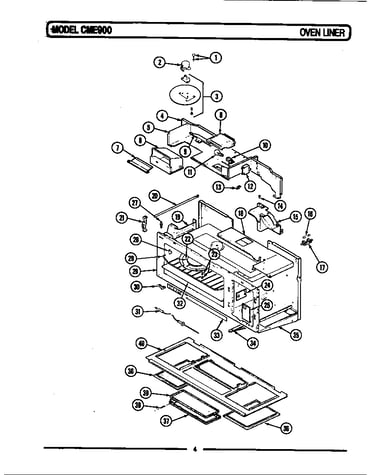

Oven liner (cme900-01) diagram

Lamp, oven 3

Part #2635-0004

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 2635-0004. Substitute parts can look different from the original.
BEST SELLER
$9.30 |
42% OFF MSRP : $16.00
Back Order
Microwave Light 2665-0003
Microwave light

Part #2665-0003

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 2665-0003. Substitute parts can look different from the original.
BEST SELLER
$9.30 |
42% OFF MSRP : $16.00
Back Order
Lamp 2635-0005
Lamp

Part #2635-0005

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 2635-0005. Substitute parts can look different from the original.
BEST SELLER
$9.30 |
42% OFF MSRP : $16.00
Back Order
Holder Nut A 05200110
#8

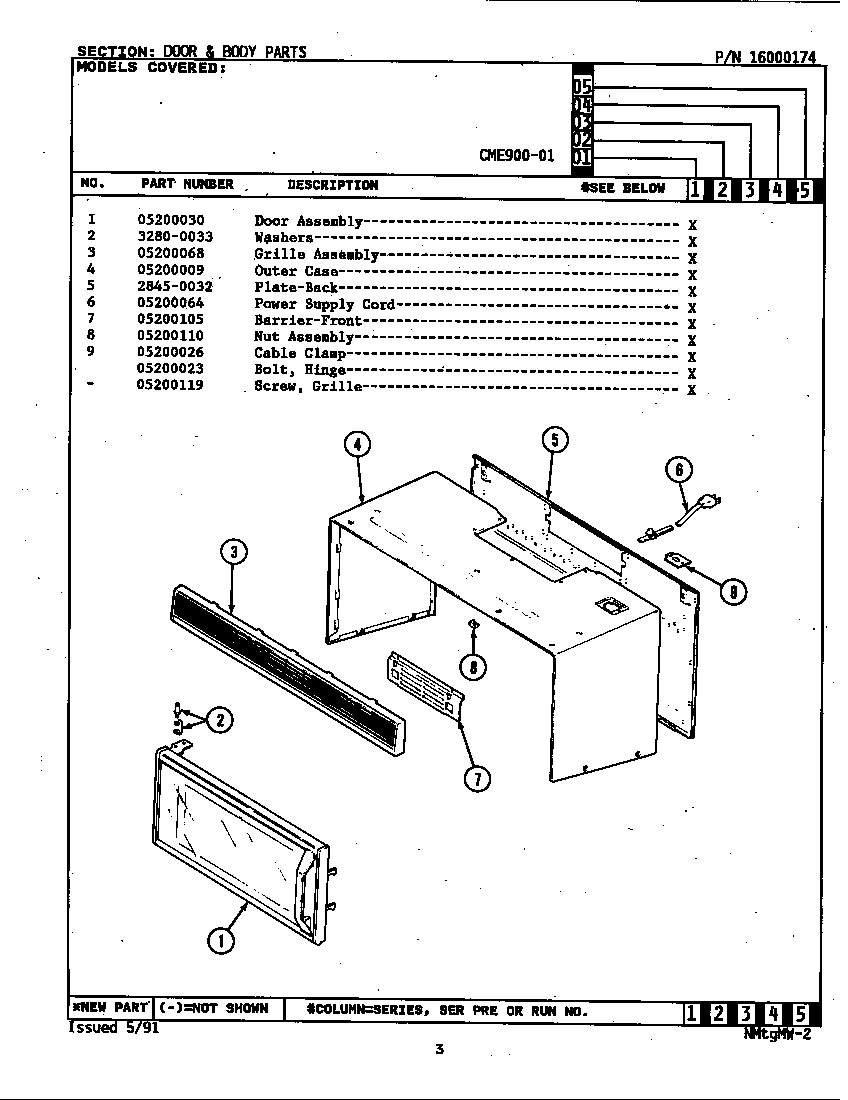

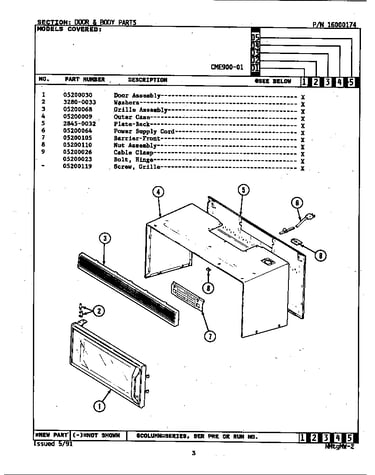

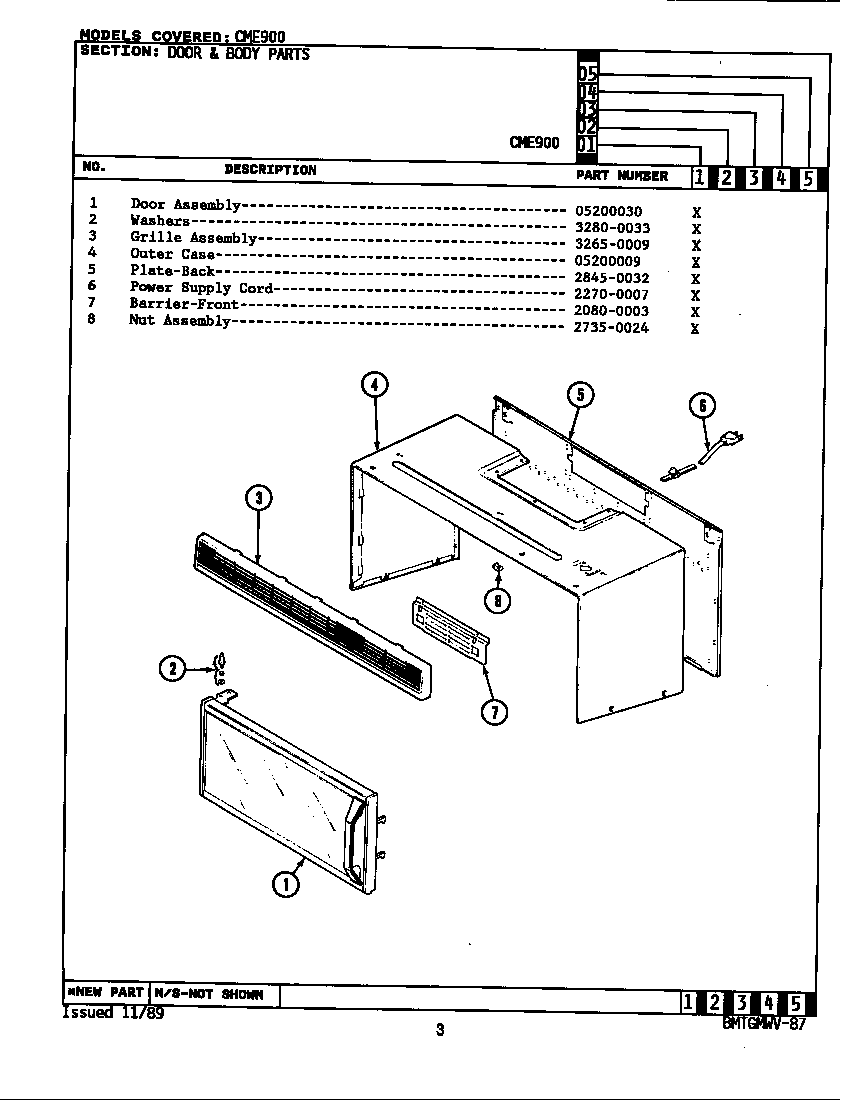

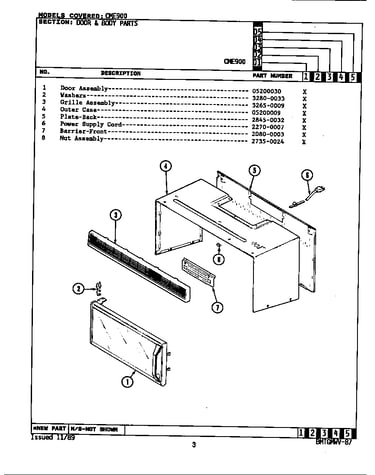

Door & body parts (cme900-01) diagram

Holder nut a

Part #05200110

Replaced by #M0286708

?
Manufacturer substitution
This part replaces 05200110. Substitute parts can look different from the original.
$30.49
In Stock
Primary Switch 3135-0086
Primary switch

Part #3135-0086

Replaced by #WP56001036

?
Manufacturer substitution
This part replaces 3135-0086. Substitute parts can look different from the original.
$42.20
In Stock
Fuse Holder 05200094
#17

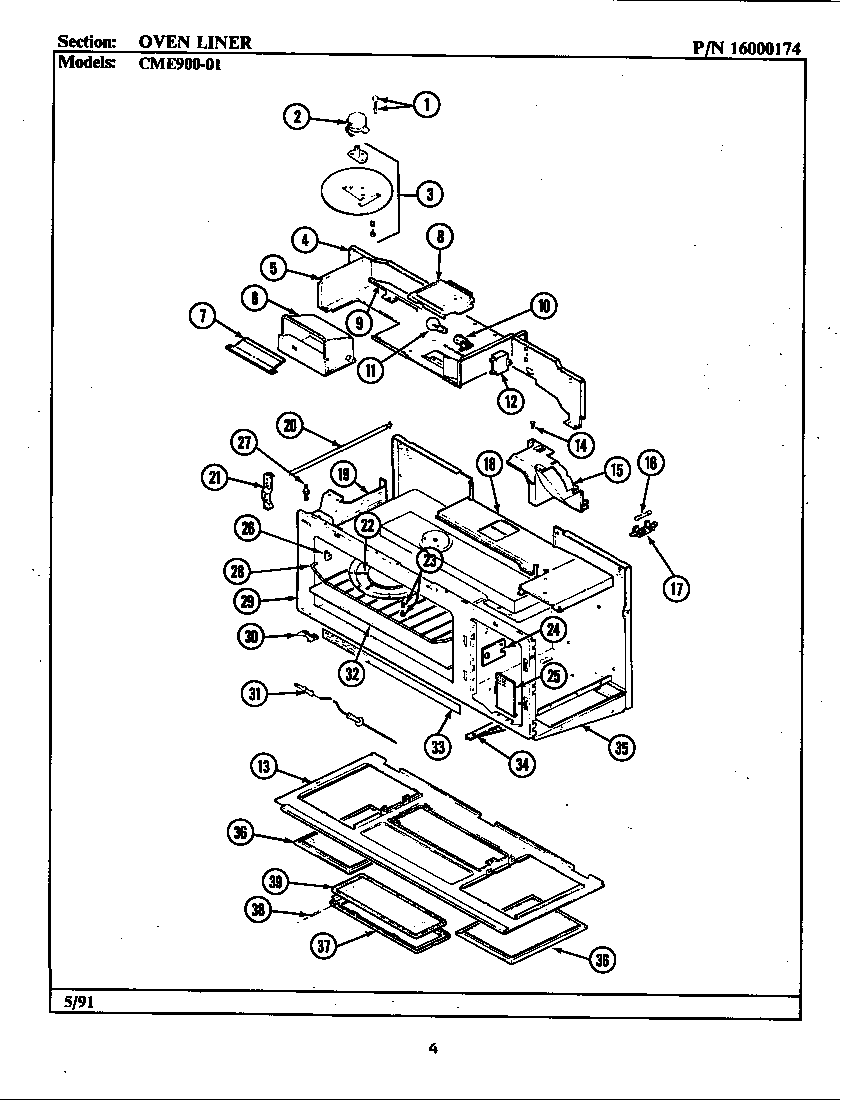

Oven liner (cme900-01) diagram

Fuse holder

Part #05200094

Replaced by #W10206728

?
Manufacturer substitution
This part replaces 05200094. Substitute parts can look different from the original.
This item is not returnable
$12.09 |
14% OFF Phone Price : $14.09
In Stock
Diode 2315-0004
Diode

Part #2315-0004

Replaced by #WP13091701

?
Manufacturer substitution
This part replaces 2315-0004. Substitute parts can look different from the original.
$25.29 |
17% OFF Phone Price : $30.29
In Stock
U-bolt 05200023
U-bolt

Part #05200023

The manufacturer no longer makes this part, and there's no substitute part

Control Bracket 05200092
#6

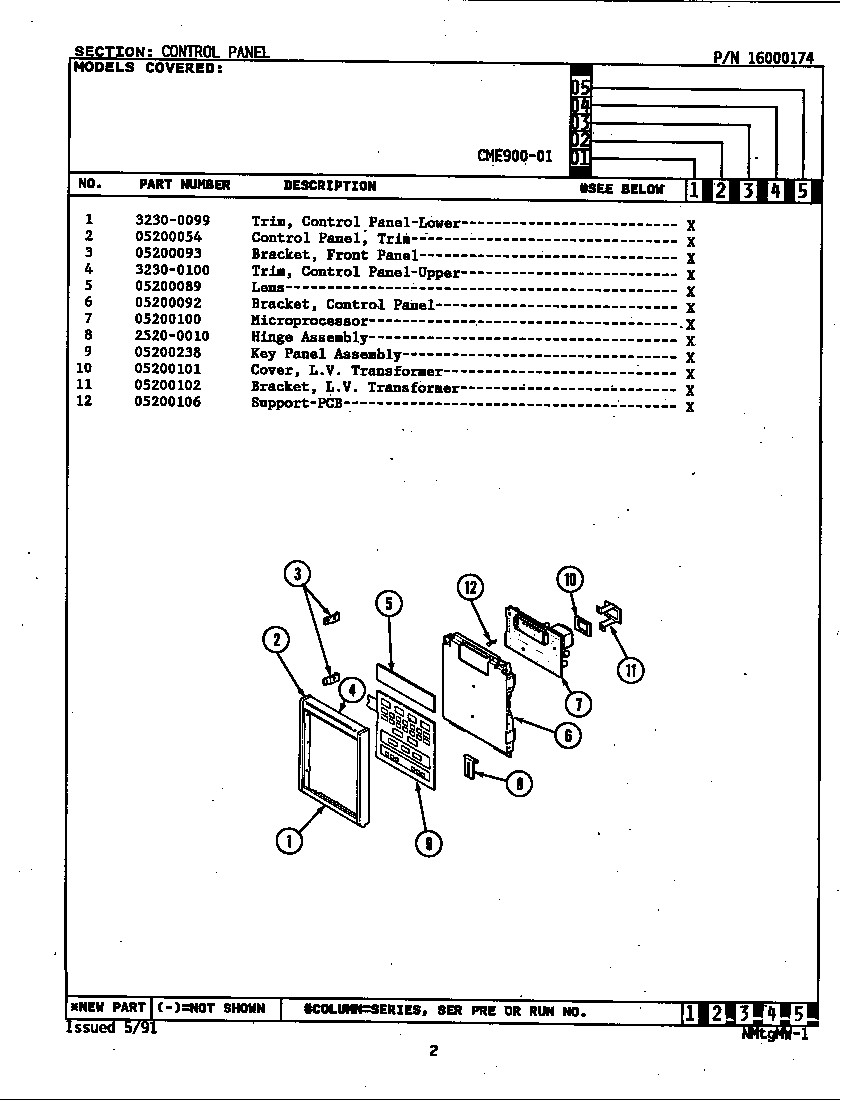

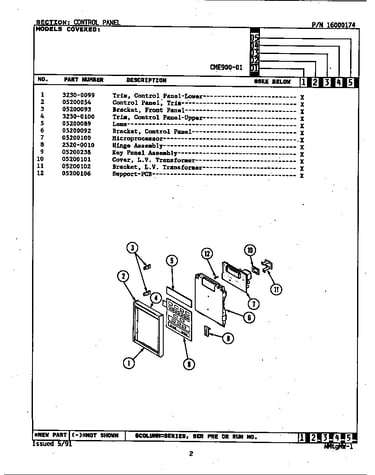

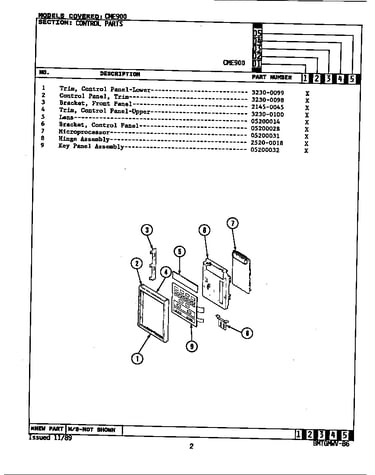

Control panel (cme900-01) diagram

Control bracket

Part #05200092

The manufacturer no longer makes this part, and there's no substitute part

Latch Bracket 2275-0043
Latch bracket

Part #2275-0043

The manufacturer no longer makes this part, and there's no substitute part
