GE JKP86SH4SS oven/microwave combo

GE JKP86SH4SS oven/microwave combo Parts

Here are the diagrams and repair parts for GE JKP86SH4SS oven/microwave combo, as well as links to manuals and error code tables, if available.

By Schematic
By Part

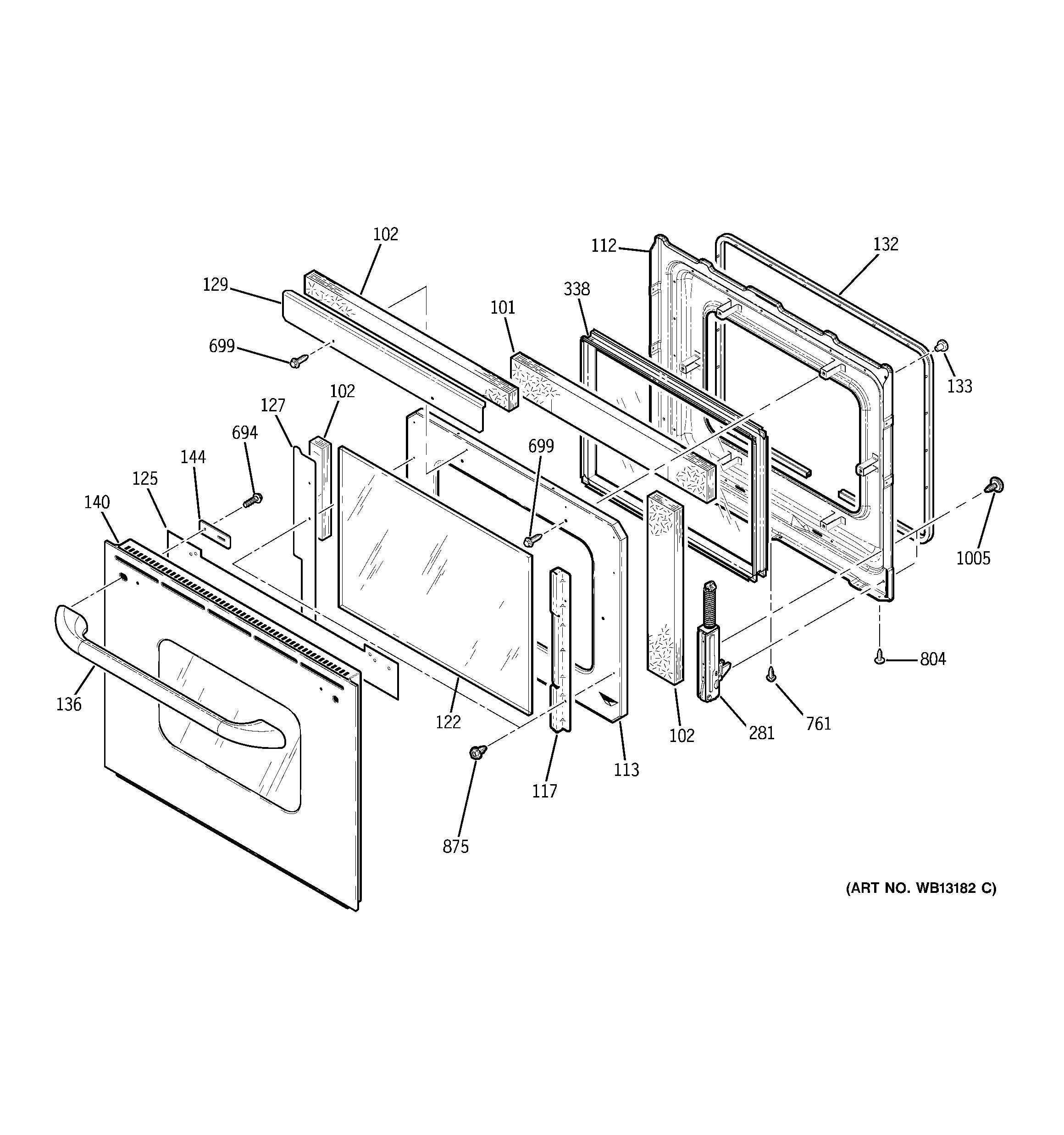

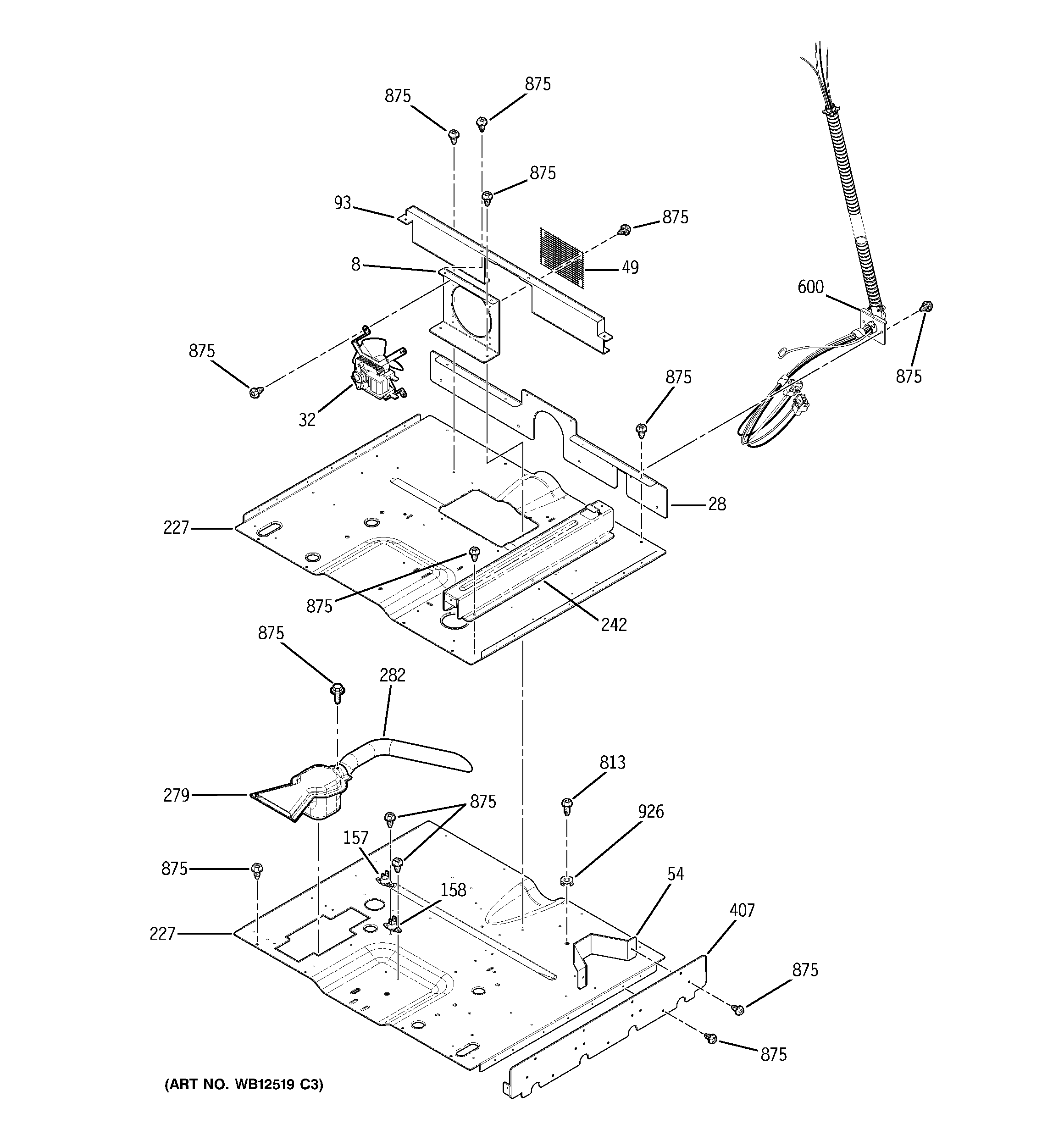

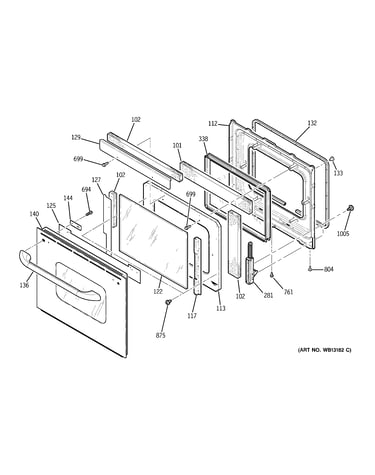

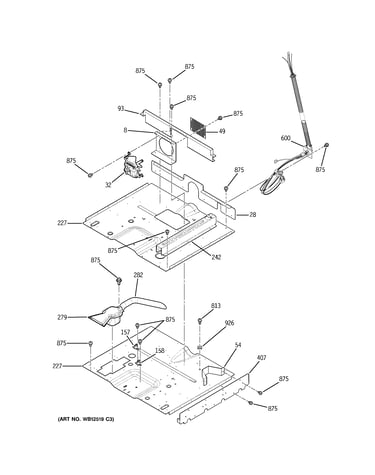

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JKP86SH4SS Oven/Microwave Combo

  • Microwave Micro-switch for GE JKP86SH4SS - Part WB24X829

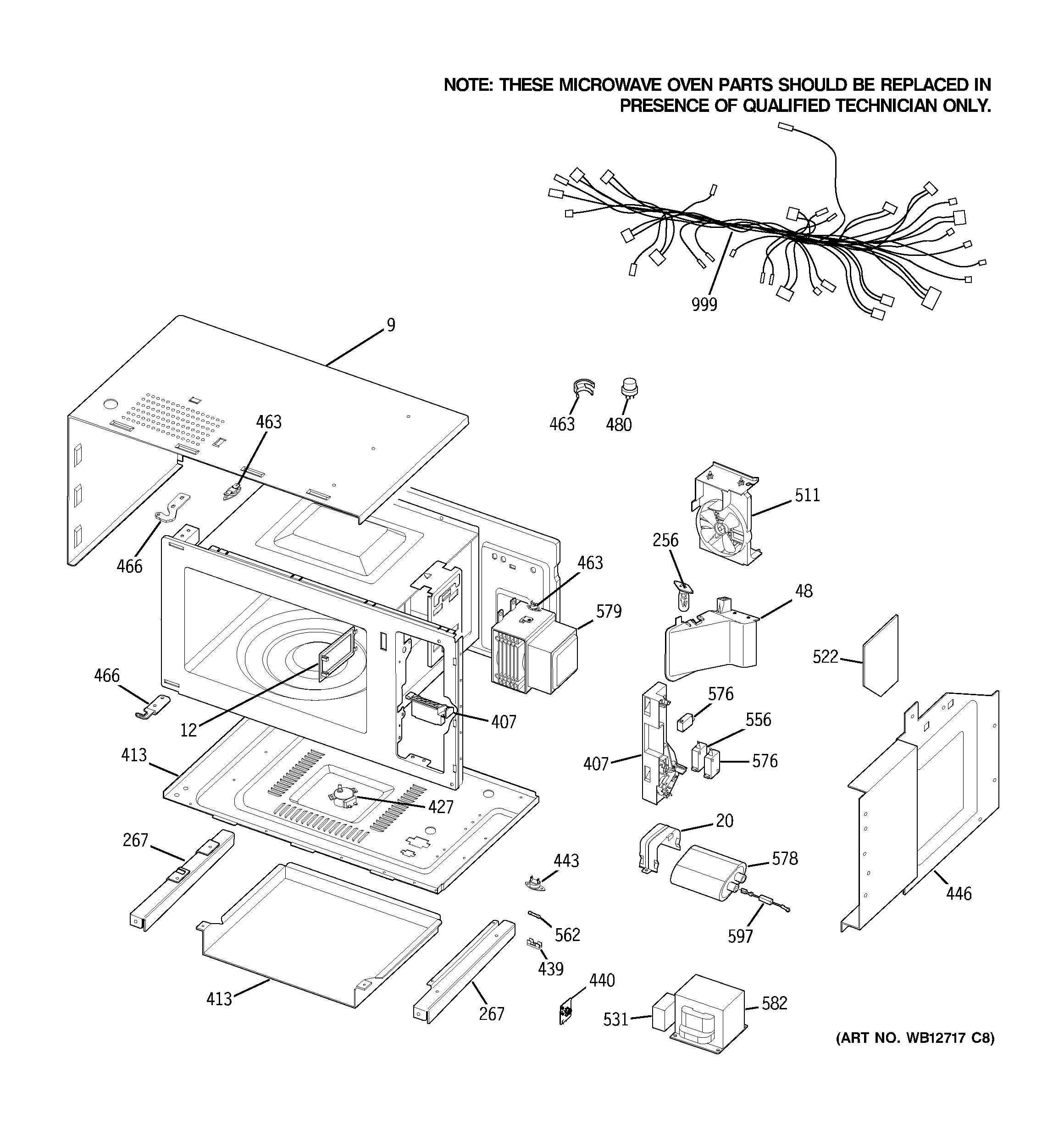

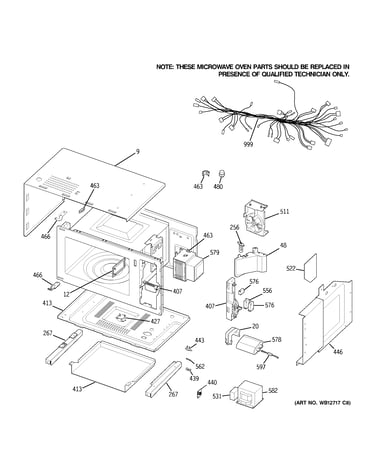

    Microwave body parts diagram

    Switch-micro

    Part #WB24X0829

    Replaced by #WB24X829

    Info Icon
    Manufacturer substitution
    This part replaces WB24X0829. Substitute parts can look different from the original.
    In Stock
    $30.28
    19% OFF Phone Price : $37.22Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Fuse for GE JKP86SH4SS - Part WB27X10928

    Microwave body parts diagram

    Fuse Cartridge

    Part #WB27X10474

    Replaced by #WB27X10928

    Info Icon
    Manufacturer substitution
    This part replaces WB27X10474. Substitute parts can look different from the original.
    In Stock
    $12.92
    16% OFF Phone Price : $15.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Switch for GE JKP86SH4SS - Part WB24X830

    Microwave body parts diagram

    Monitor Switch

    Part #WB24X0830

    Replaced by #WB24X830

    Info Icon
    Manufacturer substitution
    This part replaces WB24X0830. Substitute parts can look different from the original.
    In Stock
    $36.05
    16% OFF Phone Price : $43.17Info Icon
    Minus Item
    Qty
    Plus Item
  • Kenmore Range Oven Temperature Sensor for GE JKP86SH4SS - Part WB21X22134

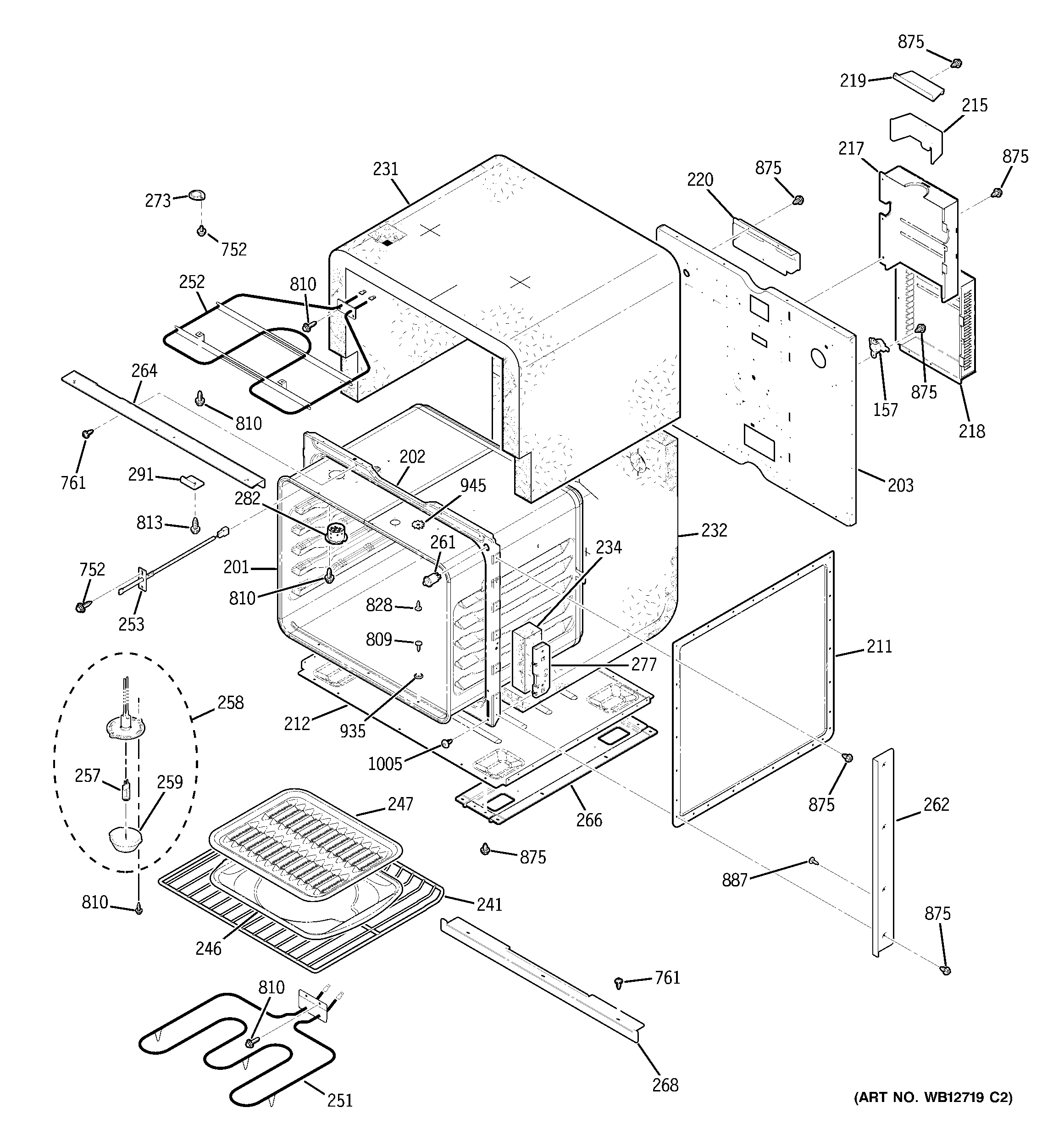

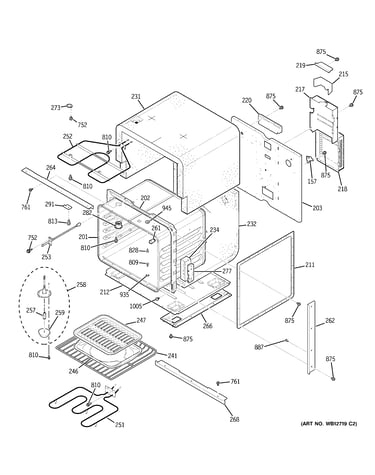

    Body with microwave support diagram

    Sensor

    Part #WB21T10017

    Replaced by #WB21X22134

    Info Icon
    Manufacturer substitution
    This part replaces WB21T10017. Substitute parts can look different from the original.
    In Stock
    $25.48
    17% OFF Phone Price : $30.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Magnetron for GE JKP86SH4SS - Part WB27X10516

    Microwave body parts diagram

    Microwave Magnetron

    Part #WB27X10516
    In Stock
    $327.07
    $12.00 OFF Phone Price : $339.07Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Element for GE JKP86SH4SS - Part WB44T10051

    Body with microwave support diagram

    Range Broil Element

    Part #WB44T10051
    In Stock
    $110.62
    10% OFF Phone Price : $122.62Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave High-voltage Capacitor for GE JKP86SH4SS - Part WB27X10073

    Microwave body parts diagram

    Microwave High-voltage Capacitor

    Part #WB27X10073
    In Stock
    $91.89
    6% OFF Phone Price : $97.89Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JKP86SH4SS - Part WB1X1130

    Body with microwave support diagram

    Screw, #10-32 X 17/32-in

    Part #WB01X1253

    Replaced by #WB1X1130

    Info Icon
    Manufacturer substitution
    This part replaces WB01X1253. Substitute parts can look different from the original.
    In Stock
    $9.86
    9% OFF Phone Price : $10.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Motor for GE JKP86SH4SS - Part WB26X172

    Microwave body parts diagram

    Microwave Turntable Motor

    Part #WB26X0172

    Replaced by #WB26X172

    Info Icon
    Manufacturer substitution
    This part replaces WB26X0172. Substitute parts can look different from the original.
    In Stock
    $87.99
    6% OFF Phone Price : $93.99Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Tray Support for GE JKP86SH4SS - Part WB06T10012

    Microwave enclosure diagram

    Microwave Turntable Tray Support

    Part #WB06T10012
    In Stock
    $51.89
    10% OFF Phone Price : $57.89Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Foam Tape WB01T10052

Foam Tape

Part #WB01T10052
In Stock
$9.01
10% OFF Phone Price : $10.01Info Icon
Minus Item
Qty
Plus Item
