Model # DW840K TYPE 1 Official DeWalt angle grinder

Here are the diagrams and repair parts for Official DeWalt DW840K-TYPE-1 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Slinger 398985-00
#166

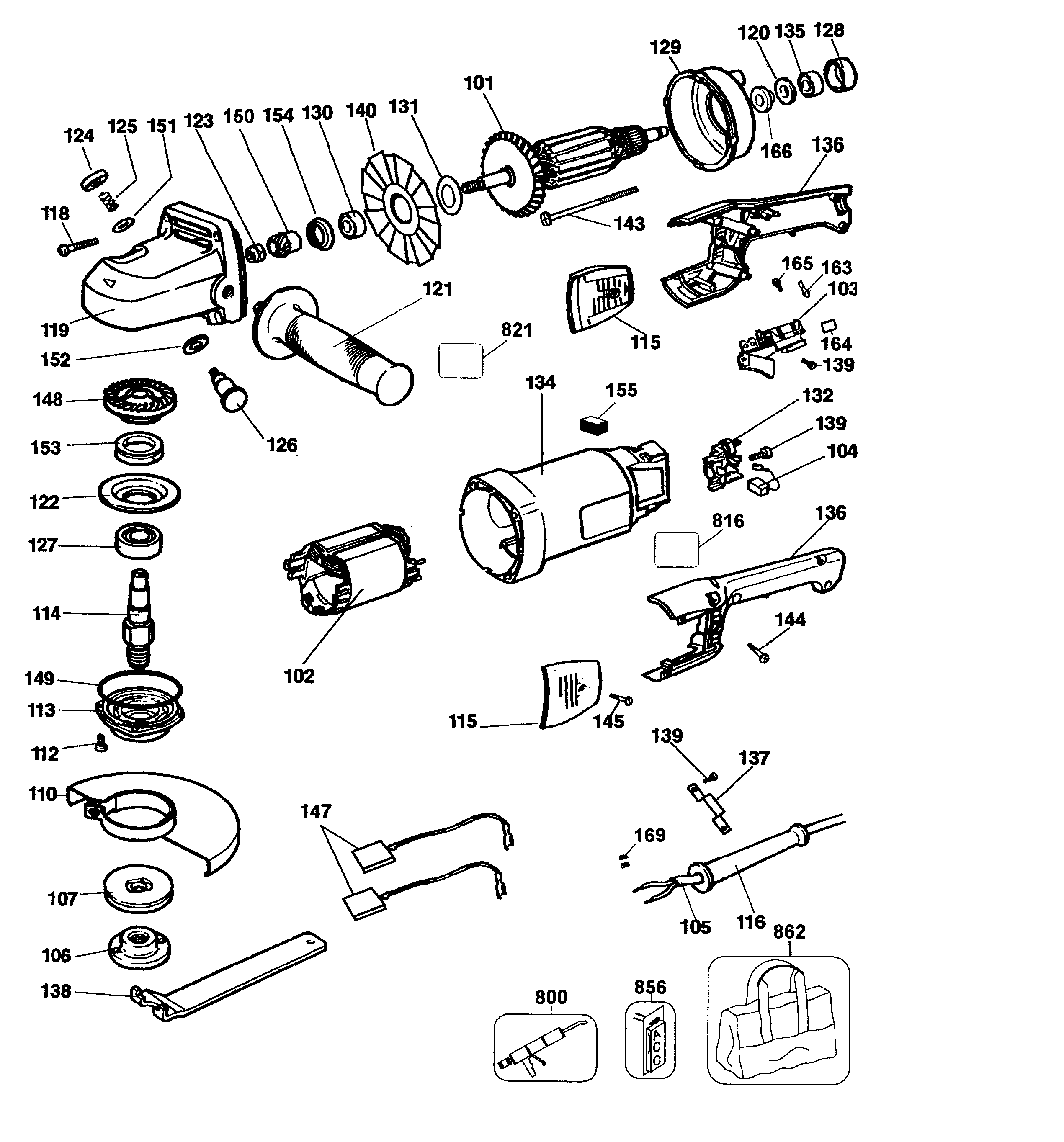

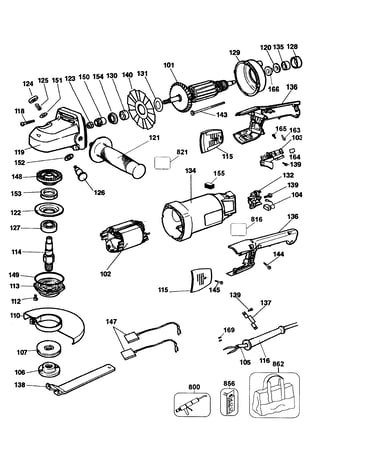

Grinder assy diagram

Slinger

Part #398985-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Cutting Wheel Flange, Outer 390426-00
#106

Grinder assy diagram

Angle grinder cutting wheel flange, outer

Part #390426-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 562097-10
#118

Grinder assy diagram

Screw

Part #562097-10

The manufacturer no longer makes this part, and there's no substitute part

O-ring 403123-01
#149

Grinder assy diagram

O-ring

Part #403123-01

The manufacturer no longer makes this part, and there's no substitute part

Grinder Motor Brush 402874-07
#104

Grinder assy diagram

Grinder motor brush

Part #402874-07

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Spindle Lock 391018-00
#126

Grinder assy diagram

Angle grinder spindle lock

Part #391018-00

The manufacturer no longer makes this part, and there's no substitute part

Flange 403121-01
#140

Grinder assy diagram

Flange

Part #403121-01

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Screw 562097-00
#139

Grinder assy diagram

Angle grinder screw

Part #562097-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Lock Spring 562210-00
#125

Grinder assy diagram

Angle grinder lock spring

Part #562210-00

The manufacturer no longer makes this part, and there's no substitute part

Bearing Cup 641823-00
#128

Grinder assy diagram

Bearing cup

Part #641823-00

The manufacturer no longer makes this part, and there's no substitute part
