Model # 11668770 Official Kenmore vacuum cleaner & attachment set

Here are the diagrams and repair parts for Official Kenmore 11668770 vacuum cleaner & attachment set, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Brush 720936
#39

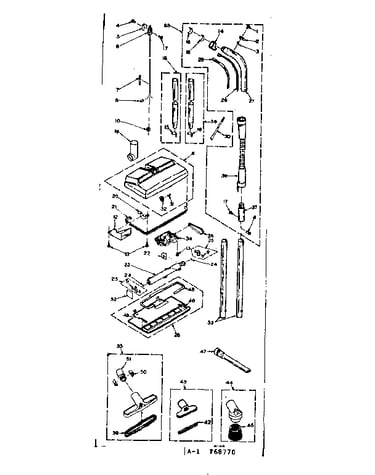

Power mate diagram

Brush

Part #720936

The manufacturer no longer makes this part, and there's no substitute part

Belt 721813
#38

Power mate diagram

Belt

Part #721813

The manufacturer no longer makes this part, and there's no substitute part

Cord Plug 720942
#28

Power mate diagram

Cord plug

Part #720942

The manufacturer no longer makes this part, and there's no substitute part

Spring 720931
#15

Power mate diagram

Spring

Part #720931

The manufacturer no longer makes this part, and there's no substitute part

Control Button 721160
#2

Power mate diagram

Control button

Part #721160

The manufacturer no longer makes this part, and there's no substitute part

Brush 721780
#35

Power mate diagram

Brush

Part #721780

The manufacturer no longer makes this part, and there's no substitute part

Connector 596161
#8

Power mate diagram

Connector

Part #596161

The manufacturer no longer makes this part, and there's no substitute part

Dust Pad 721289
#52

Power mate diagram

Dust pad

Part #721289

The manufacturer no longer makes this part, and there's no substitute part

Brush 721636
#23

Power mate diagram

Brush

Part #721636

The manufacturer no longer makes this part, and there's no substitute part

Gasket 721353
#46

Power mate diagram

Gasket

Part #721353

The manufacturer no longer makes this part, and there's no substitute part
