Mitsubishi MUZ-A24NA-1 split-system air conditioner heat pump Parts

Here are the diagrams and repair parts for Mitsubishi MUZ-A24NA-1 split-system air conditioner heat pump, as well as links to manuals and error code tables, if available.

Mitsubishi MUZ-A24NA-1 split-system air conditioner heat pump
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MUZ-A24NA-1 Split-System Air Conditioner Heat Pump

  • Pcb Noise for Mitsubishi MUZ-A24NA-1 - Part E12A58444

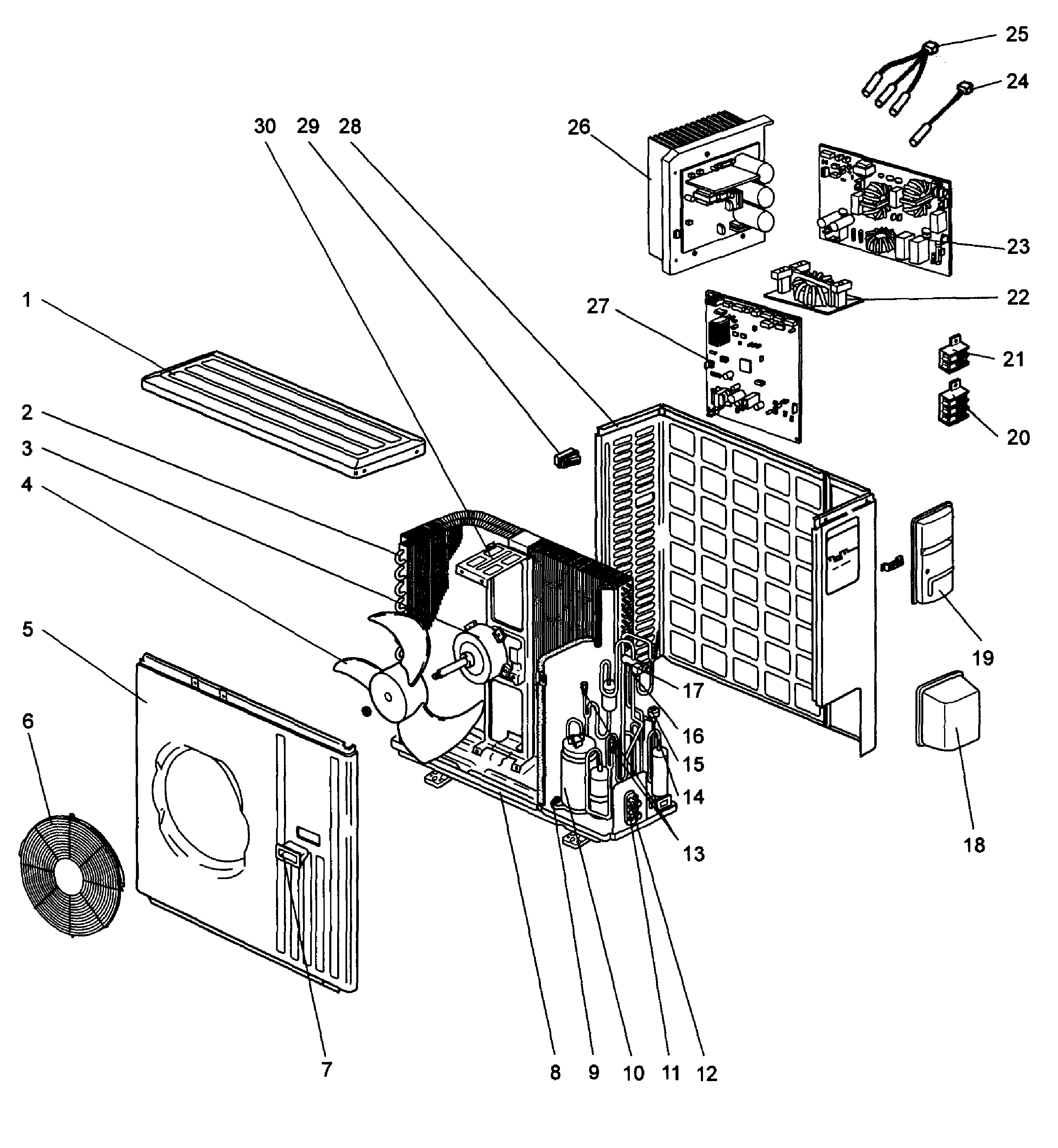

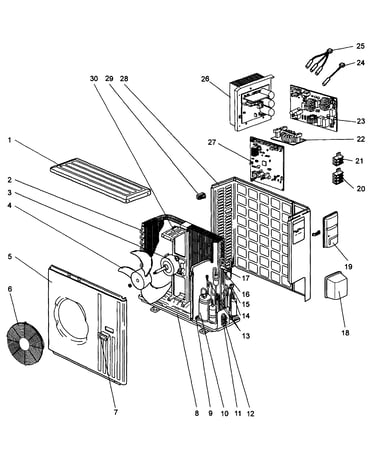

    Cabinet assy diagram

    Pcb Noise

    Part #E12A58444

    The manufacturer no longer makes this part, and there's no substitute part

  • Cabinet for Mitsubishi MUZ-A24NA-1 - Part E12819232

    Cabinet assy diagram

    Cabinet

    Part #E12819232

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor Support for Mitsubishi MUZ-A24NA-1 - Part E12851515

    Cabinet assy diagram

    Motor Support

    Part #E12851515

    The manufacturer no longer makes this part, and there's no substitute part

  • Handle for Mitsubishi MUZ-A24NA-1 - Part E12819009

    Cabinet assy diagram

    Handle

    Part #E12819009

    The manufacturer no longer makes this part, and there's no substitute part

  • Valve Cover for Mitsubishi MUZ-A24NA-1 - Part E12819650

    Cabinet assy diagram

    Valve Cover

    Part #E12819650

    The manufacturer no longer makes this part, and there's no substitute part

  • Capillary for Mitsubishi MUZ-A24NA-1 - Part E12851936

    Cabinet assy diagram

    Capillary

    Part #E12851936

    The manufacturer no longer makes this part, and there's no substitute part

  • Compressor for Mitsubishi MUZ-A24NA-1 - Part E12C34506

    Cabinet assy diagram

    Compressor

    Part #E12C34506

    The manufacturer no longer makes this part, and there's no substitute part

  • Thermistor for Mitsubishi MUZ-A24NA-1 - Part E12851308

    Cabinet assy diagram

    Thermistor

    Part #E12851308

    The manufacturer no longer makes this part, and there's no substitute part

  • Valve Coil for Mitsubishi MUZ-A24NA-1 - Part E12851493

    Cabinet assy diagram

    Valve Coil

    Part #E12851493

    The manufacturer no longer makes this part, and there's no substitute part

  • Block for Mitsubishi MUZ-A24NA-1 - Part E12935374

    Cabinet assy diagram

    Block

    Part #E12935374

    The manufacturer no longer makes this part, and there's no substitute part
