Sharp
Countertop Microwave

Model # R-308HW Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-308HW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |

Magnetron RV-MZA288WRE0
#1-11

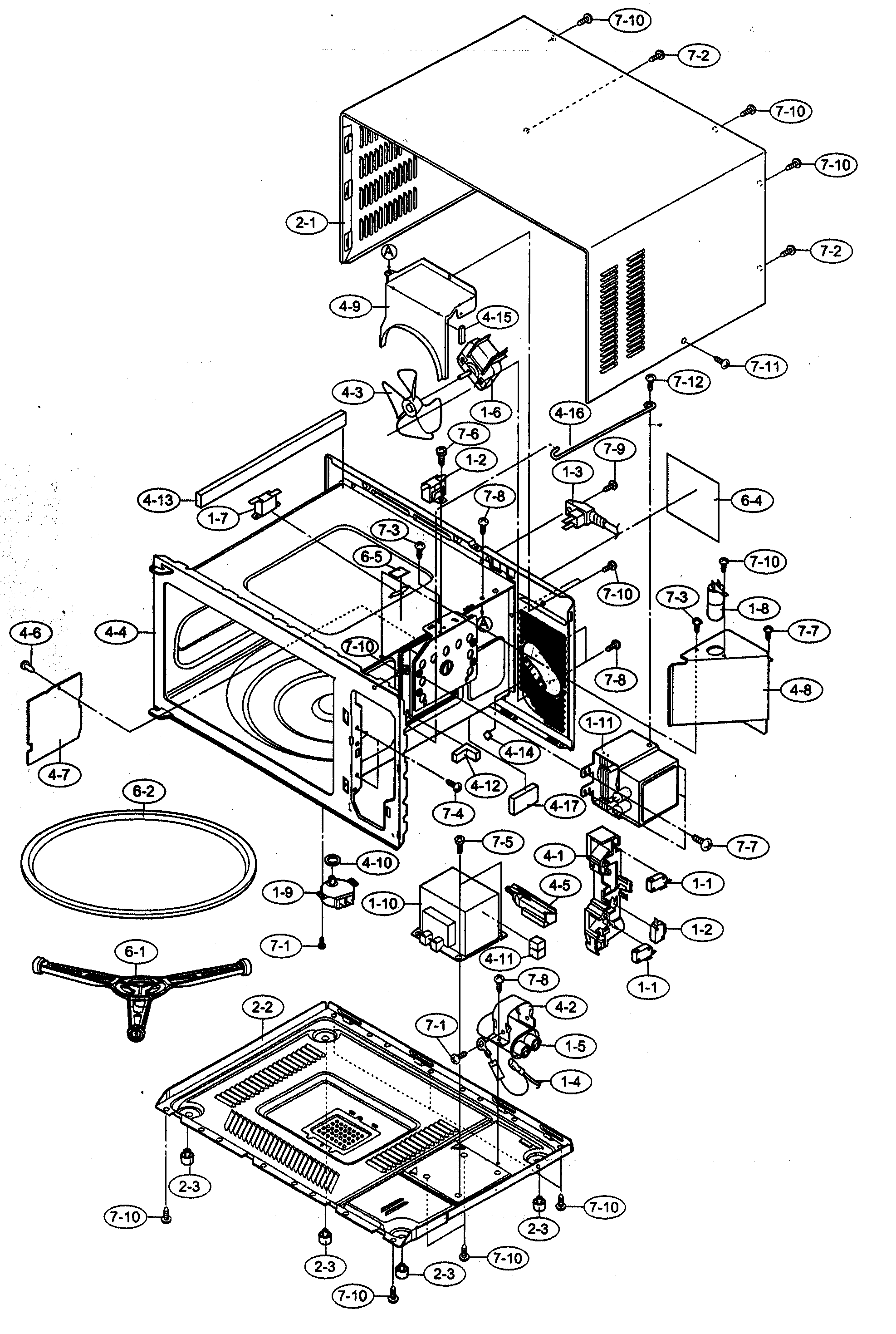

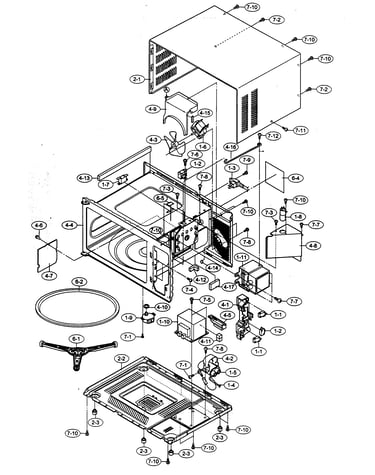

Oven/cabinet parts diagram

Magnetron

Part #RV-MZA288WRE0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor RC-QZA213WRE0
#1-5

Oven/cabinet parts diagram

Capacitor

Part #RC-QZA213WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Glass Turntable Tray NTNT-A117WREZ
#6-2

Oven/cabinet parts diagram

Microwave glass turntable tray

Part #NTNT-A117WREZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Cover GCOVHA450WRFZ
#5-7

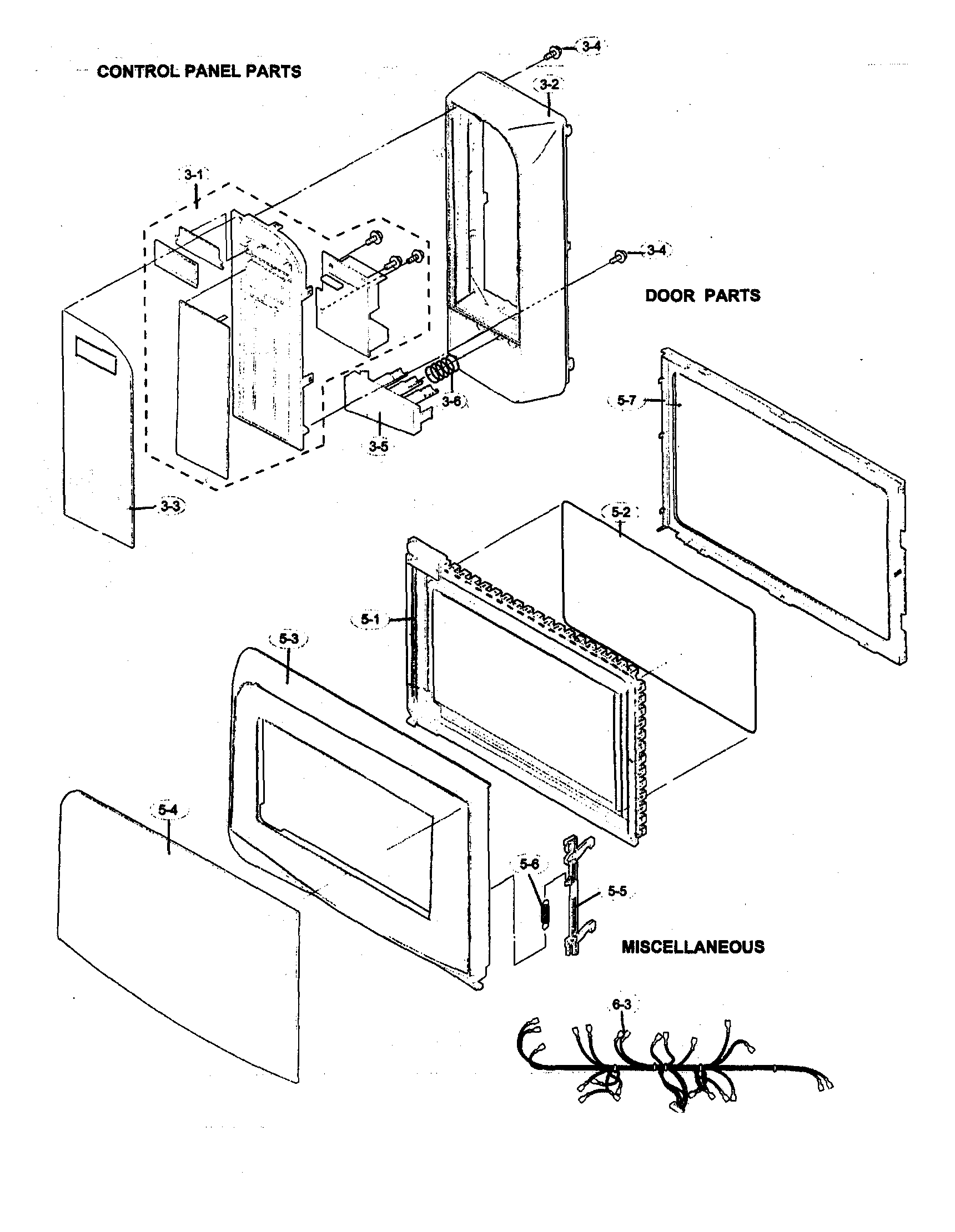

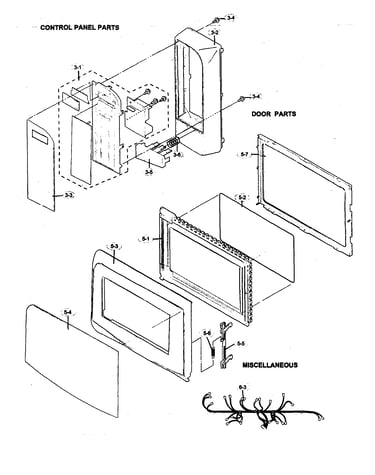

Control panel diagram

Microwave cover

Part #GCOVHA450WRFZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Tray Support FROLPA101WRKZ
#6-1

Oven/cabinet parts diagram

Microwave turntable tray support

Part #FROLPA101WRKZ

The manufacturer no longer makes this part, and there's no substitute part

Cabinet GCABUA883WRPZ
#2-1

Oven/cabinet parts diagram

Cabinet

Part #GCABUA883WRPZ

The manufacturer no longer makes this part, and there's no substitute part

Holder LBNDKA163WRPZ
#4-2

Oven/cabinet parts diagram

Holder

Part #LBNDKA163WRPZ

The manufacturer no longer makes this part, and there's no substitute part

Air Duct PDUC-A833WRPZ
#4-8

Oven/cabinet parts diagram

Air duct

Part #PDUC-A833WRPZ

The manufacturer no longer makes this part, and there's no substitute part

Latch Hook PHOK-A131WRFZ
#4-1

Oven/cabinet parts diagram

Latch hook

Part #PHOK-A131WRFZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Release Button (white) JBTN-B241WRFZ
#3-5

Control panel diagram

Microwave door release button (white)

Part #JBTN-B241WRFZ

The manufacturer no longer makes this part, and there's no substitute part
