Craftsman
Scroll Saw

Model # 315172321 Official Craftsman scroll saw

Here are the diagrams and repair parts for Official Craftsman 315172321 scroll saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

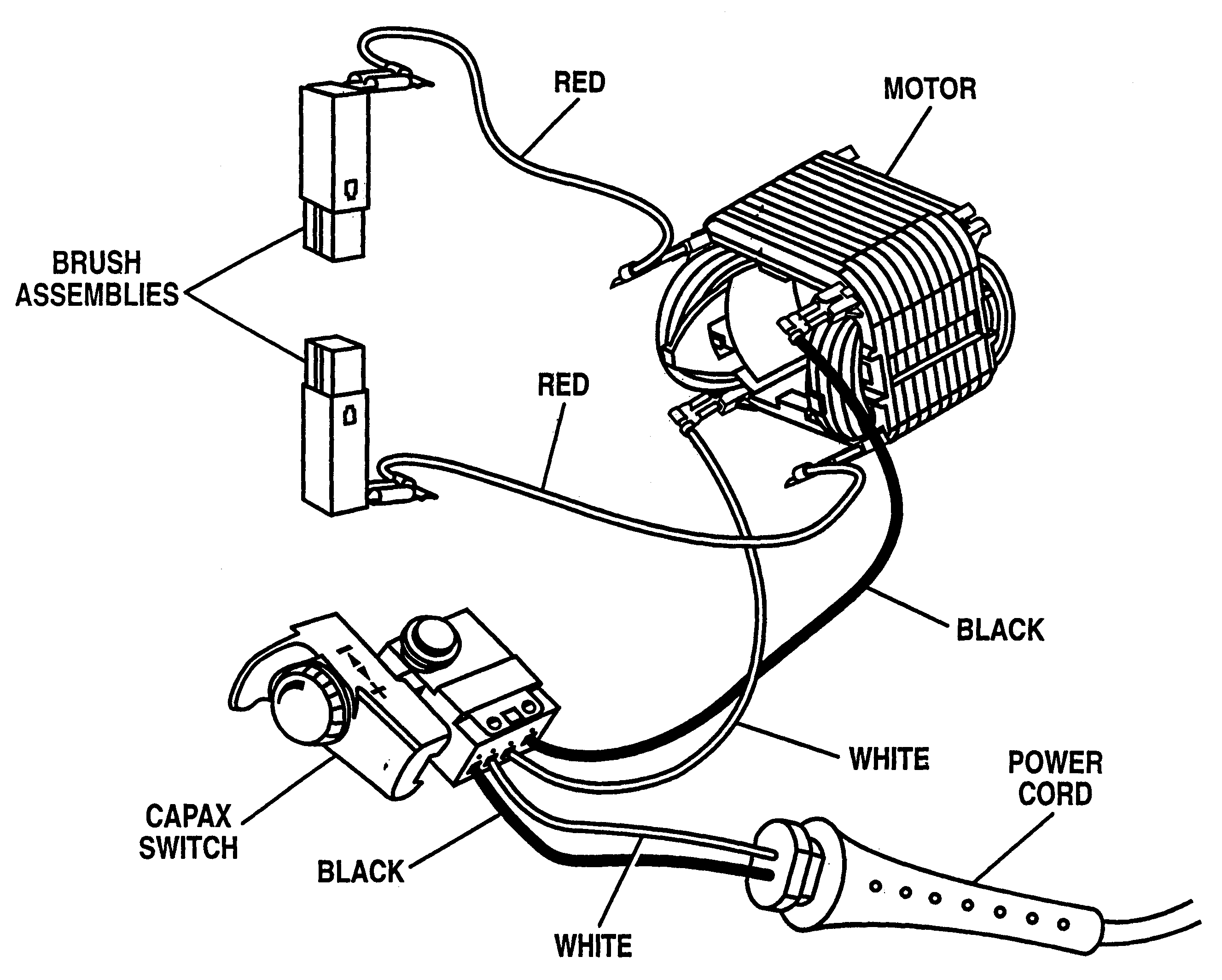

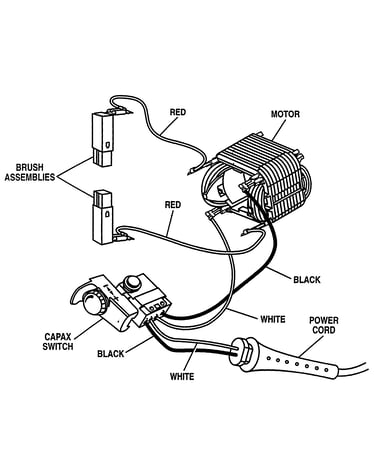

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Lock Cam 974883-002
#25

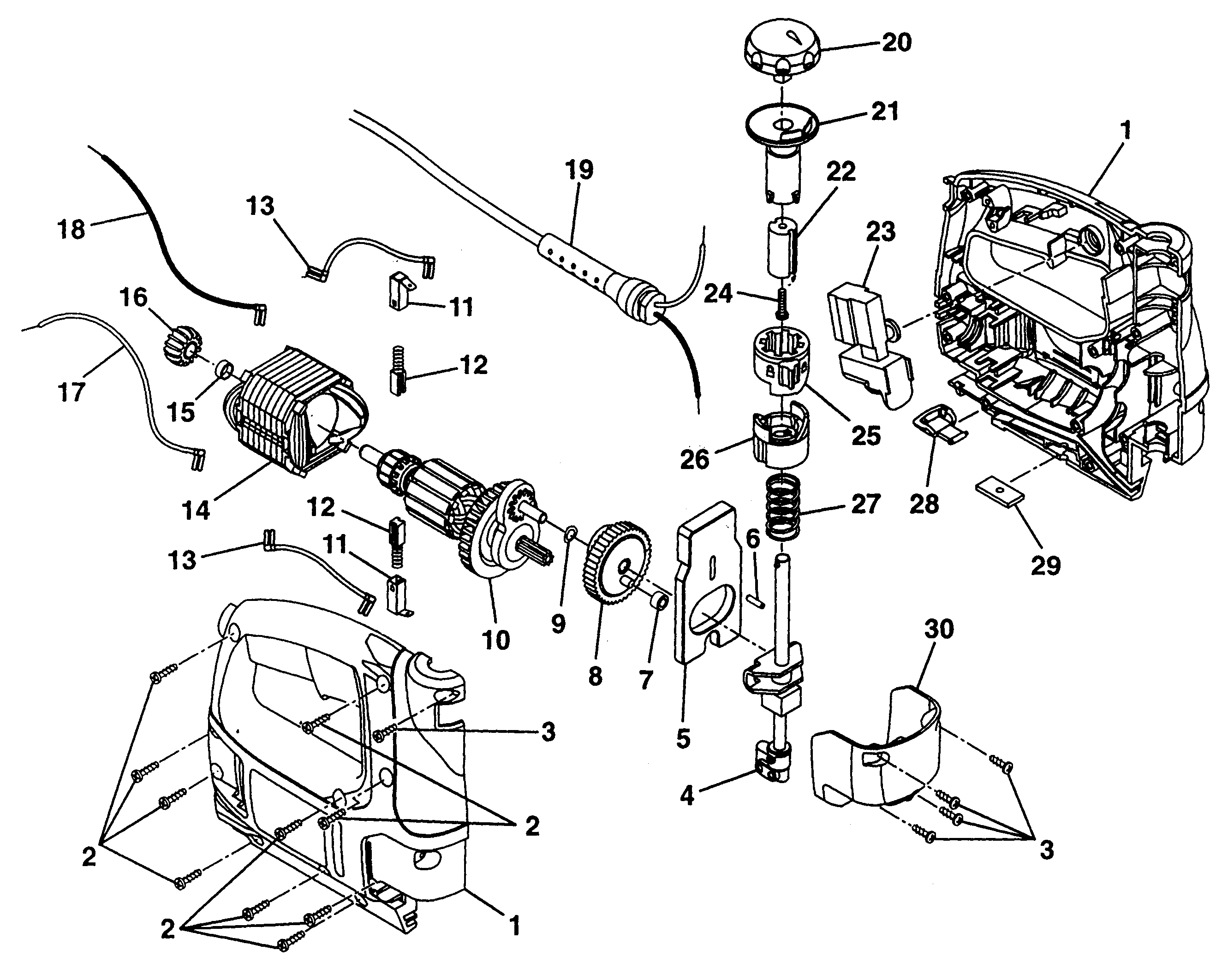

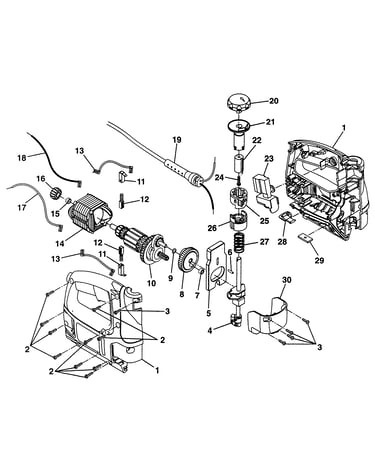

Motor diagram

Lock cam

Part #974883-002

The manufacturer no longer makes this part, and there's no substitute part

Base Assembly 974753-001
#5

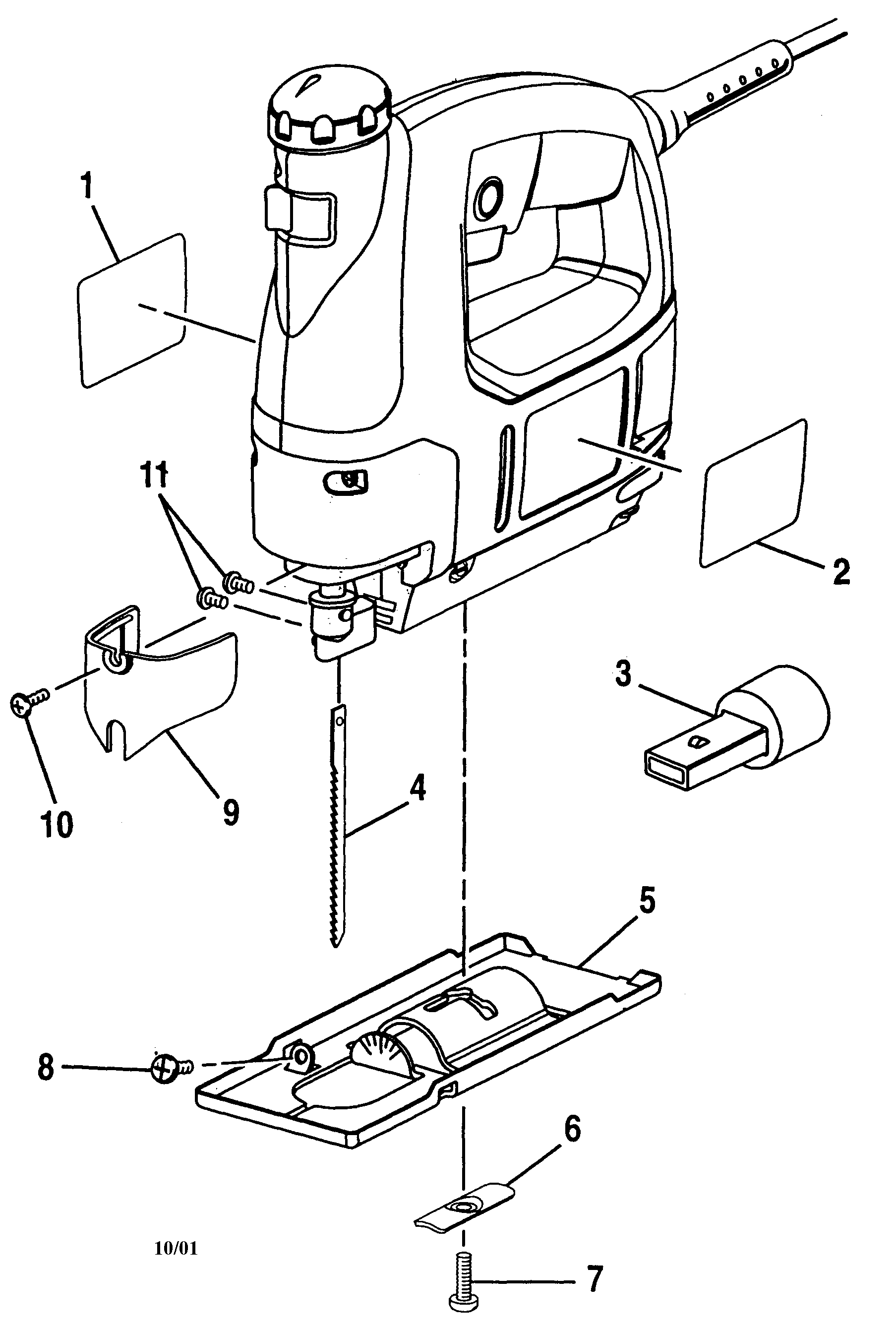

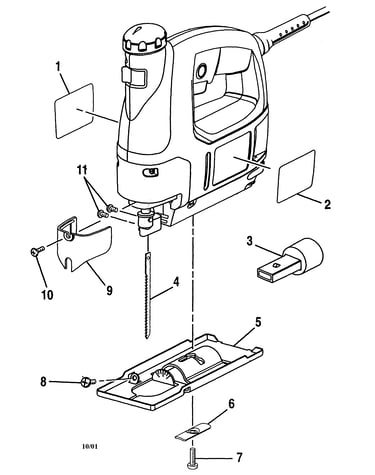

Housing diagram

Base assembly

Part #974753-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 999405-001
#7

Housing diagram

Screw

Part #999405-001

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 982542-001
#1

Housing diagram

Data plate

Part #982542-001

The manufacturer no longer makes this part, and there's no substitute part

Plate 974756-001
#6

Housing diagram

Plate

Part #974756-001

The manufacturer no longer makes this part, and there's no substitute part

Switch 974490-001
#23

Motor diagram

Switch

Part #974490-001

The manufacturer no longer makes this part, and there's no substitute part

Door 974765-001
#28

Motor diagram

Door

Part #974765-001

The manufacturer no longer makes this part, and there's no substitute part

Strip Nut 976176-001
#29

Motor diagram

Strip nut

Part #976176-001

The manufacturer no longer makes this part, and there's no substitute part

Fr Cover 975918-001
#30

Motor diagram

Fr cover

Part #975918-001

The manufacturer no longer makes this part, and there's no substitute part

Counterwht 975904-001
#5

Motor diagram

Counterwht

Part #975904-001

The manufacturer no longer makes this part, and there's no substitute part
