Kenmore
Humidifier

Model # 758144105 Official Kenmore humidifier

Here are the diagrams and repair parts for Official Kenmore 758144105 humidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Humidifier Fan Blade 829821
#4

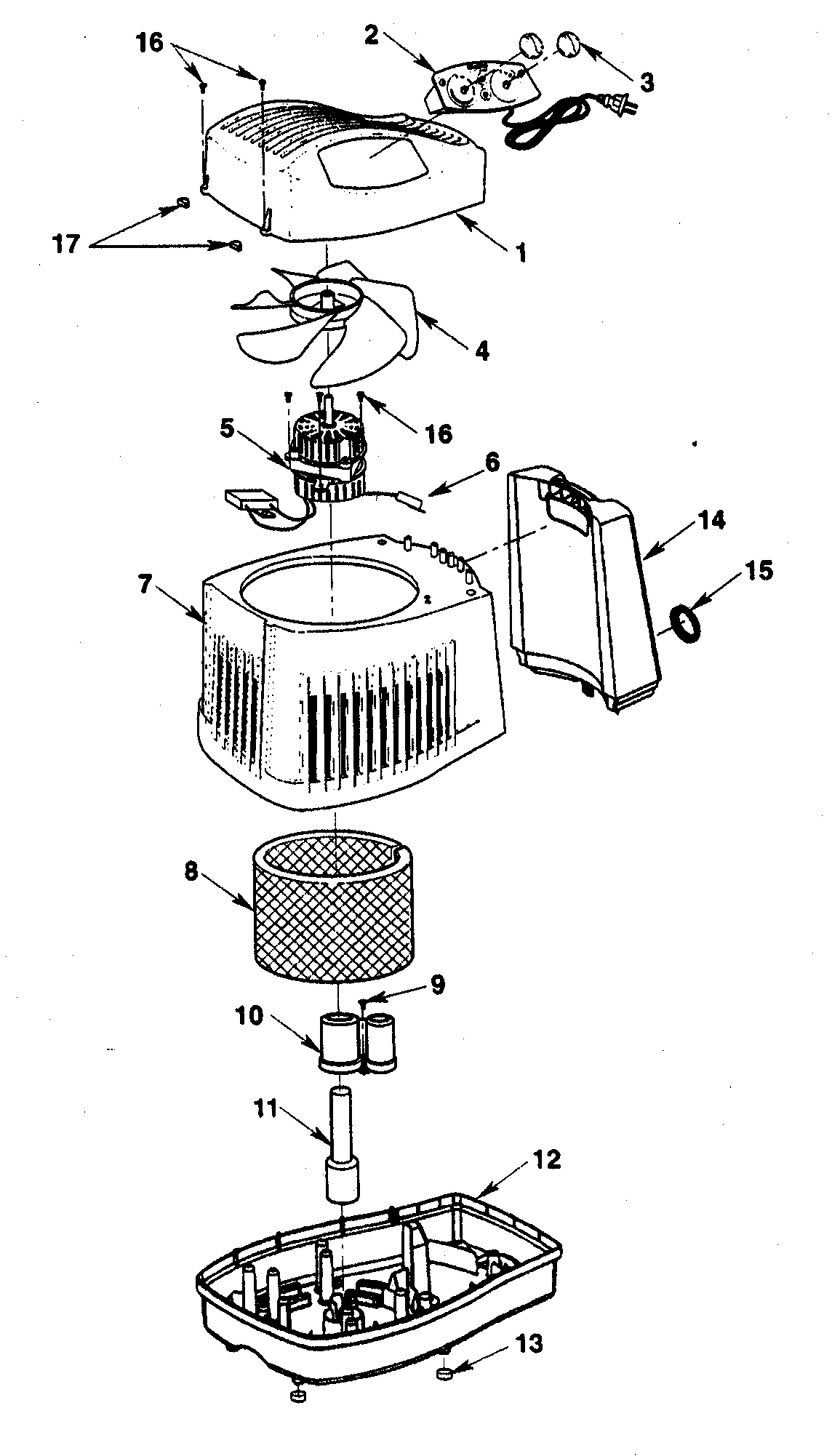

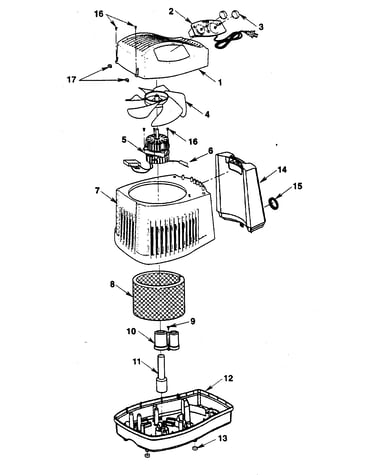

Humidifier diagram

Humidifier fan blade

Part #829821

The manufacturer no longer makes this part, and there's no substitute part

Motor 829819
#5

Humidifier diagram

Motor

Part #829819

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Water Container 830537
#14

Humidifier diagram

Humidifier water container

Part #830537

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Float 829816
#11

Humidifier diagram

Humidifier float

Part #829816

The manufacturer no longer makes this part, and there's no substitute part

Knob 830494
#3

Humidifier diagram

Knob

Part #830494

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Bottom Base Housing 830484
#12

Humidifier diagram

Humidifier bottom base housing

Part #830484

The manufacturer no longer makes this part, and there's no substitute part

Screw 829805
#16

Humidifier diagram

Screw

Part #829805

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Float Support 830496
#10

Humidifier diagram

Humidifier float support

Part #830496

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Cover Screw 830587
#17

Humidifier diagram

Humidifier cover screw

Part #830587

The manufacturer no longer makes this part, and there's no substitute part

Screw 829815
#9

Humidifier diagram

Screw

Part #829815

The manufacturer no longer makes this part, and there's no substitute part
