Maytag
Electric Cooktop

Model # CSE8000ADB Official Maytag electric counter unit cooktop

Here are the diagrams and repair parts for Official Maytag CSE8000ADB electric counter unit cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

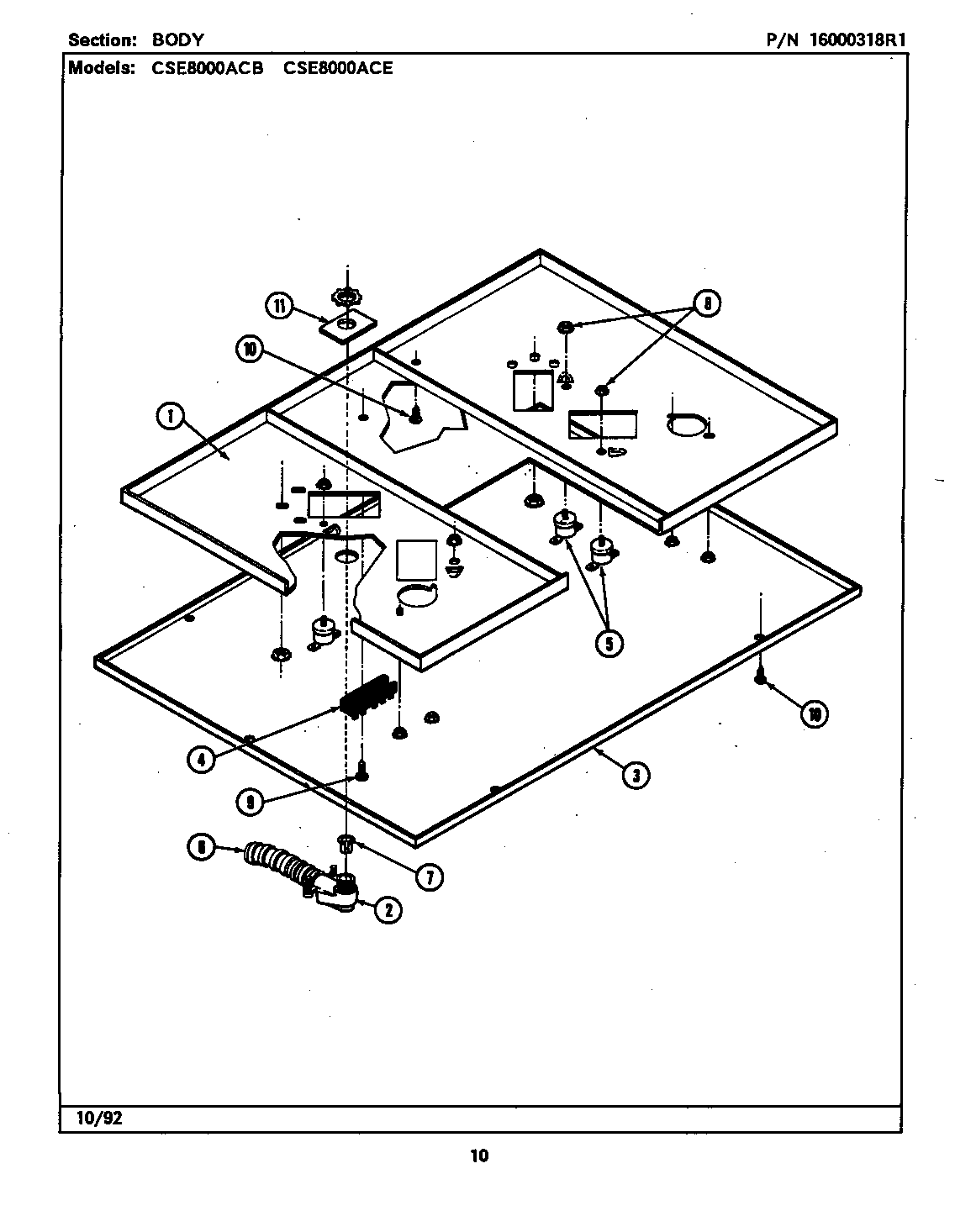

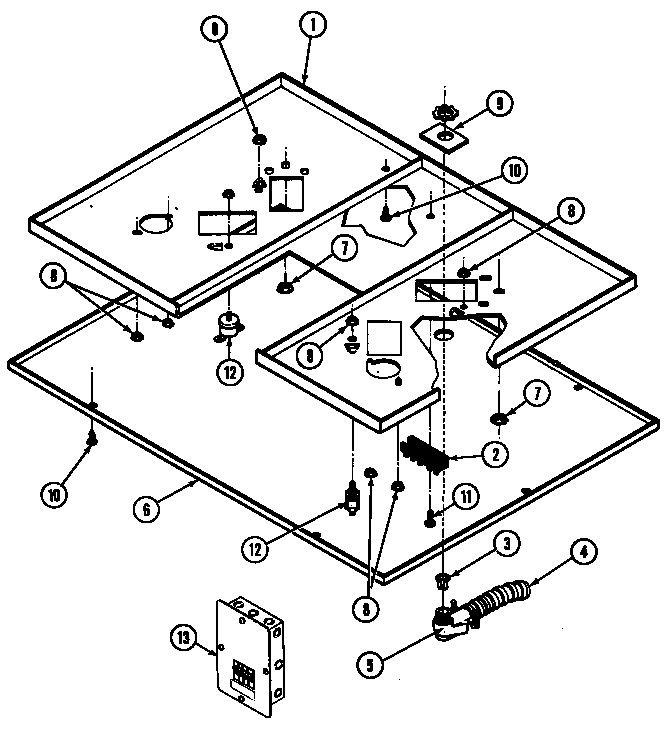

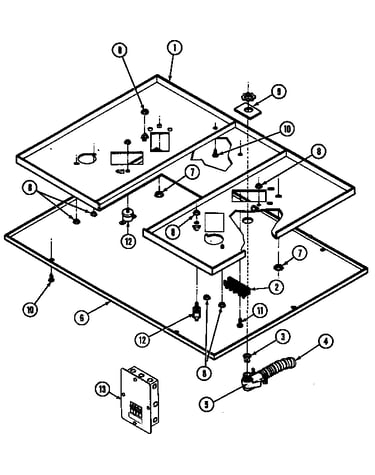

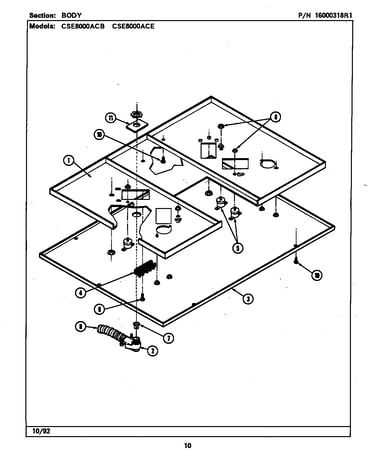

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |

Screw 7101P057-60
#13

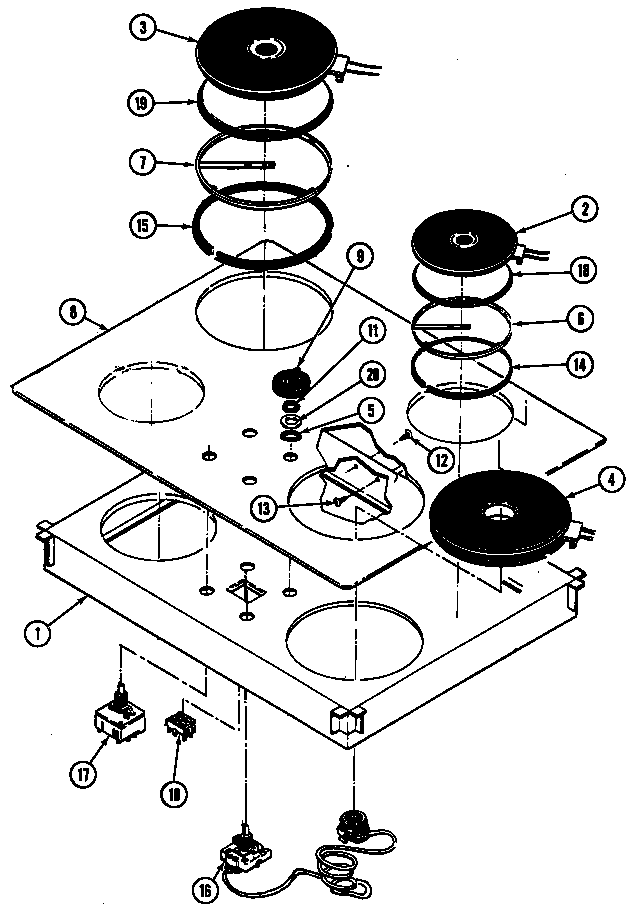

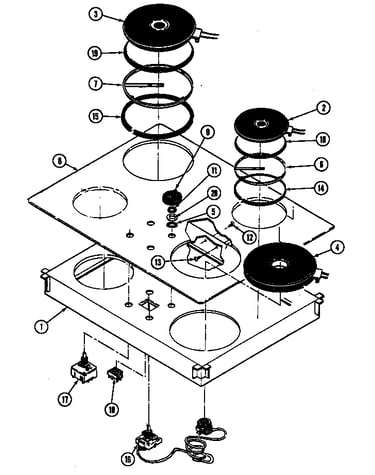

Top assembly (series 10) diagram

Screw

Part #7101P057-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P057-60. Substitute parts can look different from the original.
This item is not returnable
$4.03
20% OFF Phone Price : $5.03
In Stock
Element, 6-in 7406P023-60
Element, 6-in

Part #7406P023-60

Replaced by #WP3147131

?
Manufacturer substitution
This part replaces 7406P023-60. Substitute parts can look different from the original.
$111.62
8% OFF Phone Price : $121.62
In Stock
Screw 7101P059-60
Screw

Part #7101P059-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P059-60. Substitute parts can look different from the original.
This item is not returnable
$4.03
20% OFF Phone Price : $5.03
In Stock
Grounding Screw 7101P027-60
Grounding screw

Part #7101P027-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P027-60. Substitute parts can look different from the original.
This item is not returnable
$5.06
17% OFF Phone Price : $6.06
In Stock
Screw 7101P112-60
#20

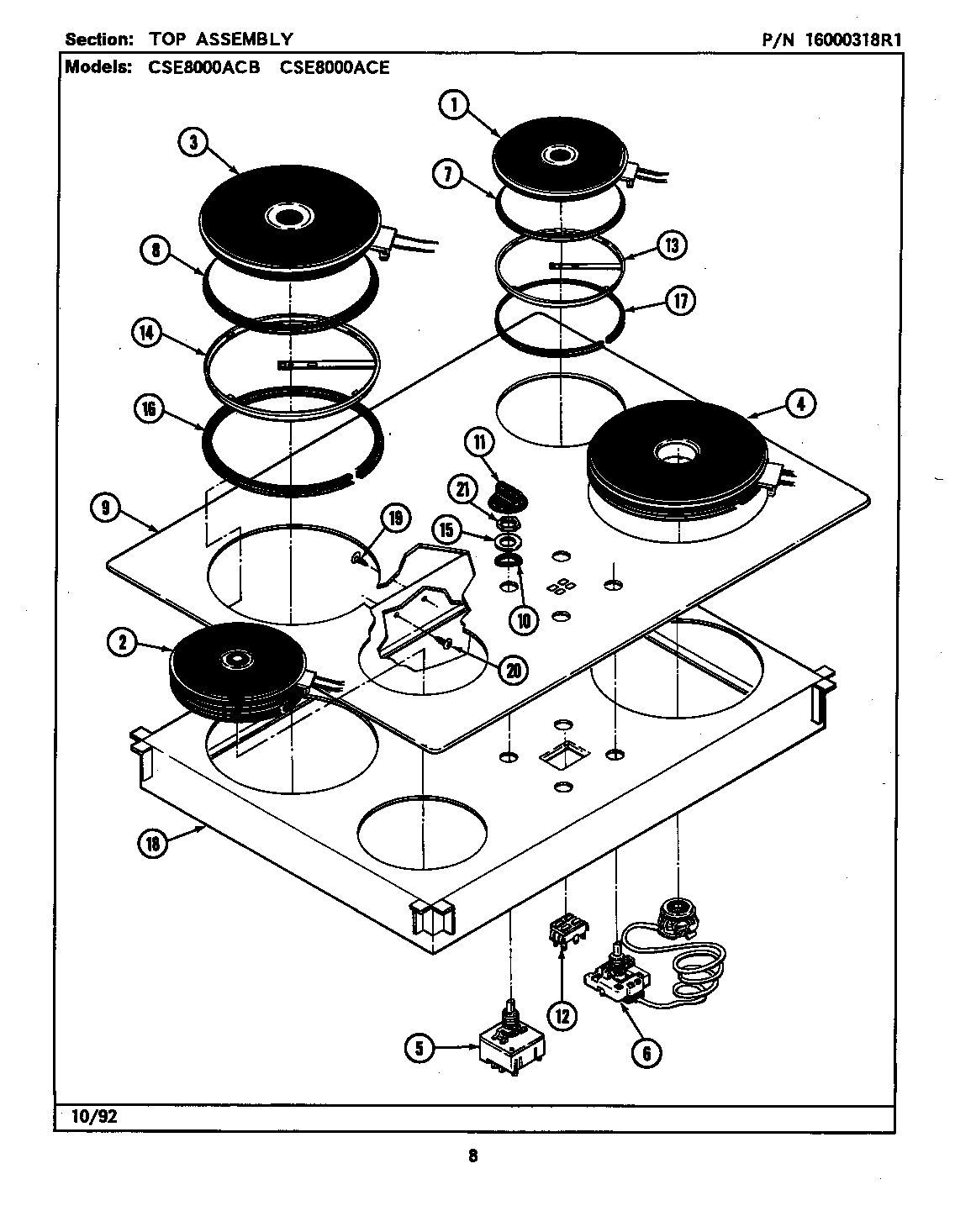

Top assembly (series 01) (cse8000acb) (cse8000ace) diagram

Screw

Part #7101P112-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P112-60. Substitute parts can look different from the original.
This item is not returnable
$5.06
17% OFF Phone Price : $6.06
In Stock
"t" Fitting (flange) N/P
"t" fitting (flange)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Gasket Ring 7201P022-60
Gasket ring

Part #7201P022-60

The manufacturer no longer makes this part, and there's no substitute part

Burner Box A 4006W003-51
#18

Top assembly (series 01) (cse8000acb) (cse8000ace) diagram

Burner box a

Part #4006W003-51

The manufacturer no longer makes this part, and there's no substitute part

Trim Ring 7744P047-60
#18A

Top assembly (series 10) diagram

Trim ring

Part #7744P047-60

The manufacturer no longer makes this part, and there's no substitute part

Cover 4005F039-51
Cover

Part #4005F039-51

The manufacturer no longer makes this part, and there's no substitute part
