Exercise Cycle

Model # 17-5000B Official DP air strider exercise cycle

Here are the diagrams and repair parts for Official DP 17-5000B air strider exercise cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Screw 21022800
#15

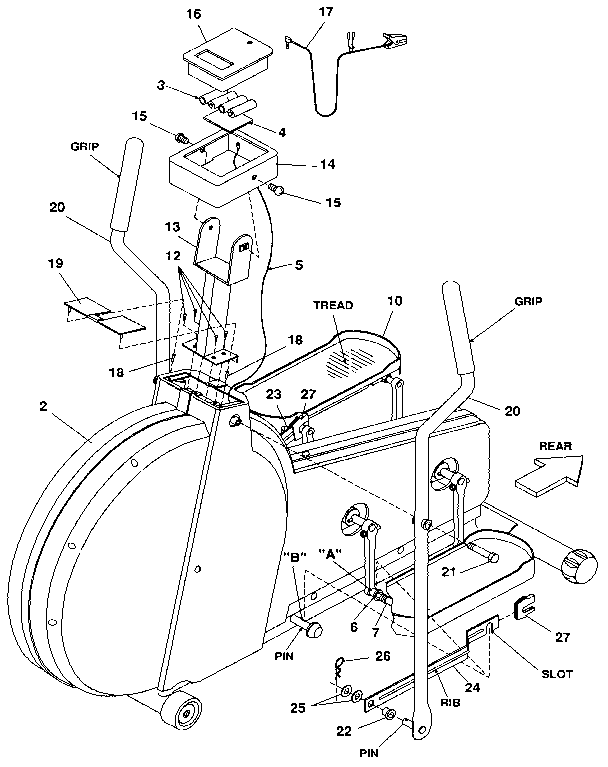

Figure 2 diagram

Screw

Part #21022800

The manufacturer no longer makes this part, and there's no substitute part

1/2" Mastrlk 29339700

#NI

All parts diagram

1/2" mastrlk

Part #29339700

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 25011100
#109

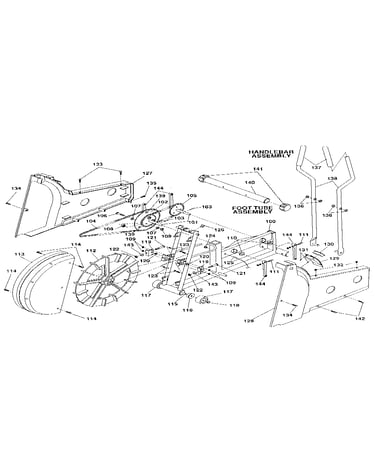

Figure 3 diagram

Lock nut

Part #25011100

The manufacturer no longer makes this part, and there's no substitute part

Washer 26003200
#25

Figure 2 diagram

Washer

Part #26003200

The manufacturer no longer makes this part, and there's no substitute part

Washer 26000700
#107

Figure 3 diagram

Washer

Part #26000700

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin 29058400
#26

Figure 2 diagram

Cotter pin

Part #29058400

The manufacturer no longer makes this part, and there's no substitute part

R Chainguard 09129041
#127

Figure 3 diagram

R chainguard

Part #09129041

The manufacturer no longer makes this part, and there's no substitute part

Frame 39306500
Frame

Part #39306500

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 21021200
#3

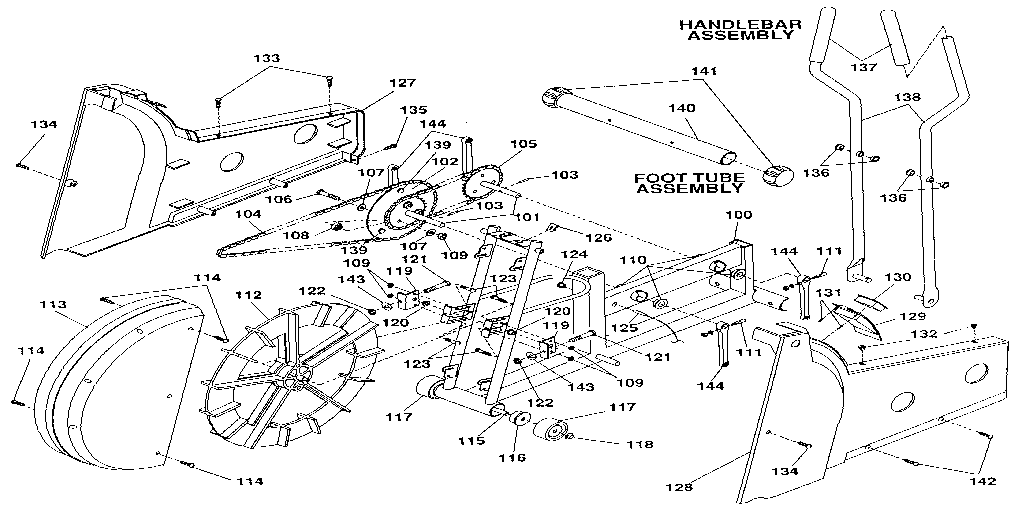

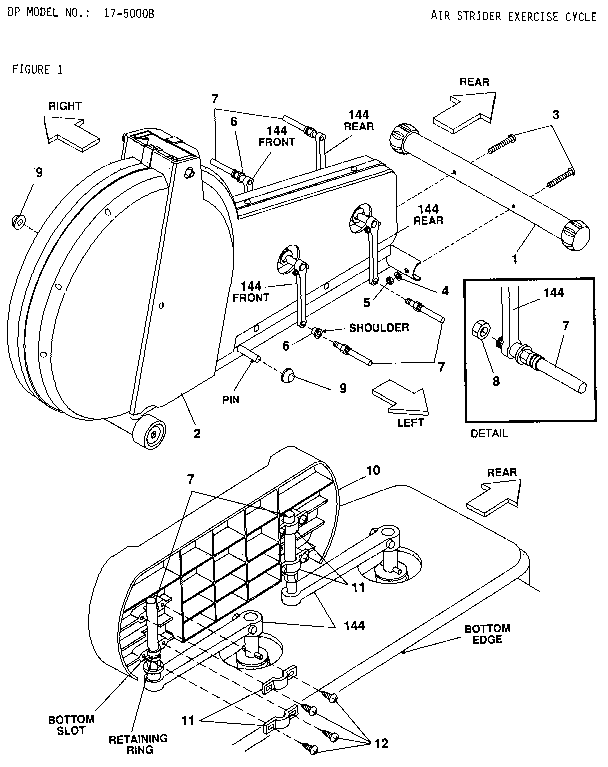

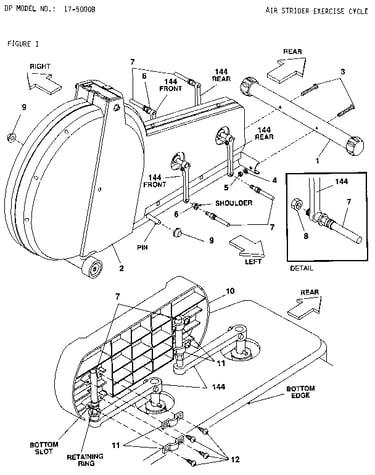

Figure 1 diagram

Machine screw

Part #21021200

The manufacturer no longer makes this part, and there's no substitute part

Foot Tube 30332916
Foot tube

Part #30332916

The manufacturer no longer makes this part, and there's no substitute part
