Makita
Drill/Driver

Model # 6041DW Official Makita 3/8" cordless drill

Here are the diagrams and repair parts for Official Makita 6041DW 3/8" cordless drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |

Spring 231311-4
#10

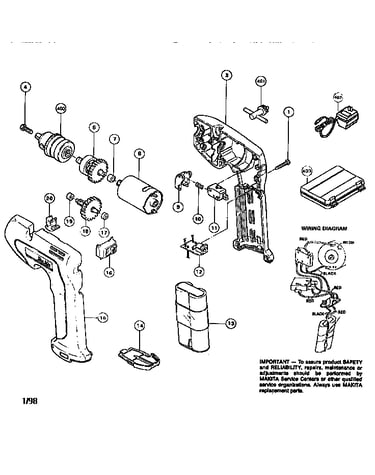

Unit parts diagram

Spring

Part #231311-4

The manufacturer no longer makes this part, and there's no substitute part

Screw 265837-4
#1

Unit parts diagram

Screw

Part #265837-4

The manufacturer no longer makes this part, and there's no substitute part

Screw 265998-0
#4

Unit parts diagram

Screw

Part #265998-0

The manufacturer no longer makes this part, and there's no substitute part

Pln Bearing 214017-9
#7

Unit parts diagram

Pln bearing

Part #214017-9

The manufacturer no longer makes this part, and there's no substitute part

Bearing 214019-5
Bearing

Part #214019-5

The manufacturer no longer makes this part, and there's no substitute part

Switch 651889-5
#16

Unit parts diagram

Switch

Part #651889-5

The manufacturer no longer makes this part, and there's no substitute part

Cover Bat 415231-2
#14

Unit parts diagram

Cover bat

Part #415231-2

The manufacturer no longer makes this part, and there's no substitute part

Battery 678102-6
#13

Unit parts diagram

Battery

Part #678102-6

The manufacturer no longer makes this part, and there's no substitute part

Case 824417-1
#403

Unit parts diagram

Case

Part #824417-1

The manufacturer no longer makes this part, and there's no substitute part

Chuck And Key 763054-5-A
#400

Unit parts diagram

Chuck and key

Part #763054-5-A

The manufacturer no longer makes this part, and there's no substitute part
