Craftsman
Drill Press

Model # 10324510 Official Craftsman drill press

Here are the diagrams and repair parts for Official Craftsman 10324510 drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

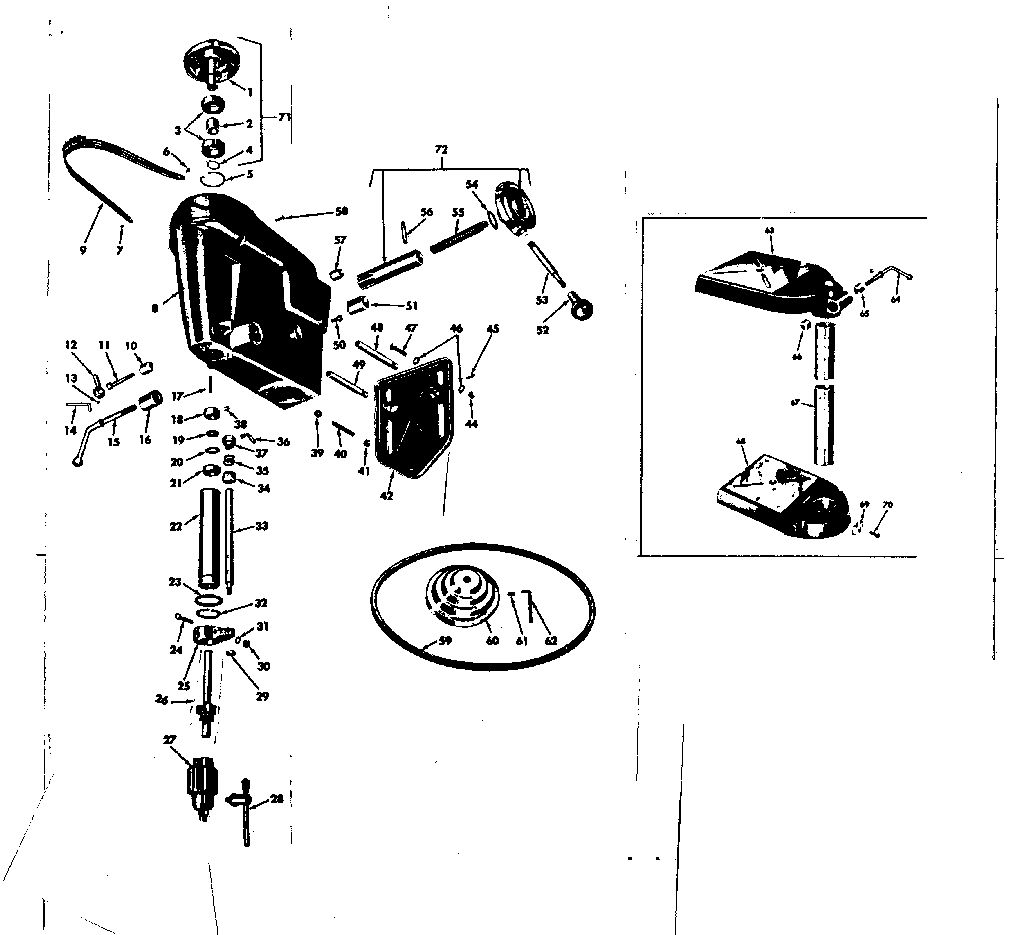

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |

Drill Press Feed Return Spring (replaces 38939) 38989
#55

Unit diagram

Drill press feed return spring (replaces 38939)

Part #38989

The manufacturer no longer makes this part, and there's no substitute part

Quill Brng 18211
#21

Unit diagram

Quill brng

Part #18211

The manufacturer no longer makes this part, and there's no substitute part

Washer X-601
#46

Unit diagram

Washer

Part #X-601

The manufacturer no longer makes this part, and there's no substitute part

Chuck Key 18129
#28

Unit diagram

Chuck key

Part #18129

The manufacturer no longer makes this part, and there's no substitute part

Screw X-205
#50

Unit diagram

Screw

Part #X-205

The manufacturer no longer makes this part, and there's no substitute part

Handle Knob 18916
#52

Unit diagram

Handle knob

Part #18916

The manufacturer no longer makes this part, and there's no substitute part

Set Screw X-185
#70

Unit diagram

Set screw

Part #X-185

The manufacturer no longer makes this part, and there's no substitute part

Pulley Sleev 18413
#2

Unit diagram

Pulley sleev

Part #18413

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut X-413
#29

Unit diagram

Hex nut

Part #X-413

The manufacturer no longer makes this part, and there's no substitute part

Dr Screw 38617
Dr screw

Part #38617

The manufacturer no longer makes this part, and there's no substitute part
