Craftsman
Angle Grinder

Model # 172417750 Official Craftsman angle grinder

Here are the diagrams and repair parts for Official Craftsman 172417750 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Angle Grinder Spindle Gear PGA115SU2-18
#18

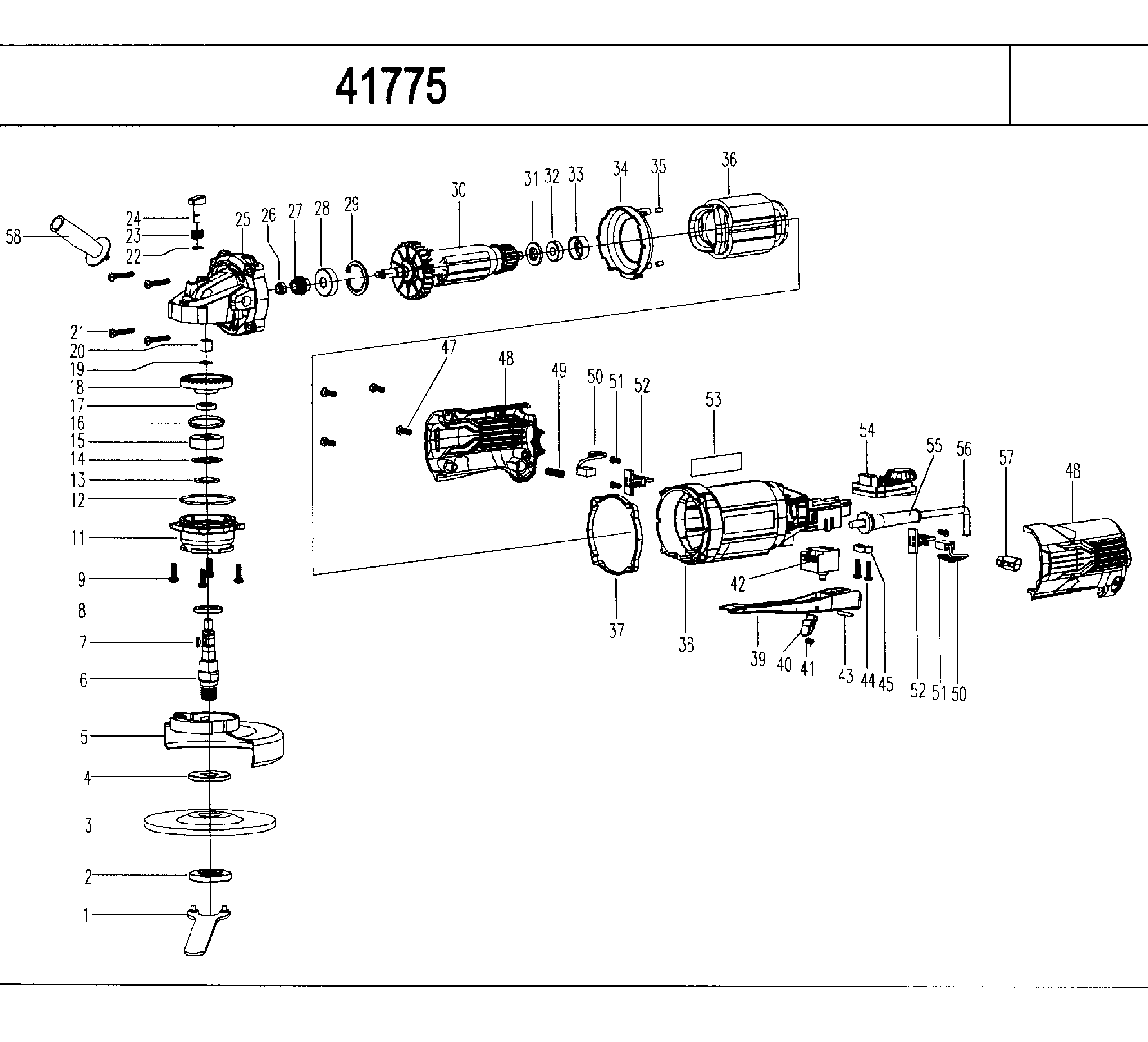

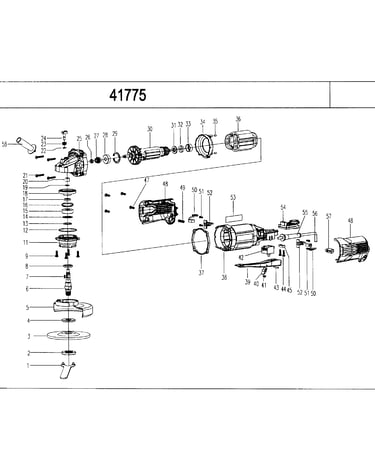

Main asy diagram

Angle grinder spindle gear

Part #PGA115SU2-18

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Gear Case Needle Bearing PGA115SU2-20
#20

Main asy diagram

Angle grinder gear case needle bearing

Part #PGA115SU2-20

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Spindle Bearing PGA115SU2-15
#15

Main asy diagram

Angle grinder spindle bearing

Part #PGA115SU2-15

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Spindle Bearing Retainer Ring PGA115SU2-16
#16

Main asy diagram

Angle grinder spindle bearing retainer ring

Part #PGA115SU2-16

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Power Switch Button PGA115SU2-39
#39

Main asy diagram

Angle grinder power switch button

Part #PGA115SU2-39

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Decal PGA115SU2-53
#53

Main asy diagram

Angle grinder decal

Part #PGA115SU2-53

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Cutting Wheel Spindle PGA115SU2-6
#6

Main asy diagram

Angle grinder cutting wheel spindle

Part #PGA115SU2-6

The manufacturer no longer makes this part, and there's no substitute part

Guard PGA115SU2-5
#5

Main asy diagram

Guard

Part #PGA115SU2-5

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Rotor Bearing, Rear PGA115SU2-32
#32

Main asy diagram

Angle grinder rotor bearing, rear

Part #PGA115SU2-32

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Rotor Bearing Sleeve PGA115SU2-33
#33

Main asy diagram

Angle grinder rotor bearing sleeve

Part #PGA115SU2-33

The manufacturer no longer makes this part, and there's no substitute part
