Model # 48624316 Official Craftsman 40" tine dethatcher

Here are the diagrams and repair parts for Official Craftsman 48624316 40" tine dethatcher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Lawn Tractor Dethatcher Attachment Spring Tine (replaces Af-43783) 43783
#3

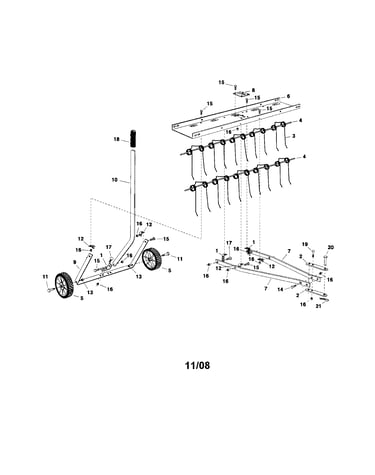

Tine dethatcher diagram

Lawn tractor dethatcher attachment spring tine (replaces af-43783)

Part #43783

BEST SELLER
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Lawn Tractor Nut 47810
#16

Tine dethatcher diagram

Lawn tractor nut

Part #47810

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Carriage Bolt (replaces 43079) 44326
#17

Tine dethatcher diagram

Lawn & garden equipment carriage bolt (replaces 43079)

Part #44326

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Dump Cart Nut HA21362
#13

Tine dethatcher diagram

Lawn tractor dump cart nut

Part #HA21362

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Dethatcher Attachment Spring Alignment Wire 47633
#4

Tine dethatcher diagram

Lawn tractor dethatcher attachment spring alignment wire

Part #47633

Replaced by #47654

?
Manufacturer substitution
This part replaces 47633. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Lawn Tractor Attachment Hitch Pin 47623
#20

Tine dethatcher diagram

Lawn tractor attachment hitch pin

Part #47623

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Bolt, 5/16-18 X 1-in 43063
#15

Tine dethatcher diagram

Lawn tractor attachment bolt, 5/16-18 x 1-in

Part #43063

This item is not returnable
$2.16
In Stock
Lawn Tractor Dethatcher Attachment Hitch Arm Mounting Bracket 23442
#1

Tine dethatcher diagram

Lawn tractor dethatcher attachment hitch arm mounting bracket

Part #23442

This item is not returnable
$9.49 |
10% OFF Phone Price : $10.49
In Stock
Lawn Tractor Spike Aerator Attachment Lift Plate 24594
#8

Tine dethatcher diagram

Lawn tractor spike aerator attachment lift plate

Part #24594

Replaced by #24594BL1

?
Manufacturer substitution
This part replaces 24594. Substitute parts can look different from the original.
This item is not returnable
$6.84
In Stock
Lawn Tractor Dethatcher Attachment Hitch Arm Mounting Bracket 23914
#7

Tine dethatcher diagram

Lawn tractor dethatcher attachment hitch arm mounting bracket

Part #23914

Replaced by #23914BL1

?
Manufacturer substitution
This part replaces 23914. Substitute parts can look different from the original.
This item is not returnable
$11.38
In Stock
