Model # 6406 Official Makita drill

Here are the diagrams and repair parts for Official Makita 6406 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Bearing 210010-1
#9

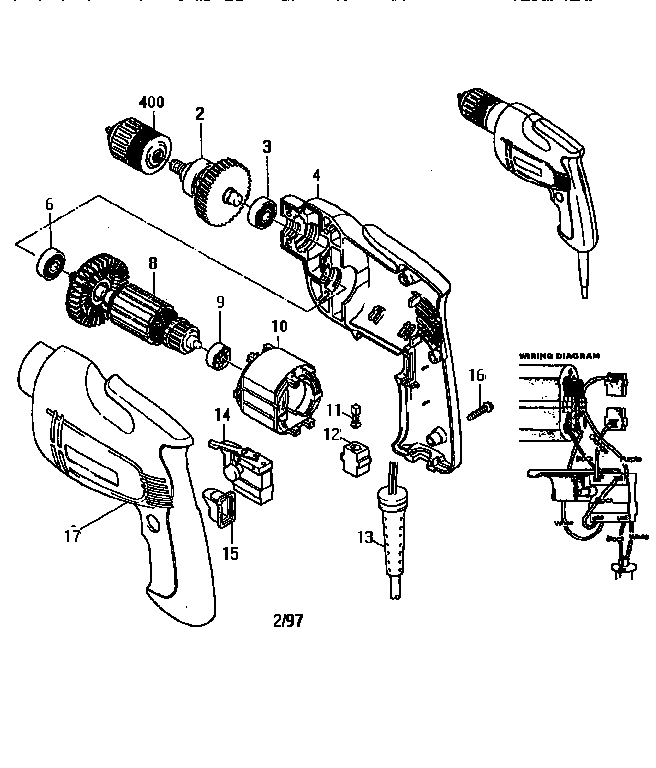

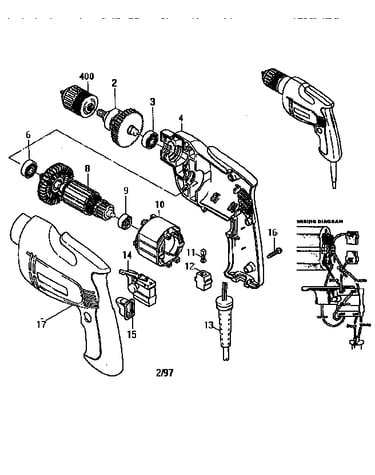

Makita 3/8" (10mm) drill diagram

Bearing

Part #210010-1

The manufacturer no longer makes this part, and there's no substitute part

Holder 643552-4
#12

Makita 3/8" (10mm) drill diagram

Holder

Part #643552-4

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 6406-OM

#NI

All parts diagram

Owner's manual

Part #6406-OM

The manufacturer no longer makes this part, and there's no substitute part

Screw 265995-6
#16

Makita 3/8" (10mm) drill diagram

Screw

Part #265995-6

The manufacturer no longer makes this part, and there's no substitute part

Bearing 211030-8
Bearing

Part #211030-8

The manufacturer no longer makes this part, and there's no substitute part

Dust Cover 421462-3
#15

Makita 3/8" (10mm) drill diagram

Dust cover

Part #421462-3

The manufacturer no longer makes this part, and there's no substitute part

Housing 415511-6
Housing

Part #415511-6

The manufacturer no longer makes this part, and there's no substitute part

Chuck 763109-6
#400

Makita 3/8" (10mm) drill diagram

Chuck

Part #763109-6

The manufacturer no longer makes this part, and there's no substitute part

Cord 664425-8
#13

Makita 3/8" (10mm) drill diagram

Cord

Part #664425-8

The manufacturer no longer makes this part, and there's no substitute part

Gear 153115-3
#2

Makita 3/8" (10mm) drill diagram

Gear

Part #153115-3

The manufacturer no longer makes this part, and there's no substitute part
