Model # 867821960 Official Kenmore heat pump

Here are the diagrams and repair parts for Official Kenmore 867821960 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Valve Check 709749
#5

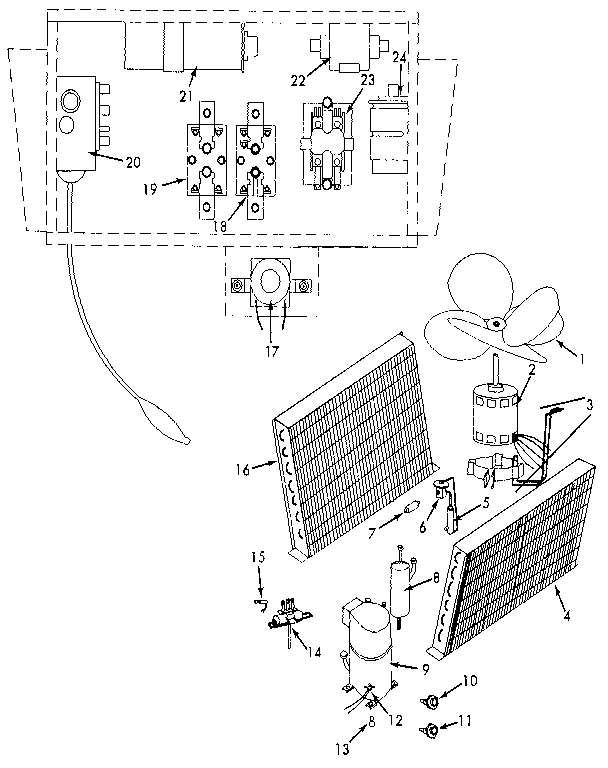

Functional replacement parts diagram

Valve check

Part #709749

Replaced by #1052910

?
Manufacturer substitution
This part replaces 709749. Substitute parts can look different from the original.
$84.67
In Stock
Control 710440
#20

Functional replacement parts diagram

Control

Part #710440

Replaced by #E15-2601

?
Manufacturer substitution
This part replaces 710440. Substitute parts can look different from the original.
$266.29
In Stock
Start Device 704415
#22

Functional replacement parts diagram

Start device

Part #704415

The manufacturer no longer makes this part, and there's no substitute part

Relay 707950

#NI

All parts diagram

Relay

Part #707950

The manufacturer no longer makes this part, and there's no substitute part

Valve Expand 1052035
#6

Functional replacement parts diagram

Valve expand

Part #1052035

Replaced by #1053141

?
Manufacturer substitution
This part replaces 1052035. Substitute parts can look different from the original.
$160.04
In Stock
Contactor 704409
#23

Functional replacement parts diagram

Contactor

Part #704409

Replaced by #90-170

?
Manufacturer substitution
This part replaces 704409. Substitute parts can look different from the original.
$35.09 |
12% OFF Phone Price : $40.09
In Stock
Relay 710397
#19

Functional replacement parts diagram

Relay

Part #710397

Replaced by #90-384

?
Manufacturer substitution
This part replaces 710397. Substitute parts can look different from the original.
$25.39
In Stock
Heater 708849
#12

Functional replacement parts diagram

Heater

Part #708849

Replaced by #1053477

?
Manufacturer substitution
This part replaces 708849. Substitute parts can look different from the original.
$152.12
In Stock
Capacitor 1056313
#24

Functional replacement parts diagram

Capacitor

Part #1056313

Replaced by #12005

?
Manufacturer substitution
This part replaces 1056313. Substitute parts can look different from the original.
$16.12 |
11% OFF Phone Price : $18.12
In Stock
Motor 96799
#2

Functional replacement parts diagram

Motor

Part #96799

Replaced by #WG840465

?
Manufacturer substitution
This part replaces 96799. Substitute parts can look different from the original.
$150.11
In Stock
