Model # DCR-DVD203 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-DVD203 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

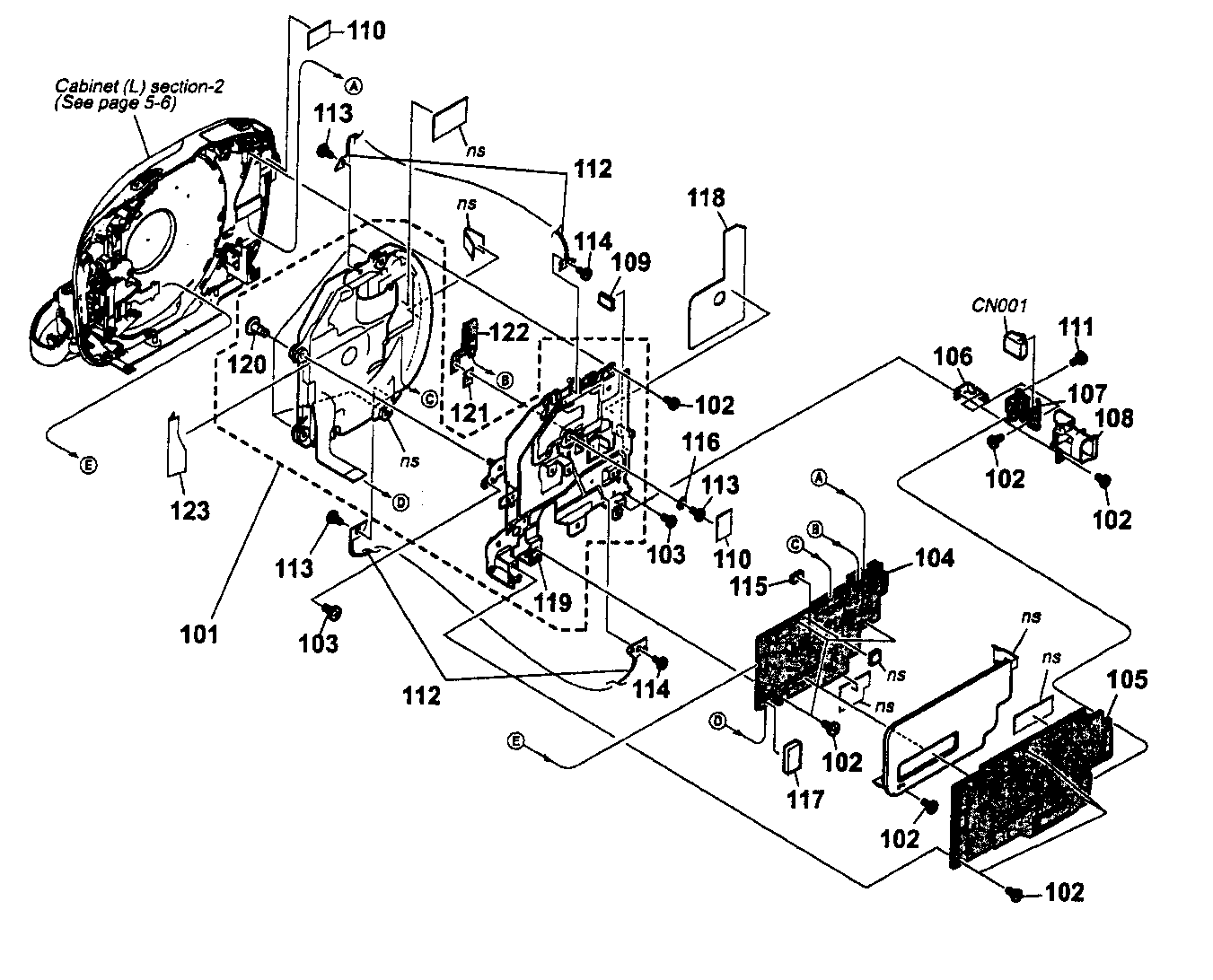

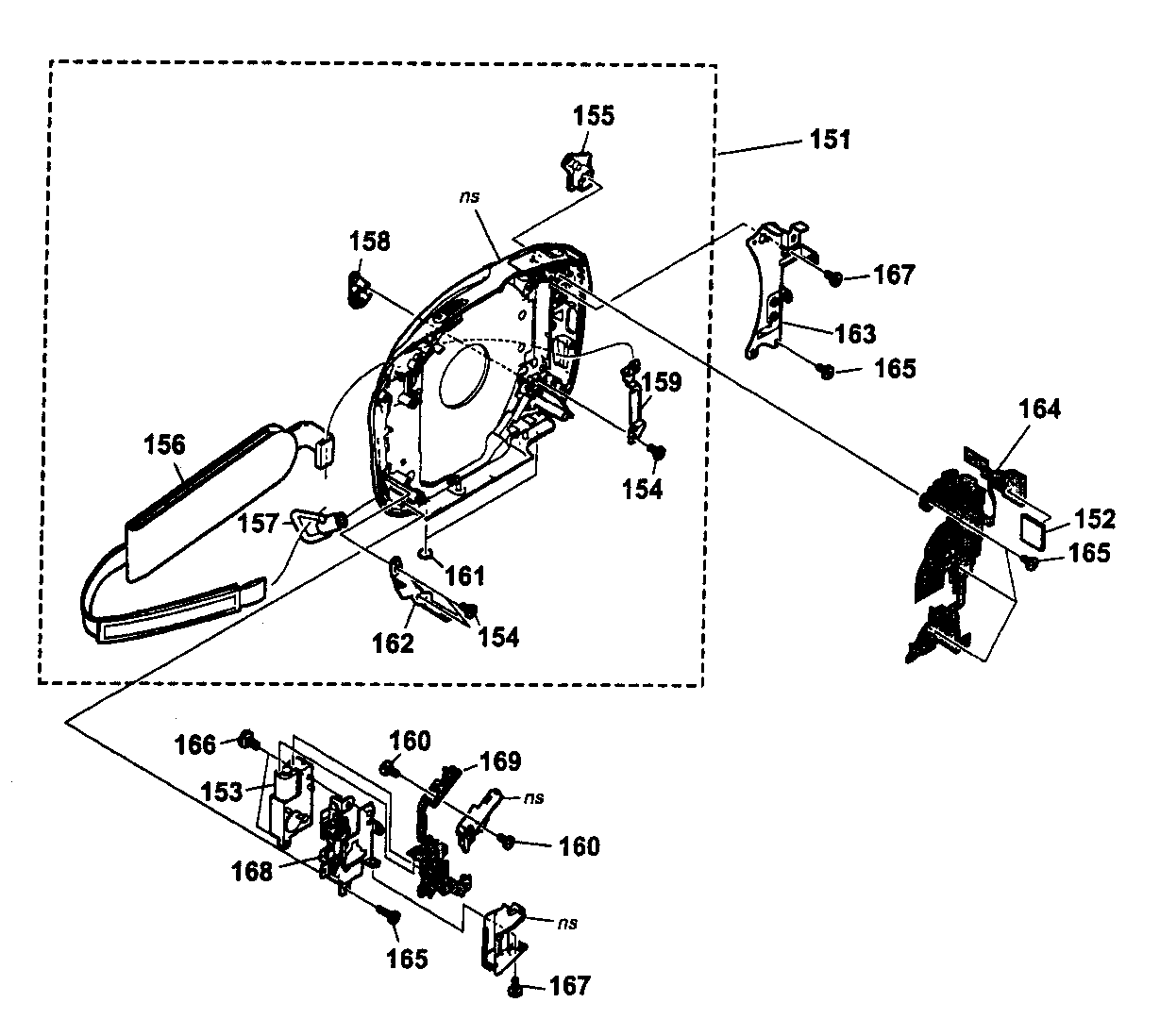

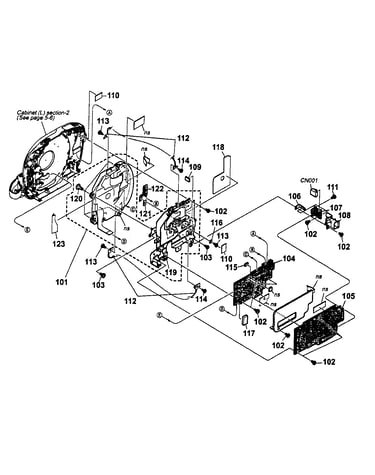

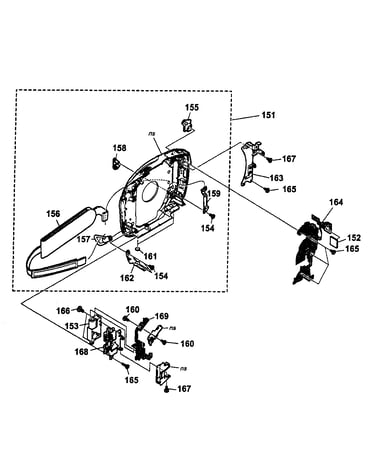

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Cabinet Up X20504531
#310

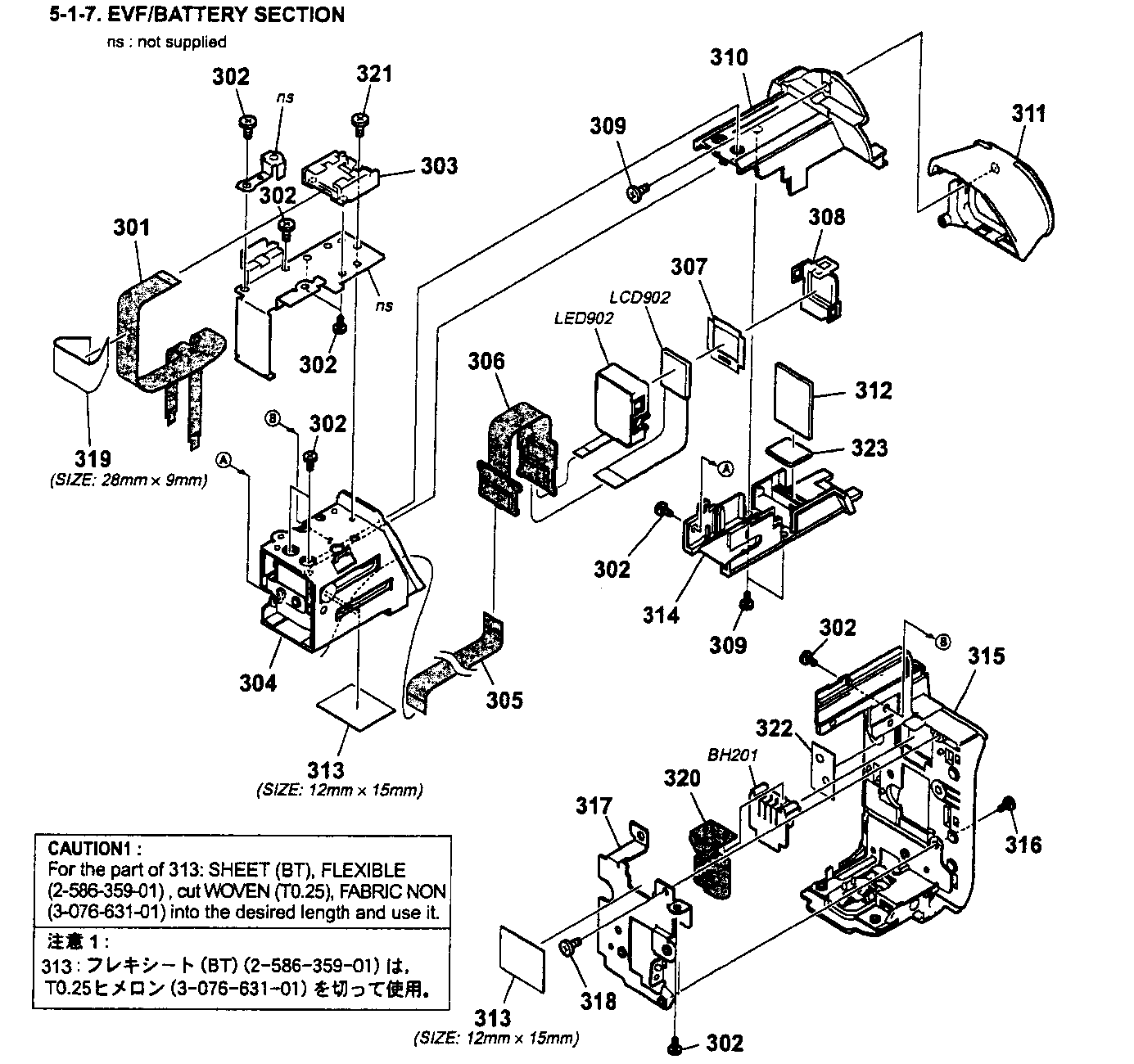

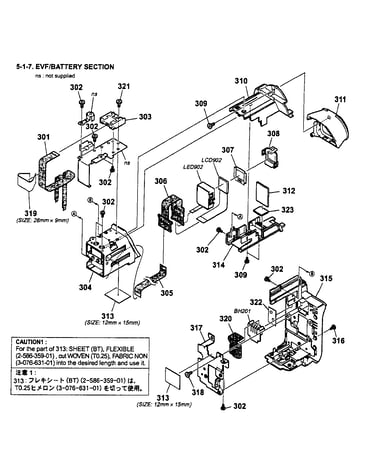

Evf/battery diagram

Cabinet up

Part #X20504531

The manufacturer no longer makes this part, and there's no substitute part

Loud Speaker 182526021
#NI

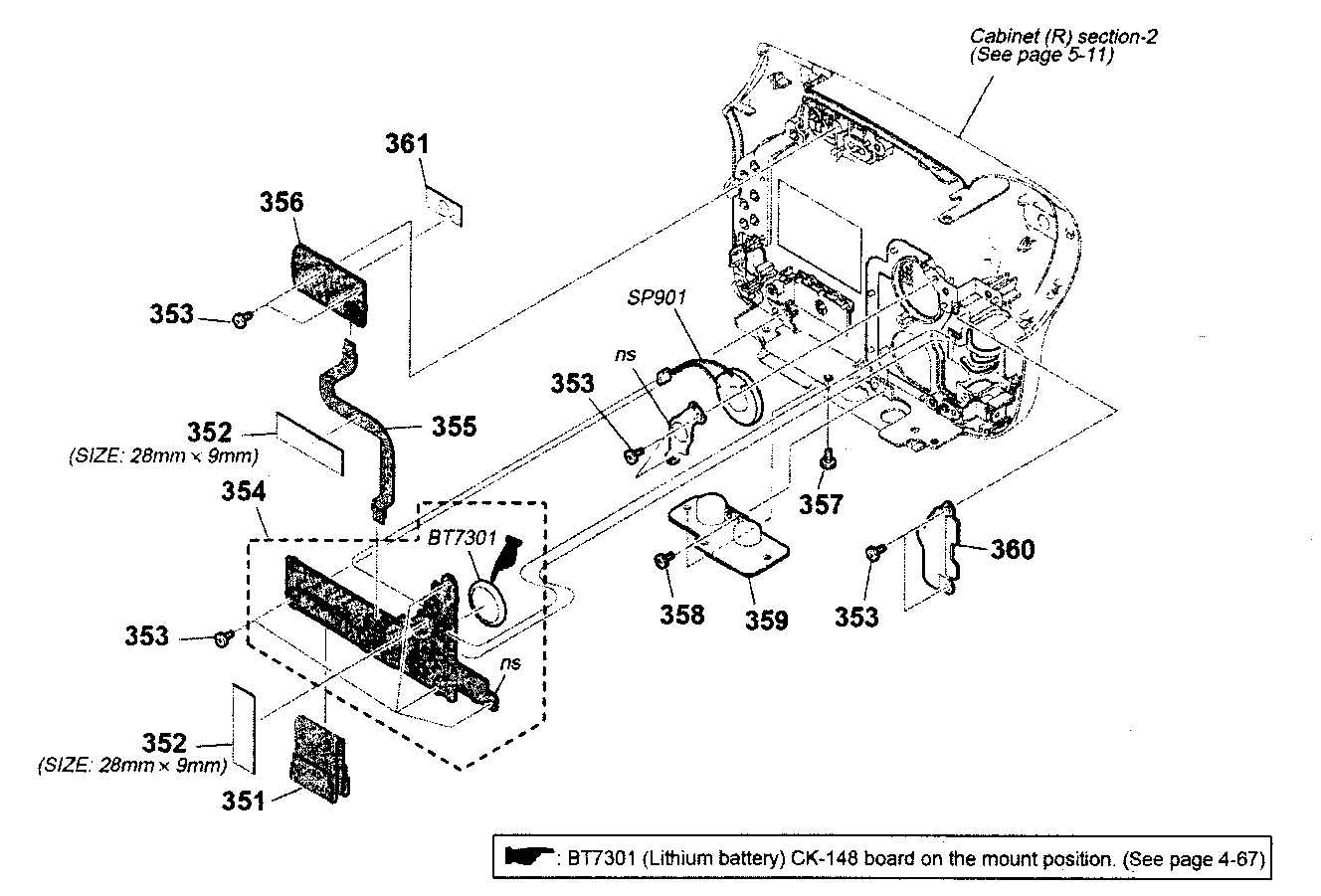

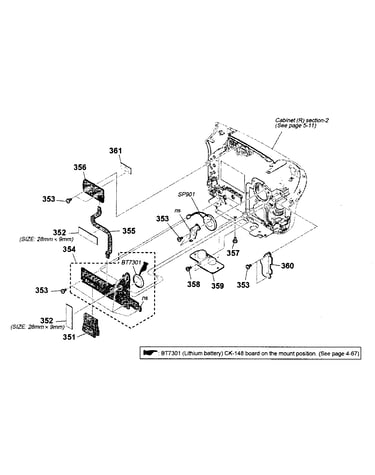

Cabinet right diagram

Loud speaker

Part #182526021

The manufacturer no longer makes this part, and there's no substitute part

Screw 251548331
#1

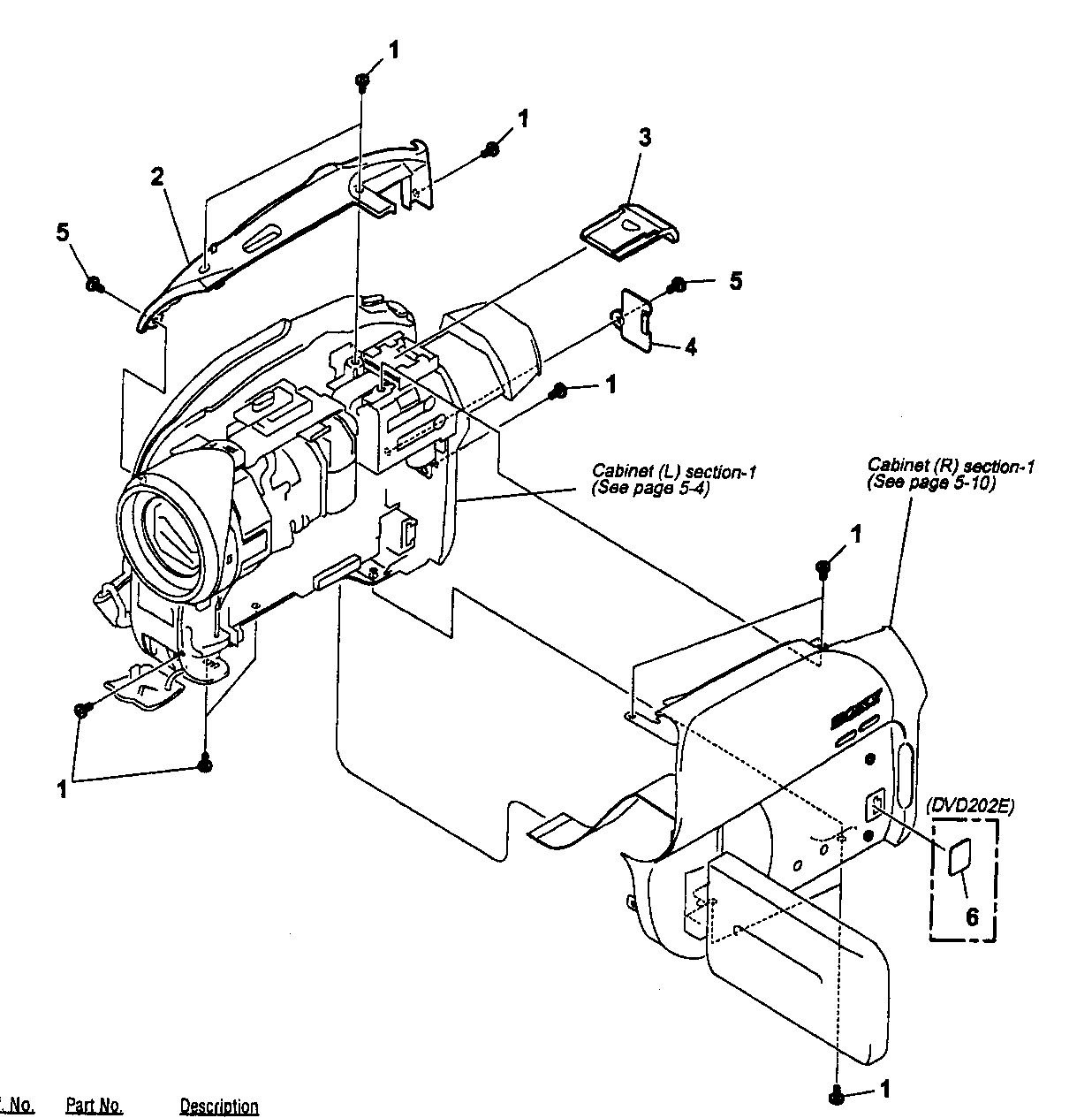

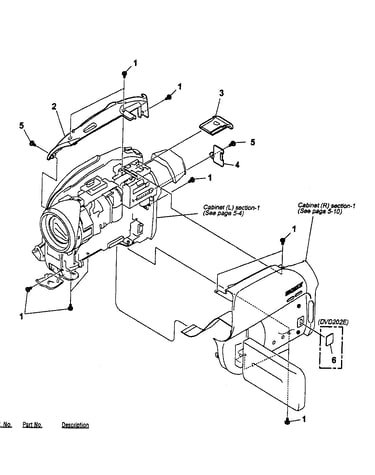

Overall section diagram

Screw

Part #251548331

The manufacturer no longer makes this part, and there's no substitute part

Hinge Assembly X20504361
#417

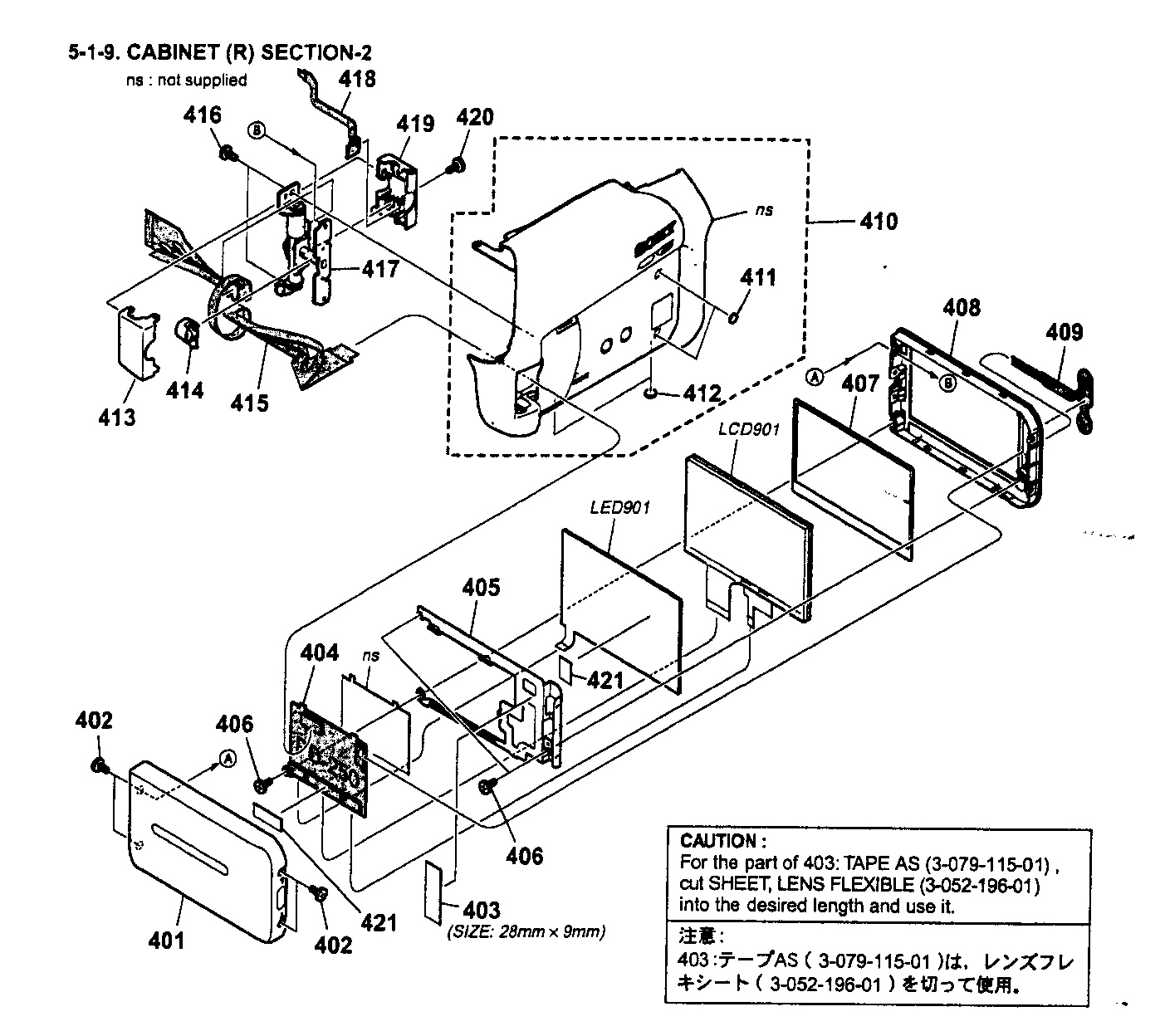

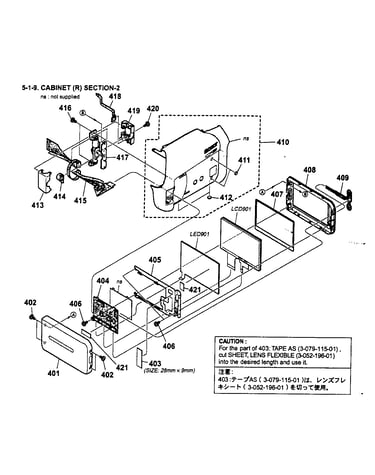

Lcd section diagram

Hinge assembly

Part #X20504361

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Block A1116777A
#NI

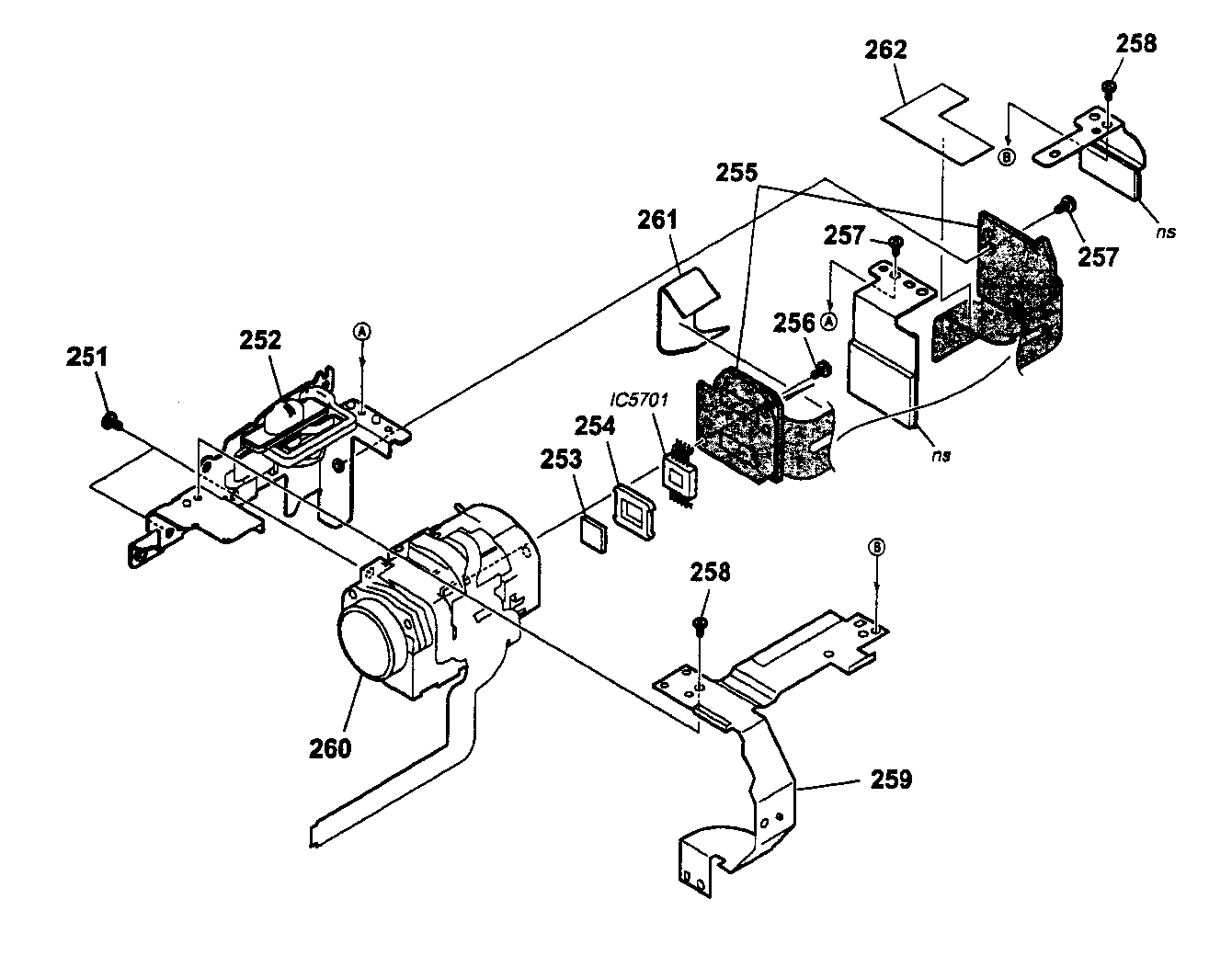

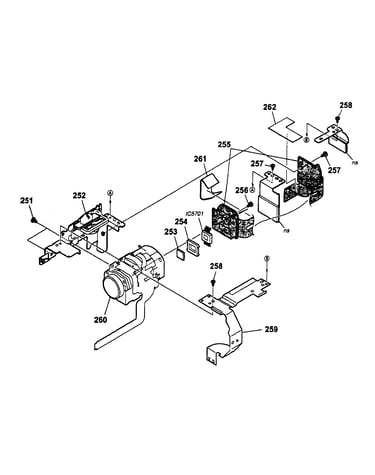

Lens section diagram

Camcorder block

Part #A1116777A

The manufacturer no longer makes this part, and there's no substitute part

Flexible Pcb 186378911
#351

Cabinet right diagram

Flexible pcb

Part #186378911

The manufacturer no longer makes this part, and there's no substitute part

Vf-167 Pcb A1103979A
#306

Evf/battery diagram

Vf-167 pcb

Part #A1103979A

The manufacturer no longer makes this part, and there's no substitute part

Microphone Sheet 258635301
#207

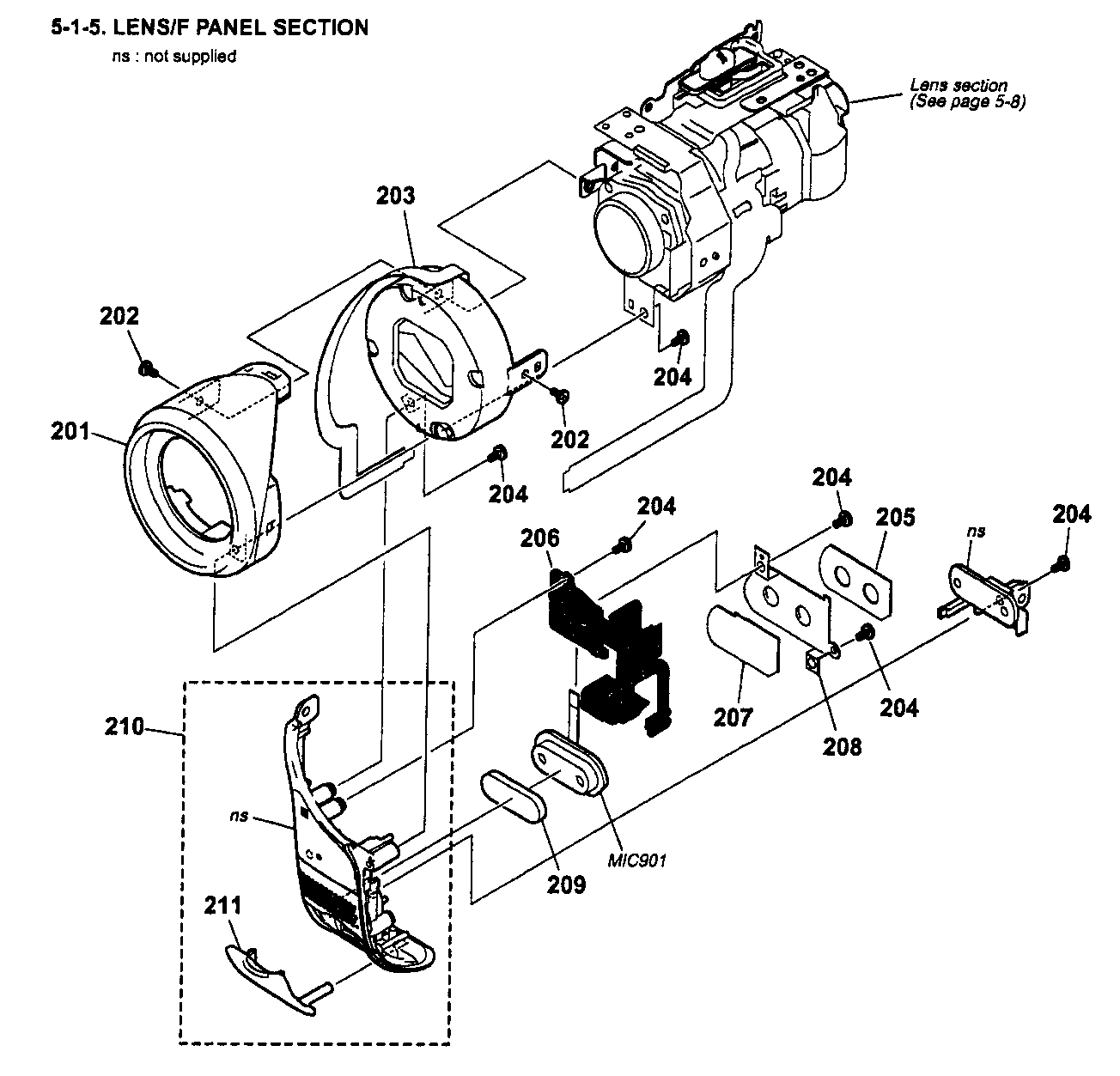

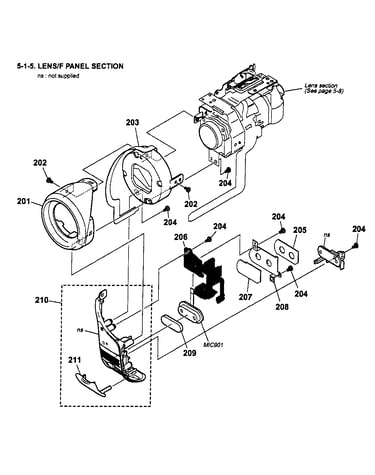

Lens/front section diagram

Microphone sheet

Part #258635301

The manufacturer no longer makes this part, and there's no substitute part

Tp Block A1083763A
#NI

Lcd section diagram

Tp block

Part #A1083763A

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack NP-FP70
#NI

Overall section diagram

Battery pack

Part #NP-FP70

The manufacturer no longer makes this part, and there's no substitute part
