York H4CE090A46A central air conditioner

York H4CE090A46A central air conditioner Parts

Here are the diagrams and repair parts for York H4CE090A46A central air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

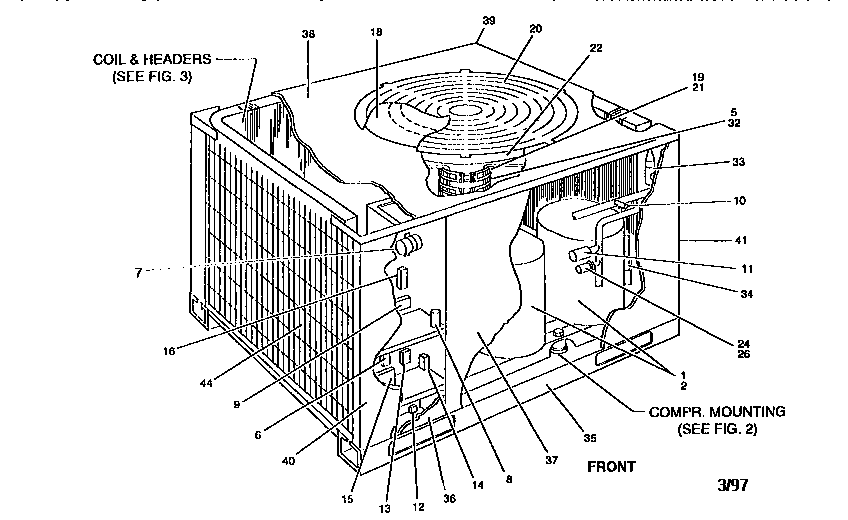

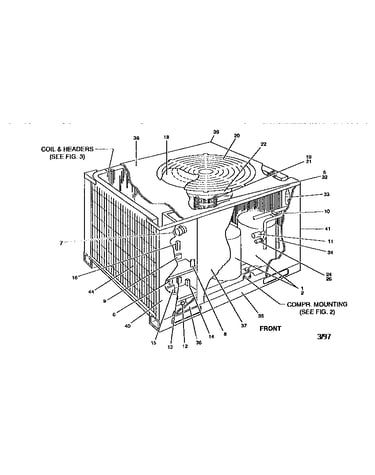

Browse Parts for H4CE090A46A Central Air Conditioner

  • Cap Run for York H4CE090A46A - Part 02425900000

    #7

    All parts diagram

    Cap Run

    Part #024-20446-700

    Replaced by #02425900000

    Info Icon
    Manufacturer substitution
    This part replaces 024-20446-700. Substitute parts can look different from the original.
    In Stock
    $49.75
    Minus Item
    Qty
    Plus Item
  • Transformer for York H4CE090A46A - Part 025-25974-700

    #16

    All parts diagram

    Transformer

    Part #025-25974-700

    The manufacturer no longer makes this part, and there's no substitute part

  • Post Rear for York H4CE090A46A - Part 063-87618-000

    #39

    All parts diagram

    Post Rear

    Part #063-87618-000

    The manufacturer no longer makes this part, and there's no substitute part

  • Circuit Breaker for York H4CE090A46A - Part 024-24055-000

    #8

    All parts diagram

    Circuit Breaker

    Part #024-24055-000

    The manufacturer no longer makes this part, and there's no substitute part

  • Plug for York H4CE090A46A - Part 025-26387-007

    #23

    All parts diagram

    Plug

    Part #025-26387-007

    The manufacturer no longer makes this part, and there's no substitute part

  • Distributor for York H4CE090A46A - Part 026-23209-000

    #27

    All parts diagram

    Distributor

    Part #026-23209-000

    The manufacturer no longer makes this part, and there's no substitute part

  • Access Panel for York H4CE090A46A - Part 073-02004-000

    #36

    All parts diagram

    Access Panel

    Part #073-02004-000

    The manufacturer no longer makes this part, and there's no substitute part

  • Cap for York H4CE090A46A - Part 023-11018-000

    #24

    All parts diagram

    Cap

    Part #023-11018-000

    The manufacturer no longer makes this part, and there's no substitute part

  • Relay for York H4CE090A46A - Part 024-24116-000

    #13

    All parts diagram

    Relay

    Part #024-24116-000

    The manufacturer no longer makes this part, and there's no substitute part

  • Post, Corner (front L/h) for York H4CE090A46A - Part 073-07502-000

    #40

    All parts diagram

    Post, Corner (front L/h)

    Part #073-07502-000

    The manufacturer no longer makes this part, and there's no substitute part
