Amana
Countertop Microwave

Model # 1150.002 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 1150002 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Screw Bracket Mtg. M1D590
#47B

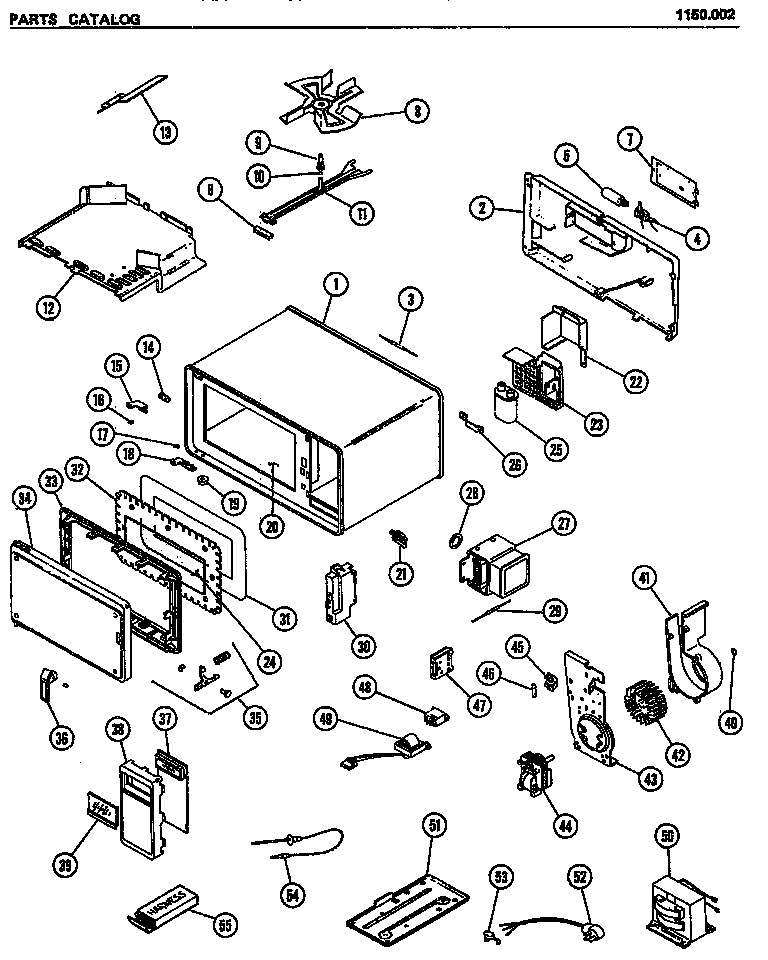

Microwave parts diagram

Screw bracket mtg.

Part #M1D590

The manufacturer no longer makes this part, and there's no substitute part

Microwave Blower Housing M65D309
#41A

Microwave parts diagram

Microwave blower housing

Part #M65D309

The manufacturer no longer makes this part, and there's no substitute part

Hinge Bracket Bottom M8D309
#18A

Microwave parts diagram

Hinge bracket bottom

Part #M8D309

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer - Capacitor Grounding M1D56
#52C

Microwave parts diagram

Flat washer - capacitor grounding

Part #M1D56

The manufacturer no longer makes this part, and there's no substitute part

T-20 Torx Driver M95D23
#55I

Microwave parts diagram

T-20 torx driver

Part #M95D23

The manufacturer no longer makes this part, and there's no substitute part

Clamp, Cord Holder M2D674
#52E

Microwave parts diagram

Clamp, cord holder

Part #M2D674

The manufacturer no longer makes this part, and there's no substitute part

Riivet, Support Bar Mounting M2D579
#11B

Microwave parts diagram

Riivet, support bar mounting

Part #M2D579

The manufacturer no longer makes this part, and there's no substitute part

Door Filler (includes Ref. No. 26) M55D24
#33

Microwave parts diagram

Door filler (includes ref. no. 26)

Part #M55D24

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Manual M94D481
#55F

Microwave parts diagram

Use and care manual

Part #M94D481

The manufacturer no longer makes this part, and there's no substitute part

Magenetron M57D37
#27A

Microwave parts diagram

Magenetron

Part #M57D37

The manufacturer no longer makes this part, and there's no substitute part
