White-Westinghouse
Countertop Microwave

Model # KM155KXM2 Official White-Westinghouse microwave

Here are the diagrams and repair parts for Official White-Westinghouse KM155KXM2 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Timer-rotary Q198450
#10

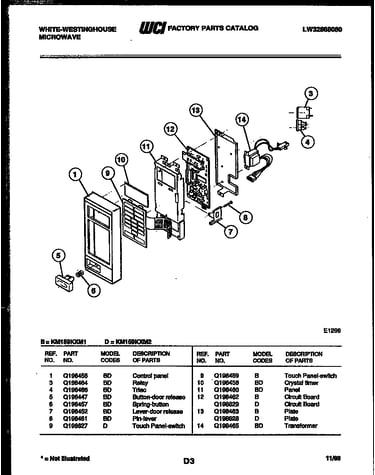

Control panel diagram

Timer-rotary

Part #Q198450

The manufacturer no longer makes this part, and there's no substitute part

Bracket-latch Upper Q198431
#4

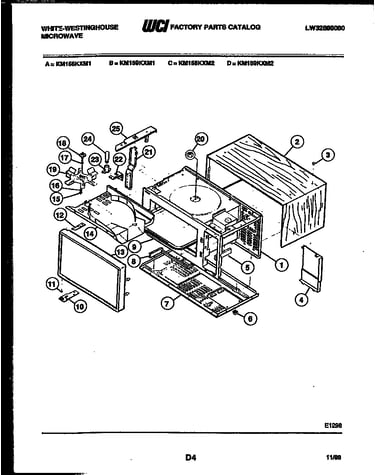

Body parts diagram

Bracket-latch upper

Part #Q198431

The manufacturer no longer makes this part, and there's no substitute part

Capacitor H.v. Q198412
#19

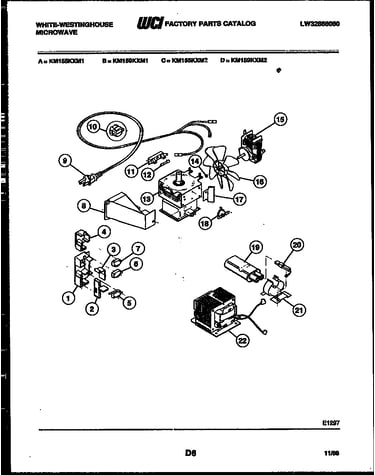

Power control diagram

Capacitor h.v.

Part #Q198412

The manufacturer no longer makes this part, and there's no substitute part

Knob Defrost Q198444
#3

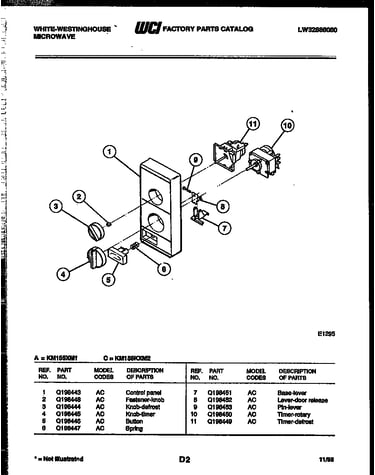

Control panel diagram

Knob defrost

Part #Q198444

The manufacturer no longer makes this part, and there's no substitute part

Nut Q198420
#20

Body parts diagram

Nut

Part #Q198420

The manufacturer no longer makes this part, and there's no substitute part

Spacer Foot Q198410
#6

Body parts diagram

Spacer foot

Part #Q198410

The manufacturer no longer makes this part, and there's no substitute part

Duct-air Q198425
#8

Power control diagram

Duct-air

Part #Q198425

The manufacturer no longer makes this part, and there's no substitute part

Plate Q198628
#13

Control panel diagram

Plate

Part #Q198628

The manufacturer no longer makes this part, and there's no substitute part

Hinge-door Upper Q198423
#12

Body parts diagram

Hinge-door upper

Part #Q198423

The manufacturer no longer makes this part, and there's no substitute part

Button Spring Q198457
#6

Control panel diagram

Button spring

Part #Q198457

The manufacturer no longer makes this part, and there's no substitute part
