Model # BKFH17F1SW0 Official Frigidaire upright freezer

Here are the diagrams and repair parts for Official Frigidaire BKFH17F1SW0 upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Dryer Filter 297396820
#4

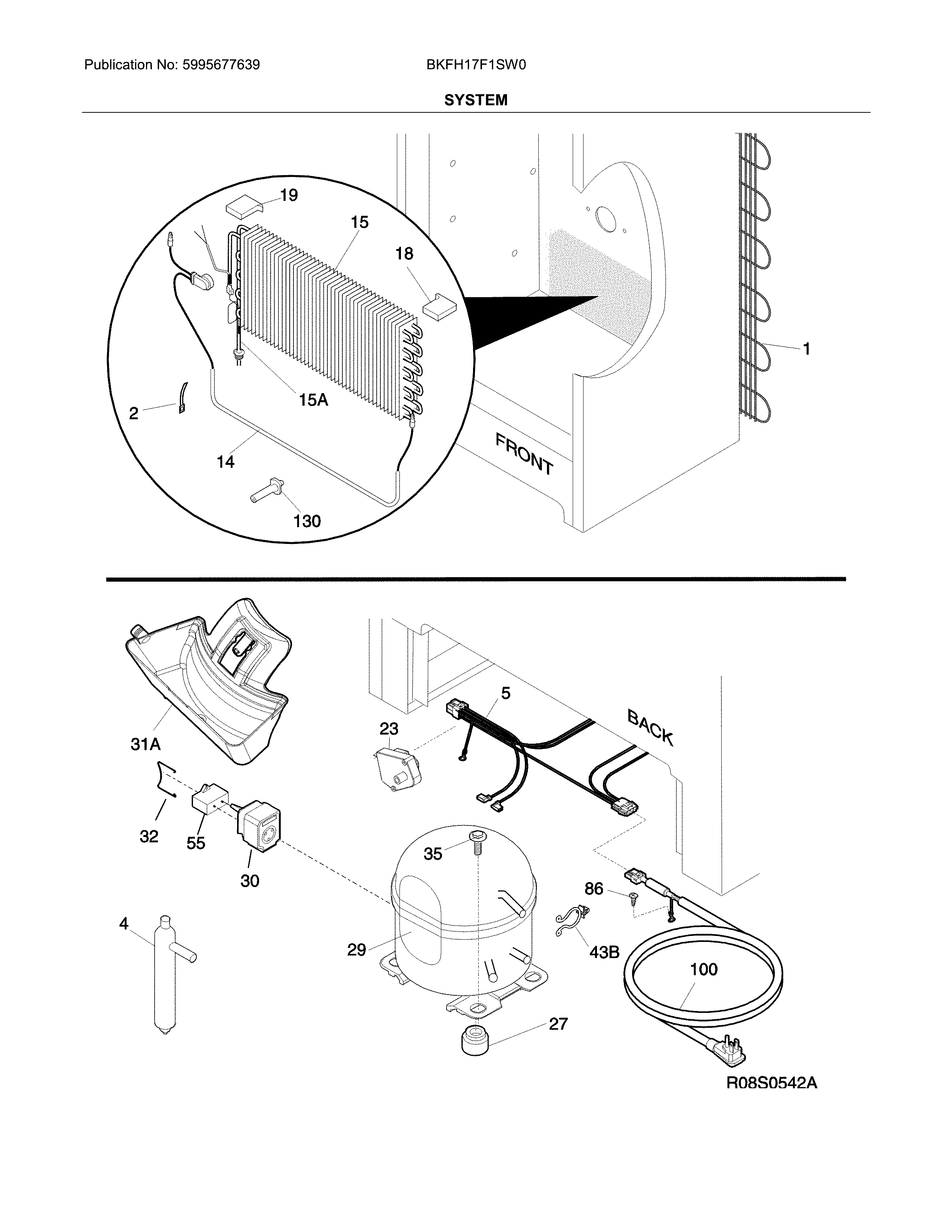

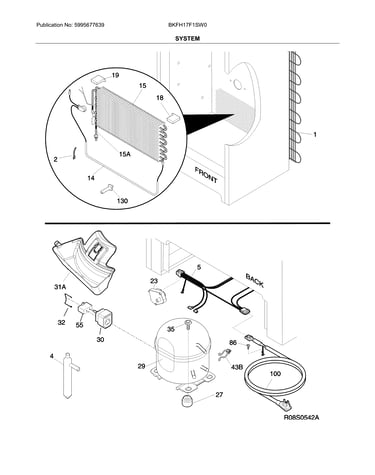

System diagram

Dryer filter

Part #297396820

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 297396820. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
22% OFF MSRP : $16.34
In Stock
Freezer Door Key (replaces 216702900, 7297147700) 297147700
#5

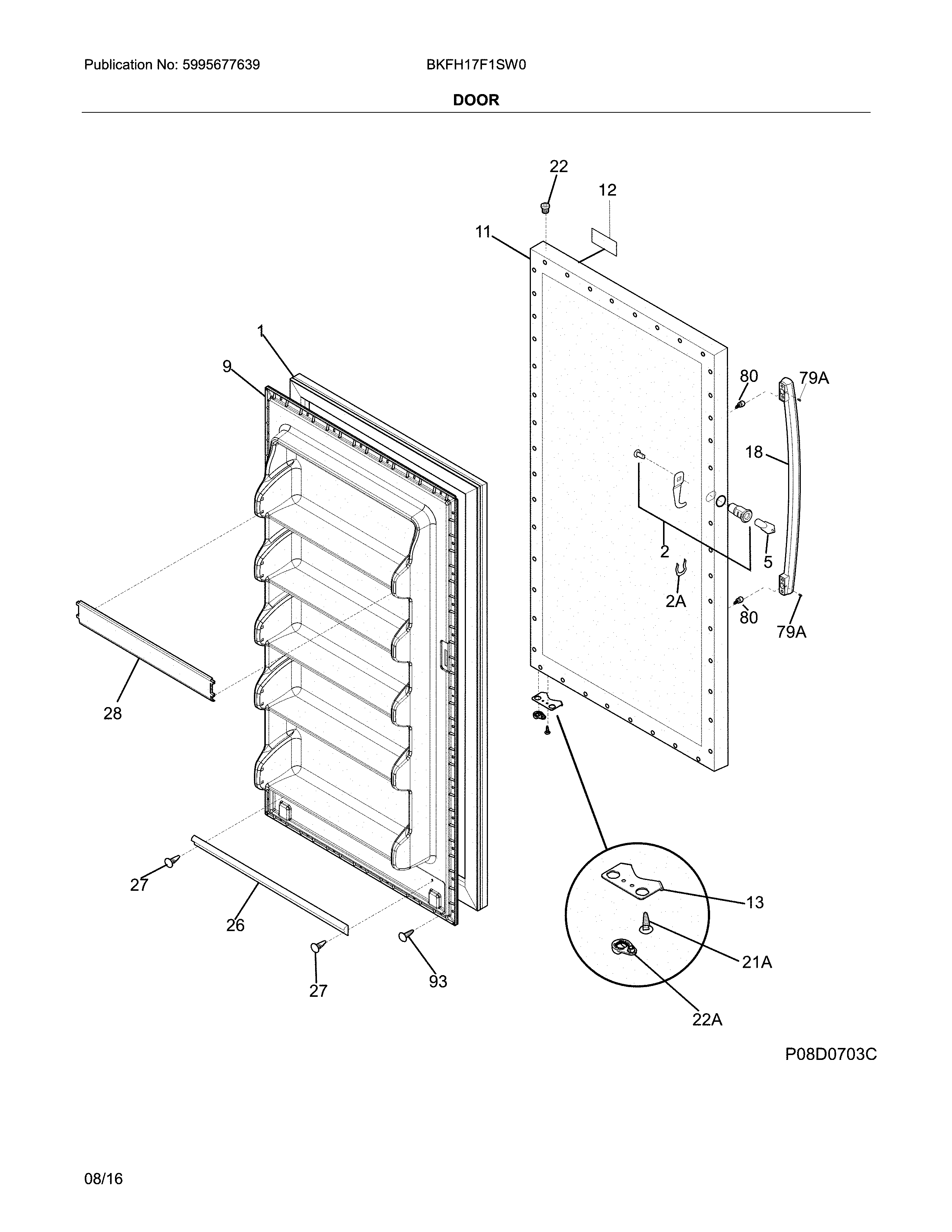

Door diagram

Freezer door key (replaces 216702900, 7297147700)

Part #297147700

BEST SELLER
$9.40 |
10% OFF Phone Price : $10.40
In Stock
Freezer Evaporator 297414900
#15

System diagram

Freezer evaporator

Part #297414900

Replaced by #297414901

?
Manufacturer substitution
This part replaces 297414900. Substitute parts can look different from the original.
BEST SELLER
$100.88 |
9% OFF Phone Price : $110.88
In Stock
Freezer Defrost Timer 297318010
#23

System diagram

Freezer defrost timer

Part #297318010

Replaced by #5304518034

?
Manufacturer substitution
This part replaces 297318010. Substitute parts can look different from the original.
BEST SELLER
$44.30 |
10% OFF Phone Price : $49.30
In Stock
Refrigerator Run Capacitor (replaces 216985001, 297286804) 297286803
#55

System diagram

Refrigerator run capacitor (replaces 216985001, 297286804)

Part #297286803

BEST SELLER
$37.29 |
12% OFF Phone Price : $42.29
In Stock
Freezer Heat Exchanger (replaces 5304504767, 5304506363, 7297217900) 297217900
#15A

System diagram

Freezer heat exchanger (replaces 5304504767, 5304506363, 7297217900)

Part #297217900

BEST SELLER
$60.21 |
8% OFF Phone Price : $65.21
In Stock
Control 5304501379
#21

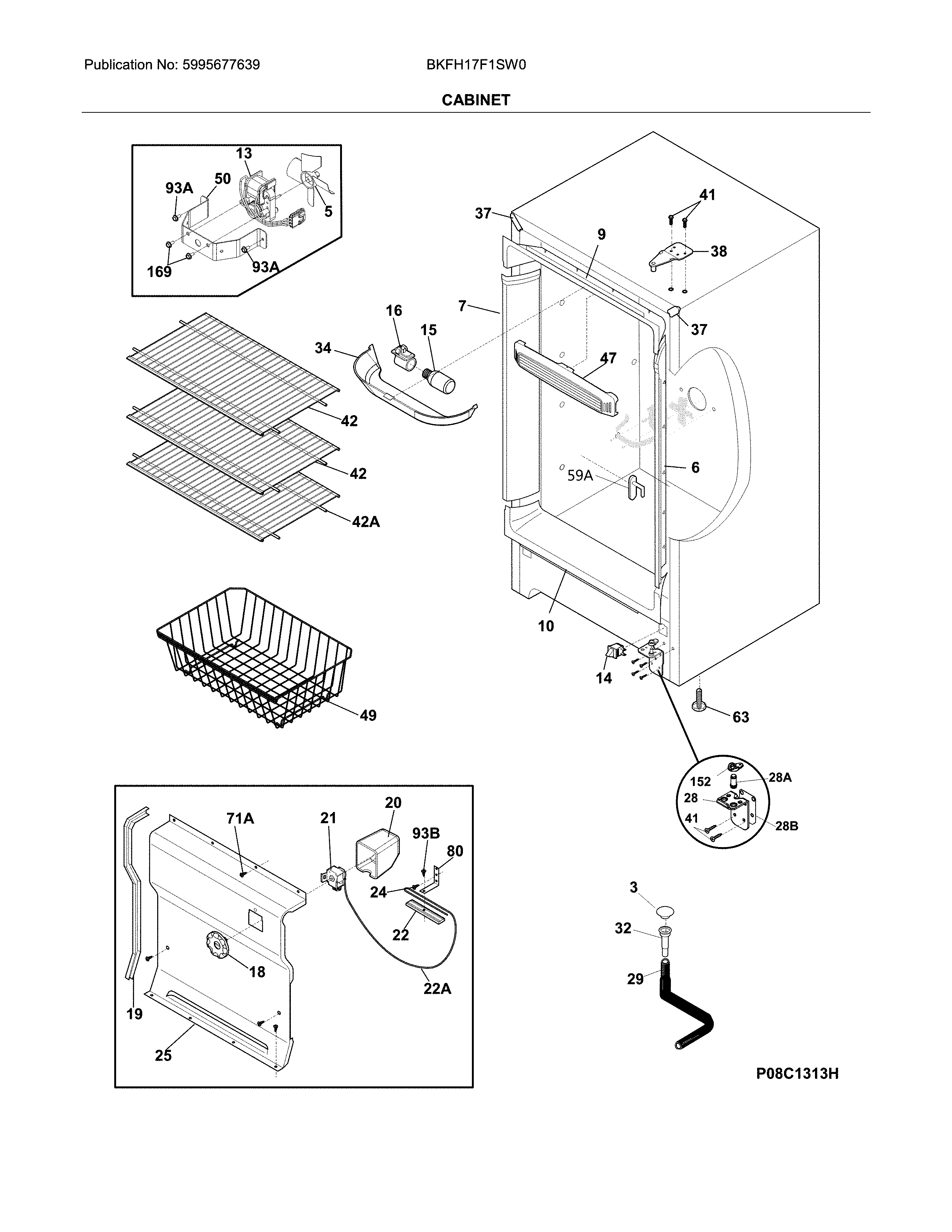

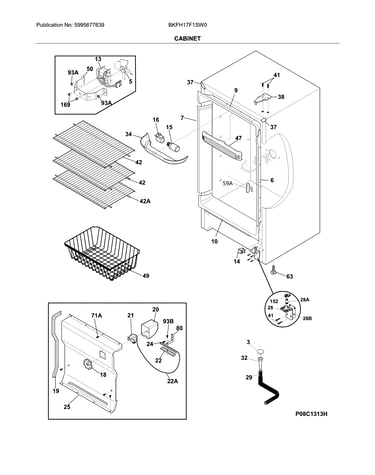

Cabinet diagram

Control

Part #5304501379

Replaced by #5304513033

?
Manufacturer substitution
This part replaces 5304501379. Substitute parts can look different from the original.
BEST SELLER
$52.98 |
18% OFF MSRP : $65.00
In Stock
Freezer Door Gasket, 32-7/8 X 61-1/4-in (replaces 216522376, 5304506127) 5304505529
#1

Door diagram

Freezer door gasket, 32-7/8 x 61-1/4-in (replaces 216522376, 5304506127)

Part #5304505529

BEST SELLER
$176.84 |
5% OFF Phone Price : $186.84
In Stock
Freezer Start Relay 297259502
#30

System diagram

Freezer start relay

Part #297259502

Replaced by #297259515

?
Manufacturer substitution
This part replaces 297259502. Substitute parts can look different from the original.
BEST SELLER
$55.86 |
8% OFF Phone Price : $60.86
In Stock
Freezer Door Switch (replaces 216998000, 7216822900) 216822900
#14

Cabinet diagram

Freezer door switch (replaces 216998000, 7216822900)

Part #216822900

BEST SELLER
$55.91 |
8% OFF Phone Price : $60.91
In Stock
