GE AZC506EBV1 room air conditioner Parts

Here are the diagrams and repair parts for GE AZC506EBV1 room air conditioner, as well as links to manuals and error code tables, if available.

GE AZC506EBV1 room air conditioner

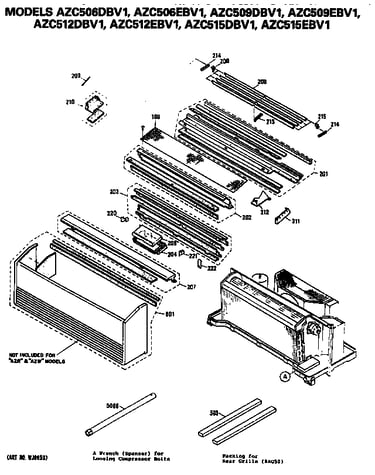

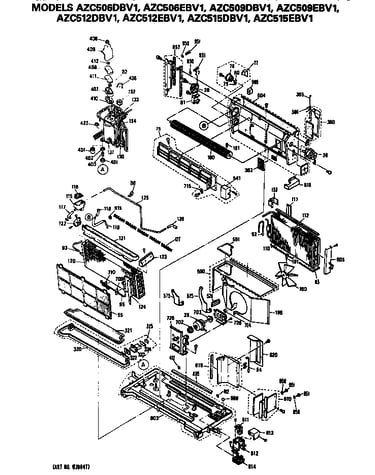

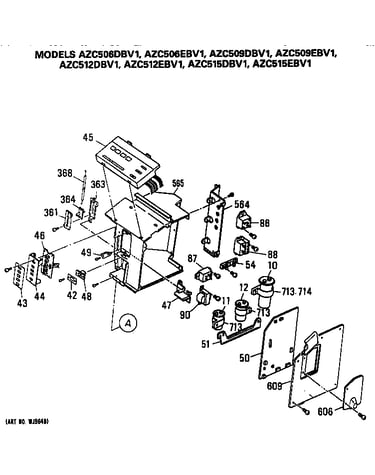

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forAZC506EBV1 Room Air Conditioner

  • Basepan Assembly for GE AZC506EBV1 - Part WP89X02

    #603

    All parts diagram

    Basepan Assembly

    Part #WP89X02

    The manufacturer no longer makes this part, and there's no substitute part

  • Mounting Plate Fan Motor for GE AZC506EBV1 - Part WP65X06

    #725

    All parts diagram

    Mounting Plate Fan Motor

    Part #WP65X06

    The manufacturer no longer makes this part, and there's no substitute part

  • Baffle for GE AZC506EBV1 - Part WP70X97

    #805

    All parts diagram

    Baffle

    Part #WP70X97

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor 370v 25 Mfd for GE AZC506EBV1 - Part WP20X02

    #10

    All parts diagram

    Capacitor 370v 25 Mfd

    Part #WP20X02

    The manufacturer no longer makes this part, and there's no substitute part

  • Drain Tube for GE AZC506EBV1 - Part WP40X02

    #117

    All parts diagram

    Drain Tube

    Part #WP40X02

    The manufacturer no longer makes this part, and there's no substitute part

  • Drain Guide for GE AZC506EBV1 - Part WP70X95

    #575

    All parts diagram

    Drain Guide

    Part #WP70X95

    The manufacturer no longer makes this part, and there's no substitute part

  • Comp Spri for GE AZC506EBV1 - Part WP2X26

    #400

    All parts diagram

    Comp Spri

    Part #WP2X26

    The manufacturer no longer makes this part, and there's no substitute part

  • Evaporator Cover for GE AZC506EBV1 - Part WP79X50

    #203

    All parts diagram

    Evaporator Cover

    Part #WP79X50

    The manufacturer no longer makes this part, and there's no substitute part

  • Clip for GE AZC506EBV1 - Part WP2X21

    #715

    All parts diagram

    Clip

    Part #WP2X21

    The manufacturer no longer makes this part, and there's no substitute part

  • Guard Damper for GE AZC506EBV1 - Part WP85X10

    #362

    All parts diagram

    Guard Damper

    Part #WP85X10

    The manufacturer no longer makes this part, and there's no substitute part
