GE
Built-In Microwave

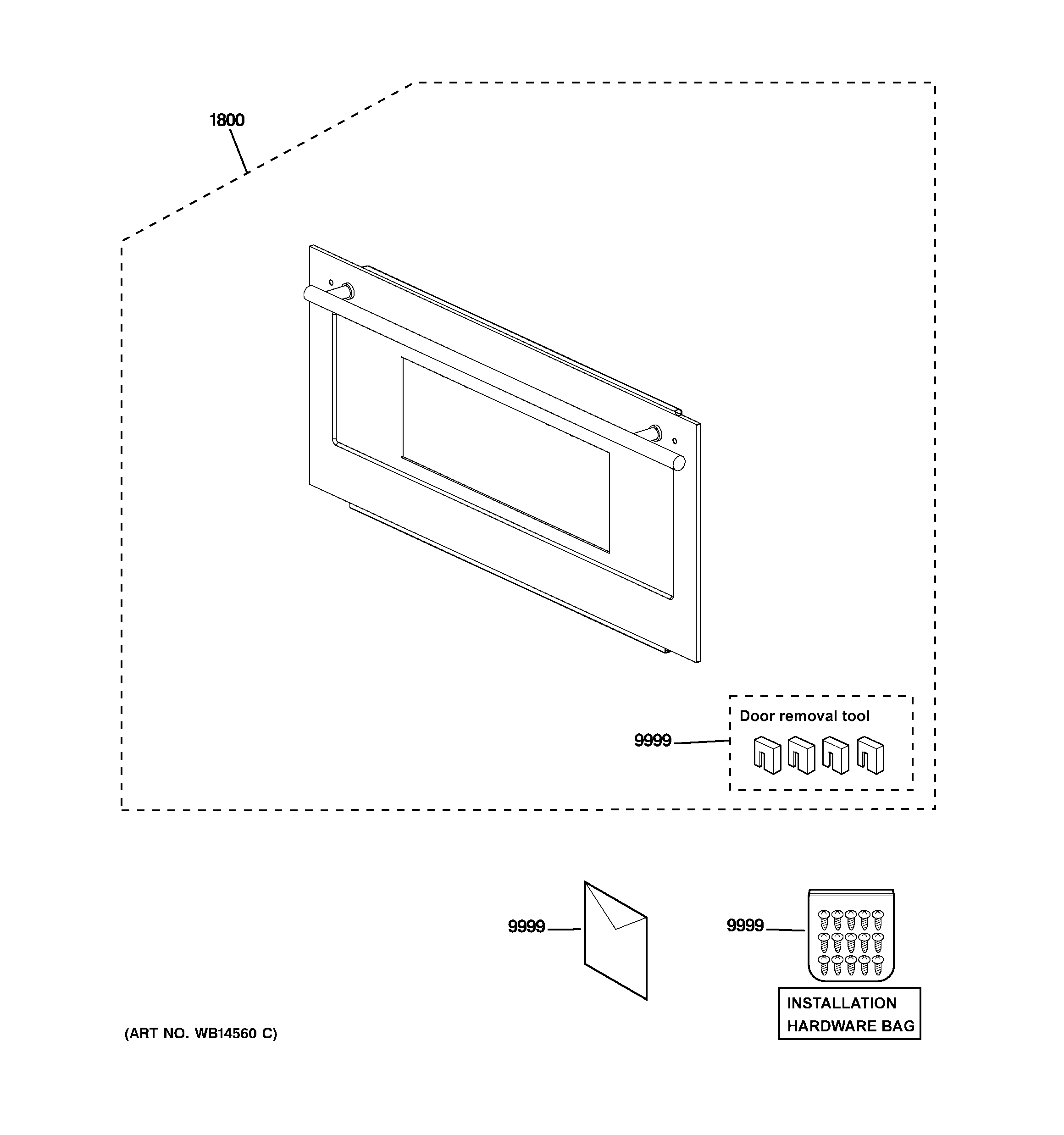

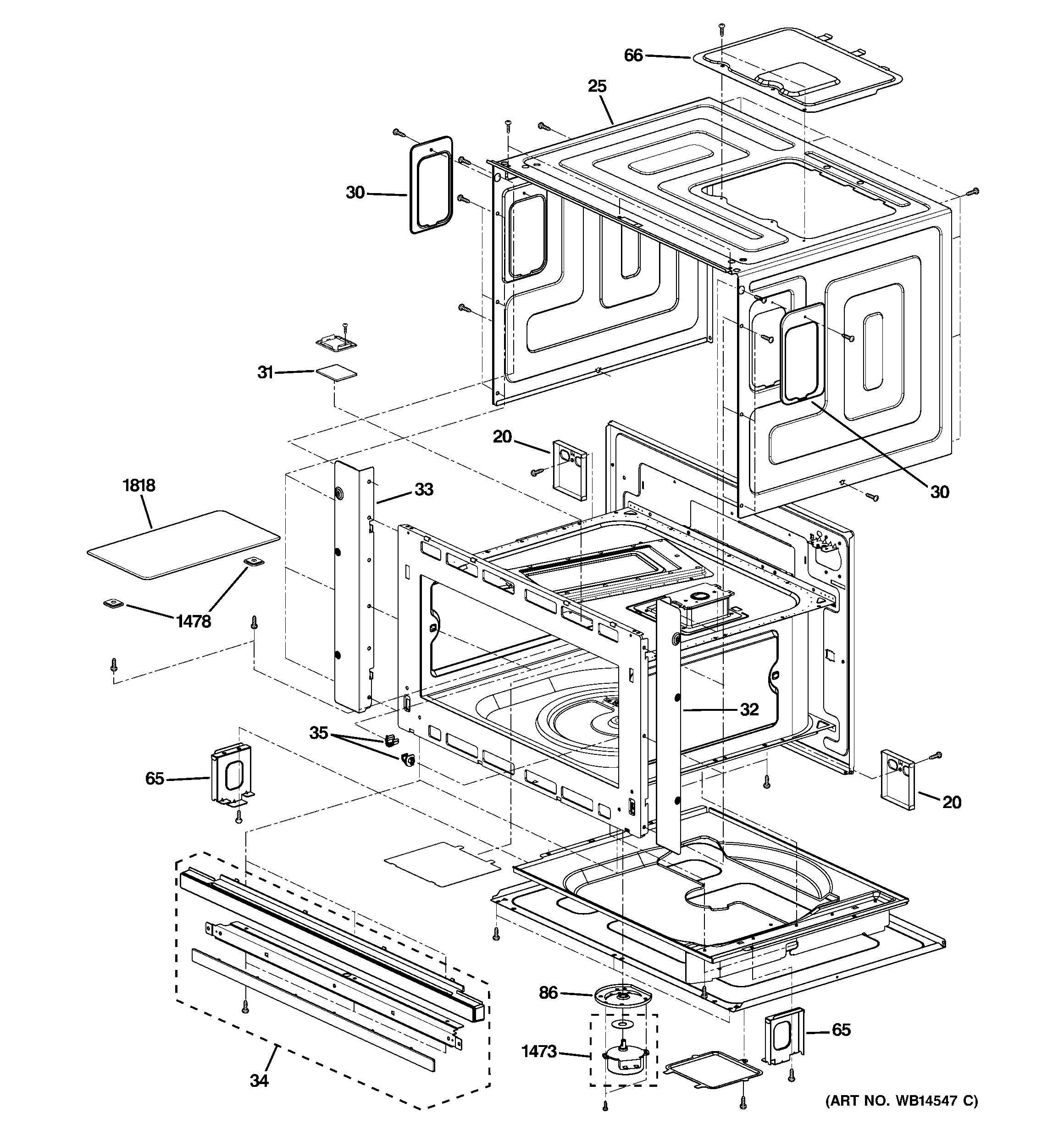

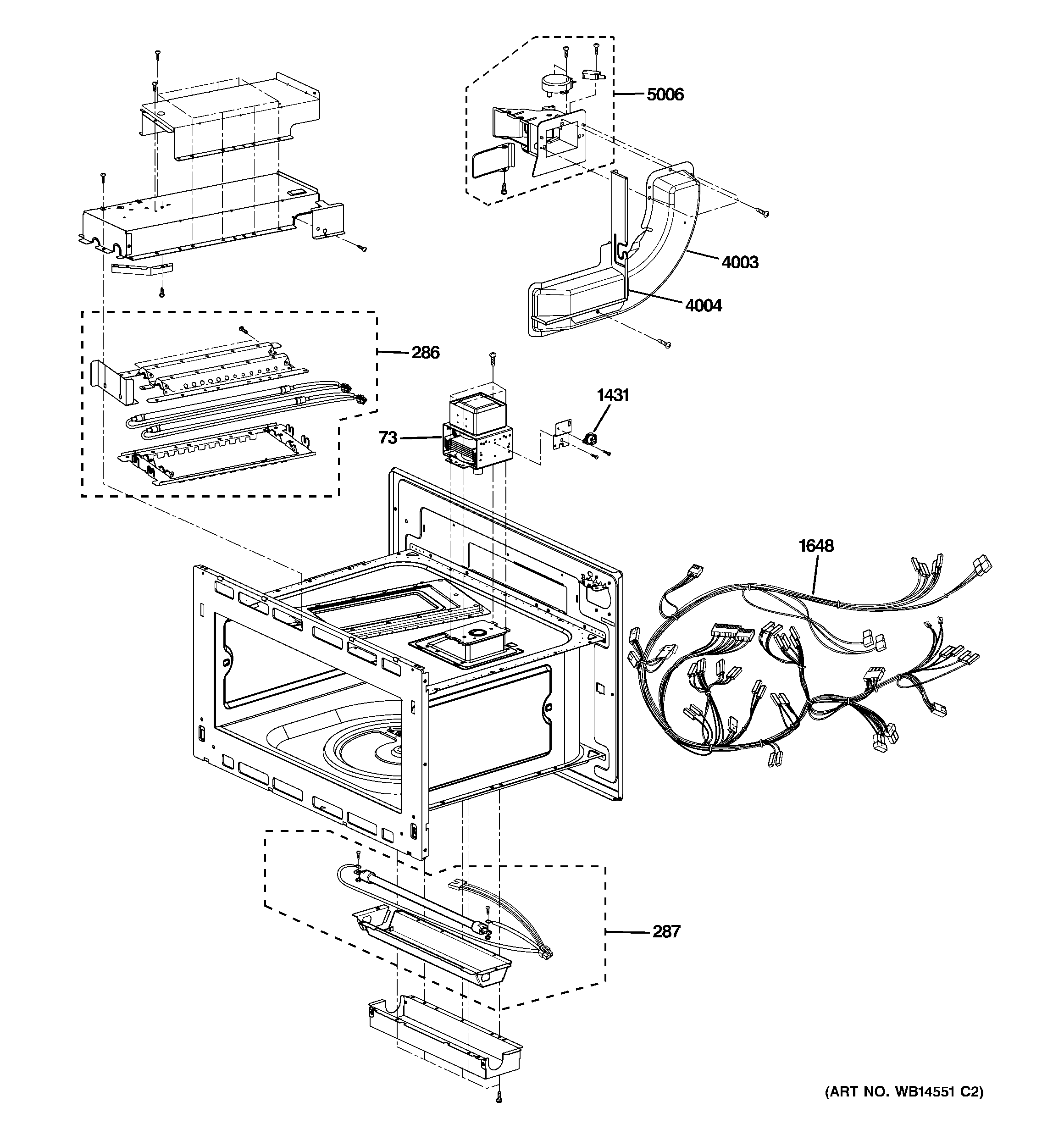

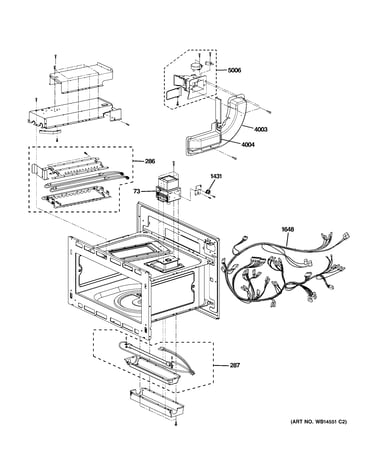

Model #ZSC2200NWW02 GE microwave

Here are the diagrams and repair parts for GE ZSC2200NWW02 microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 85 parts

    Microwave Halogen Light Bulb

    #282

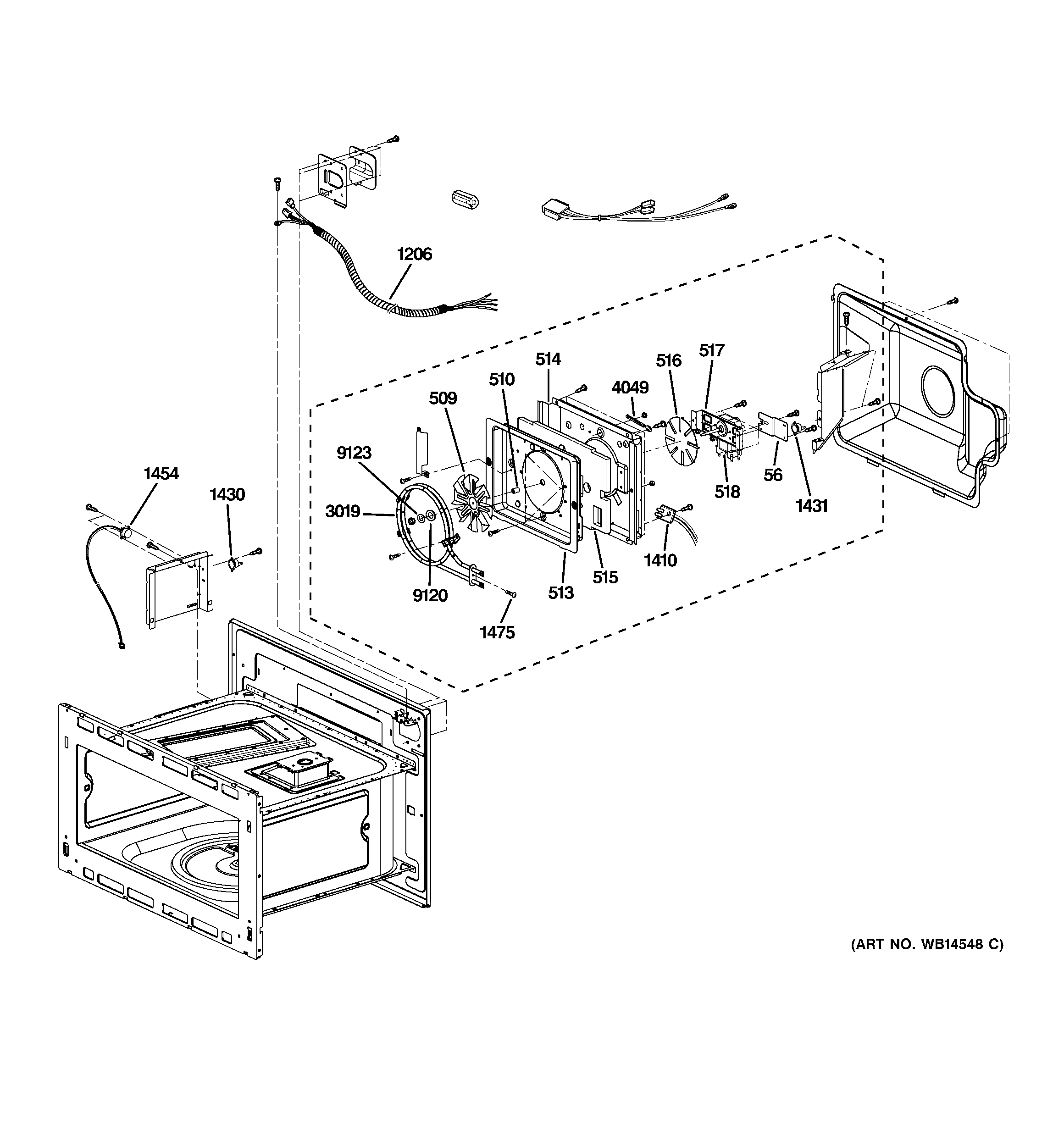

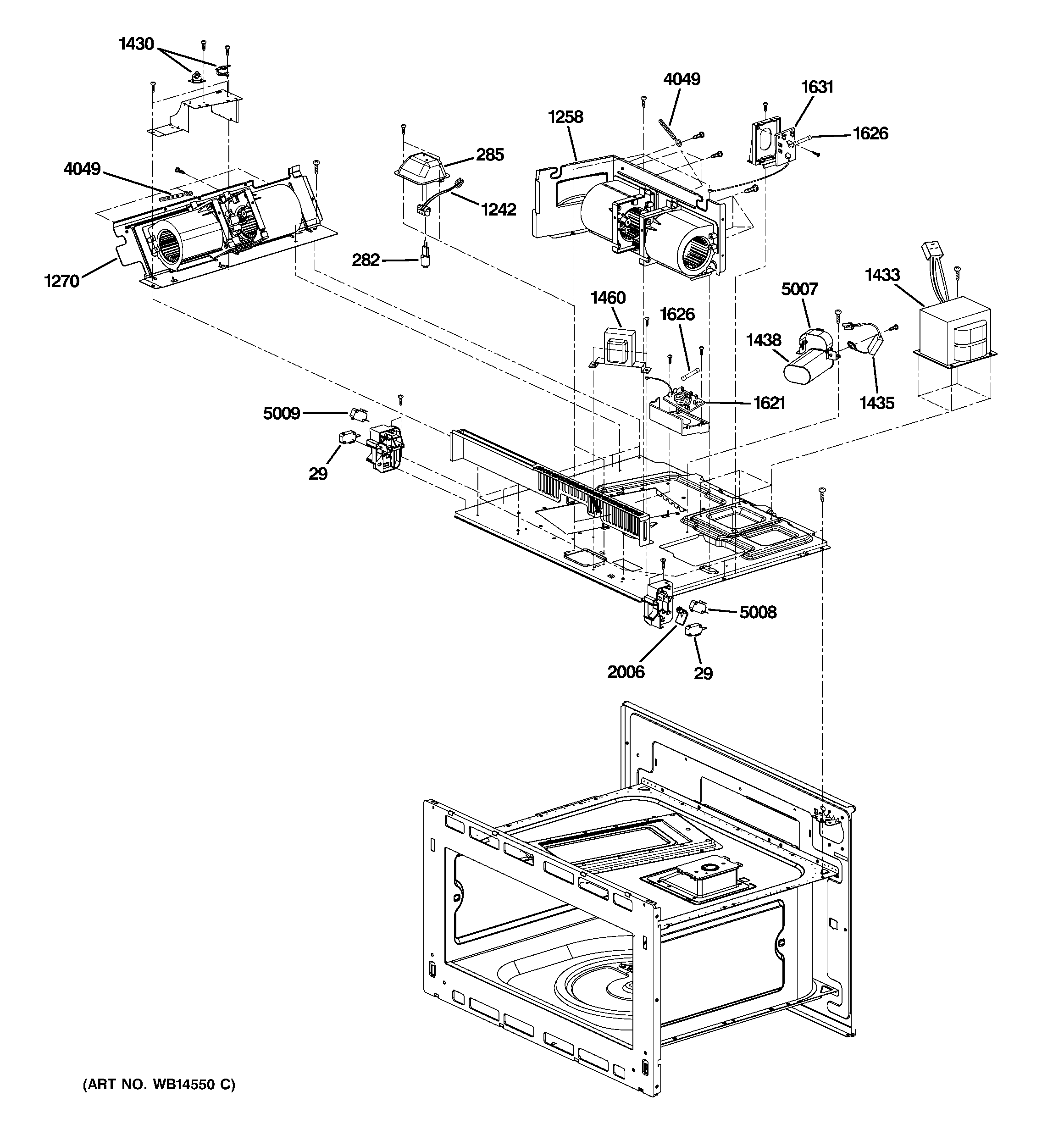

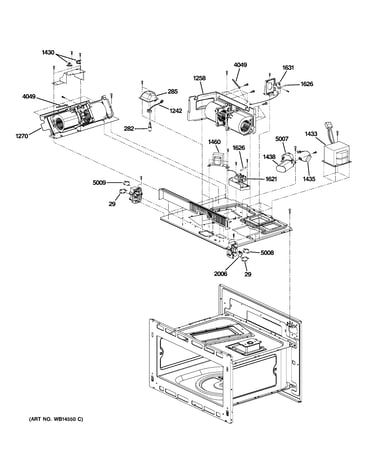

    Insulator parts (1) Diagram

    $9.04

    In Stock

    Microwave Glass Turntable Tray

    #1508

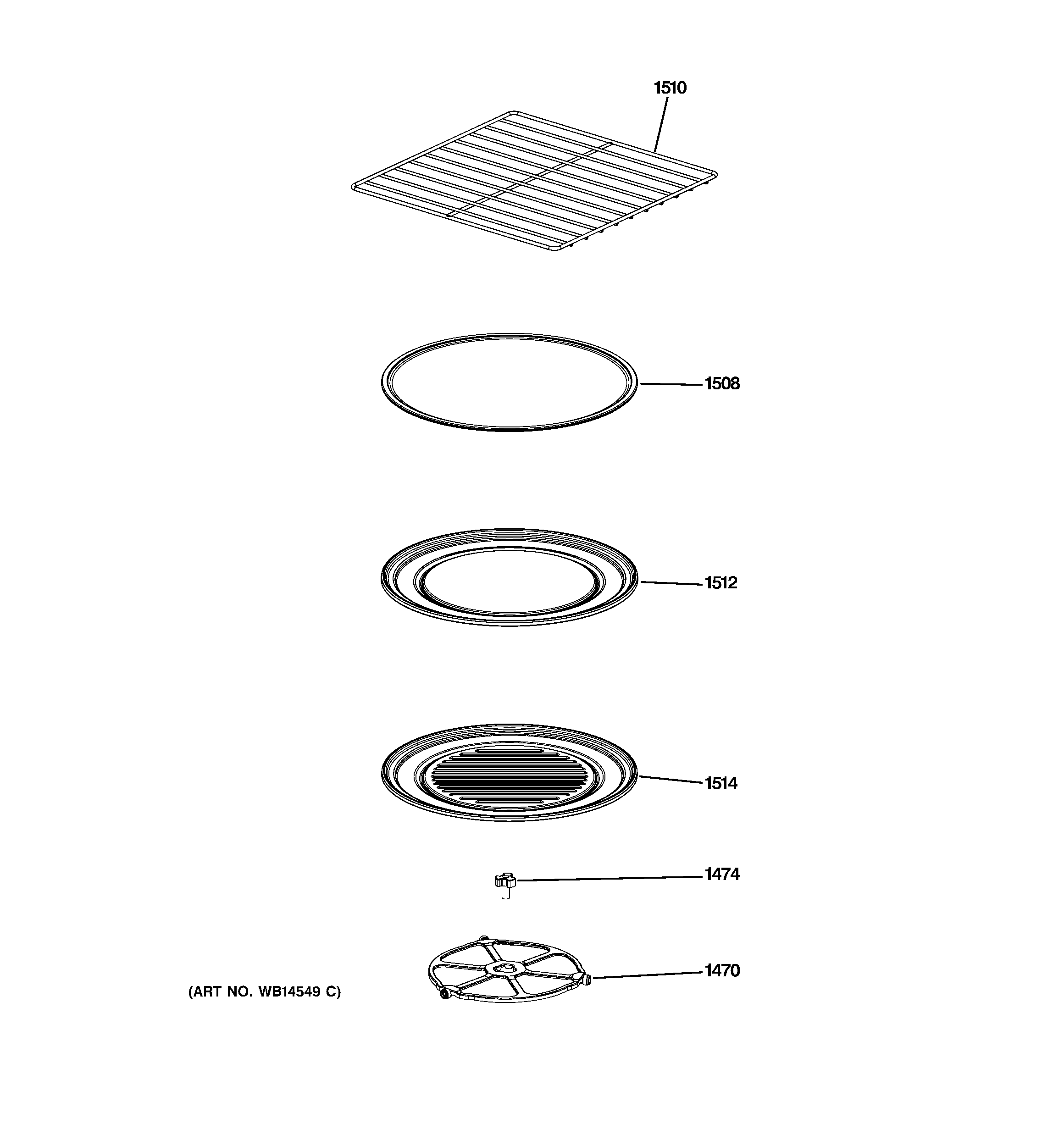

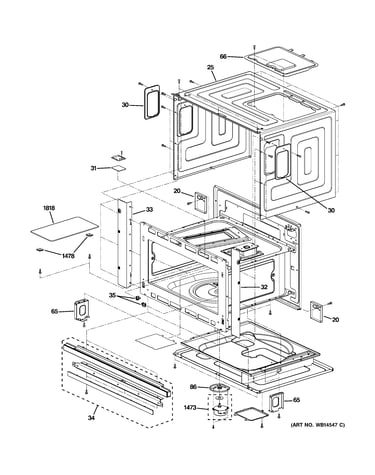

    Interior parts (2) Diagram

    $79.84

    In Stock

    Microwave Metal Rack

    #1510

    Interior parts (2) Diagram

    Microwave metal rack

    Part #WB49X10202
    $50.92

    In Stock

    Microwave Thermal Cut-Off

    #1430

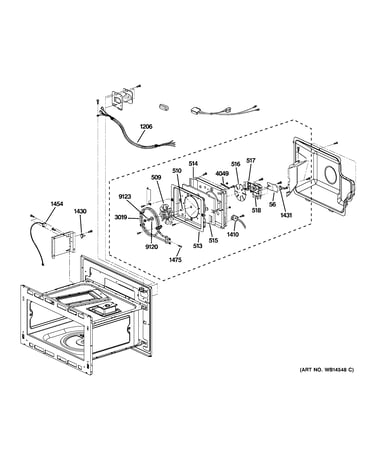

    Interior parts (1) Diagram

    Microwave thermal cut-off

    Part #WB21X10046
    $24.54

    In Stock

    Microwave Turntable Shaft

    #1474

    Interior parts (2) Diagram

    Microwave turntable shaft

    Part #WB02X11360
    $33.90

    In Stock

    Microwave Humidity Sensor

    #1454

    Interior parts (1) Diagram

    Microwave humidity sensor

    Part #WB27X10857
    $53.13

    In Stock

    Microwave Turntable Tray Support

    #1470

    Interior parts (2) Diagram

    $106.38

    In Stock

    Heater Sheath

    #3019

    Interior parts (1) Diagram

    Heater sheath

    Part #WB44X10050
    $76.43

    In Stock

    Micro-Switch

    #5009

    Insulator parts (1) Diagram

    Micro-switch

    Part #WB24X10172
    $12.99

    In Stock

    Relay Board

    #1652

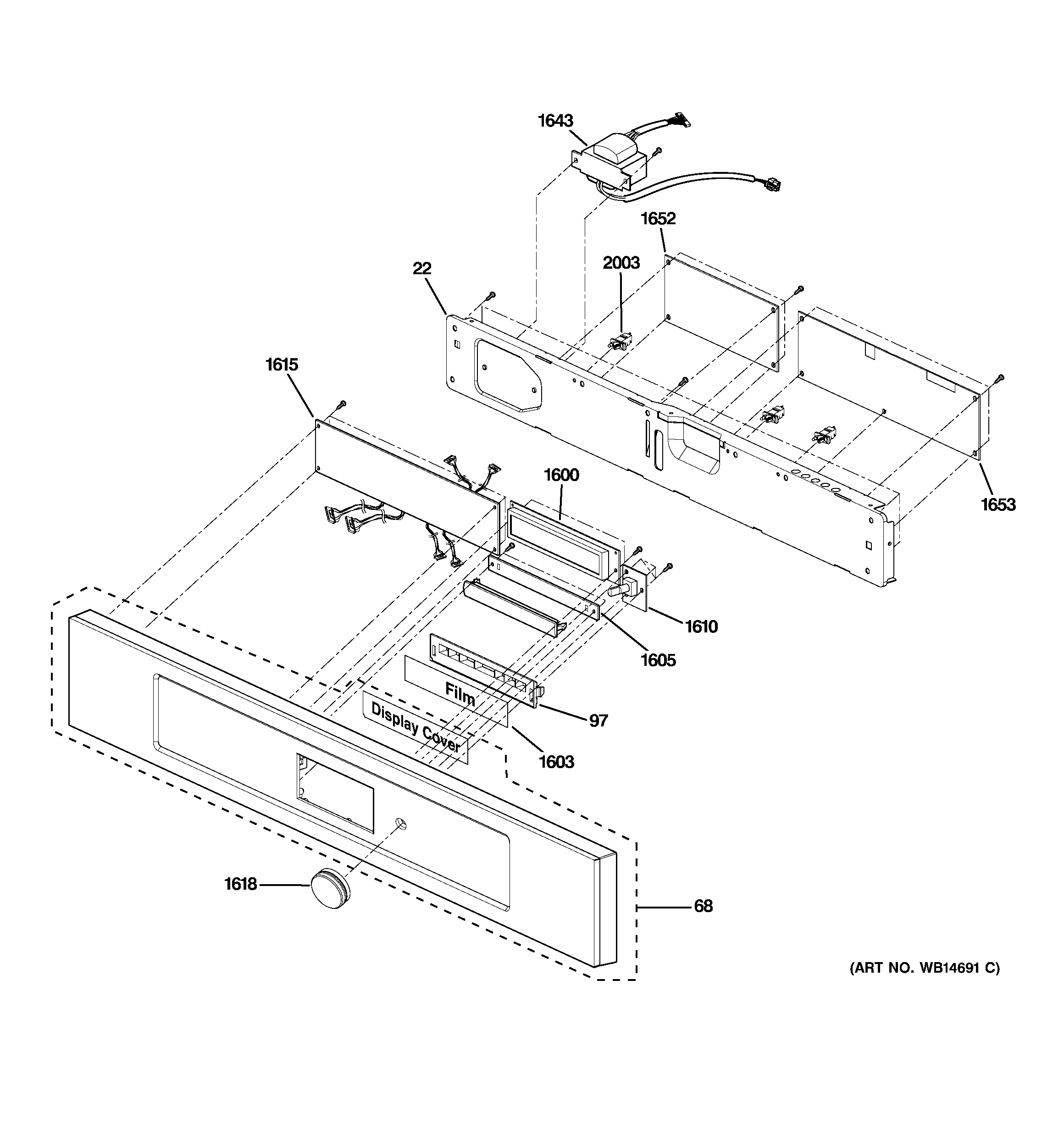

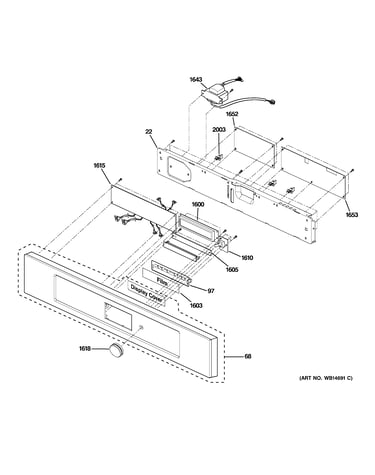

    Controller parts Diagram

    Relay board

    Part #WB27X11018
    $121.01

    In Stock
