Craftsman
Scroll Saw

Model #315216230 Craftsman 24" 2-speed scroll saw

Here are the diagrams and repair parts for Craftsman 315216230 24" 2-speed scroll saw, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

Showing 10 of 87 parts

Screw

#4

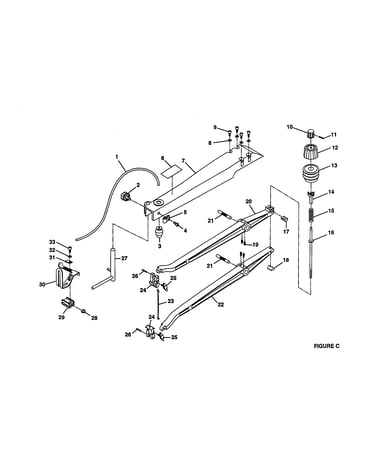

Figure c Diagram

Screw

Part #STD511003

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer, 5/16-in, 8-pack

#8

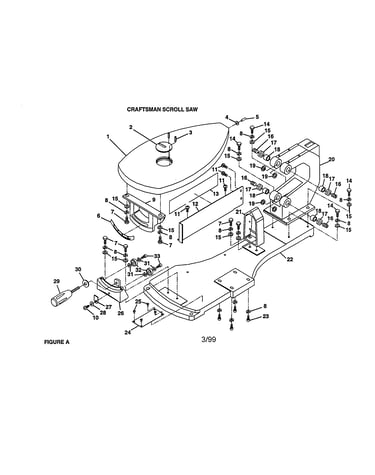

Craftsman scroll saw Diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt, 5/16-18 x 1-in, 5-pack

#14

Craftsman scroll saw Diagram

Hex head bolt, 5/16-18 x 1-in, 5-pack

Part #STD523110

The manufacturer no longer makes this part, and there's no substitute part

Hex Bolt

#15

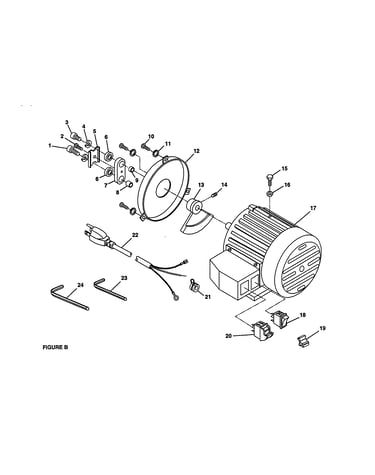

Figure b Diagram

Hex bolt

Part #STD522510

The manufacturer no longer makes this part, and there's no substitute part

Logo Label

#13

Craftsman scroll saw Diagram

Logo label

Part #977135001
?
Manufacturer substitution
This part replaces 977135-001. Substitute parts can look different from the original.
This part replaces 977135-001
This item is not returnable
$2.16

In Stock

Cap Screw

#7

Craftsman scroll saw Diagram

Cap screw

Part #STD523107
?
Manufacturer substitution
This part replaces STD523107. Substitute parts can look different from the original.
This part replaces STD523107
This item is not returnable
$2.49

In Stock

Flat Washer, 8-pack

#31

Craftsman scroll saw Diagram

Flat washer, 8-pack

Part #STD551025
?
Manufacturer substitution
This part replaces STD551025. Substitute parts can look different from the original.
This part replaces STD551025
This item is not returnable
$2.82

In Stock

Flat Washer, 8-pack

#15

Craftsman scroll saw Diagram

Flat washer, 8-pack

Part #STD551031
?
Manufacturer substitution
This part replaces STD551031. Substitute parts can look different from the original.
This part replaces STD551031
This item is not returnable
$3.04

In Stock

Bearing

#6

Figure b Diagram

Bearing

Part #977126-001

The manufacturer no longer makes this part, and there's no substitute part

LABEL-ANGL

#6

Craftsman scroll saw Diagram

Label-angl

Part #977131001
?
Manufacturer substitution
This part replaces 977131-001. Substitute parts can look different from the original.
This part replaces 977131-001
This item is not returnable
$2.16

In Stock
